M-LED Double Burner with strobe classic style Amber lens

The M-LED double-burner with warning light: classic elegance combined with modern functionality.

MobiLED developed the M-LED double-burner at request of oldschool purists. The characteristic and recognisable look of the halogen double-burner in a contemporary LED version, without making concessions to the well-known luminous pattern. By keeping the same mounting dimensions as the halogen version, it can be replaced one-to-one by the M-LED double-burner.
Moreover, this nostalgic design has been enhanced by an integrated strobe with 20 flash patterns. The chosen pattern can be synchronised or alternated between the lamps.

Of course, this double-burner is suitable for 10 to 30 volts. Replacement for Hella ref. 2BM 001 321-001.

Features:

• Dual functionality: a powerful double-burner and a bright warning light in one compact design. This saves space on the vehicle as well as in the warehouse.
• Classic look: classic duo-lamp design with the advantages of modern LED lighting.
• Maintenance-free: no hassle of replacing bulbs thanks to long-life LED technology. The housing is sealed off so the inside does not corrode.

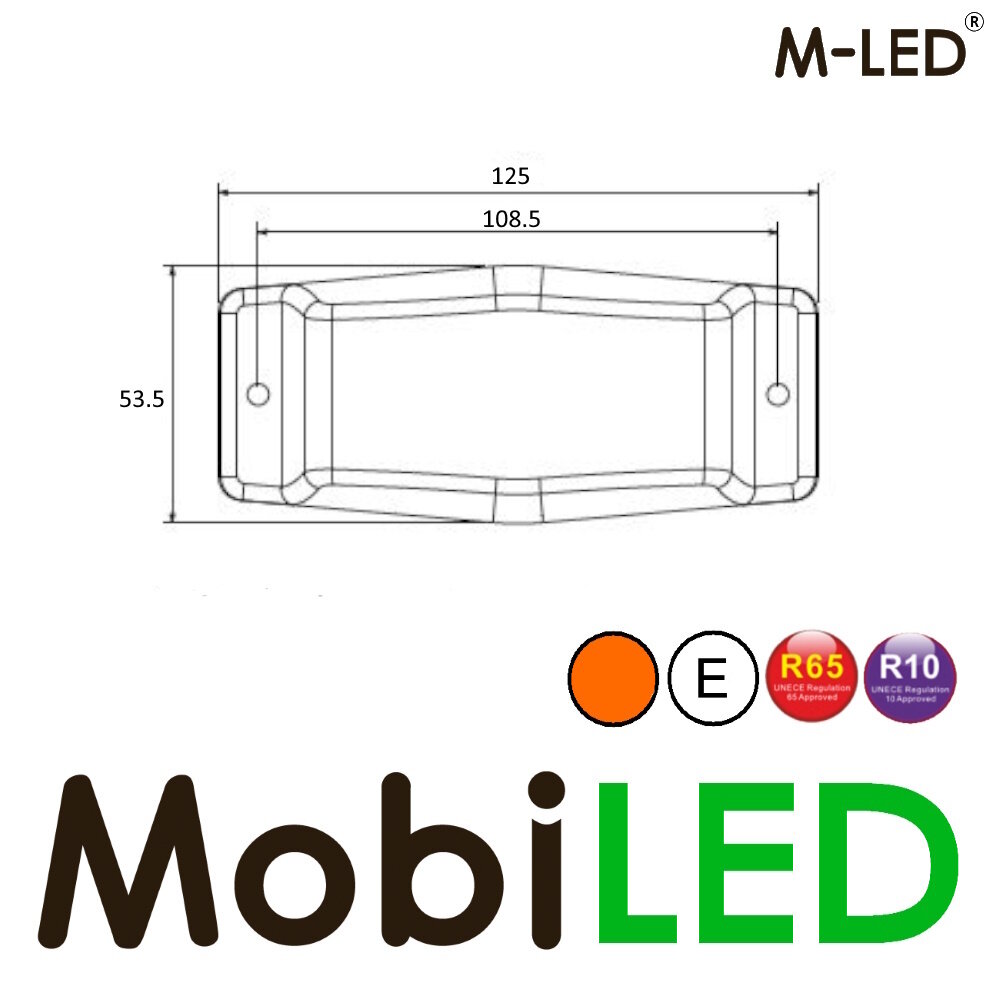

• Quick installation: thanks to the same dimensions as the old duo lights, the M-LED double-burner can be installed in a jiffy. Supplied with two metres of cable as standard.
• Fully certified: amber position light, strobe and radio interference suppression.

The M-LED double-burner is available in different versions. This is the version with a amber lens and amber position light.

Connection diagram:

• Black: mass
• Green: amber position light
• Red: warning light
• White: sync
• Yellow: pattern change
