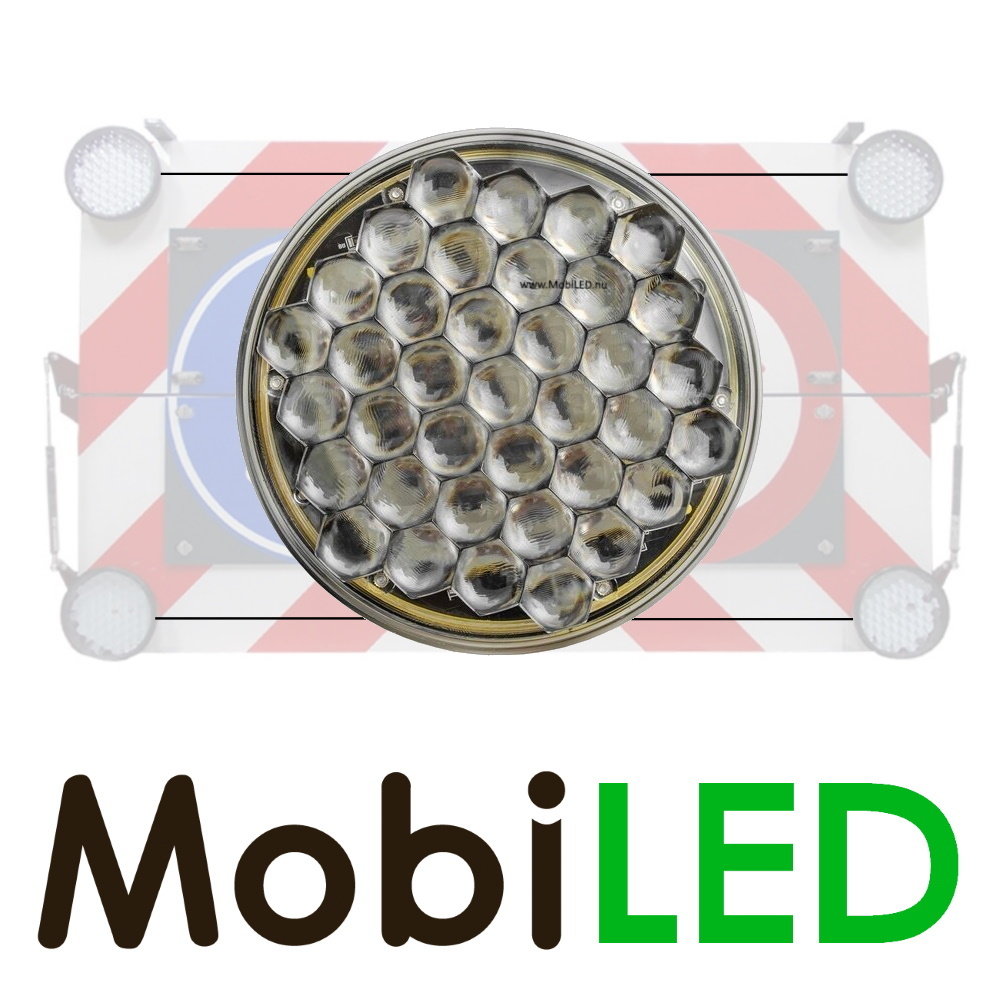

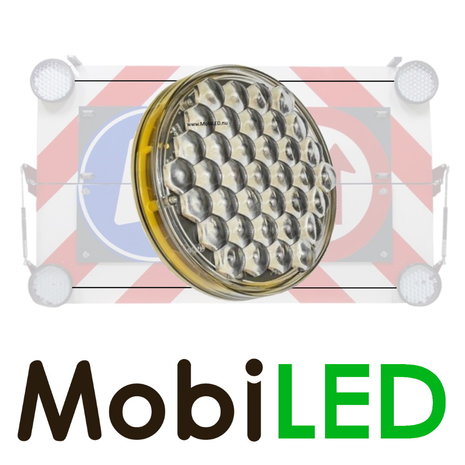

M-LED Flasher 150 mm 12-24 volts programmed for action window

The M-LED M150 flasher has pre-programmed patterns. The lamp can therefore be used without a control box. Principle is like that of a normal flasher. That is why there are no "master" or "slave" versions.
It is possible to link several M150 flashers so that a two by two pattern can still be made, as is customary with, among other things, mowing boards and action windows.
A high transparency of the parabolic prism lens guarantees a high light output that can be seen from a great distance. The lamp also has a low power consumption, so your batteries last longer.
The housing is flat, durable and solidly made. Mounting can be done along the back by means of 4 M4 tapped holes.
The M-LED M150 is multi-voltage and can be used from 10-30 volts. This lamp complies with EN12352 standard. Light intensity is Class F3.

Connection diagram:

• Black - mass (-)
• Red - plus (+)
• Yellow - sync. Lights that are connected together will flash the same pattern. Switching is done by holding the (joint) yellow wire against the plus (+) (+/- 1 sec)
• White - A-sync. by connecting the white wire or wires of the flashers to the plus (+), they will flash "alternatingly" or alternately with the other flashers.
• Green - by connecting green to the plus (+) the flashers will burn at 50% of the intensity. This can be done, for example, by using a light sensor.
