M-LED Flasher 200 mm (12-24 volts) programmed for action framework

M-LED M200 Flasher lamp amber

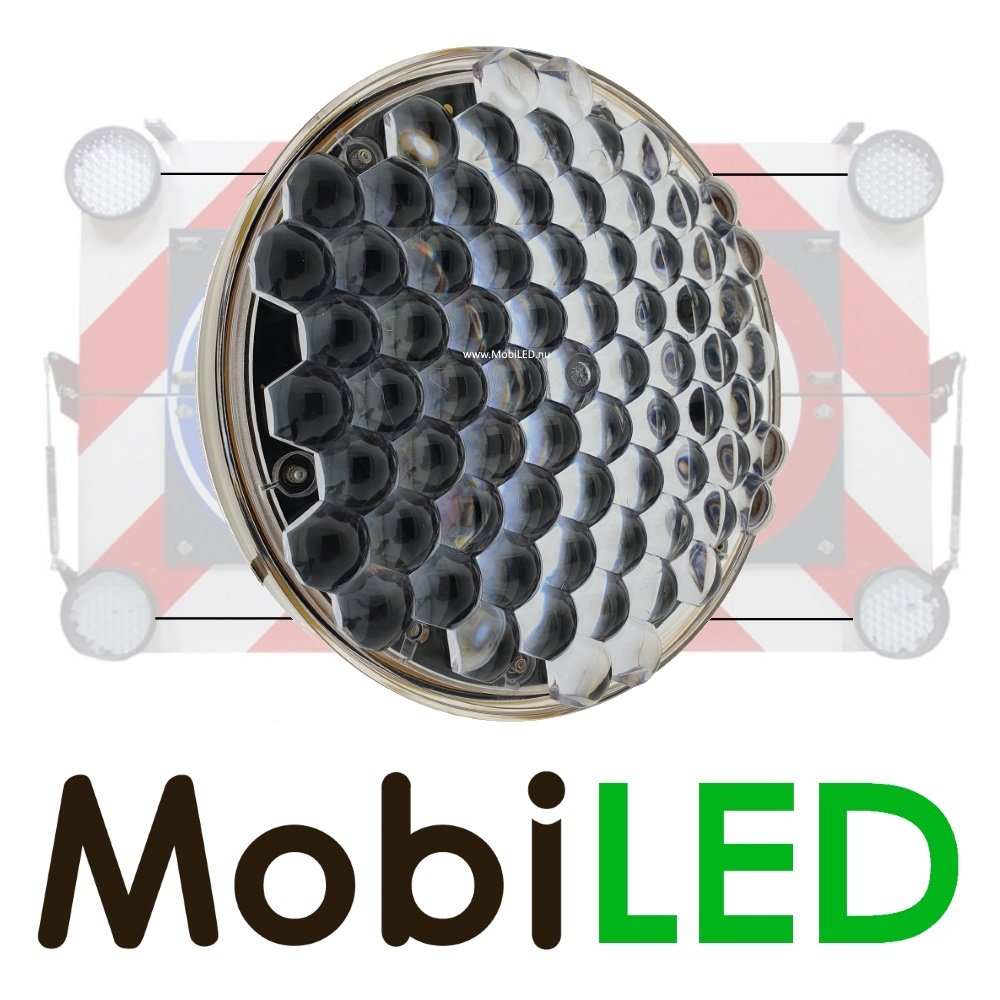

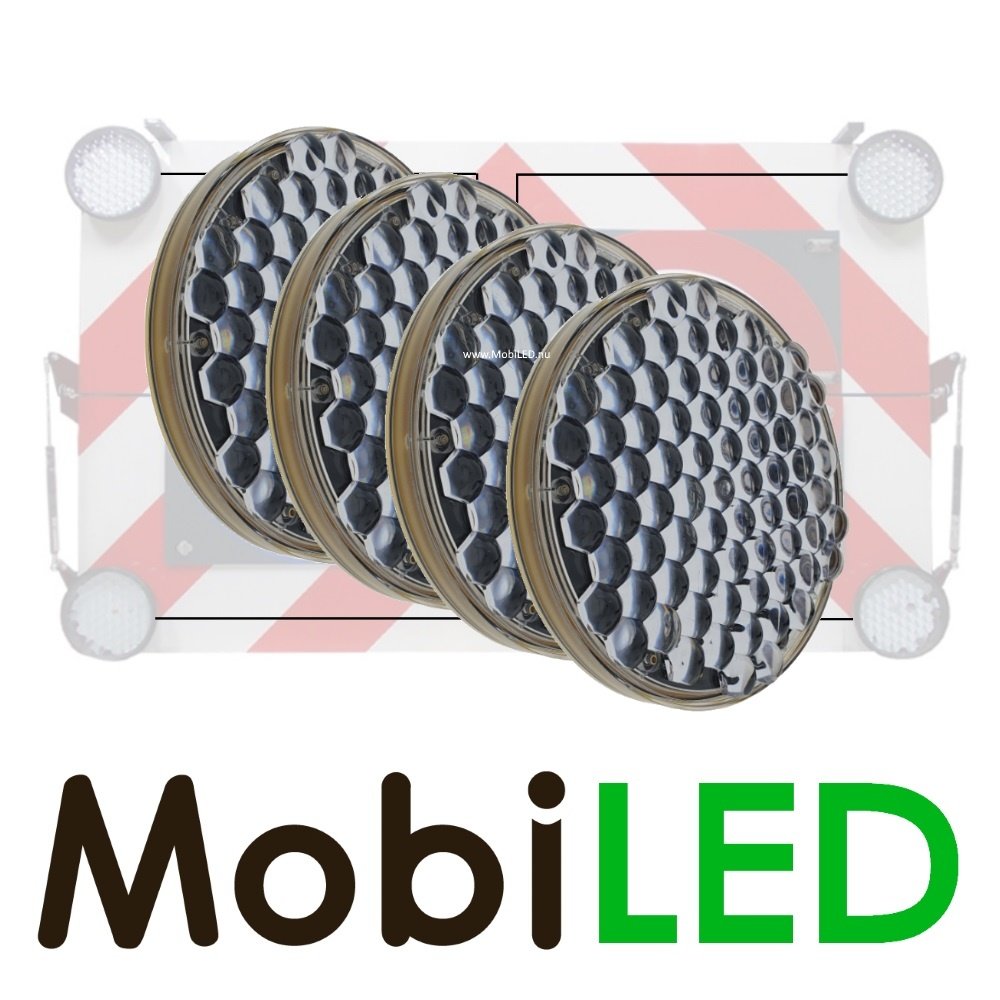

The M-LED M200 flasher has pre-programmed patterns. The lamp can therefore be used without a control box. Principle is like that of a normal flasher. So there are no "master" or "slave" versions. It is possible to link several M200 flashers so that a two-by-two pattern can still be made, as is common with mowing boards and action windows, among other things.

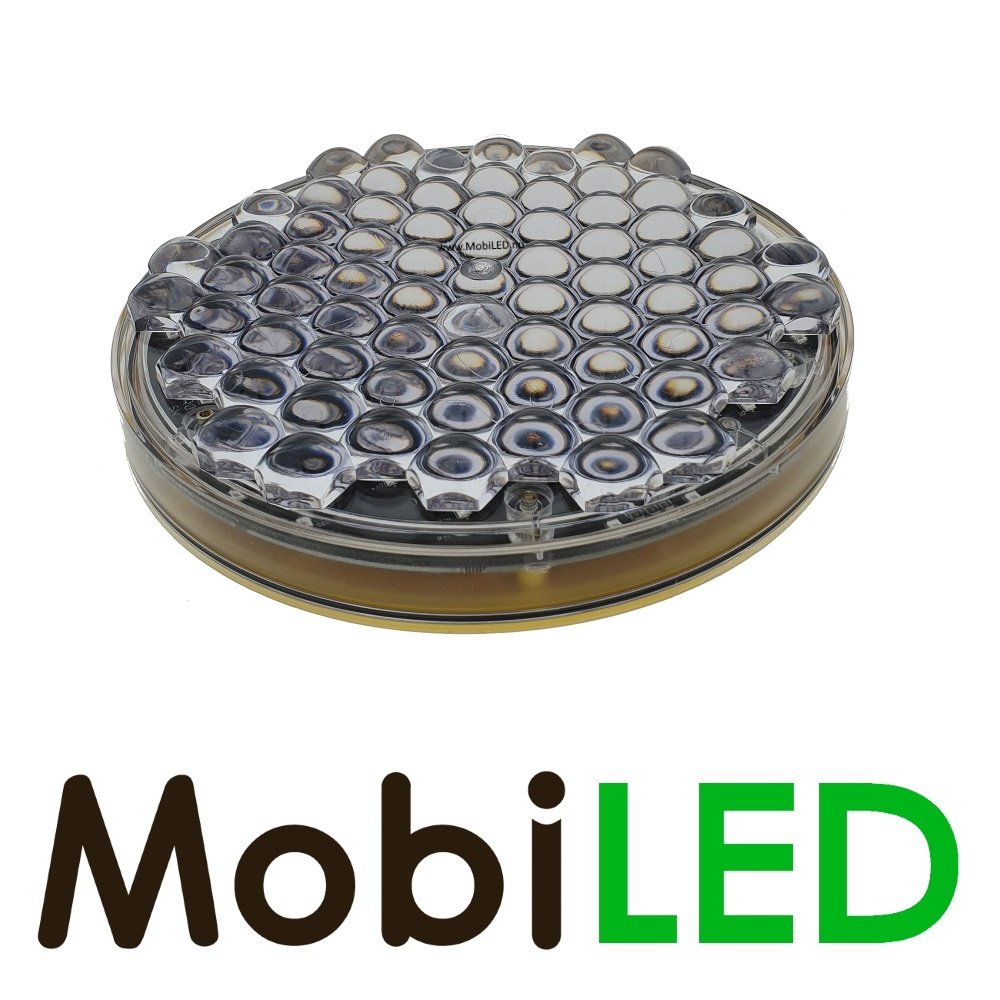

A high transparency of the parabolic prism lens guarantees a high light output that can be seen from a great distance. The lamp also has a low power consumption so that your batteries last longer. The housing is made flat, durable and solid.

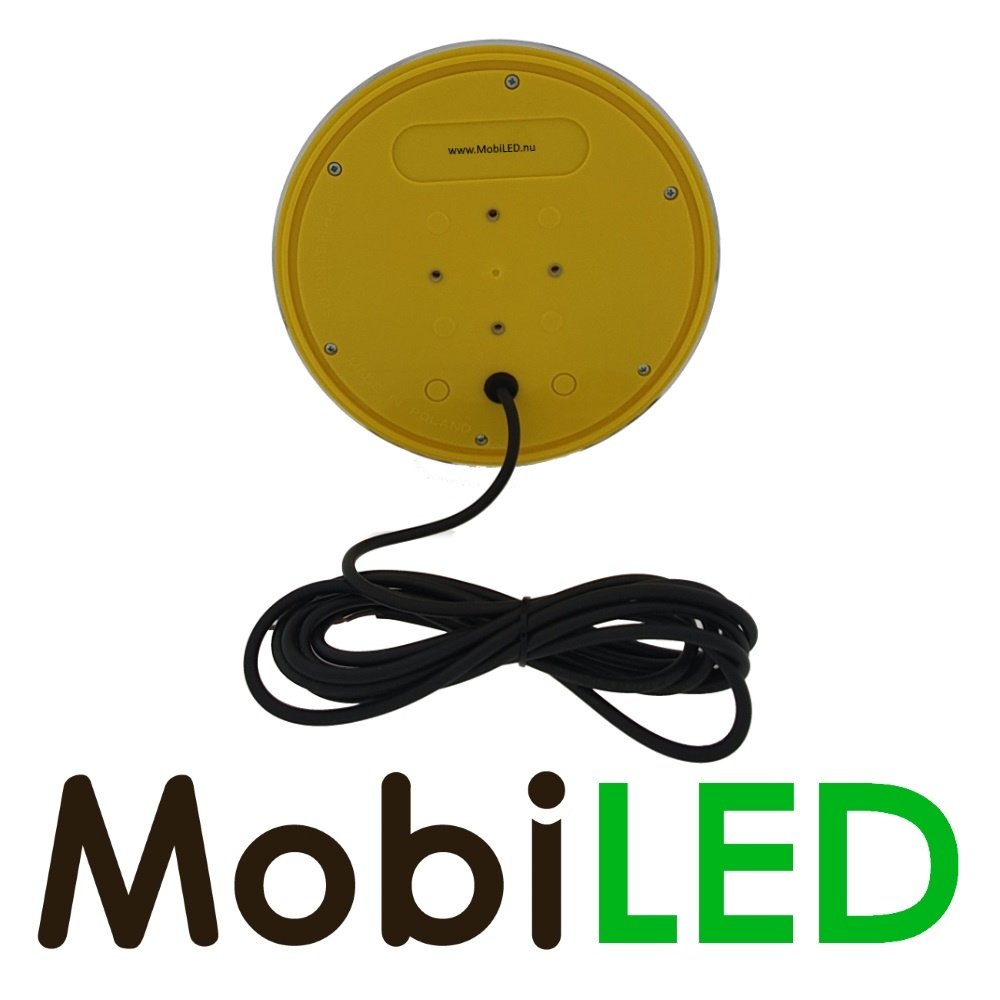

Mounting is possible from the back by means of 4 tapped holes M4. The M-LED M200 is multi-voltage and can be used from 10-30 volts. This lamp complies with EN12352 standard.
The lamp is also available without program and can then be used in combination with a control box.

Note:

• Programmed and unprogrammed lamps cannot be linked!

Specifications:

• Type of lamp: pre-programmed

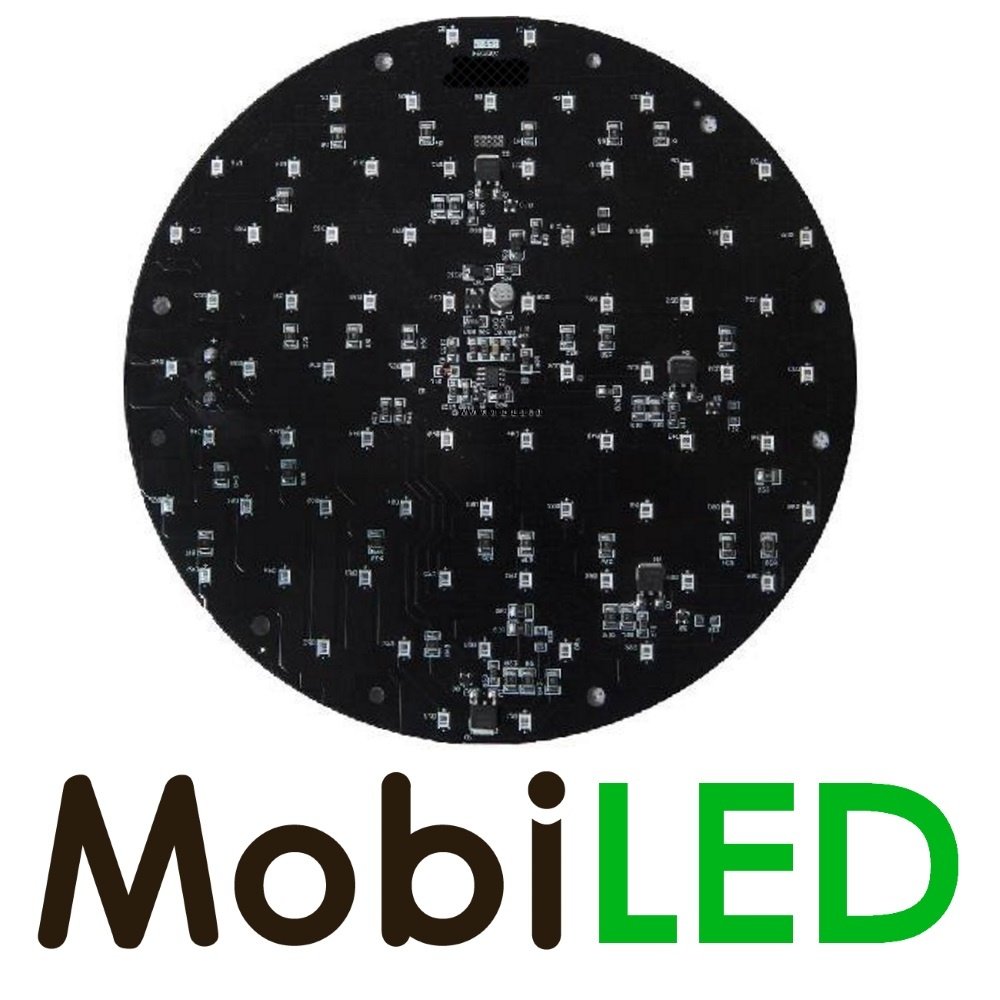

• Number of LEDs: 72
• Dimensions: 200 x 40 mm
• Voltage: 10-30 VDC
• Amperage: 1.4 A

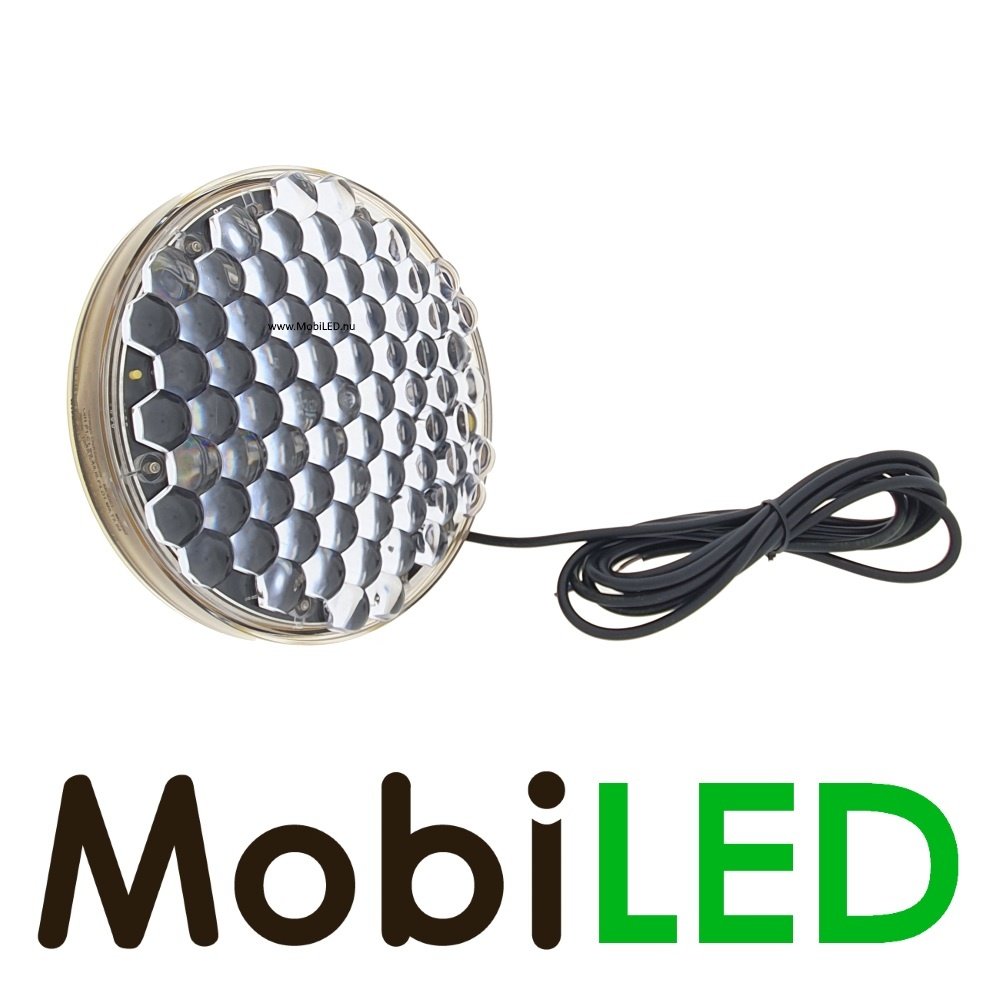

• Cable length: 2 m
• Certification: EN12352, class L2H
• Continuity of emitted light: class F3

Connection diagram:

• Black = mass (-)
• Red = plus (+)
• Yellow = synchronization. Lamps connected to each other will flash in the same pattern. Switching is done by holding the (joint) yellow wire(s) against the plus (+) (± 1 sec)
• White = a-synchronization. By connecting the white wire or wires of the flashers to the plus (+) they will flash "alternately", i.e., alternately, from the other flashers.
• Green = By connecting green to the plus(+) the flashers will light up at 50% of the intensity. This can be done, for example, by using a light sensor.
