M-LED Flasher 300 mm 12-24 volts programmed for action window

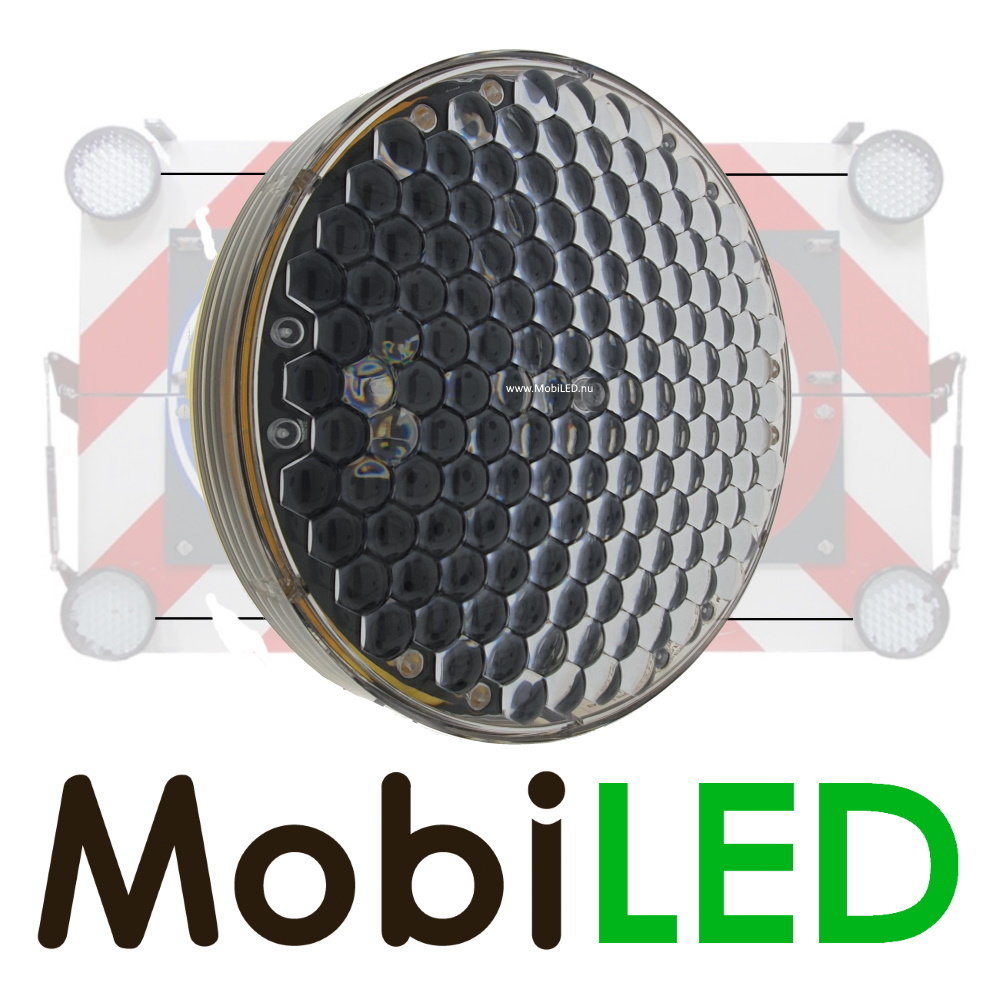

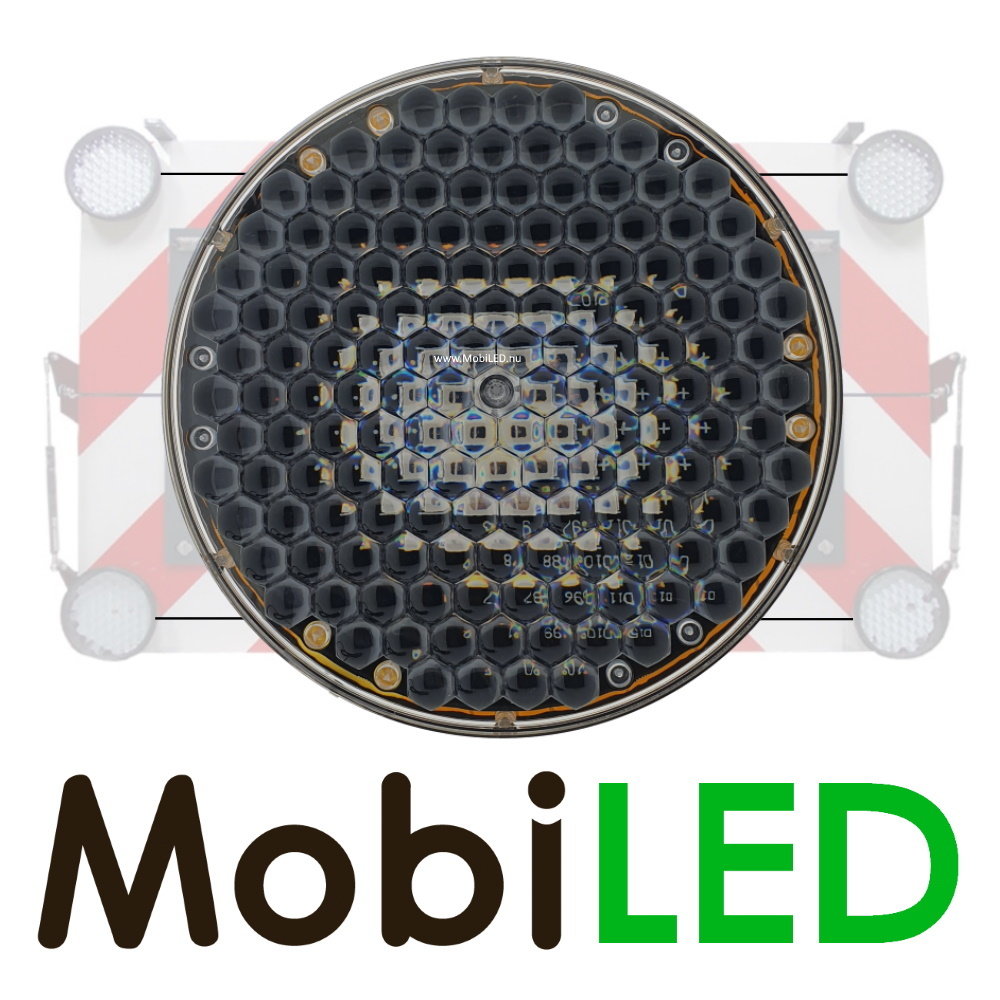

M-LED M300 Flasher amber

The M-LED M300 flasher has pre-programmed patterns. The lamp can therefore be used without a control box. The principle is like that of a normal flasher. So there are no "master" or "slave" versions. It is possible to link several M300 flashers so that a two-by-two pattern can be made, as is common with headers and action windows, among other things.
A high transparency of the parabolic prism lens guarantees a high light output that can be seen from a great distance. The lamp also has a low power consumption so that your batteries last longer. The housing is made flat, durable and solid. Mounting is possible from the back by means of 4 tapped holes M4.
The M-LED M300 is multivoltage and can be used from 10-30 volts.
The lamp complies with EN12352 standard.
This lamp is also available without program and can then be used in combination with a control box.

Note:

• Programmed and unprogrammed lamps cannot be linked

Specifications:

• Type of lamp: preprogrammed flasher
• Number of LEDs: 142
• Dimensions: 330 x 70 mm
• Current: 2.4 A
• Voltage: 10-30 VDC
• Cable length: 2 m
• Certification: EN12352 Class L2H
• Type approval lighting: Class F3

Connection diagram:

• Black = mass (-)
• Red = plus (+)
• Yellow = synchronization. Lamps connected to each other will flash in the same pattern. Switching is done by holding the (joint) yellow wire against the plus (+) (± 1 sec)
• White = asynchronization. By connecting the white wire or wires of the flashers to the plus (+) they will flash alternately from the other flashers
• Green = by connecting green with the plus(+) the flashers will light up at 50% of the intensity. This can be done, for example, by using a light sensor
