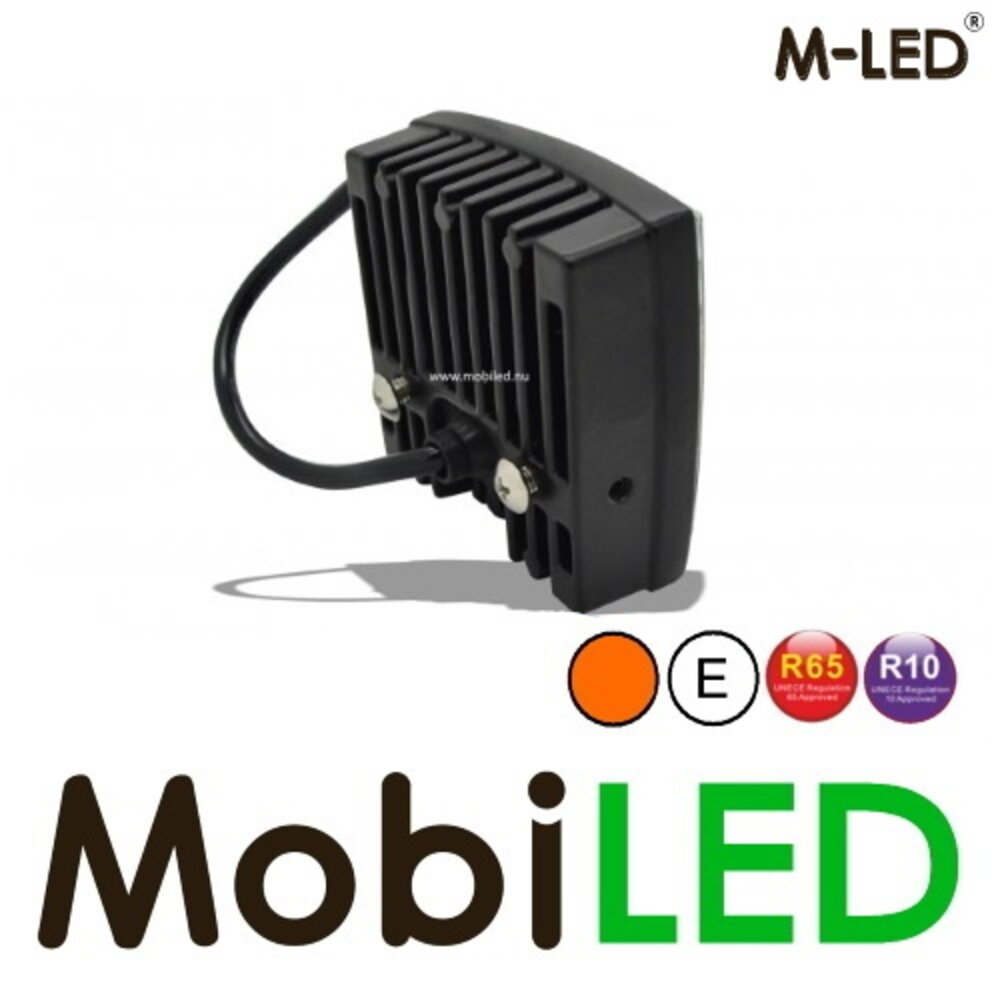

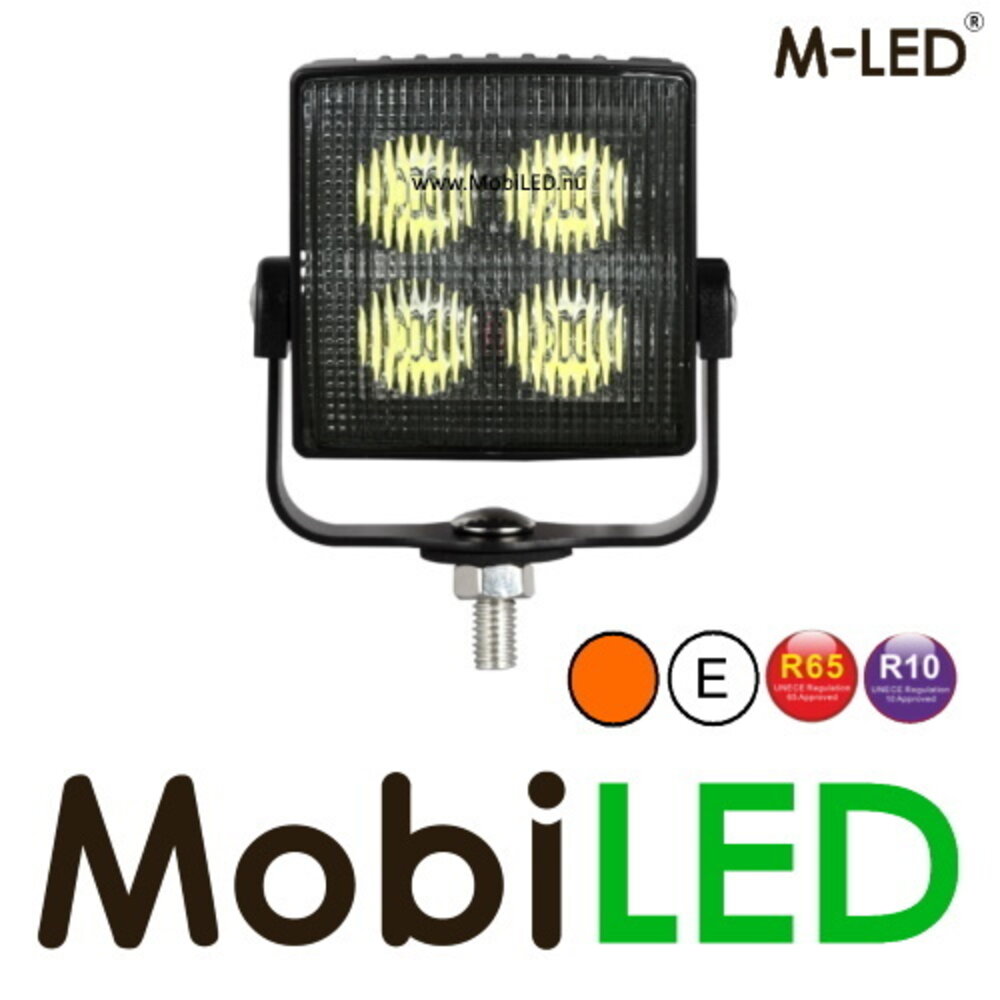

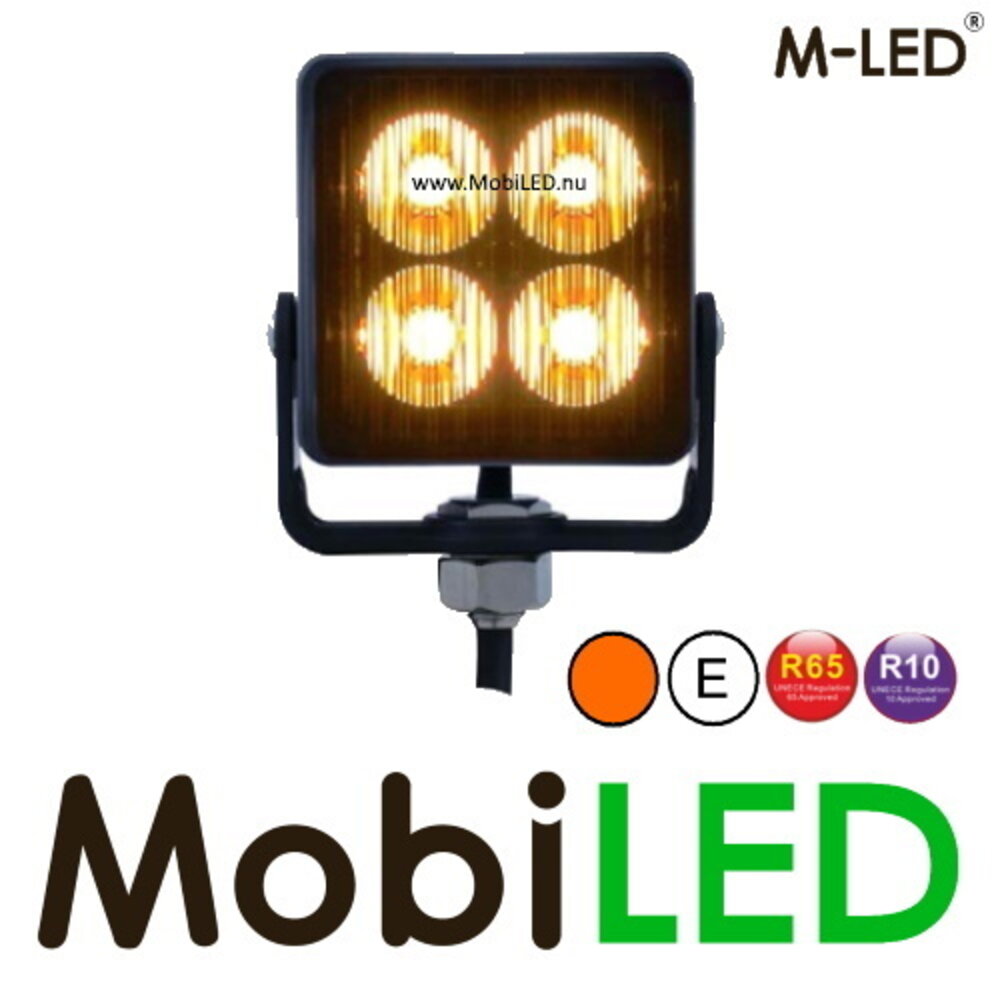

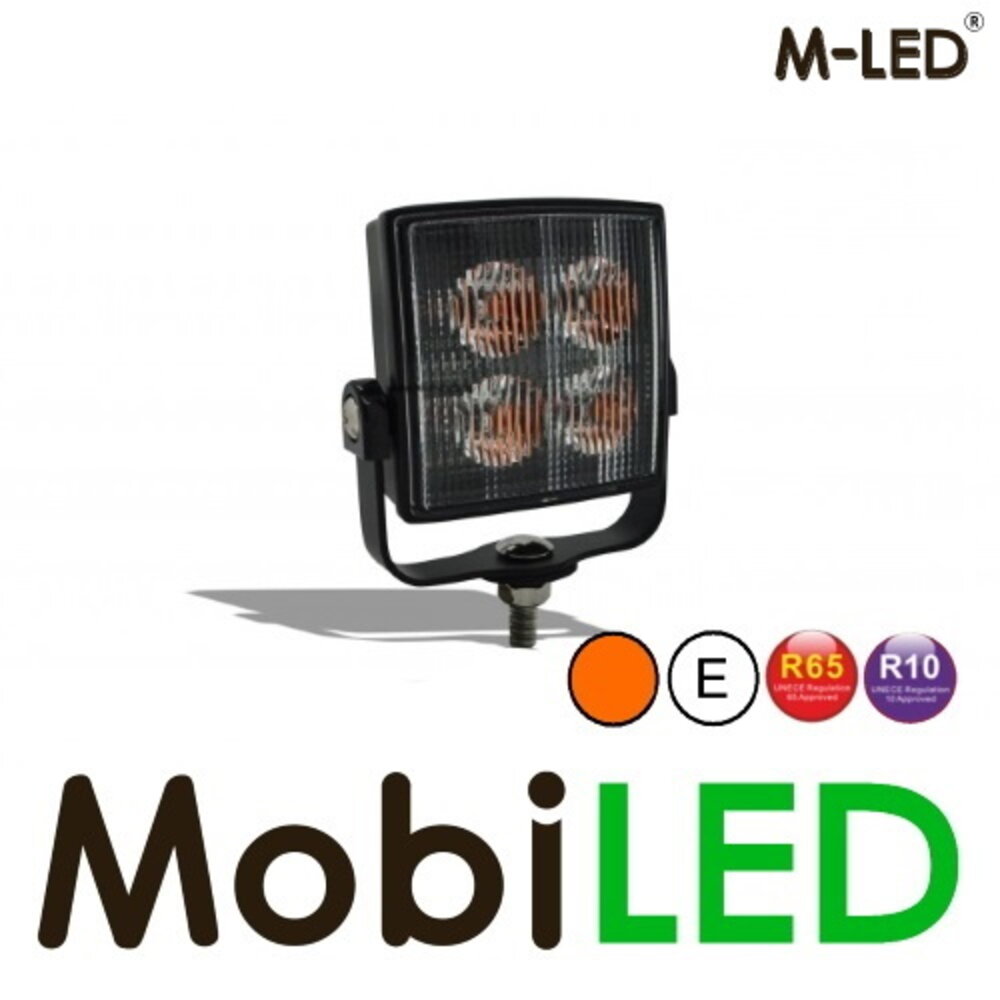

M-LED Flasher adjustable 4 LEDs

This flash is on a support that you can adjust. The wire passes through the mounting bolt. The flash can also be mounted on the back with M6 bolts. In this way, this flash fits perfectly on the grill or, for example, the roof edge of your vehicle. A flash with possibilities. ECE R10 R65 certification and 23 different cartridges.

Specifications:

• 9-30 Vdc 4x3watt

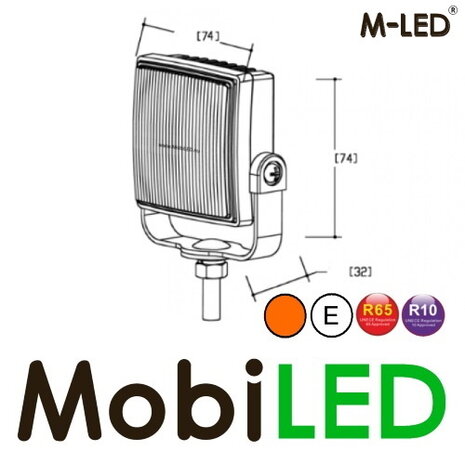

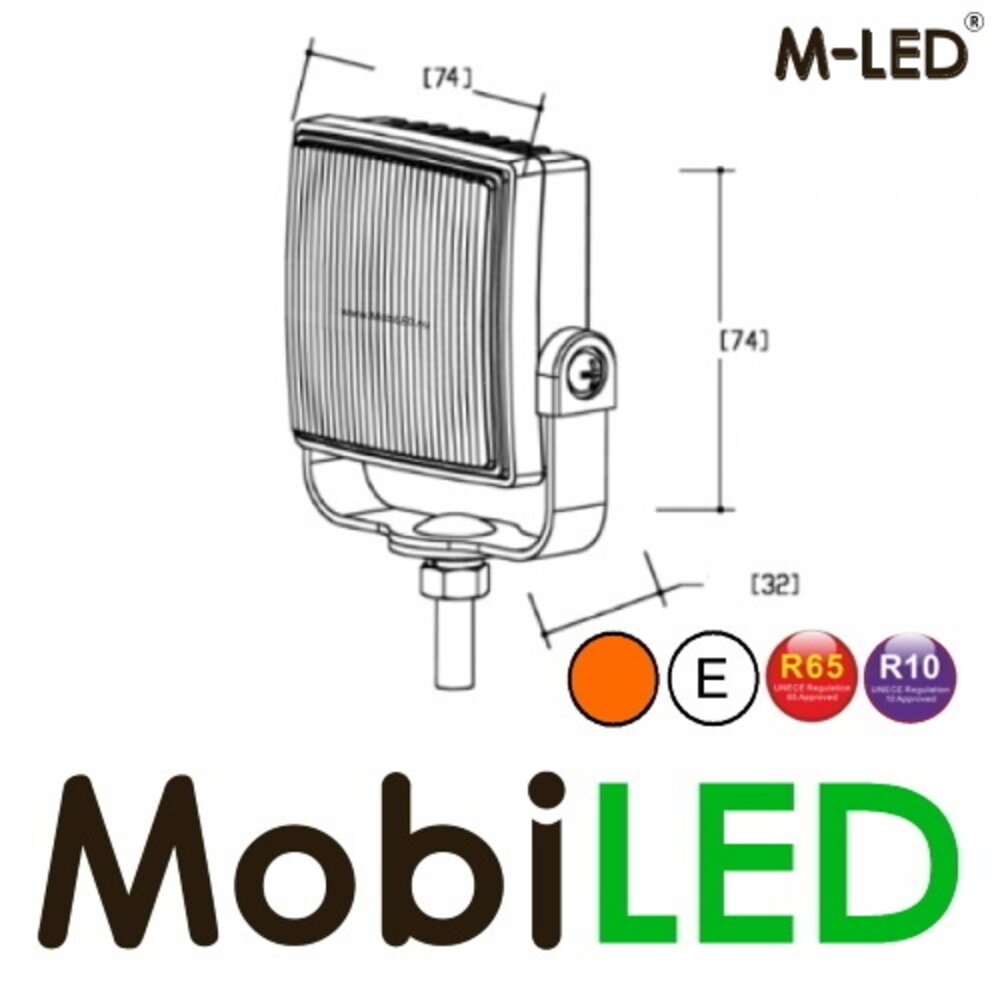

• Dimensions: 100 x 80 x 35mm total (78 x 75 x 32mm flash)
• Center to center distance of rear mounting: 42mm
• IP67 Aluminum housing
• Cable: 35 cm.

Connection diagram:

• Black-min / mass
• Red-plus
• White, sync (put all wires together)
• Yellow, pattern selection (hold yellow close to min / mass to change patterns)
