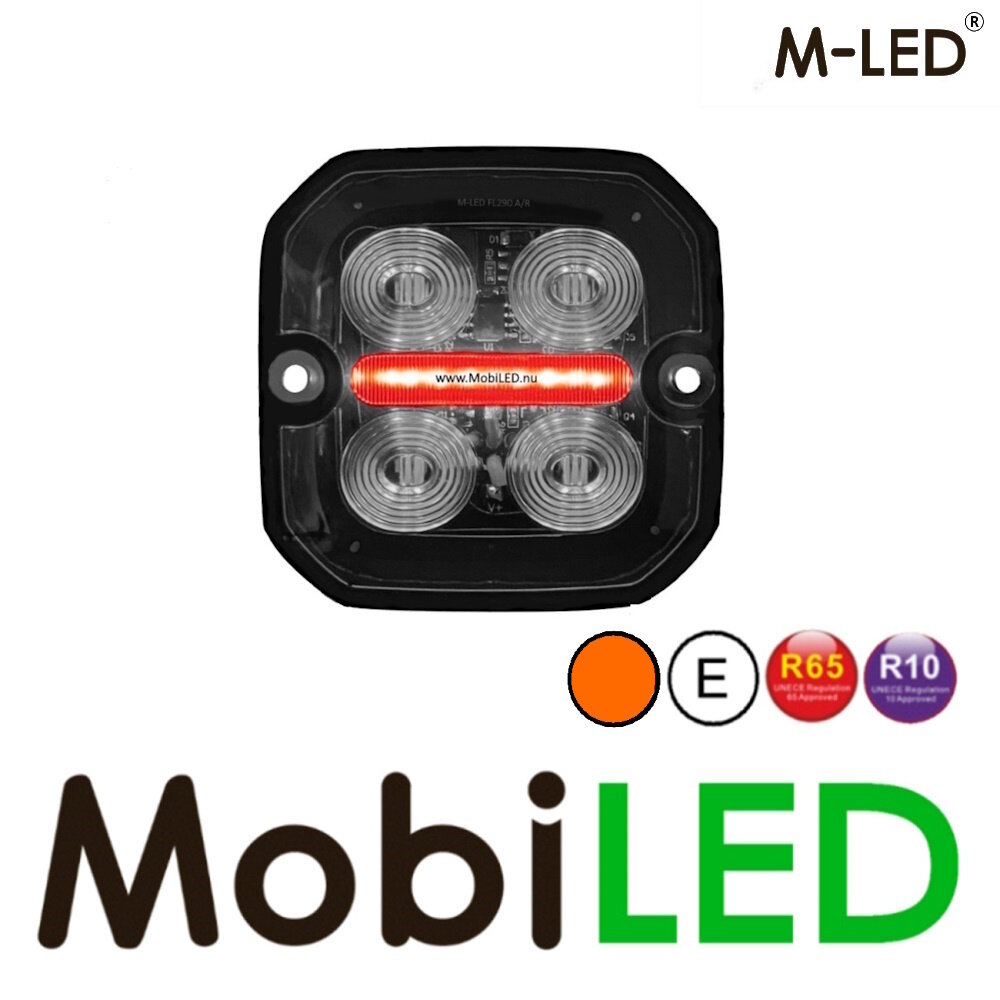

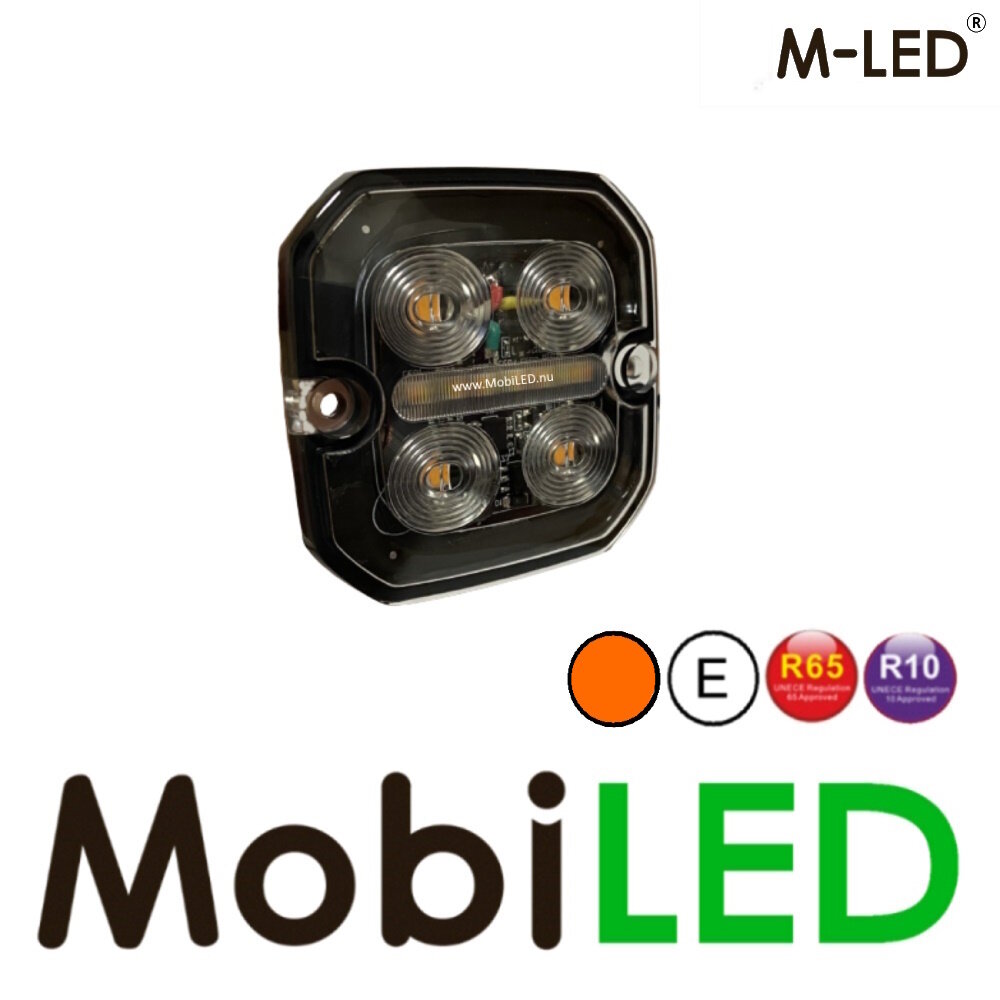

M-LED Flasher amber with position light red/white E-mark

Small flasher with particularly strong LEDs for extra light. This lamp flashes amber color, with 4 LEDs. There are 20 flash patterns to choose from.

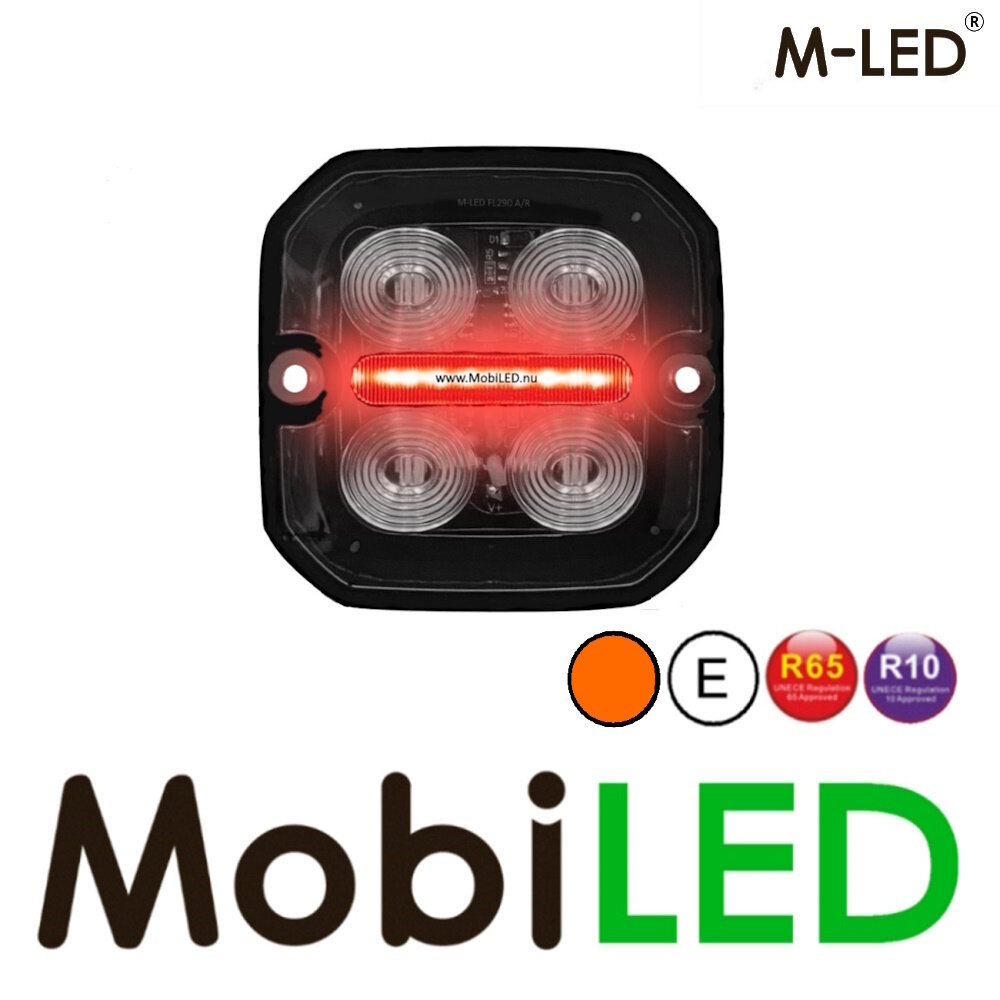

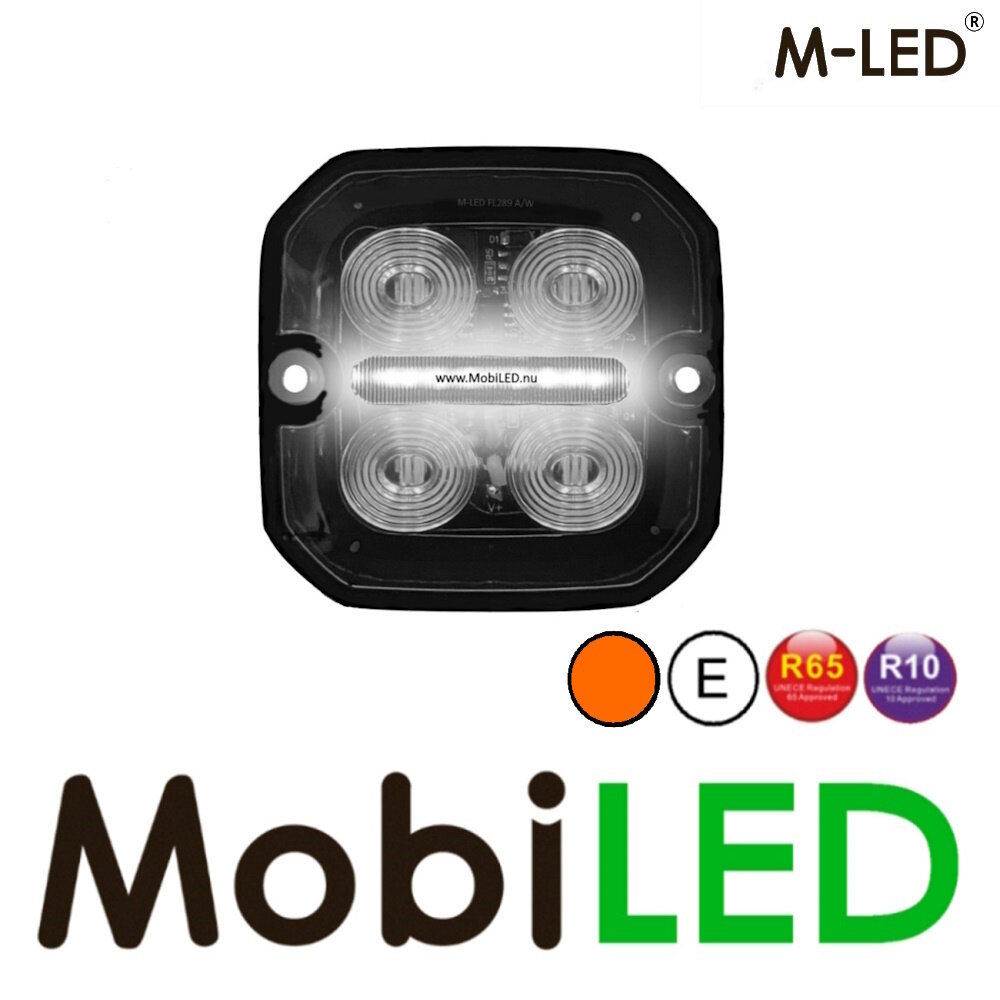

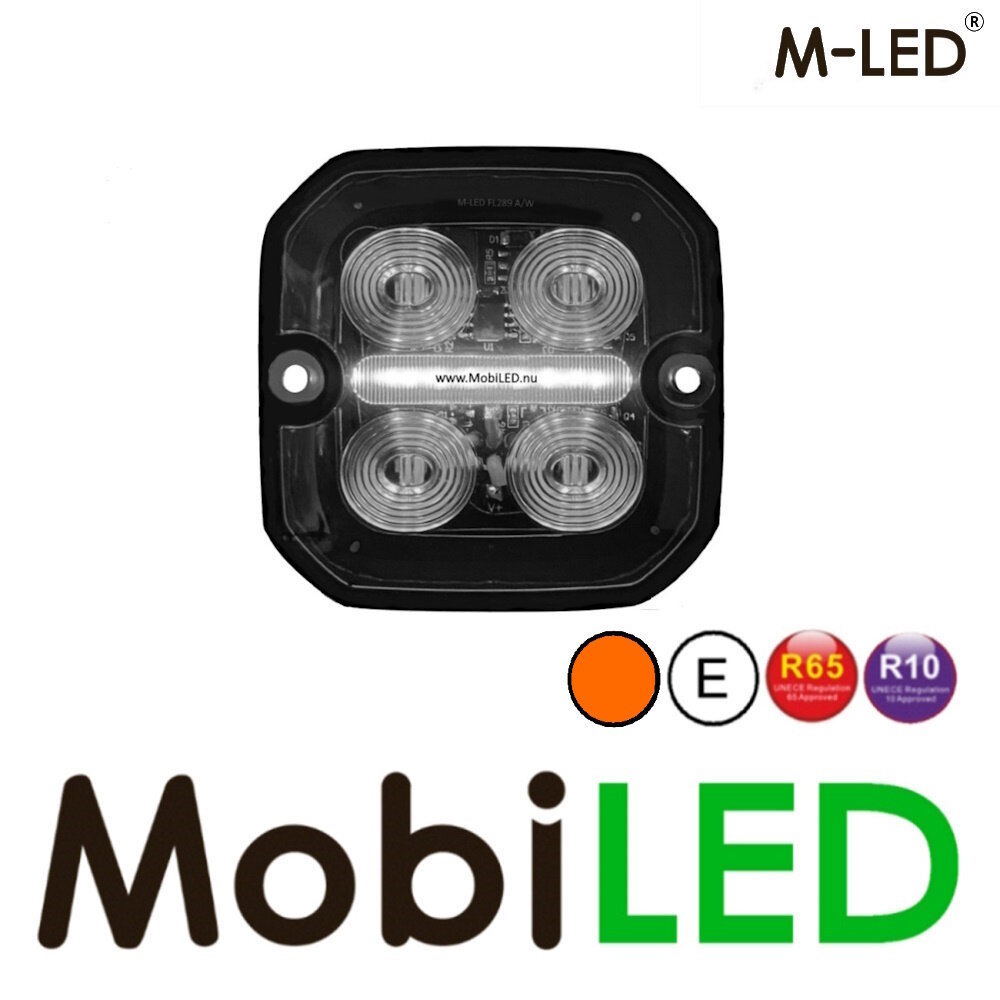

Besides the flasher, this light also has position light in 2 colors, which makes it very special. The position light can be connected in such way that it burns red or white.

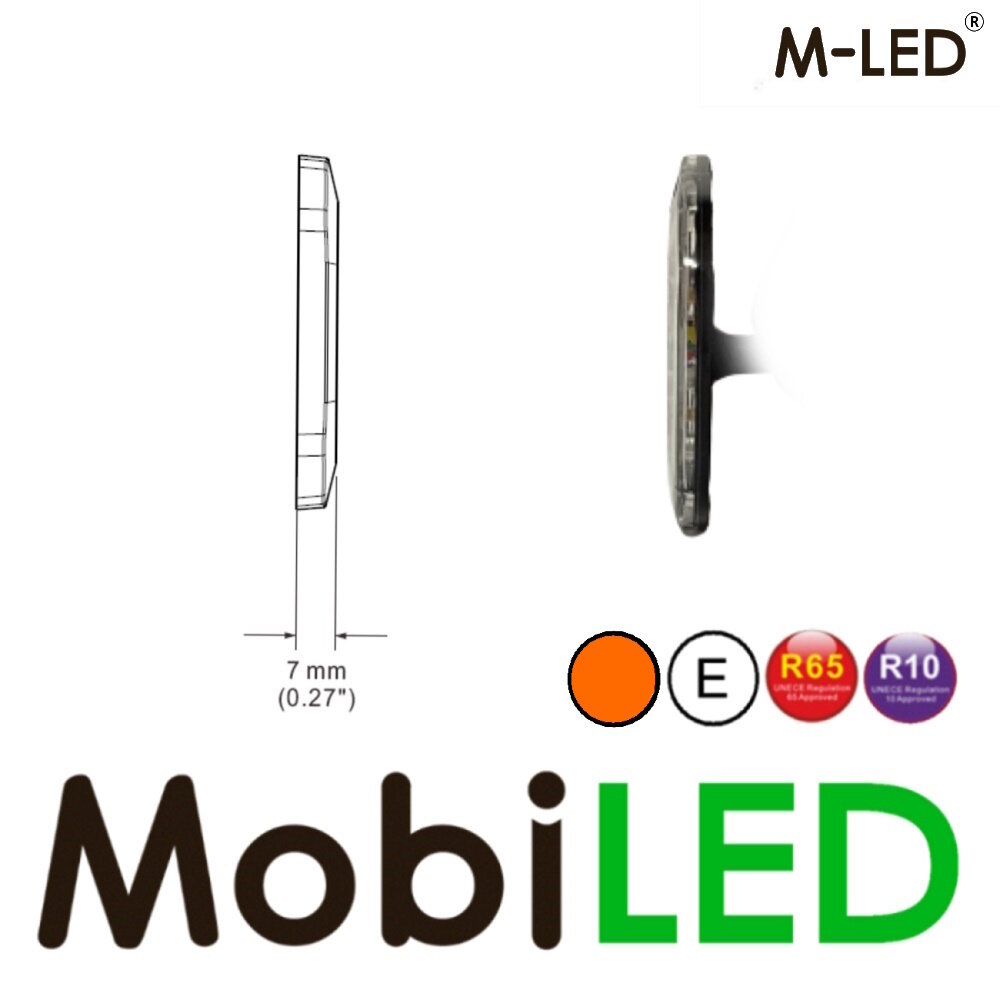

The surface-mount flasher is so small that it can be mounted almost anywhere, it is only 7 mm thick.
This lamp is equipped with E- approval and is multi-voltage, so very versatile.
The flashers can also be synchronized.
The lamp has reverse polarity protection, is vibration-resistant for outdoor use and has a solid aluminum back for efficient heat dissipation and maximum durability.

Specifications:

• Voltage: 12-24 V
• Power: 18 W
• Number of LEDs: 4x 3 W (flasher), 6x 1 W (position light)

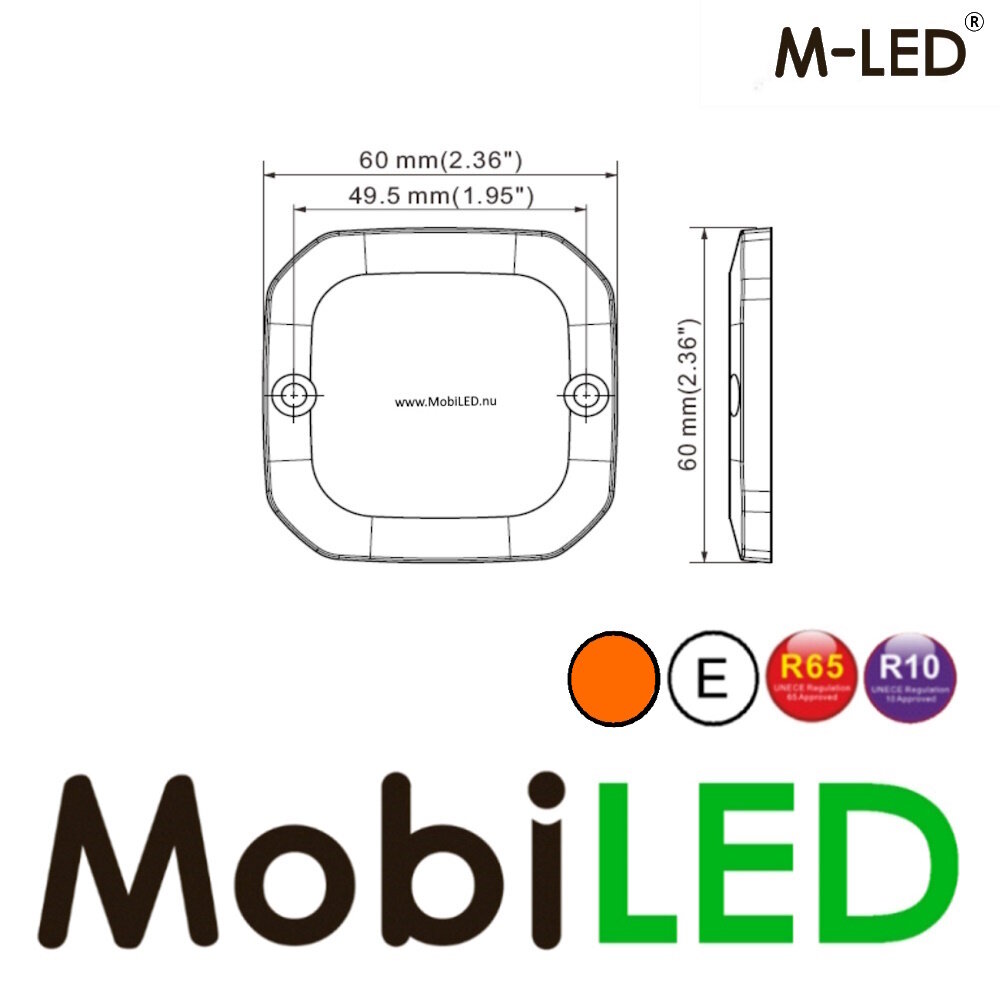

• Dimensions: 60 x 60 x 7 mm
• Bolt spacing: 49.5mm
• Housing: aluminum
• Padding: rubber
• Water resistance: IP67
• Certification: ECE R65/R148/R10, SAE W-1, DOT

Connection diagram:

• Red: VDC 10-30 V
• Black: mass
• Yellow: flash patterns and sync
• White: alternating
• Green: position light 1
• Blue: position light 2
