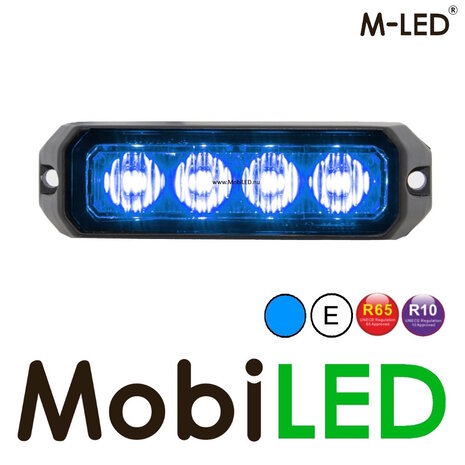

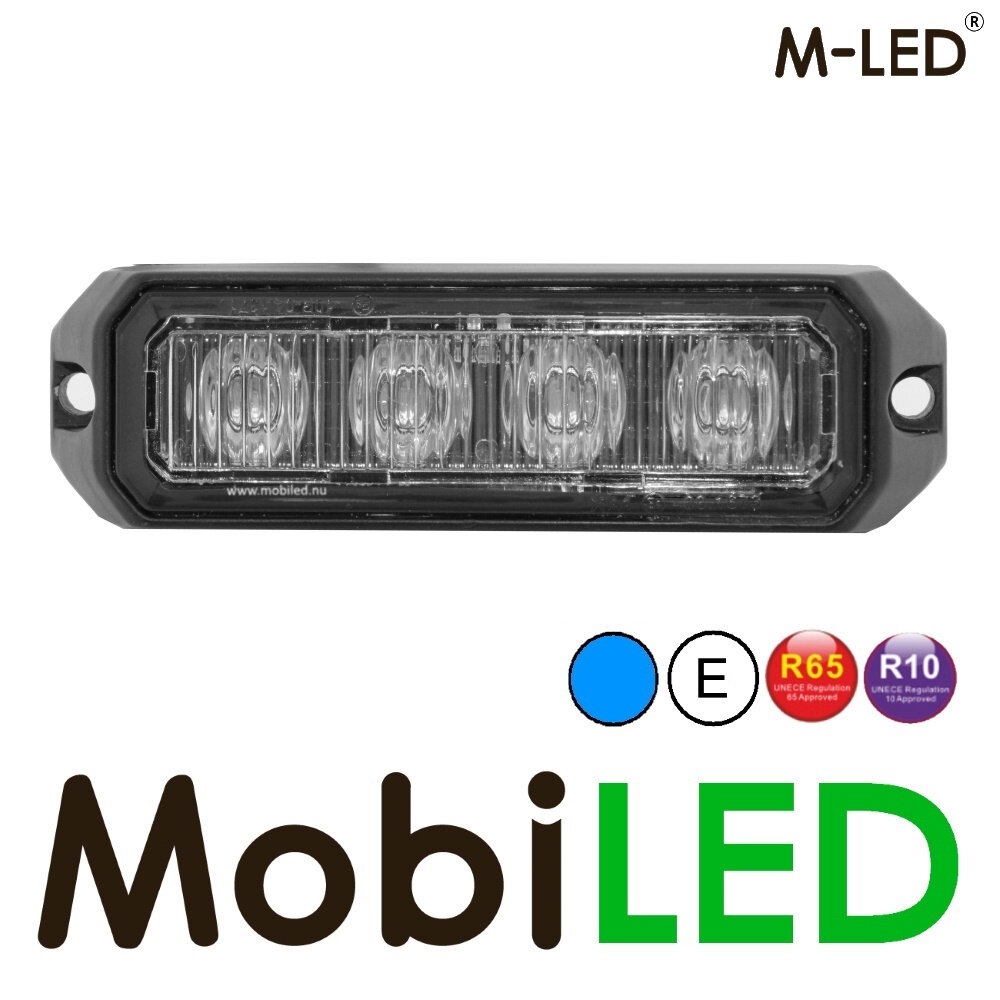

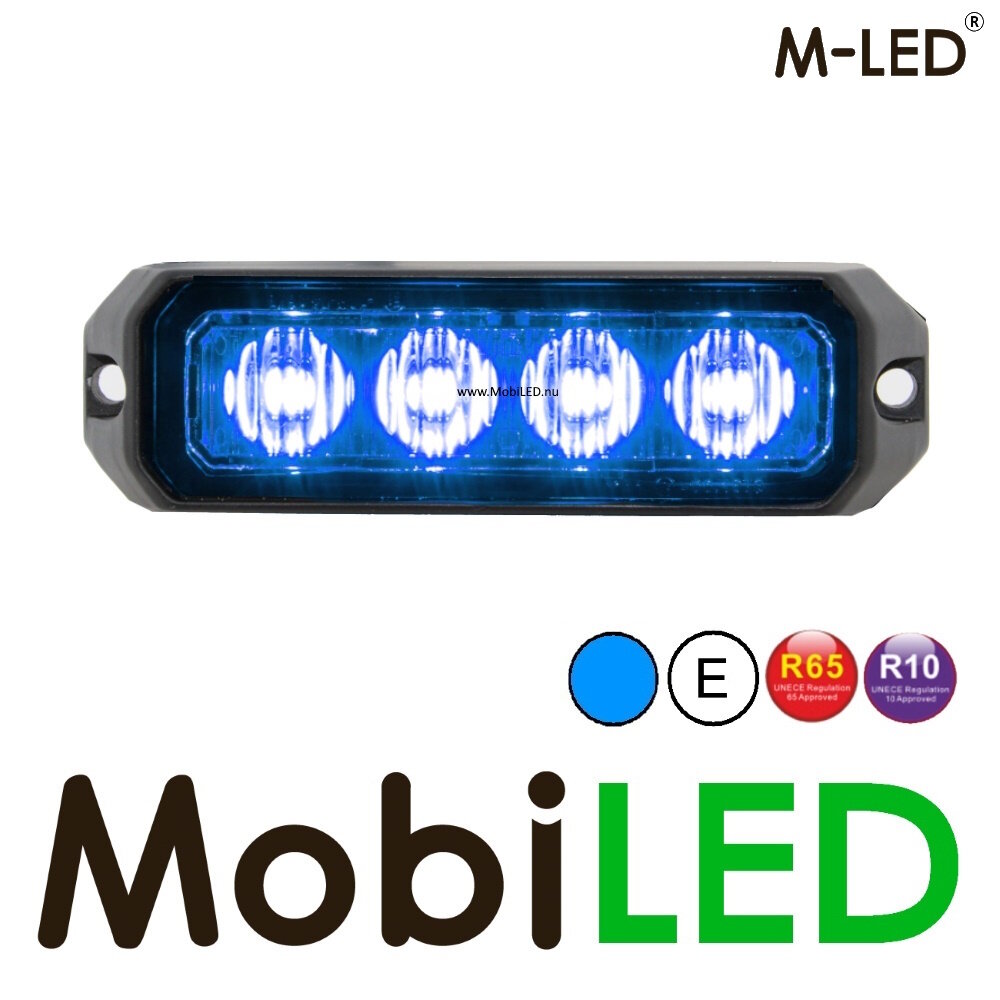

M-LED Flasher Blue Pro 4 Compact R65 12-24 volts

Professional compact blue-colored flash suitable for professional use with ECE R65 / R10 certification. Installation into the grill is possible. Four powerful LEDs with a total wattage of 12 watts. The flasher has an aluminum mounting plate and a plastic lens that additionally amplifies the light and ensures a good spread.
Can be used on 12 and 24 volts (multi-voltage).
Linking multiple flashers is possible. There is a choice of 26 different certified flash patterns.

Flash patterns:

1. Single flash
2. Single flash slow
3. Double flash
4. Double flash slow
5. Triple flash
6. Quad flash fast
7. Quad flash slow
8. Octa flash fast
9. Octa flash slow
10. Twelve flash
11. Sixteen flash
12. Single flash alternate
13. Double flash alternate
14. Triple flash alternate
15. Quad flash alternate
16. Octa flash fast alternate
17. Single flash split
18. Double flash split
19. Quad flash split
20. Octa flash split
21. Single flash split accelarate
22. Double flash split accelerate
23. SOS flash
24. Cycle (1,8,3,9,4,18)
25. Cycle (2,7,9,11,19,21)
26. Steady on

Specifications:

• Color: blue
• Voltage: 12-24 V (multi-voltage)
• Number of LEDs: 4x 3 W
• Lens: PC
• Housing: aluminum
• Dimensions: 95 x 28 x 19 mm
• Certification: CE E9 ECE R65 / R10
• Pattern switch on ground wire

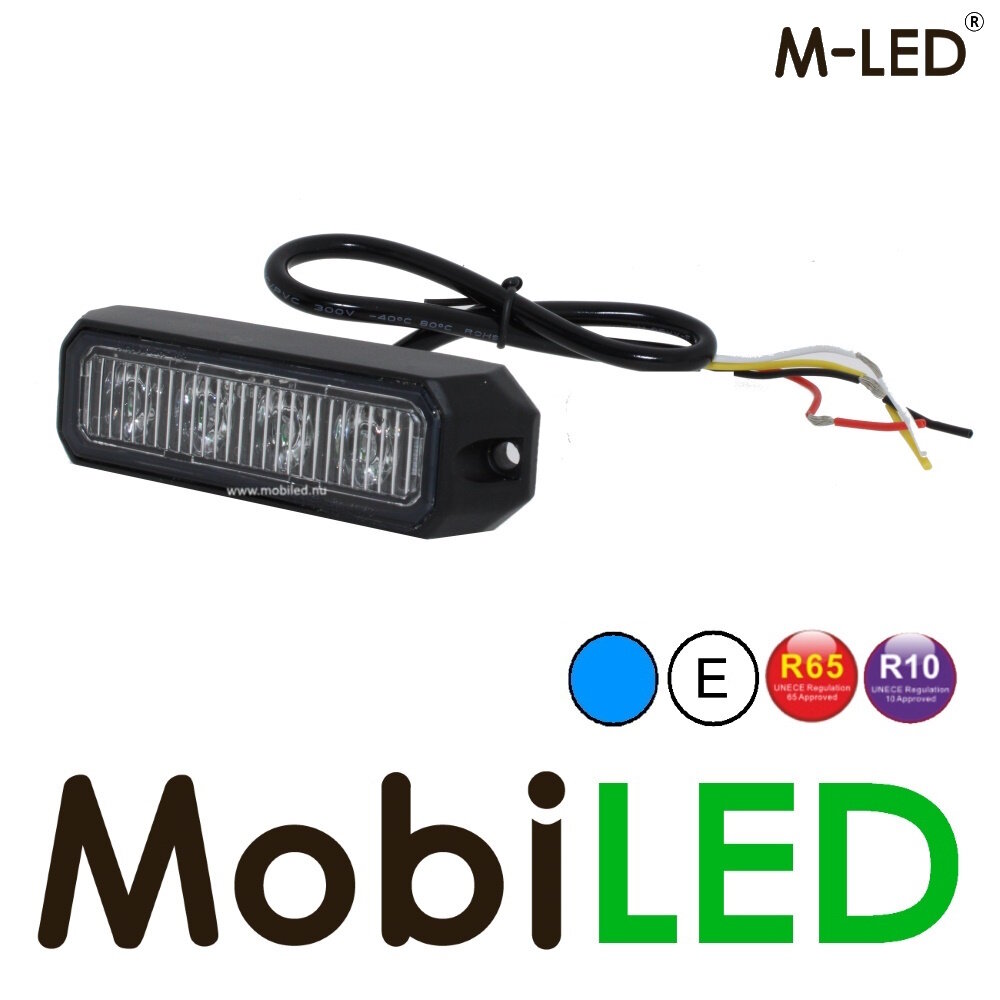

Connection diagram:

• Red: plus
• Black: mass
• Yellow: change flash pattern
• White: sync
