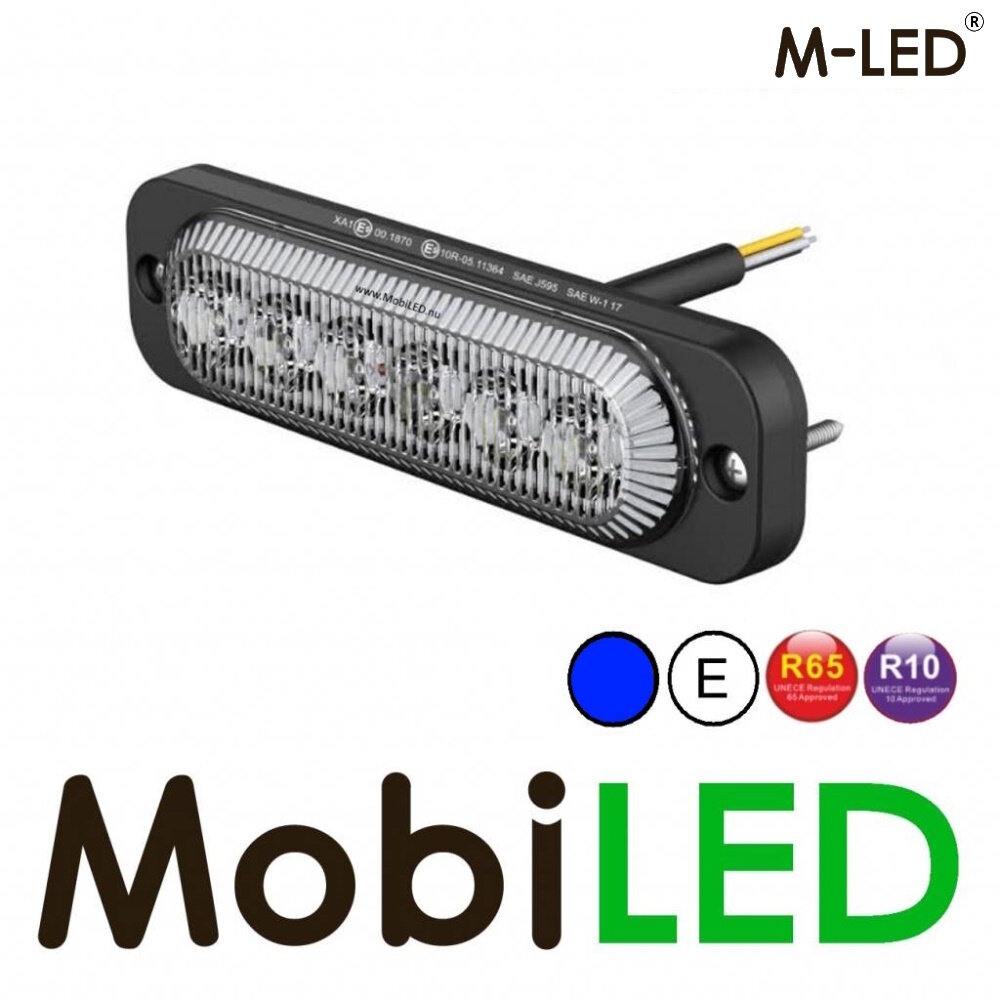

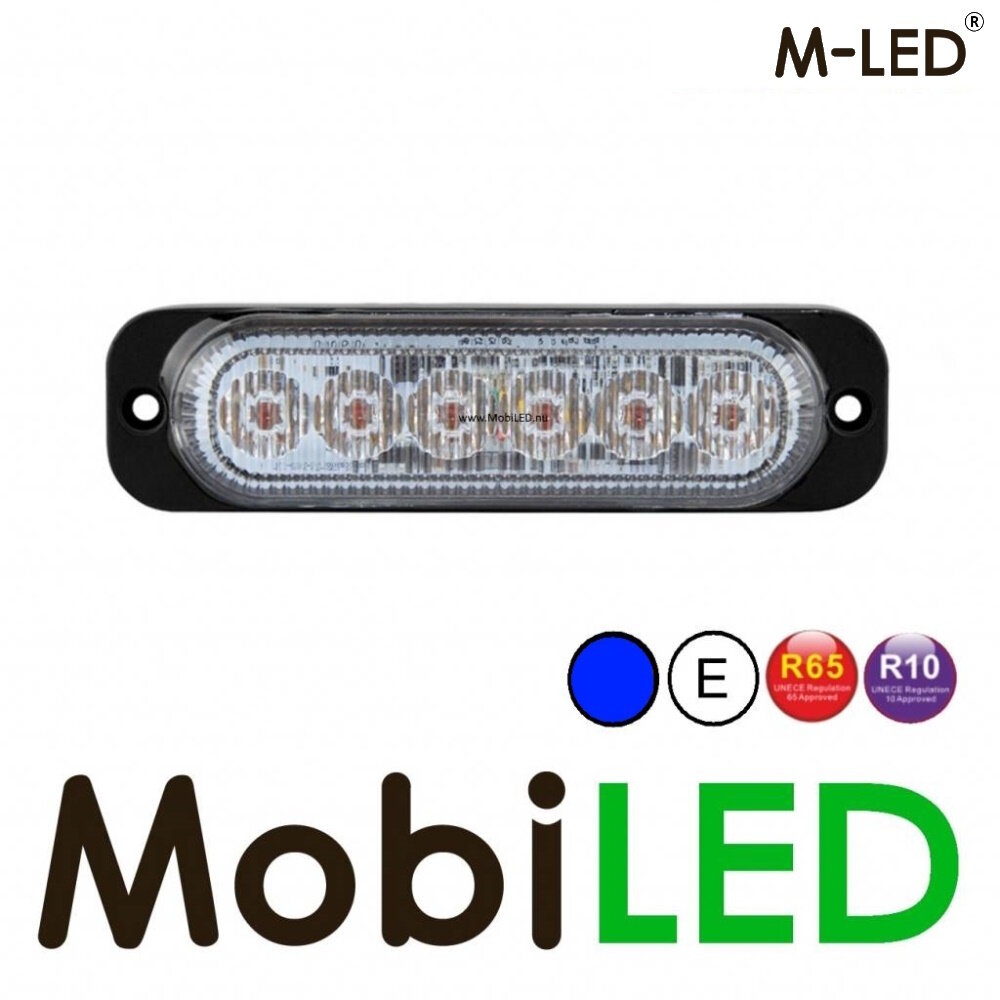

M-LED Flasher Blue Ultra thin E-mark

This compact flasher is suitable for professional use and has ECE R65/R10 certification. Installation into the grill or surface-mounting is possible due to the super flat shape.

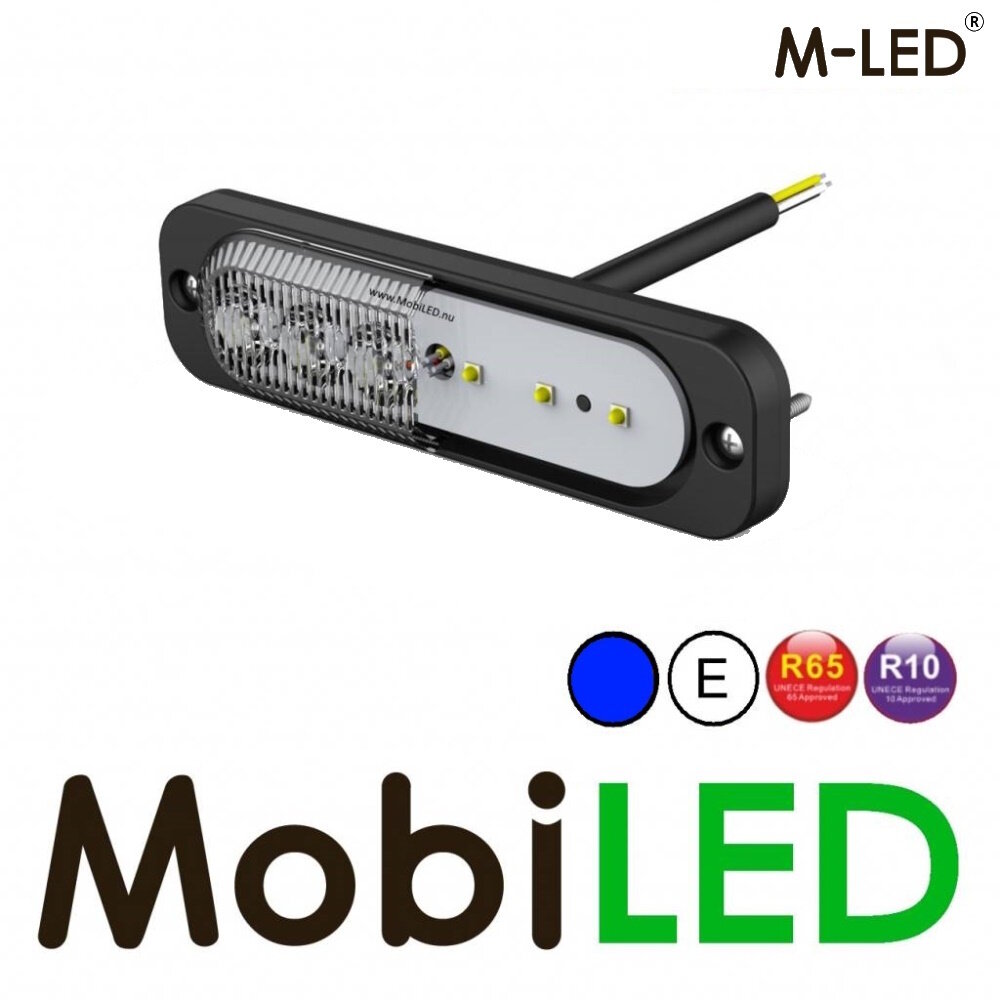

No fewer than six powerful 3 watts Osram LEDs with a total power of 18 watts ensure a high light output. The flasher is equipped with a plastic lens that additionally amplifies the light and ensures a good spread, and with a wide aluminum mounting plate.
Can be used on 12 and 24 volts (multivoltage).
Connecting several flashers is possible both synchronous and asynchronous. There is a choice of 10 different flash patterns.
This flasher is also available in amber, white, red, white/red and white/amber.

Specifications:

• Color: blue
• Voltage: 12 – 24 V (multi-voltage)
• Number of LEDs: 6x 3 W OSRAM
• Lens: PC
• Housing: aluminum

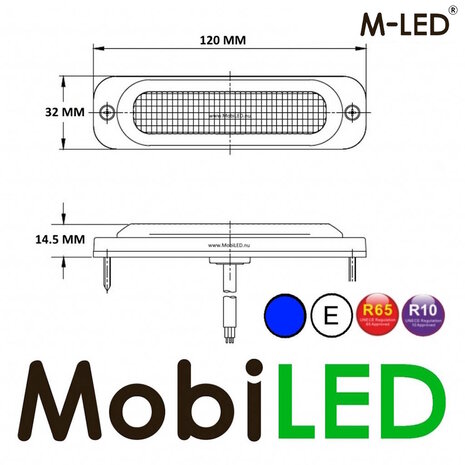

• Dimensions: 120 x 32 x 14.5 mm
• Certification: CE E9 ECE R65/R10

Connection diagram:

• Red: connect to +
• Black: connect to  –
• Yellow: selection wire, touch the + with the wire to change the flash pattern

Connection diagram (two or more flashers; synchronous):

• Red: connect all red wires bundled to +
• Black: connect all black wires bundled to –
• Yellow: With the bundled yellow wires, touch and hold the + for 3 to 4 seconds. All flashers will turn off for 1 second and then turn on again. Now the flashers are synchronized. Each time you touch the + with the bundled yellow wires, the flash pattern changes for all flashers.

Connection diagram (two or more flashers; asynchronous):

• Red: connect all red wires bundled to +
  Black: connect all black wires bundled to –
• Yellow: with the bundled yellow wires, touch and hold the + for 3 to 4 seconds. All flashers will turn off for 1 second and then turn on again. Now the flashers are synchronized. Each time you touch the + with the bundled yellow wires, the flash pattern changes for all flashers.
• Green: connect one (1) green wire to + to make the flashers flash back and forth.
