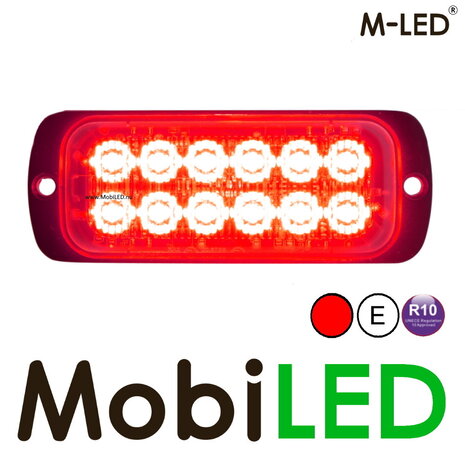

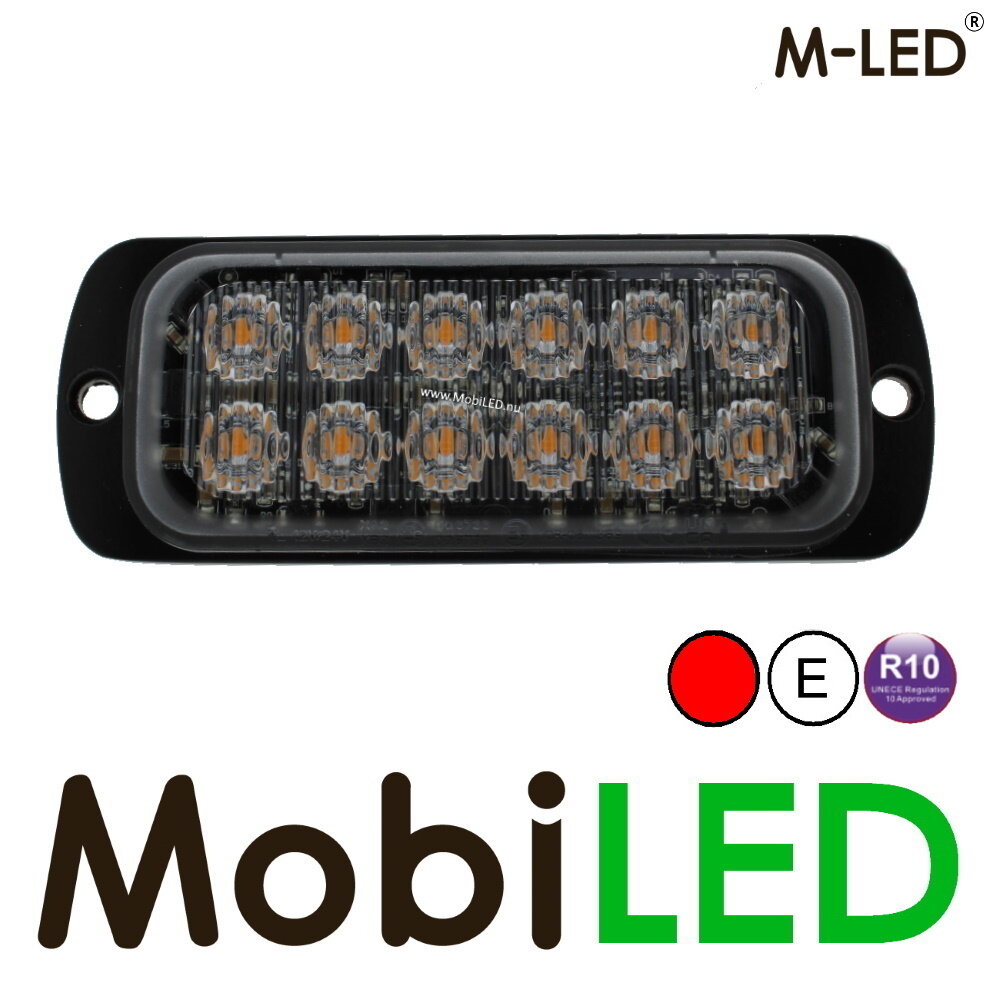

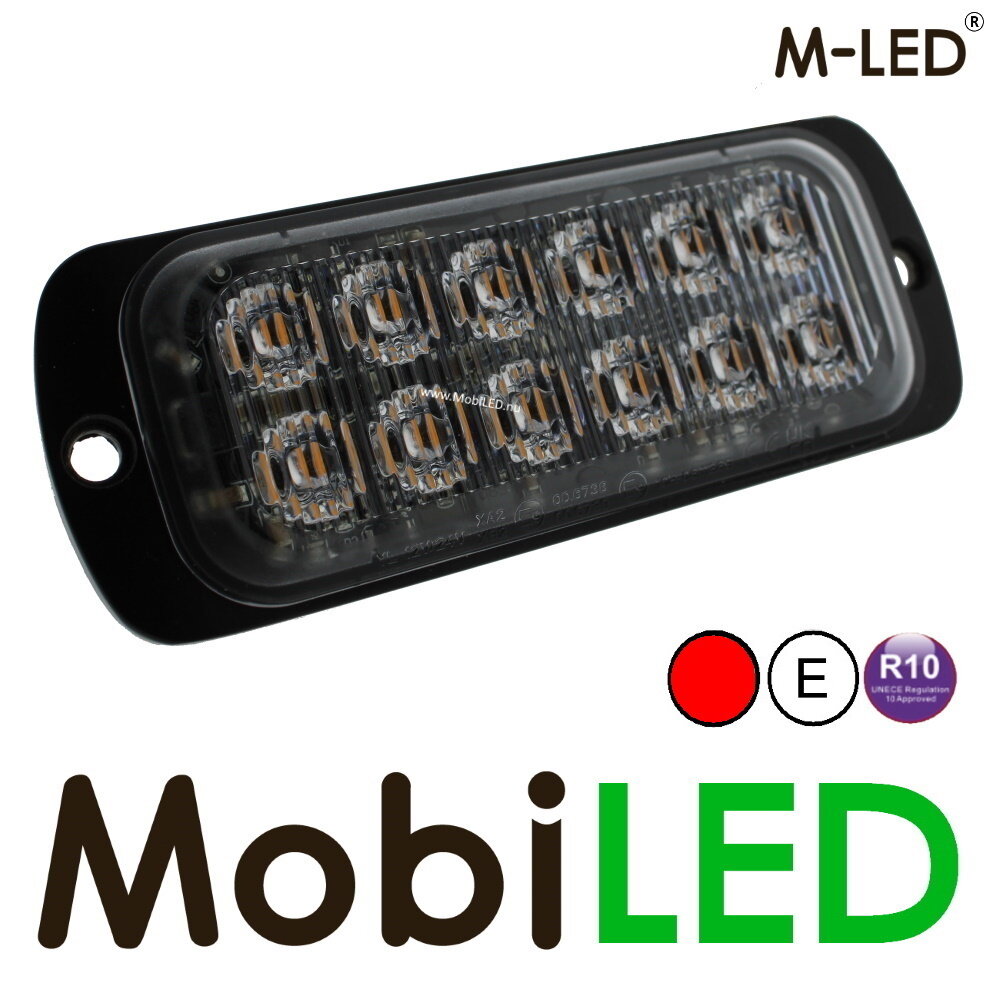

M-LED Flasher red 12 LEDs E-mark

The flasher is red in color and ECE approved. It has 12 LEDs and 22 different flash patterns. It can be synced with up to 13 other flashers. In addition, it is equipped with a memory function.

Flash patterns:

1. Single flash
2. Single flash slow
3. Double flash
4. Double flash slow
5. Triple flash fast
6. Quadruple flash fast
7. Quadruple flash slow
8. Octuple flash fast
9. Octuple flash slow
10. Twelvefold flash
11. Sixteenfold flash
12. Single flash split
13. Double flash split
14. Quadruple flash split
15. Octuple flash split
16. Single flash split accelerated
17. Double flash split accelerated
18. SOS flash
19. Series (1,8,3,9,4,18)
20. Series (2,7,9,11,14,16)
21. Continuously on
22. #18,19,20 and 21 without change

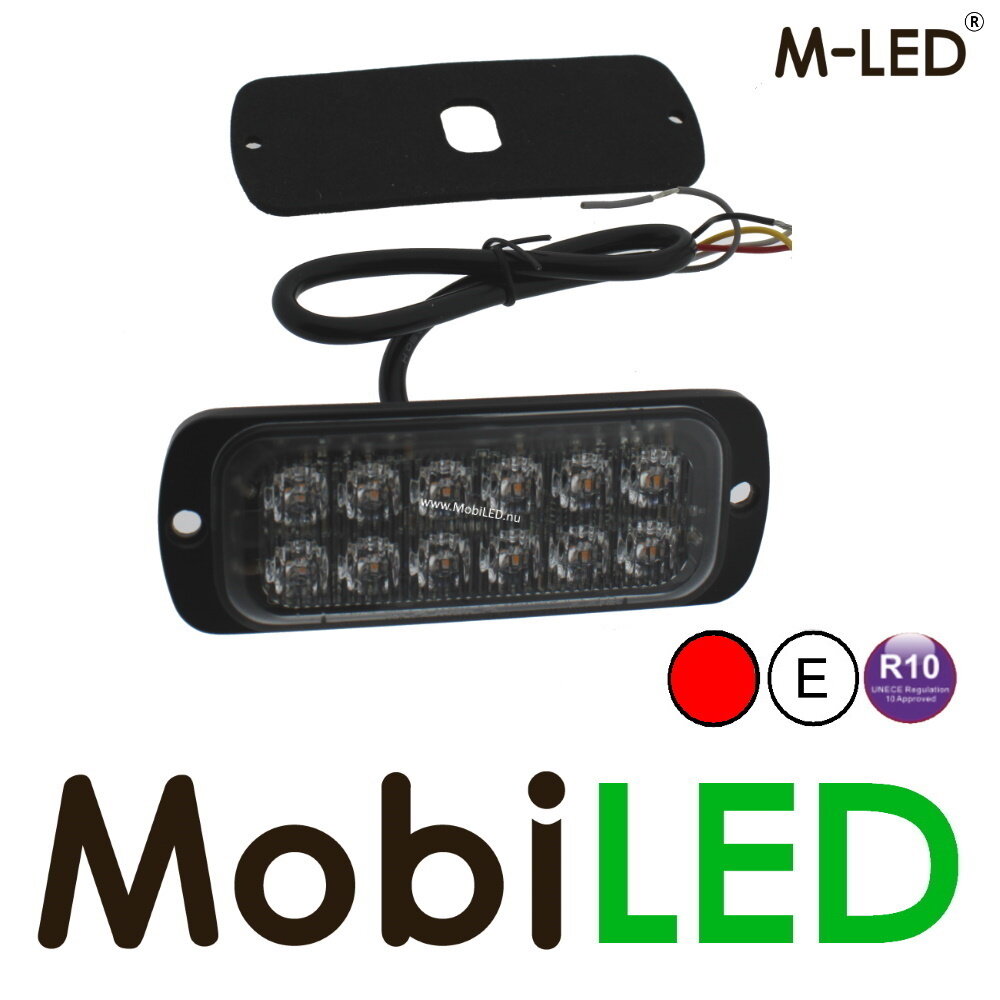

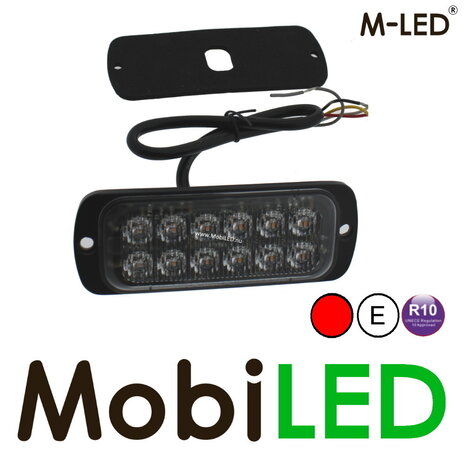

Connection diagram:

• Black: mass
• Red: + VDC
• White: constant connection to black for low intensity
• Yellow: pattern selection and synchronization
• Grey: cruise mode
