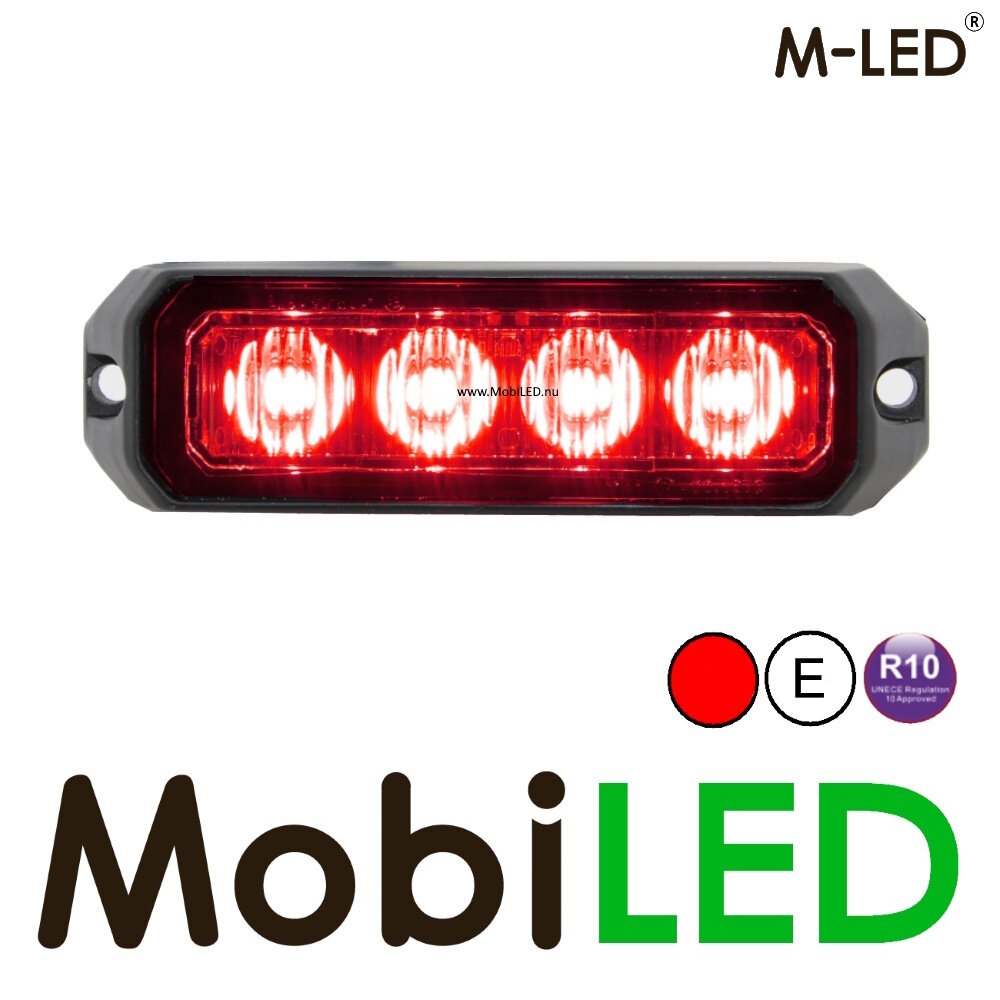

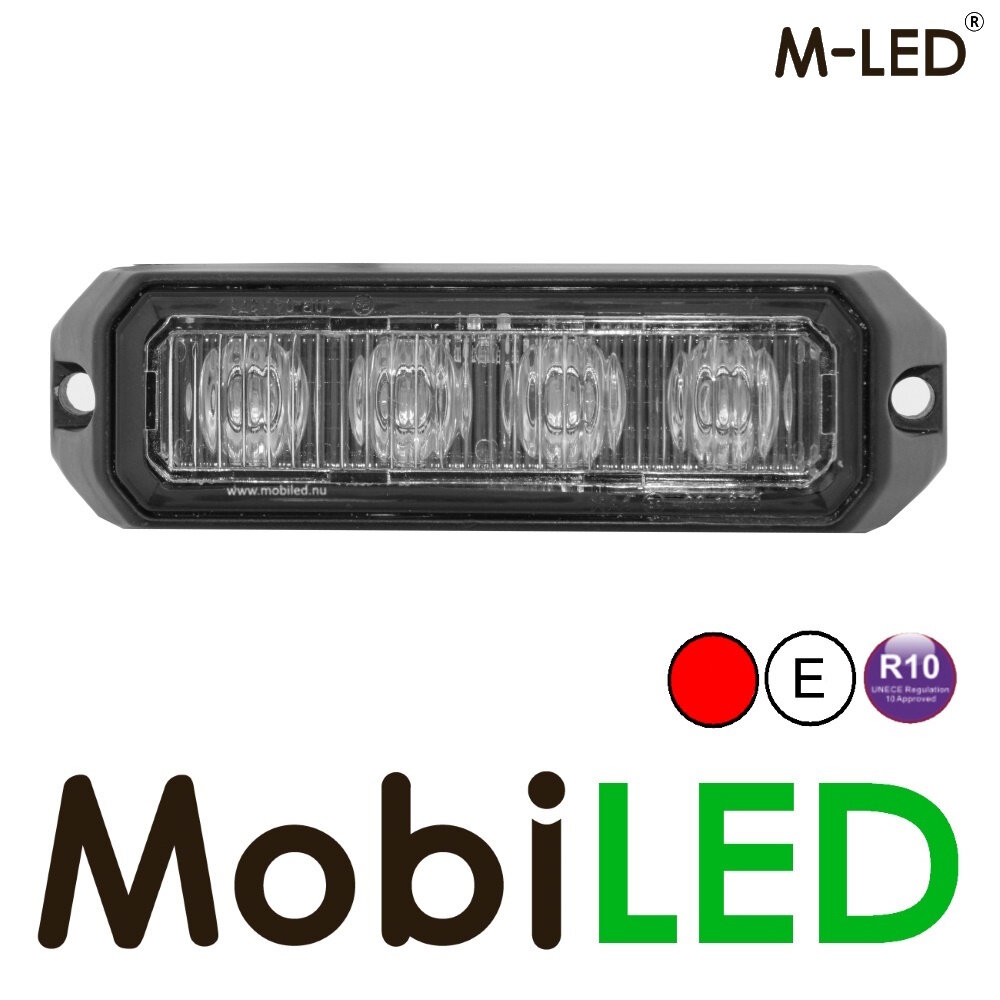

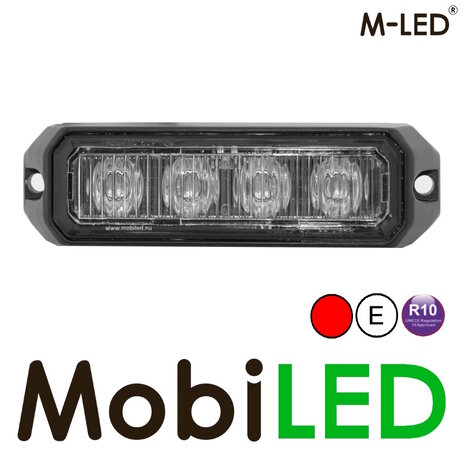

M-LED Flasher Red Pro 4 Compact 12-24 volts

Professional compact red flasher suitable for professional use with ECE R10 certification. Installation into the grill is possible. 4 Powerful LEDs with a total power of 12 watts. The flasher has an aluminum mounting plate and a plastic lens that amplifies the light extra and ensures a good spread.
Can be used on both 12 and 24 volts (multivoltage).
It is possible to connect multiple flashers. There is a choice of 26 different flash patterns.

Functions:

1. Single flash
2. Single flash slow
3. Double flash
4. Double flash slow
5. Triple flash
6. Quadruple flash fast
7. Quadruple flash slow
8. Eight flash fast
9. Eight flash slow
10. Twelve flash
11. Sixteen flash
12. Single flash alternating
13. Double flash alternating
14. Triple flash alternately
15. Quadruple flash alternating
16. Eighth flash fast alternating
17. Single flash split
18. Double flash split
19. Quadruple flash split
20. Eight flash split
21. Single flash split accelerated
22. Double flash split accelerated
23. SOS flash
24. Cycle (1,8,3,9,4,18)
25. Cycle (2,7,9,11,19,21)
26. Constantly on

Specifications:

• Color: red
• Voltage: 12-24 V (multi-voltage)
• Number of LEDs: 4x 3 W
• Lens: PC
• Housing: aluminum
• Dimensions: 95 x 28 x 19 mm
• Certification: CE E9 ECE R10
• Pattern switch on ground wire

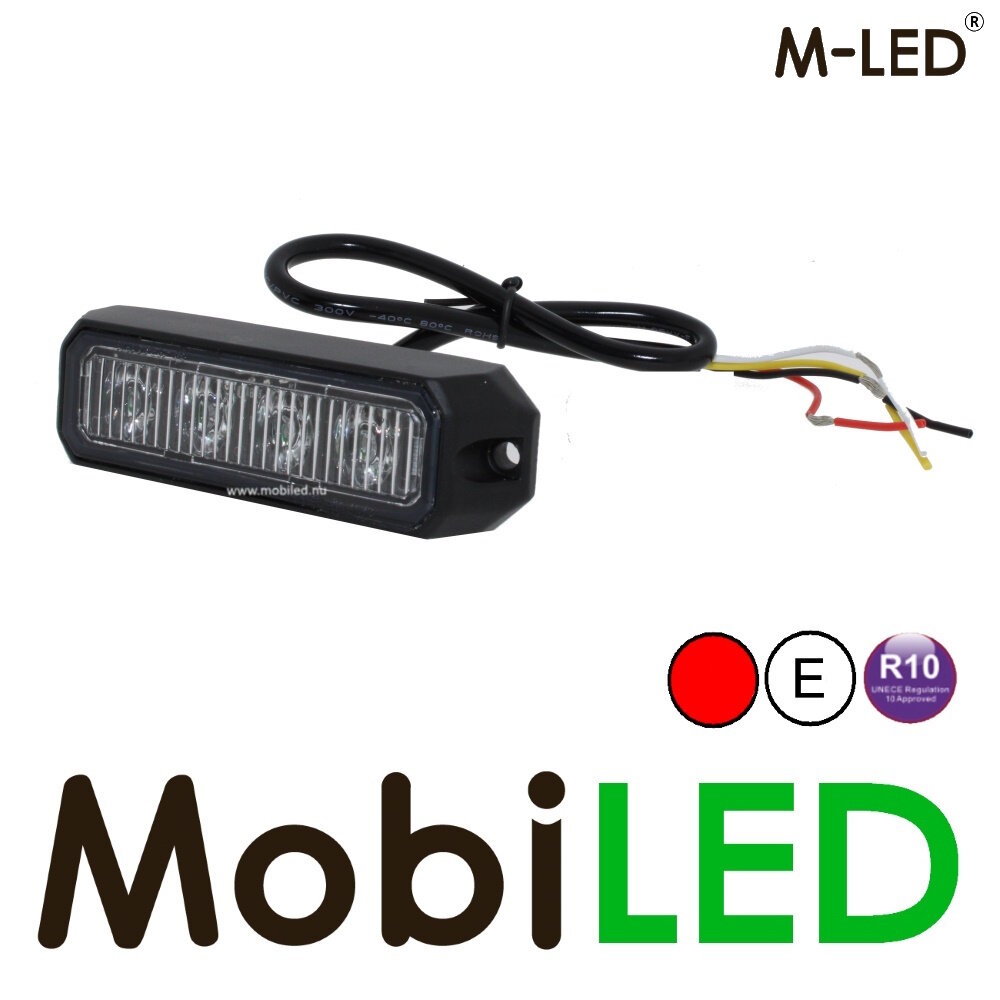

Connection diagram:

• Red: plus
• Black: mass
• Yellow: change flash pattern (on ground wire)
• White: sync
