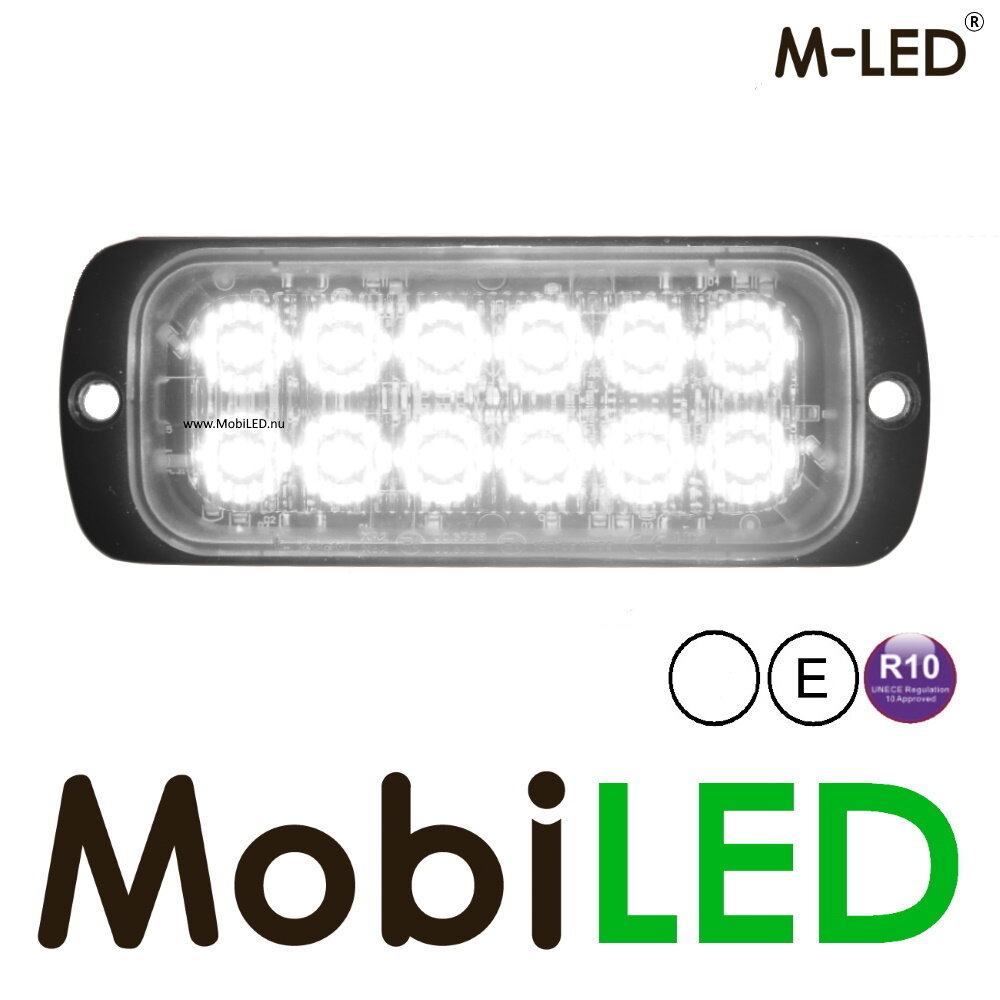

M-LED Flasher white 12 LEDs E-mark

The flash is white in color and ECE approved. It has 12 LEDs and 22 different flash patterns. It can be synced with up to 13 other flashers. In addition, it is equipped with a memory function.

Specifications:

• Voltage: 12-24 V multi-voltage
• LEDs: 12
• Flash patterns: 21
• Dimensions: 114 x 43 x 9 mm
• Certification: ECE R10
• Water resistance: IP67/IP69K

Flash Patterns:

1. Single
2. Single slow
3. Double
4. Double slow
5. Triple fast
6. Quadruple fast
7. Quadruple slow
8. Eightfold fast
9. Eightfold slow
10. Twelvefold
11. Sixteenfold
12. Single split
13. Double split
14. Quadruple split
15. Eightfold split
16. Single split accelerated
17. Double split accelerated
18. SOS flash
19. Series (1,8,3,9,4,18)
20. Series (2,7,9,11,14,16)
21. Constantly on
22. #18,19,20 and 21 without alternating flash

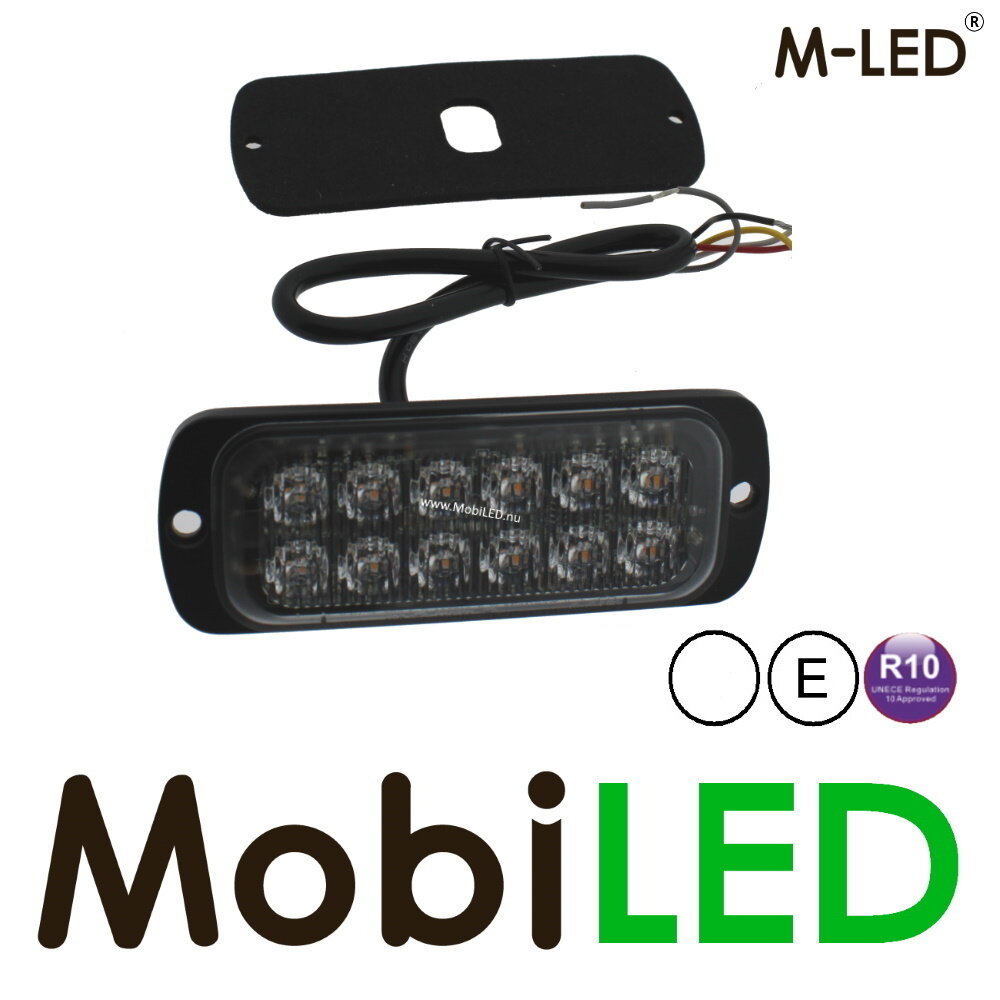

Connection diagram:

• Black: mass
• Red: + VDC
• White: constant connection to black for low intensity
• Yellow: pattern selection and synchronization
• Grey: cruise mode
