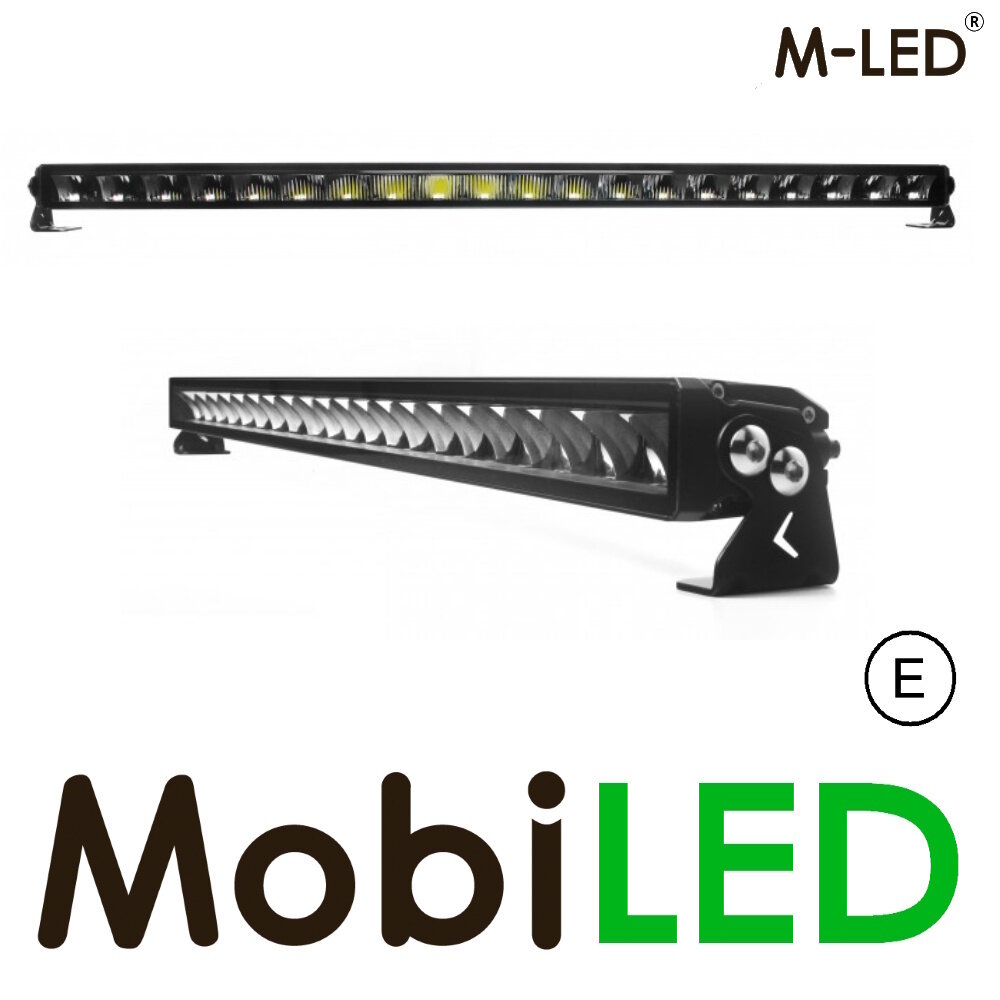

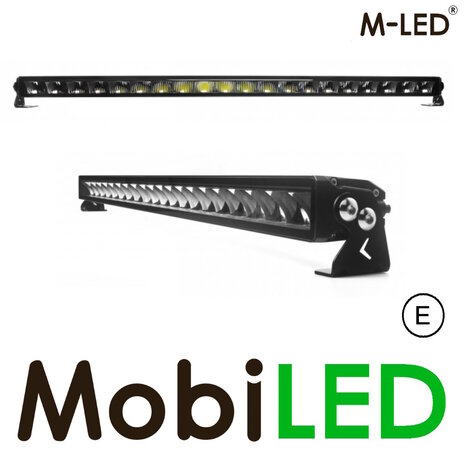

M-LED Gladiator SR 41"/104.5 cm
Contemporary edgeless design, the Gladiator fights the darkness with you. Together through the night, the Gladiator ensures that you arrive at your destination safely and rested. A bright driving light that extends well over your high beam.
But the most eye-catching is the fine thin line as position light. This gives the bar a unique look and distinguishes itself by a slightly more stylish appearance. Finesse is in the details.
In addition to design, this bar is also equipped with the necessary technical innovations.
Innovations:
- Edgeless, screwless design
- Dark contemporary look of the housing and the supports
- Directional reflectors that place the light where it is needed. No loss in yield due to the use of a chrome reflector and transparent lens
- Scratch resistant UV resistant lens
- ITC, Built-in temperature protection against overheating and therefore extends the life span
- Supplied with stainless steel mounting hardware and supports for both the side and the bottom of the bar
- Equipped with a DT-3 connector with female connector
- Military breather (pressure valve) for optimal regulation of air pressure differences
Will you go into battle with the Gladiator on your side?
Connection diagram:
- Black: negative
- Red: positive
- Yellow: position light
Product specifications
- Article number
- LB288
- Length (cm)
- 104,5
- Height (cm)
- 5
- Height incl bracket (cm)
- 7,5
- Depth (cm)
- 6,5
- Shape
- Elongated
- Tension
- 10-24V
- Power
- 188W
- Lumens
- 12690
- Light colour
- White
- Position light function
- Yes
- High beam function
- Yes
- Light image
- Combo
- Housing colour
- Black
- Lens colour
- Transparant
- Housing material
- Aluminum
- Lens material
- PC
- Mounting bracket material
- Stainless steel
- Mounting type
- Side / bottom mounting
- Connection
- DT-3 connector
- Cable Length (cm)
- 25
- Number of wire cores
- 3
- IP rating
- IP67
- Certification
- CE, ECE R10
