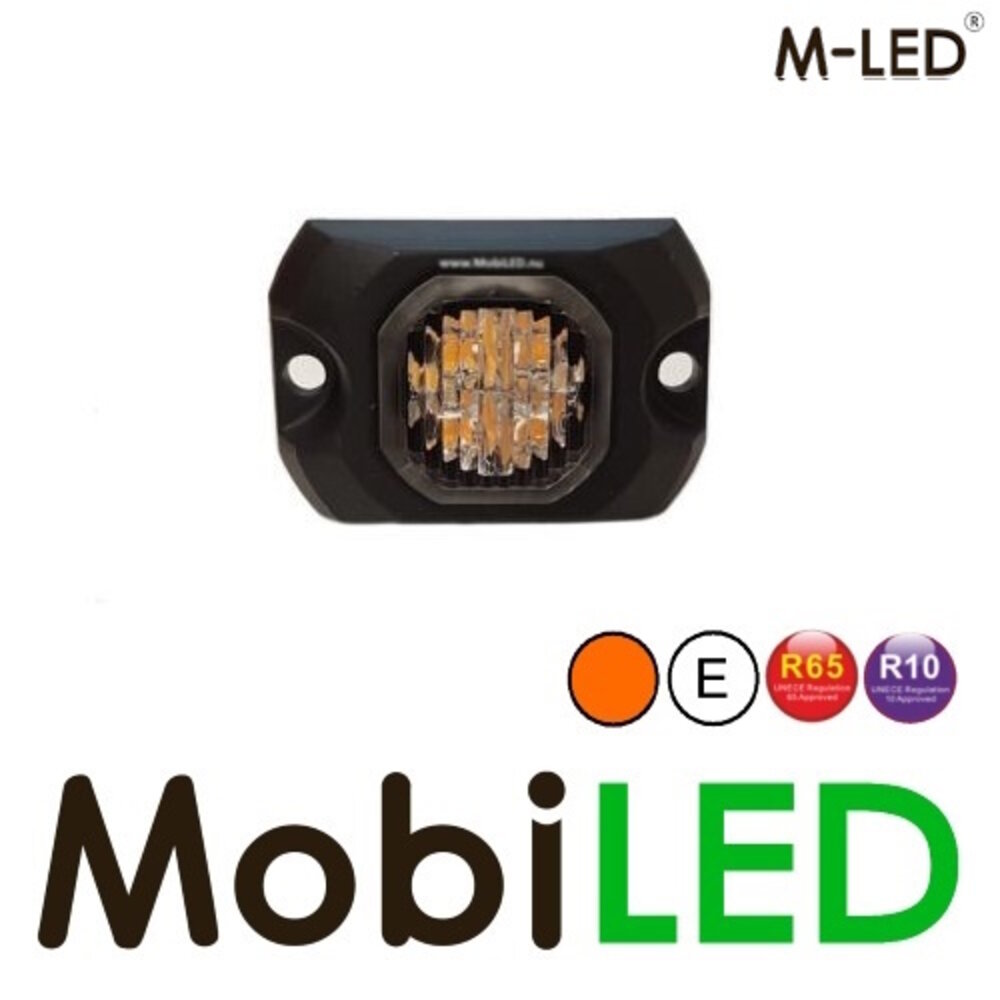

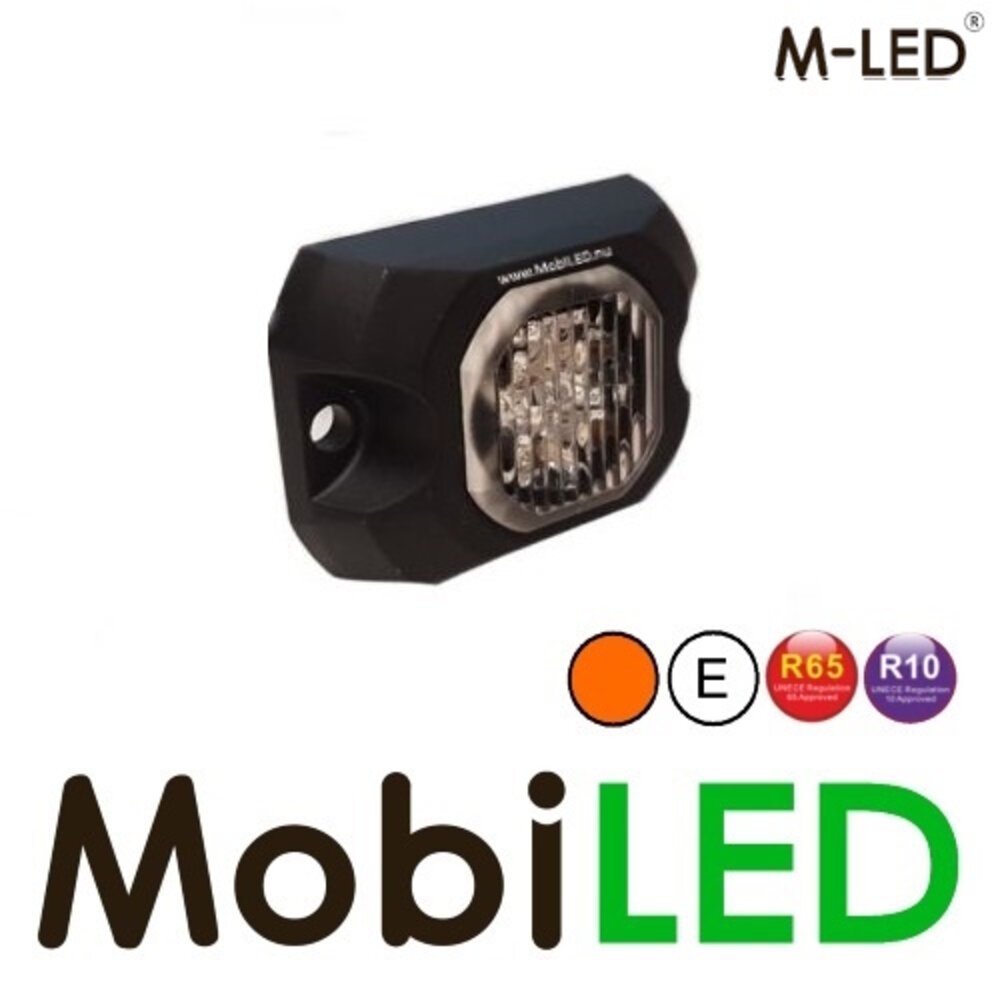

M-LED Hide away flasher surface mounting amber

This robust flasher is suitable for professional use and has ECE R65/R10 XA1 certification. The powerful flasher is equipped with 4x 5 watt LEDs and produces a bright light image. A plastic lens amplifies the light extra and the lens guarantees a good spread. A wide aluminum mounting plate for strong mounting but also for good heat conduction.
The hide away flasher has 23 pre-programmed patterns including one continuous on. Pairing and syncing works fine. Of course, this flasher can be used on both 12 and 24 volts (multivoltage) and it is provided with the necessary certification, R10, R65, XA1, ECE, CE.
This model is available in amber or white.
This version is suitable for surface-mounting. A version for installation into the grill is also available (FL072).
Pattern switch on ground wire.

Connection diagram:

• Red: connect all red wires bundled to +
• Black: connect all black wires bundled to –
• Yellow: With the bundled yellow wires, touch and hold the - for 1 to 3 seconds.
• White: Synchronize the strobes by connecting all white wires together.
