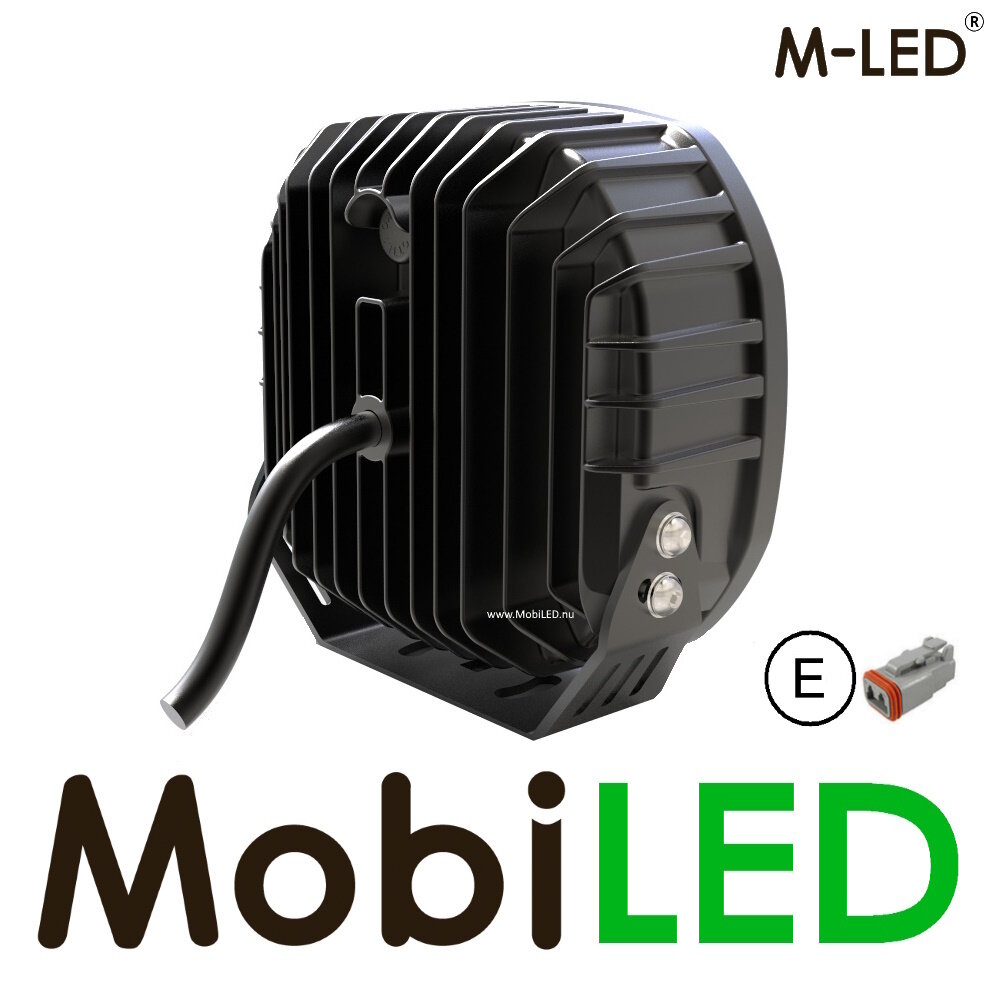

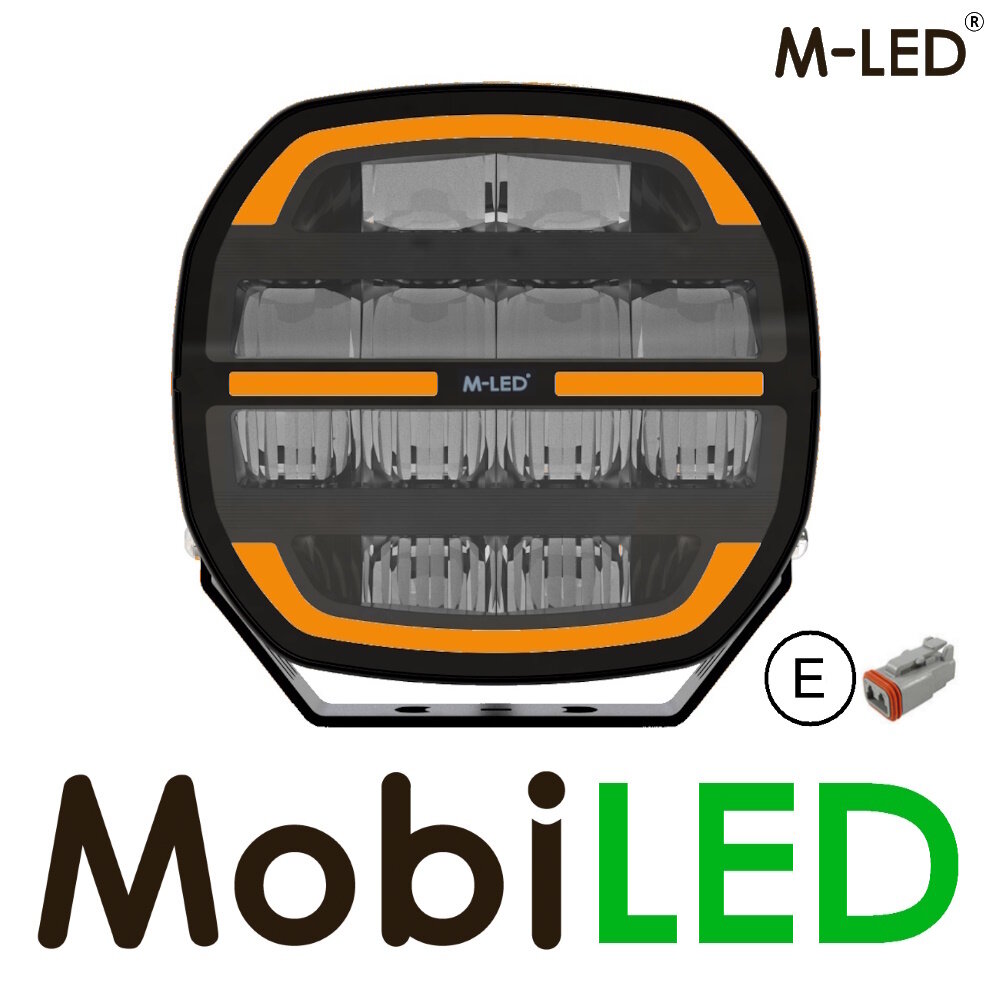

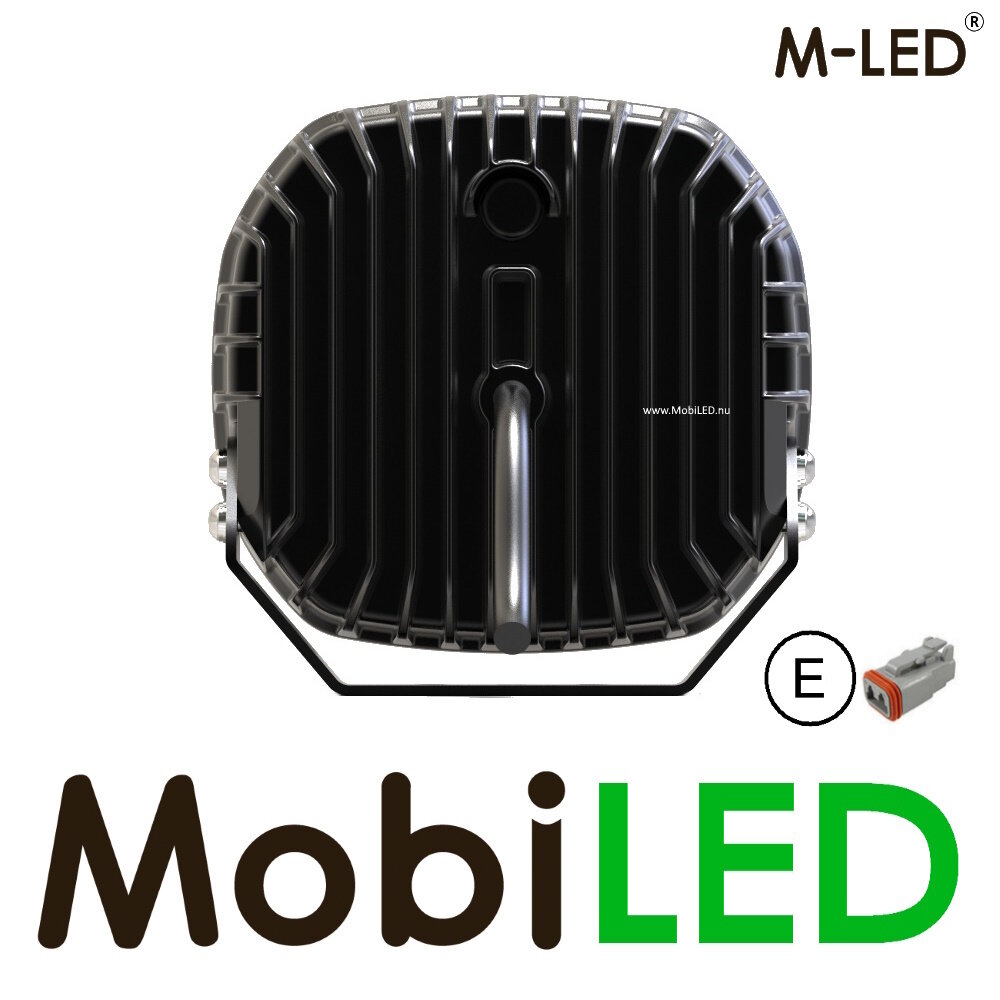

M-LED Phoenix combo with amber and white position light 9 inch E-mark
![M-LED M-LED Phoenix combo with amber and white position light 9 inch E-mark M-LED M-LED Phoenix combo with amber and white position light 9 inch E-mark](https://cdn.webshopapp.com/shops/73605/files/459595064/78x78x2/m-led-m-led-phoenix-combo-with-amber-and-white-pos.jpg)
![M-LED M-LED Phoenix combo with amber and white position light 9 inch E-mark M-LED M-LED Phoenix combo with amber and white position light 9 inch E-mark](https://cdn.webshopapp.com/shops/73605/files/459595065/78x78x2/m-led-m-led-phoenix-combo-with-amber-and-white-pos.jpg)
![M-LED M-LED Phoenix combo with amber and white position light 9 inch E-mark M-LED M-LED Phoenix combo with amber and white position light 9 inch E-mark](https://cdn.webshopapp.com/shops/73605/files/459595066/78x78x2/m-led-m-led-phoenix-combo-with-amber-and-white-pos.jpg)
![M-LED M-LED Phoenix combo with amber and white position light 9 inch E-mark M-LED M-LED Phoenix combo with amber and white position light 9 inch E-mark](https://cdn.webshopapp.com/shops/73605/files/459595067/78x78x2/m-led-m-led-phoenix-combo-with-amber-and-white-pos.jpg)
![M-LED M-LED Phoenix combo with amber and white position light 9 inch E-mark M-LED M-LED Phoenix combo with amber and white position light 9 inch E-mark](https://cdn.webshopapp.com/shops/73605/files/459595068/78x78x2/m-led-m-led-phoenix-combo-with-amber-and-white-pos.jpg)
![M-LED M-LED Phoenix combo with amber and white position light 9 inch E-mark M-LED M-LED Phoenix combo with amber and white position light 9 inch E-mark](https://cdn.webshopapp.com/shops/73605/files/459595069/78x78x2/m-led-m-led-phoenix-combo-with-amber-and-white-pos.jpg)
![M-LED M-LED Phoenix combo with amber and white position light 9 inch E-mark M-LED M-LED Phoenix combo with amber and white position light 9 inch E-mark](https://cdn.webshopapp.com/shops/73605/files/459596603/78x78x2/m-led-m-led-phoenix-combo-with-amber-and-white-pos.jpg)
This lamp is equipped with a BOOST function. By activating the boost function, the lamp turns on at high power and increases the output by 50% to 150% of the normal output. This high yield does not have an E-mark and is therefore not suitable for public roads.
The upper part of the reflector focuses the light into a beam that is far-reaching. The lower part is more diffuse, which gives a wide light image directly in front of the vehicle. This combination certainly comes into its own on construction sites or in rural areas, but certainly also on the highways.

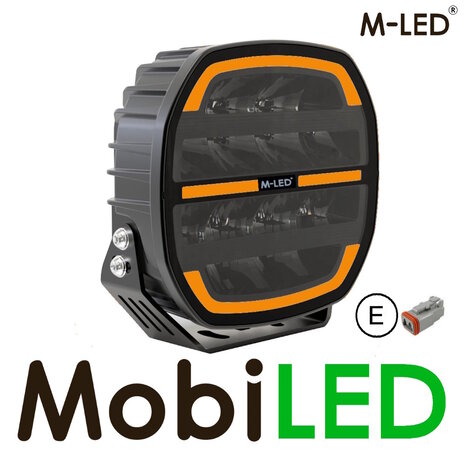

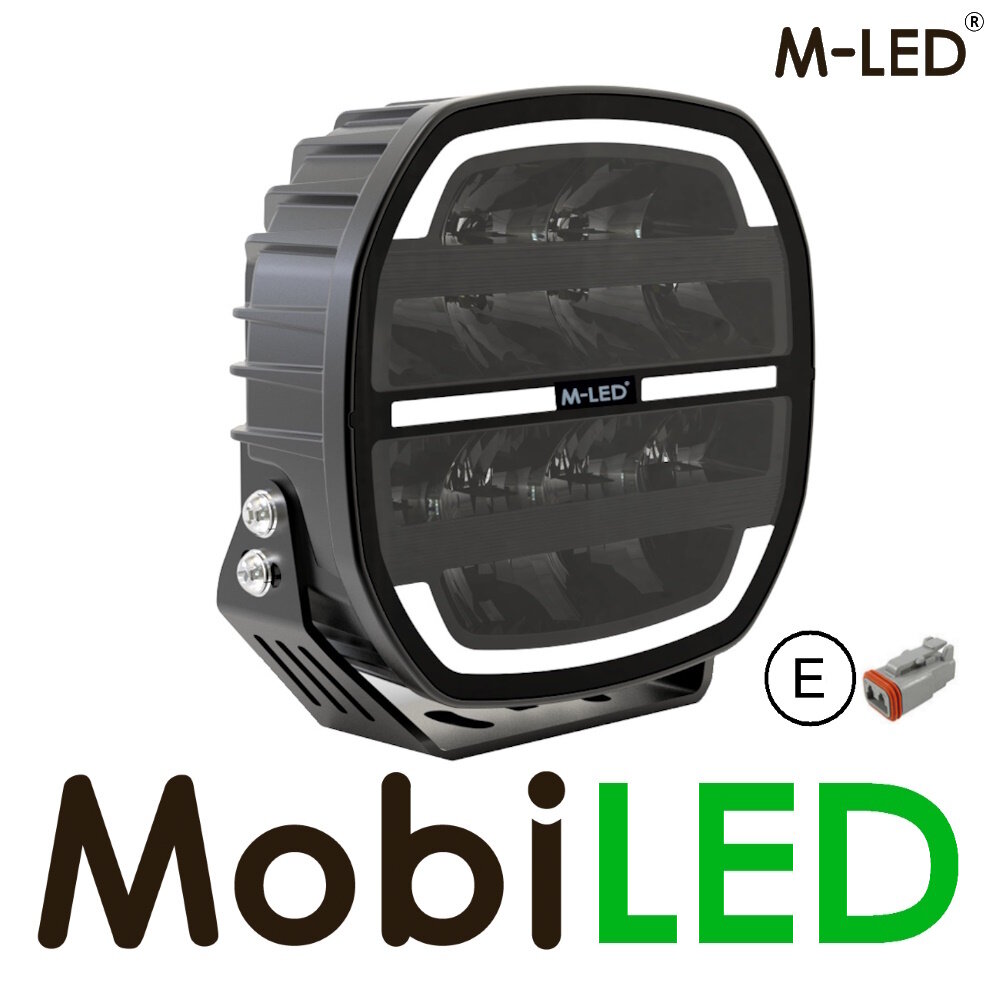

You can choose between white and amber colored position light, the white light has E-mark, amber does not. The item comes with a stainless steel bracket and DT connector for quick and easy installation. A beautiful lamp that will certainly not look out of place on your vehicle.
Connection diagram:
- Black: negative
- Red: boost function for high beam (full power, no E-mark)
- Blue: high beam (limited power, E-mark R112, R149)
- White: white position light (E-approval R148)
- Yellow: amber position light (no E-mark)
Product specifications
- Article number
- VS150
- Tension
- 10-36V
- Power
- 120W
- Lumens
- 12000 / 5861
- Number of LEDs
- 12
- Light image
- Combo

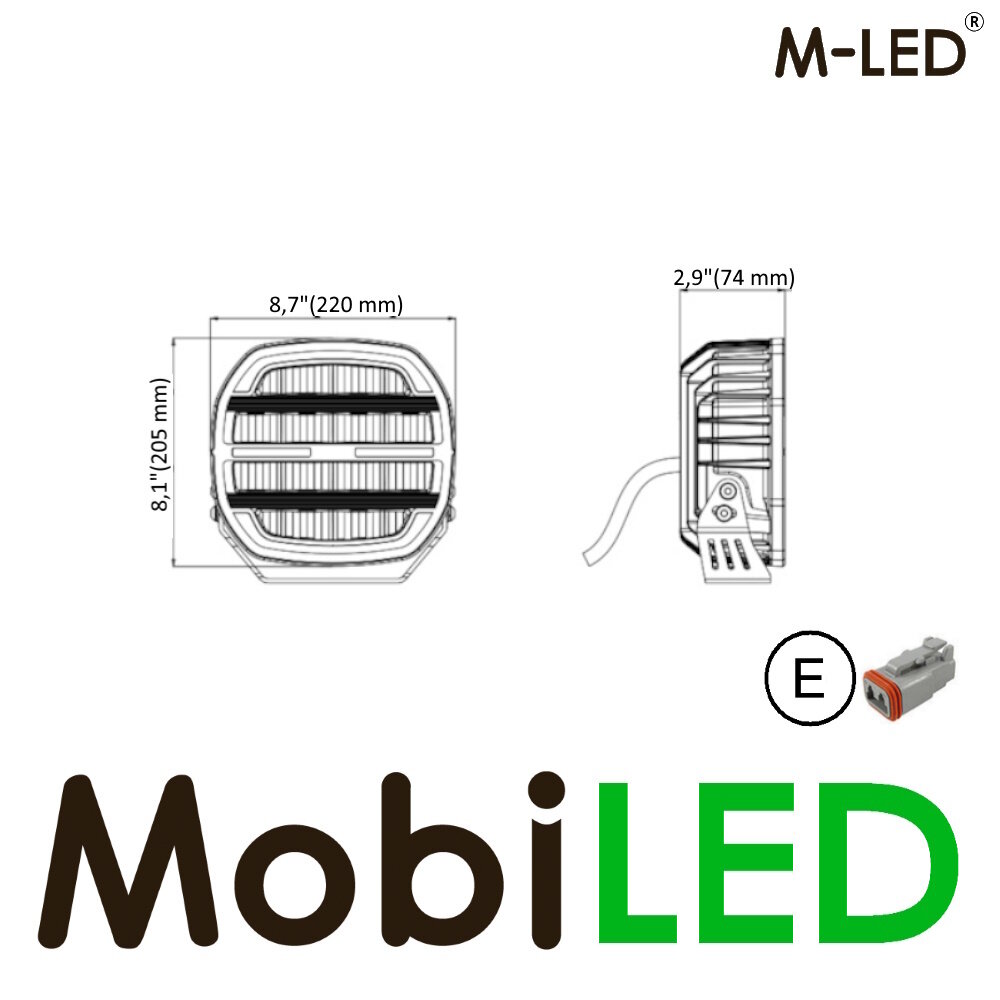

- Length (cm)
- 22
- Height (cm)
- 20,5
- Depth (cm)
- 7,4
- Shape
- round
- Lens material
- impact-resistant polycarbonate
- Housing material
- Aluminium
- Flush-mounted / surface-mounted
- Surface-mounted
- Connection
- DT connector
- Cable Length (cm)
- 55
- IP rating
- IP68
- Certification
- ECE R10, R112, R148, R149
