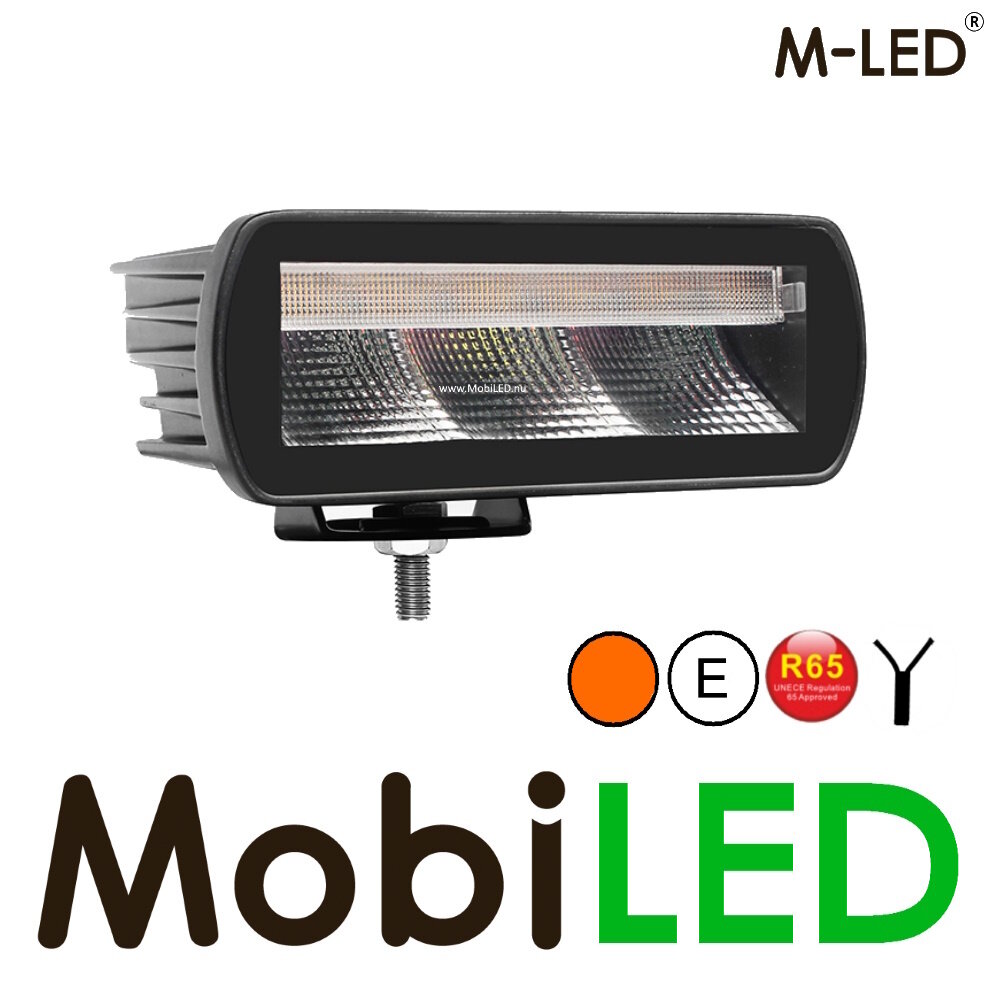

M-LED Rear light 4 functions with flash surface mounting
Product description
Very handy, a rear light with 4 standard functions and it also has a built-in flash. All this is packaged in a beautiful contemporary design, a real addition to the appearance of your vehicle.
Of course, this lamp is fully certified and multi-voltage, making it particularly versatile. This model is designed for surface mounting.
Features:
Rear...
Very handy, a rear light with 4 standard functions and it also has a built-in flash. All this is packaged in a beautiful contemporary design, a real addition to the appearance of your vehicle.
Of course, this lamp is fully certified and multi-voltage, making it particularly versatile. This model is designed for surface mounting.
Features:
- Rear light

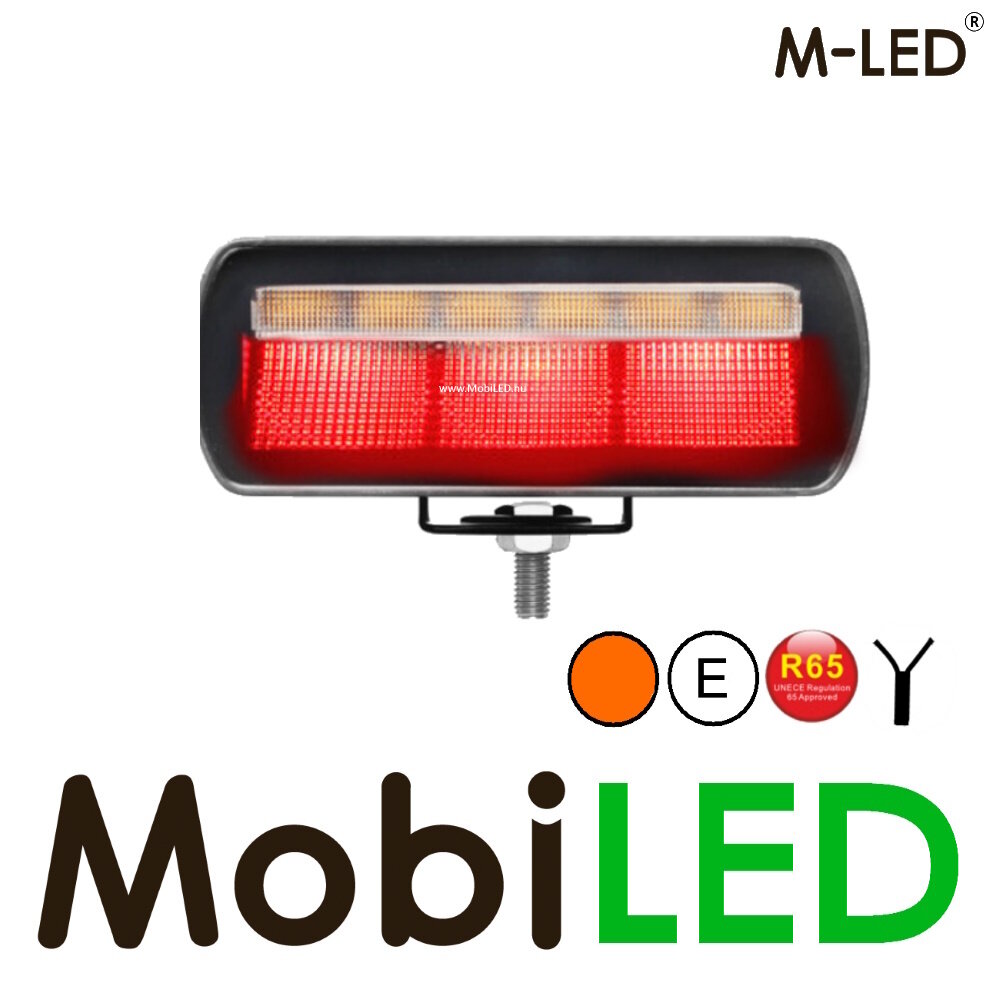

- Brake light

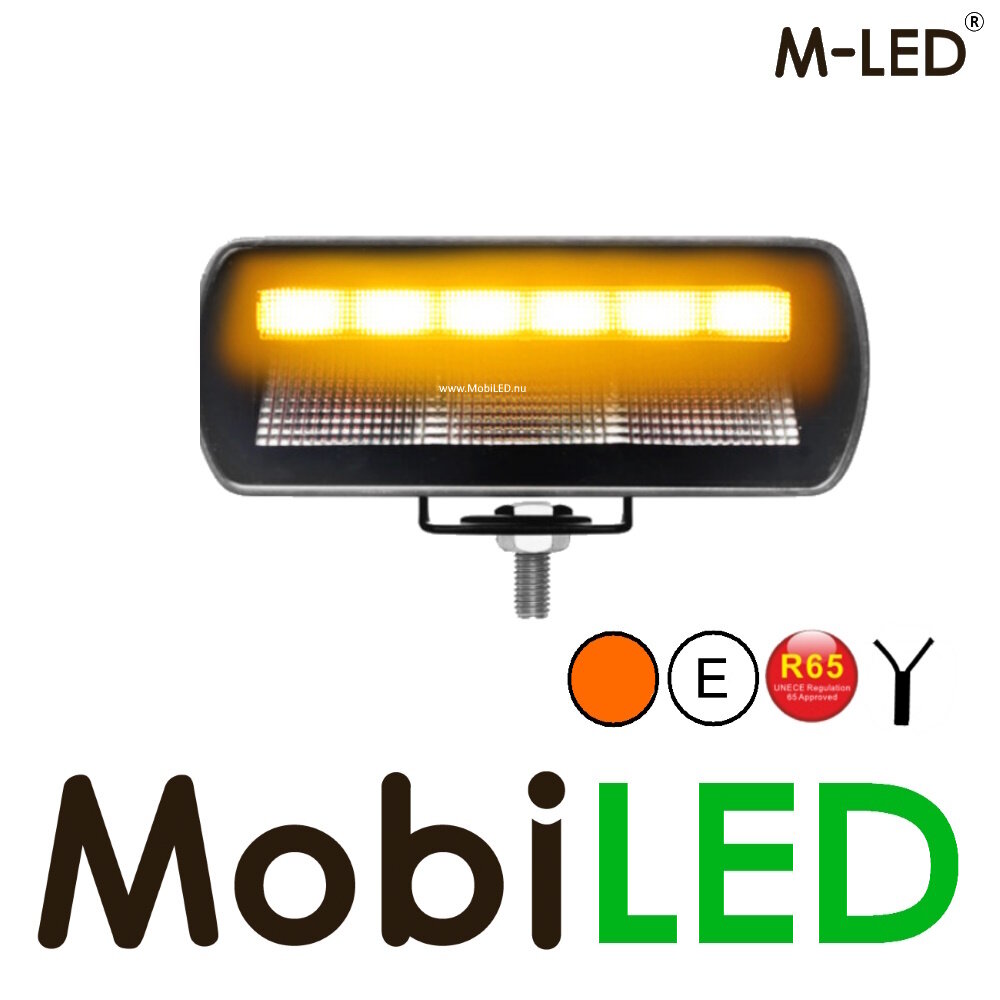

- Turn signal
- Reversing light
- Flash
Connection diagram:
- White mass
- Black position light
- Red brake light
- Yellow turn signal
- Brown flash
- Gray reversing light
Show more
Show less
Product specifications
- Article number
- AL536
- Tension
- 10-30V
- Number of LEDs
- Rear light 3, brake light 3, turn signal 6, reversing light 2, flasher 6

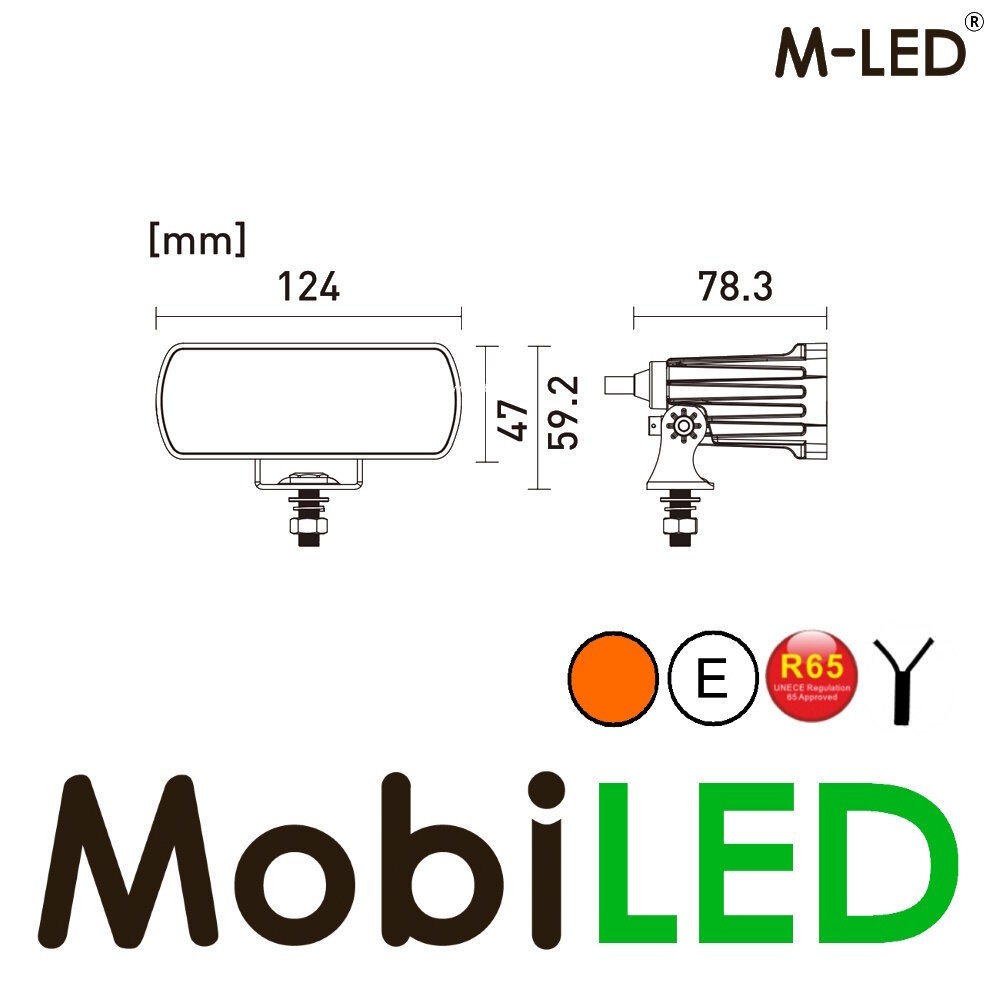

- Length (cm)
- 12,4
- Height (cm)
- 4,7
- Depth (cm)
- 7,83
- Housing material
- Aluminium
- Housing colour
- Black
- Flush-mounted / surface-mounted
- Surface-mounted
- Connection
- Cable
- IP rating
- IP67/IP69K
- Certification
- ECE R10, R6, R7, R65, R23, CE, ROHS
- Shape
- Elongated
- Vehicle side
- Universal
- Tail light function
- Yes
- Brake light function
- Yes
- Reversing light function
- Yes
- Indicator function
- Yes
- Manufacturer article number
- CM-2014W-A
