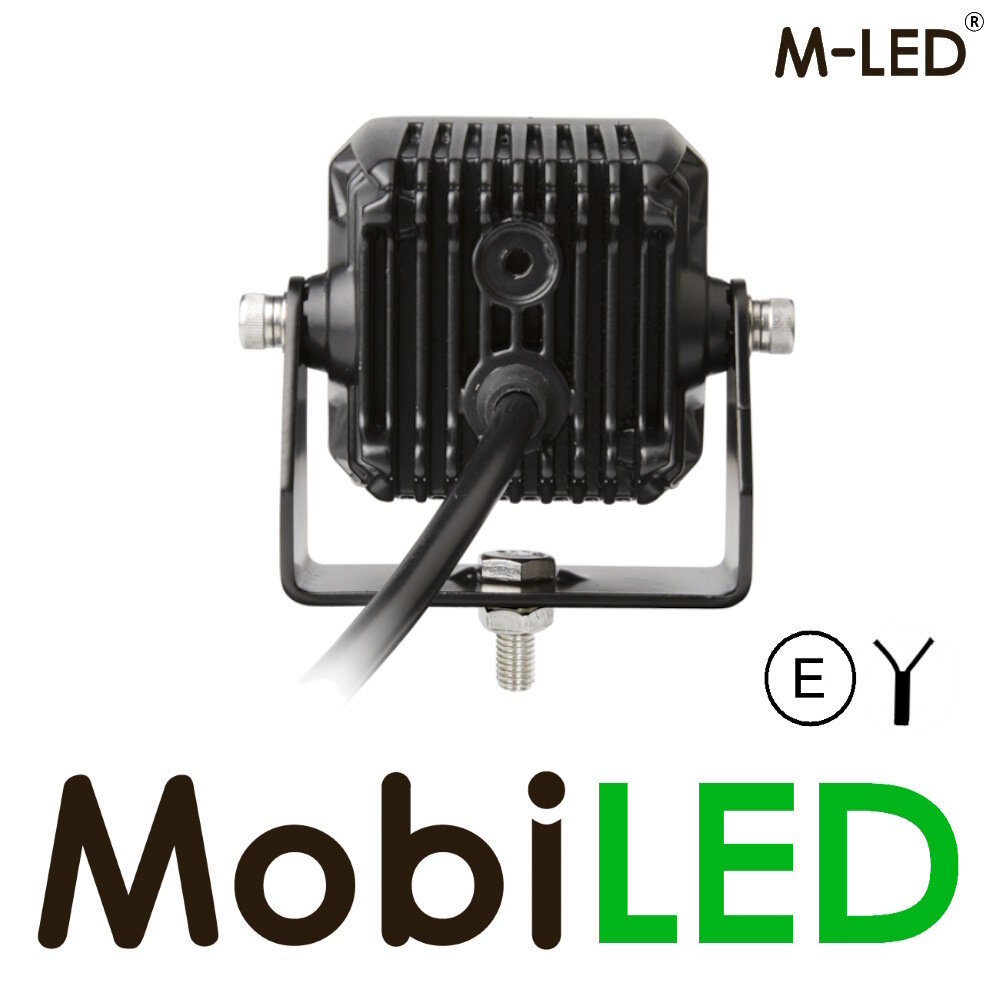

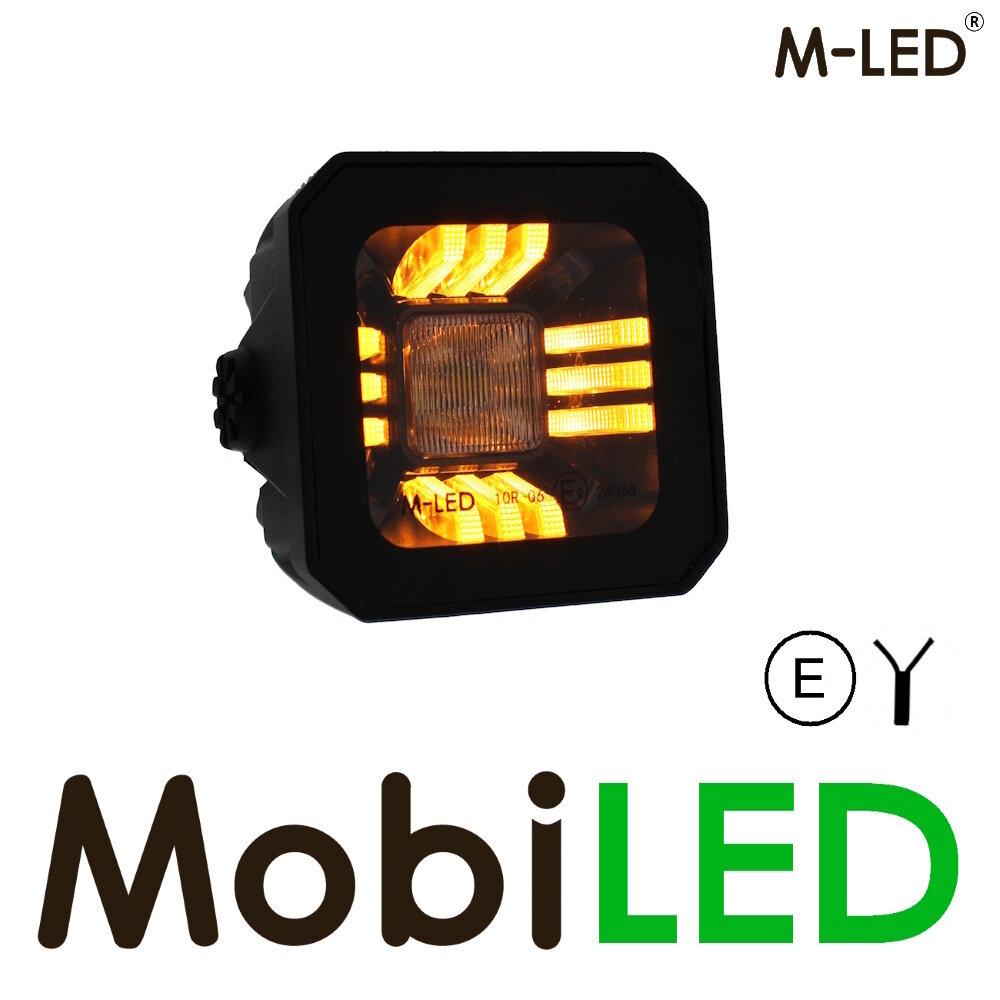

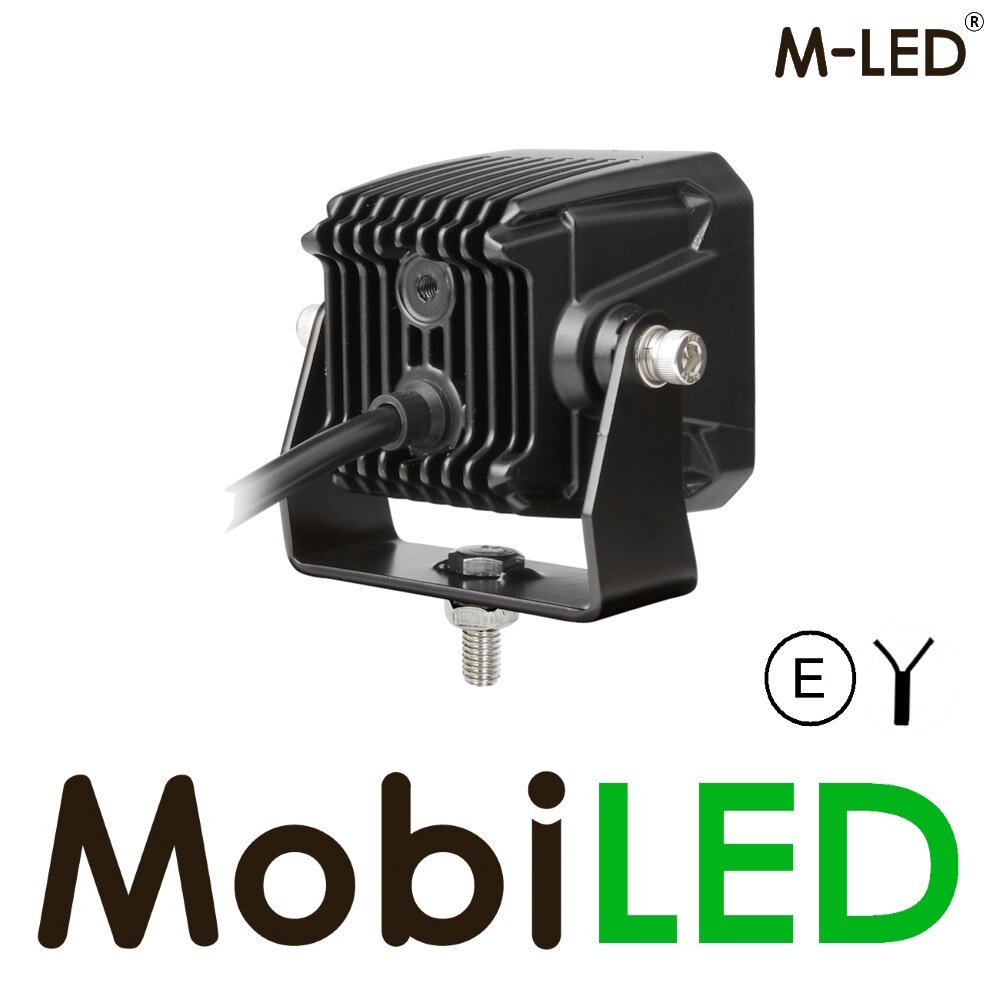

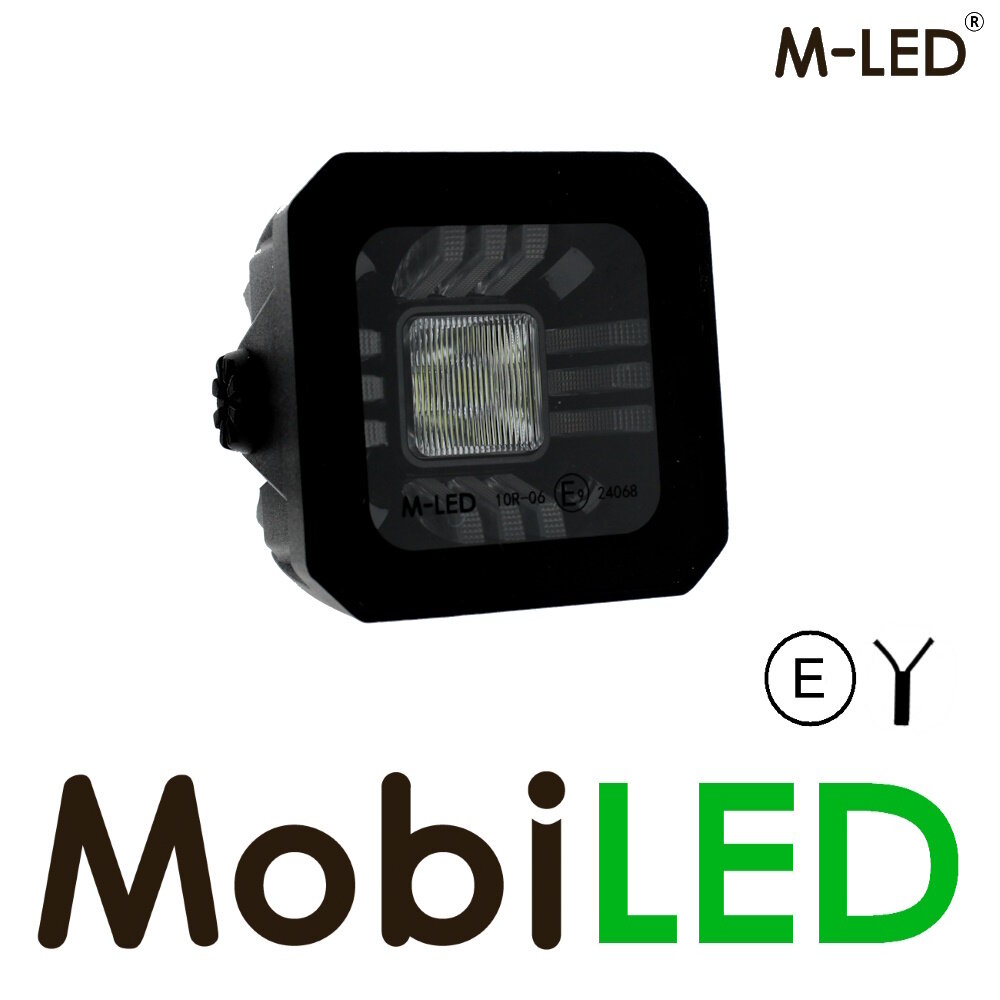

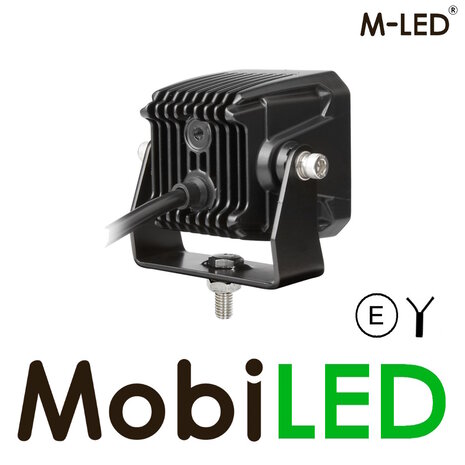

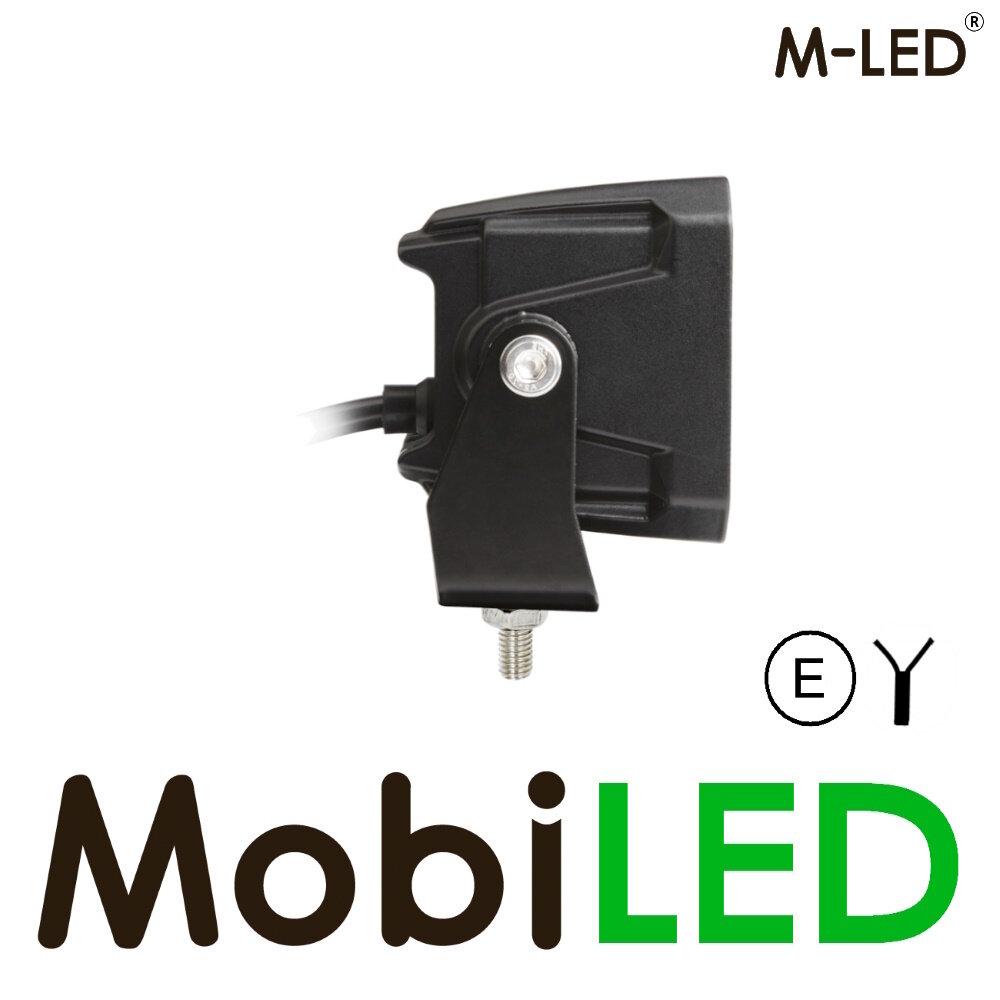

M-LED Spot beam with white/amber position light E-mark
This spot beam delivers a powerful and wide beam pattern that brightly illuminates your surroundings. Very special: this lamp has white and amber position light, the choice is yours. This ensures a special appearance.
The lamp comes with a dark, minimalist design that gives the lamp a mysterious appearance. The design adds a touch of refinement. It is also particularly well protected against stone chips.
The cube shape and the multi-voltage make it compatible with all types of vehicles. With a rotation of 180 degrees, you can easily adjust the light to the desired work area.

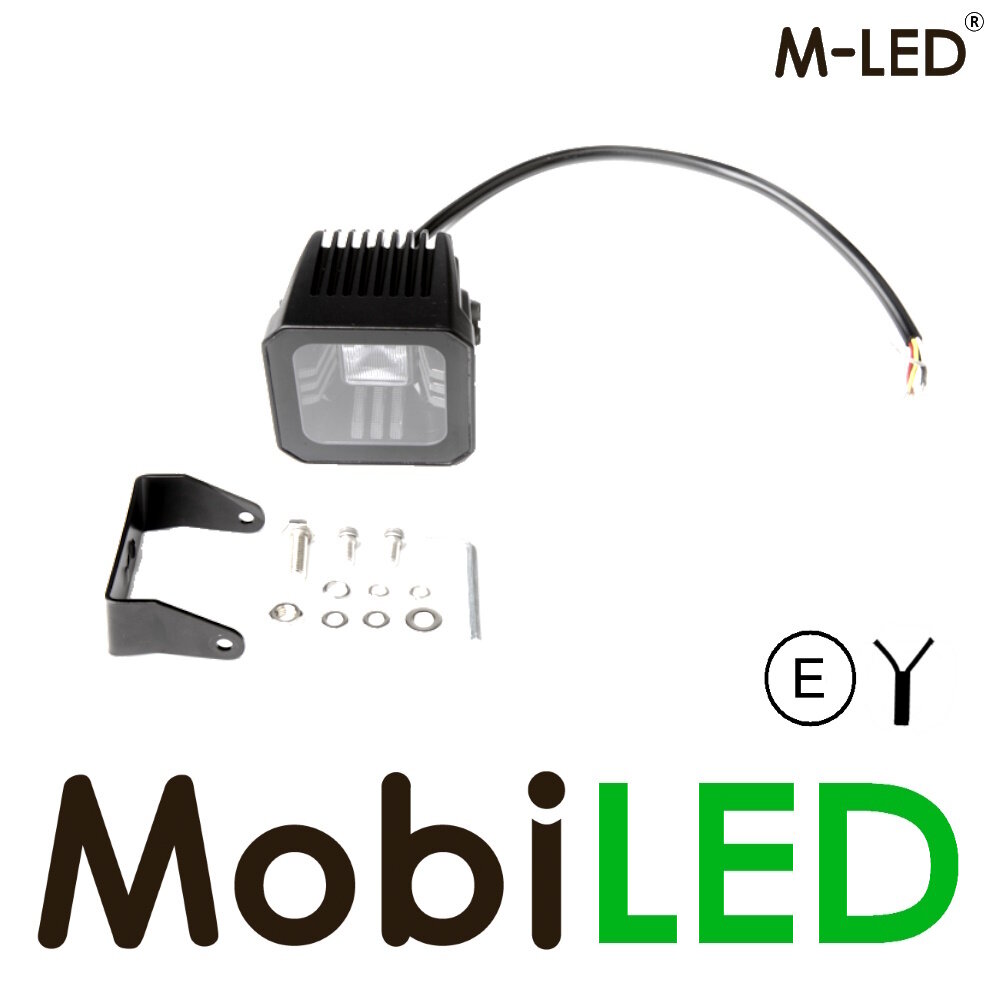

The bracket is made of stainless steel. In addition, this lamp has a 2-meter cable.
Connection diagram:
- Black: ground
- Red: work light
- Yellow: amber position light
- White: white position light
Product specifications
- Article number
- BS064
- Tension
- 10-30V DC
- Power
- 18 watt
- Lumens
- 1700 LM
- Light colour
- 6000-6500K (Amber/White)
- LED Type
- SMD
- Light image
- Spot
- Length (cm)
- 7,4
- Height (cm)
- 7,4
- Depth (cm)
- 6,8
- Shape
- Square
- Lens material
- PC
- Housing material
- Aluminium
- Connection
- Cable
- Cable Length (cm)
- 200
- Number of wire cores
- 4
- IP rating
- IP67-IP69K
- Certification
- ECE, R10
