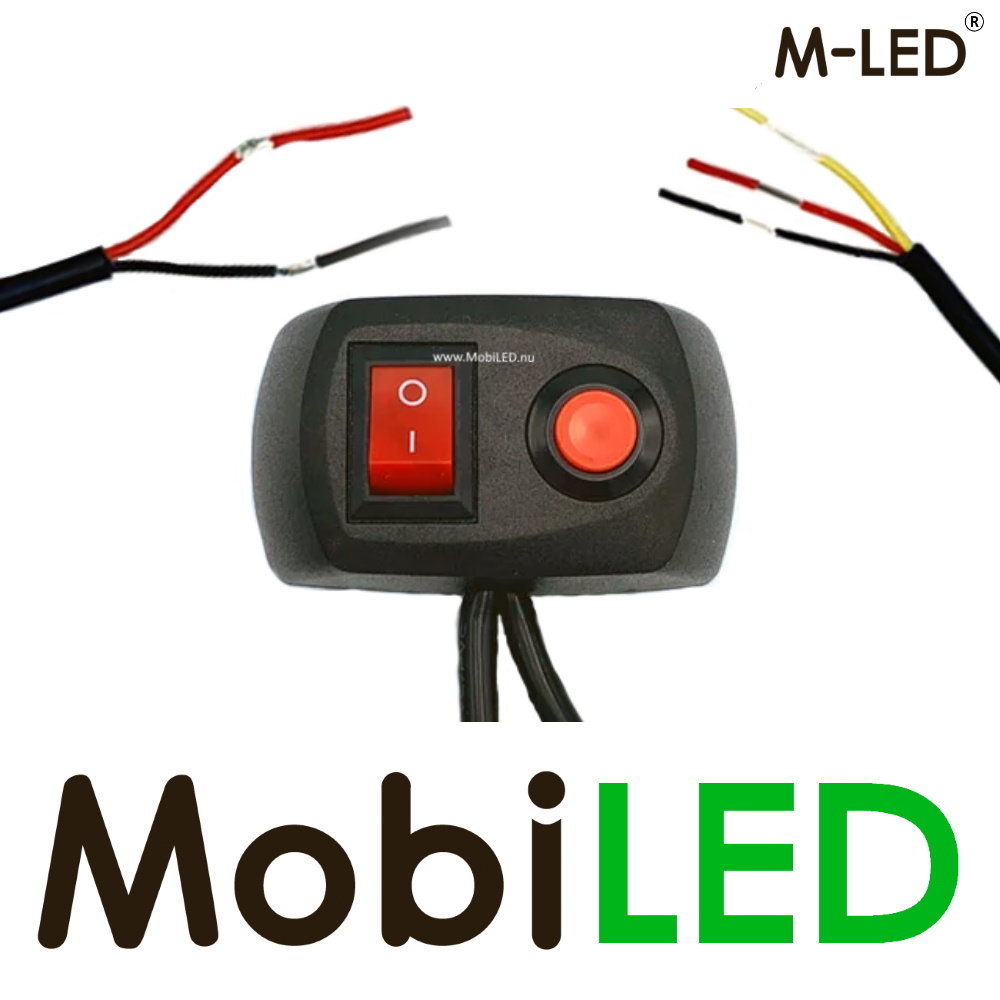

M-LED Mini switch panel on/off/pattern switch

This mini switch panel allows you to easily switch flash lights or other additional lighting on and off. With the round pulse switch the flash pattern can be changed by connecting the pattern wire to the ground wire, make sure that this matches the operation of your flasher.

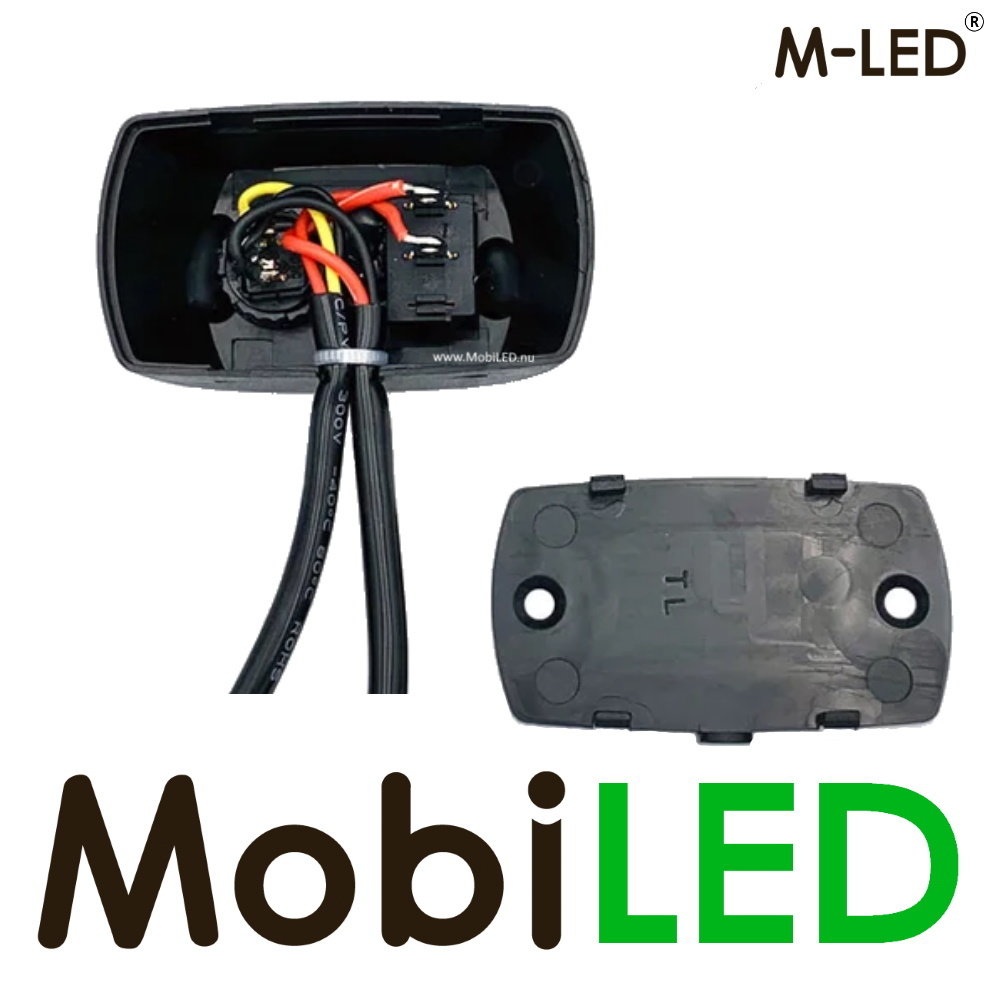

The panel has two cables. The input cable of 1 meter  has 2 wires (red +, black -). The output cable of 2 meters has 3 cores (red +, black -, yellow flash pattern).

Specifications:

• Input: multivoltage 12-24 V
• Amperage: 6 A
• Dimensions: 6.5 x 3.8 x 2.5 cm (wxhxd)
• Distance mounting points CtC: 50 mm
• Mounting: screw mount (3 mm) or with supplied 3 m self-adhesive tape
