M-LED Touring 10" 100 W Jumbo with position light white/ambe

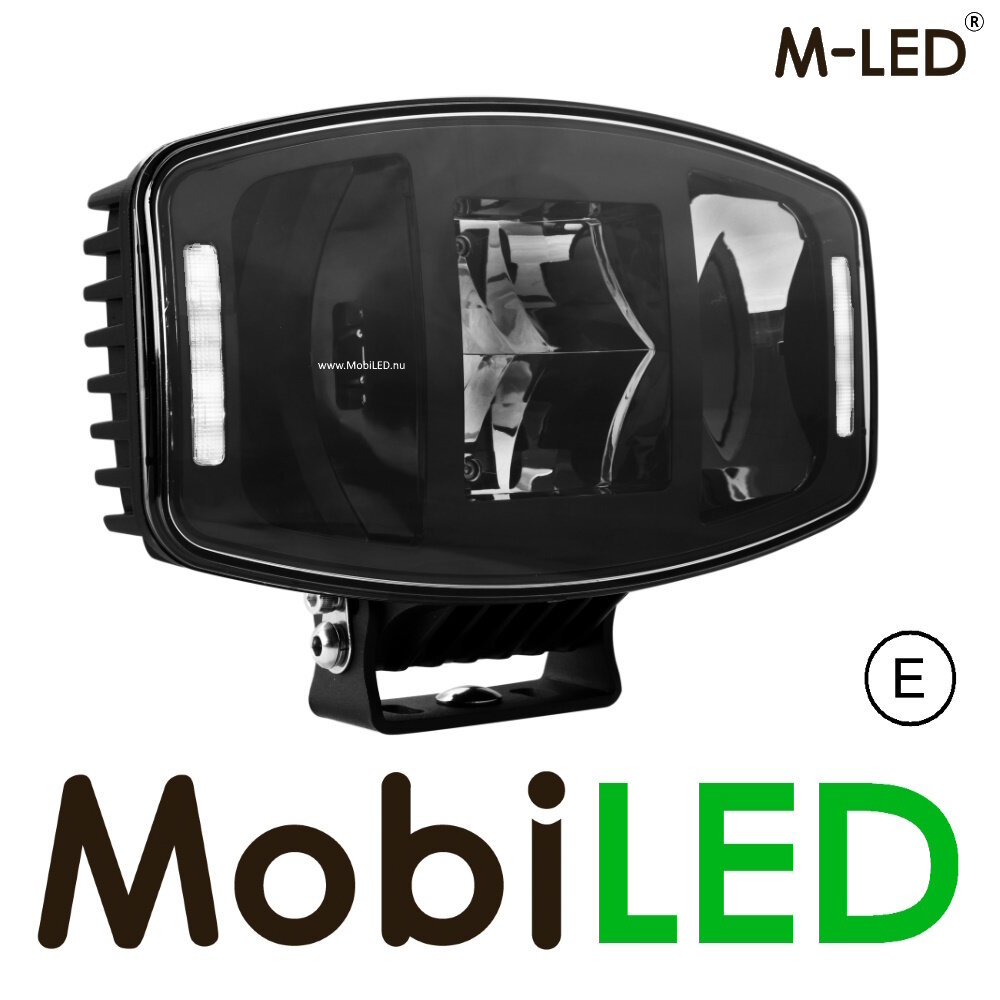

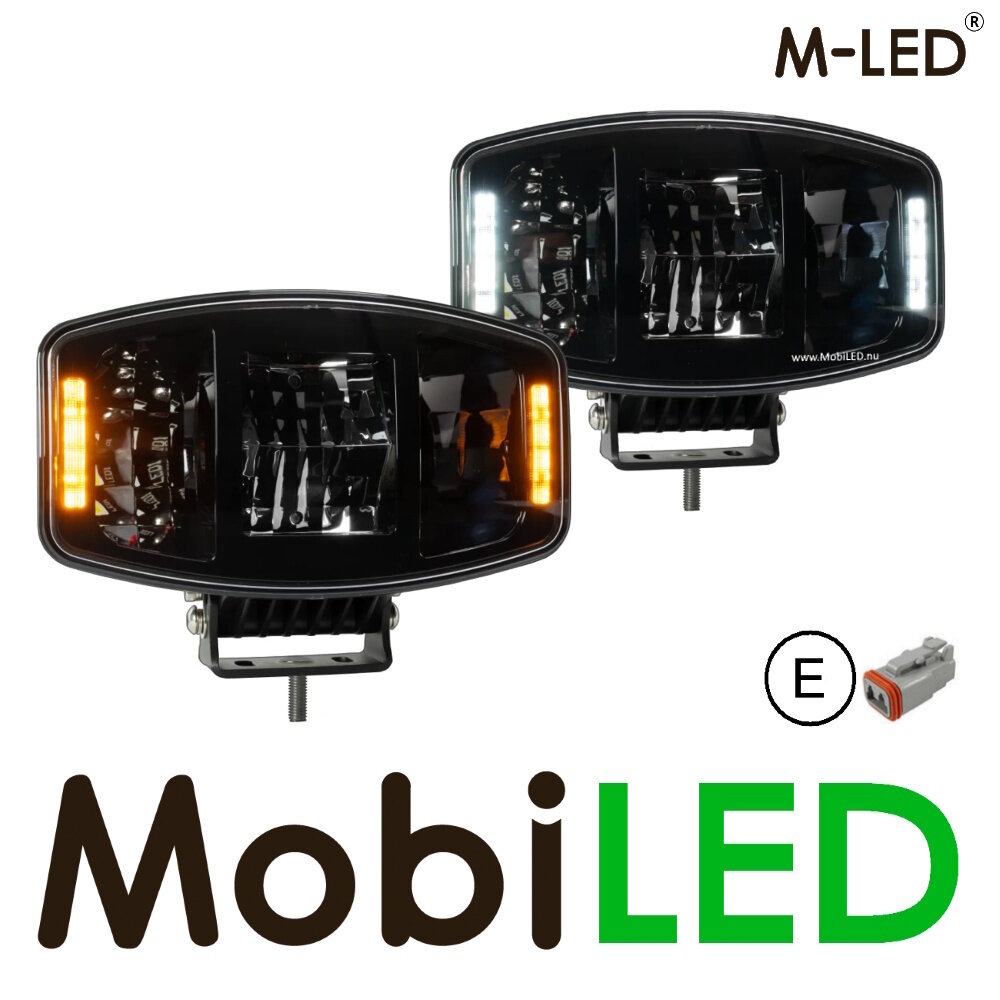

A familiar appearance on many trucks and a familiar model. Yet this M-LED touring ring is just different from the rest of the "Jumbo" models that are offered. Due to its contemporary dark look, this lamp has a completely unique appearance. The vertical position lights are located on the sides of the lamp. These can burn white or amber as desired. The directional reflectors provide an optimal light image and reach up to 850 meters. No more staring into the distance but relaxed good view. Safe on the road, arrive rested and beautiful to see. Of course, this lamp can be easily combined with the M-LED cruiser.
Of course, this beautiful lamp has high-quality specifications and is equipped with all type approvals, E-mark R112 and R7 (white position light).

Price per piece.

Note:

• Do not cut the DT connector as this will increase the risk of moisture damage and will void the warranty.

Specifications:

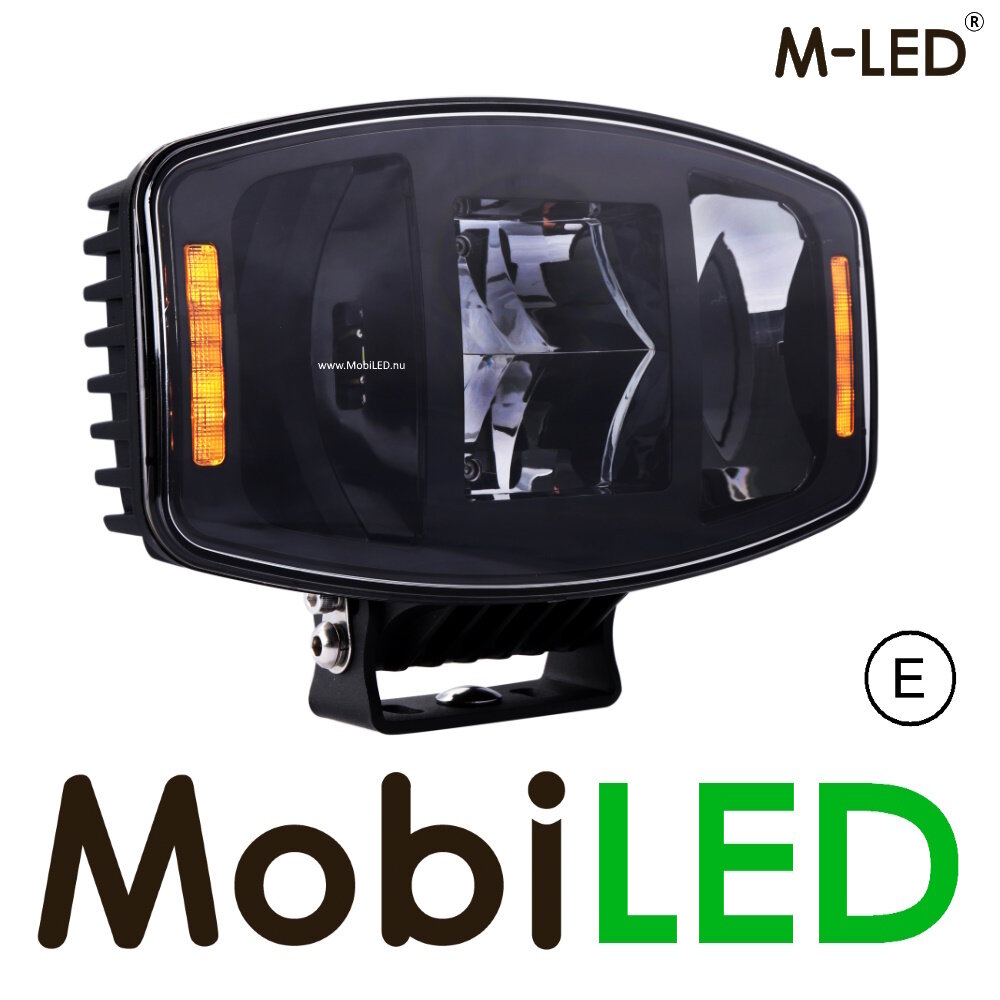

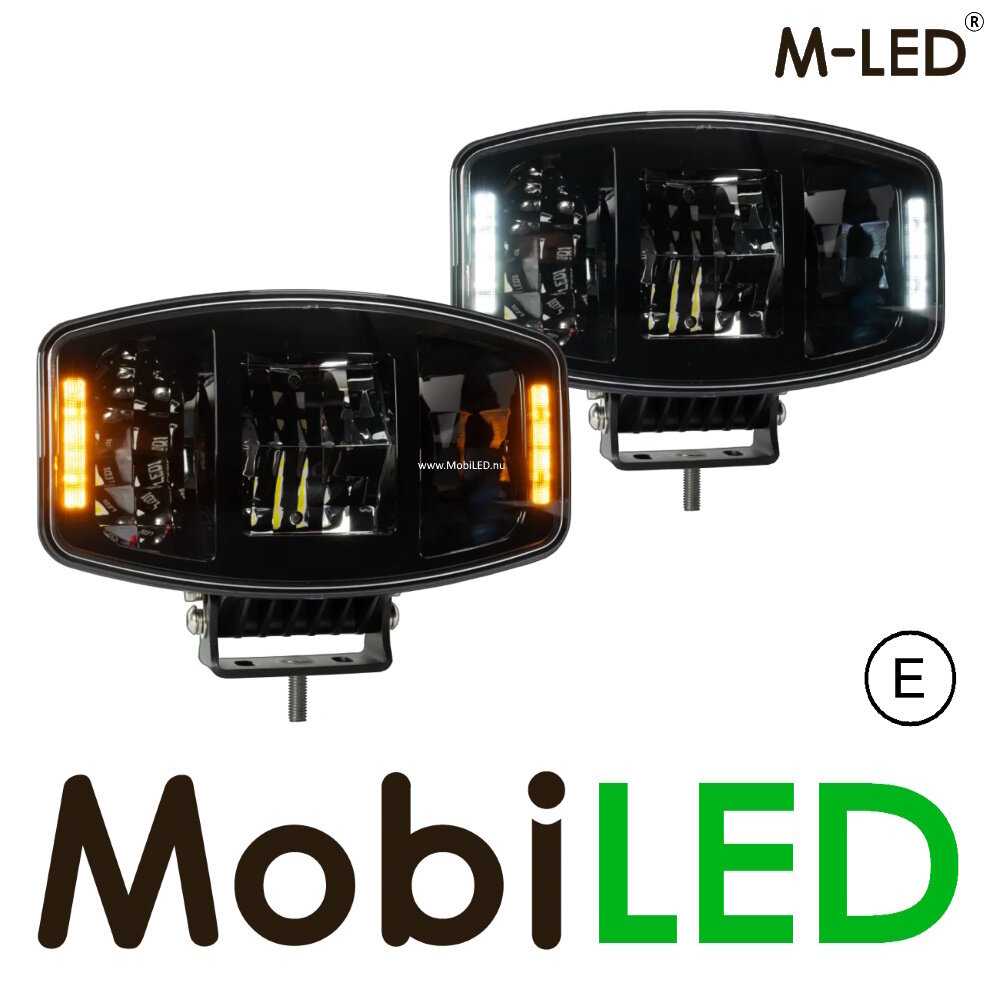

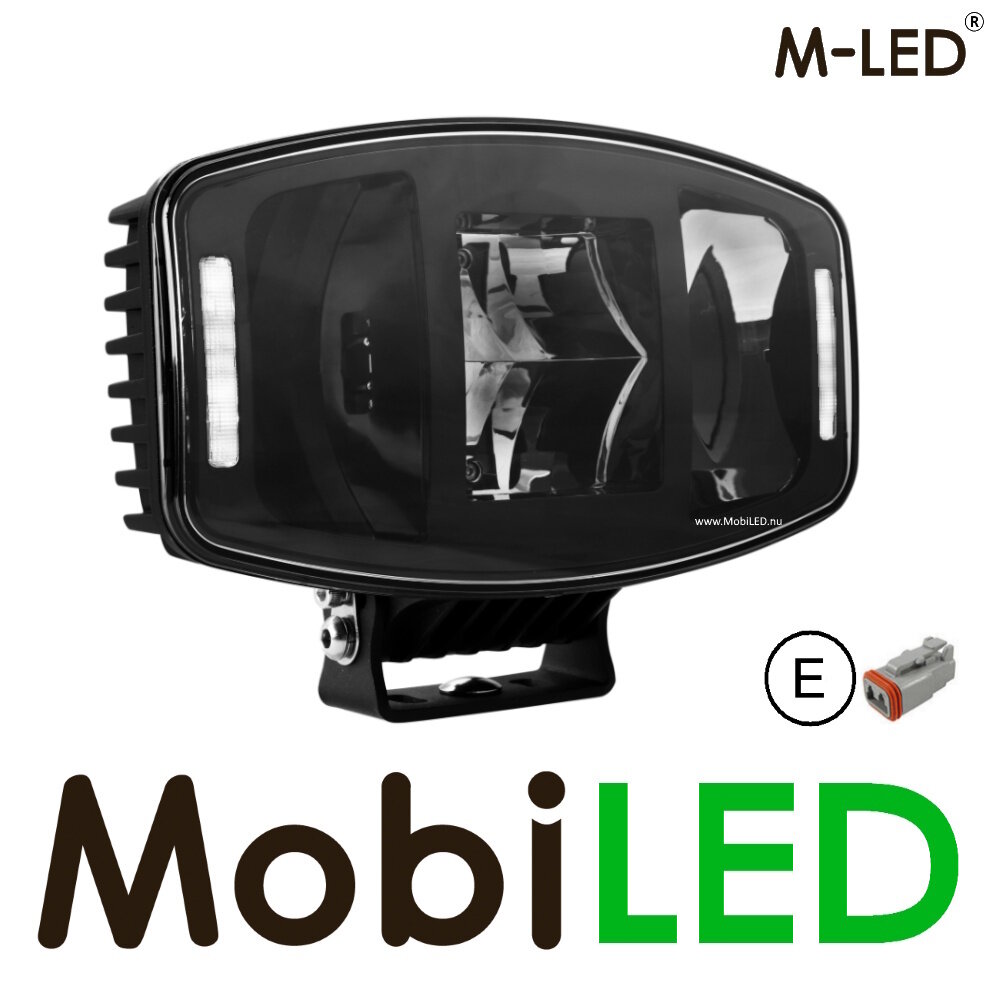

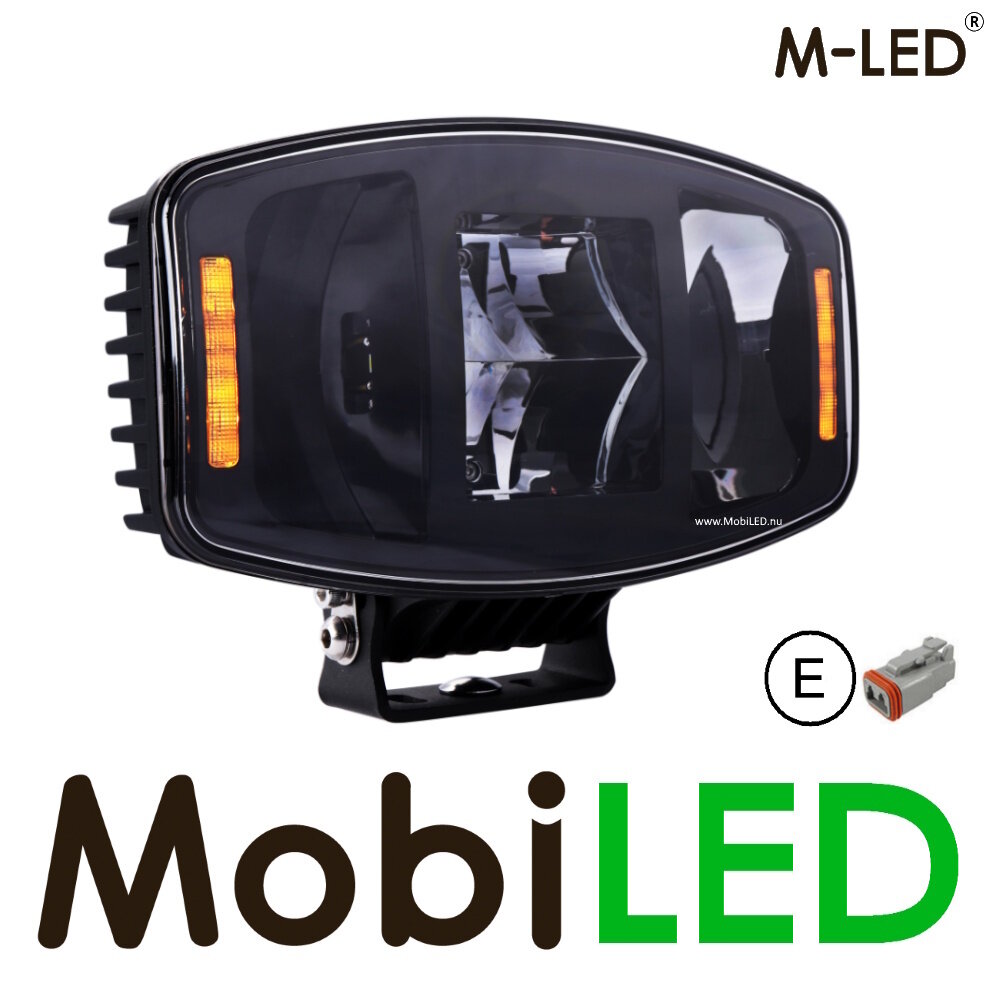

• Color position light: amber or white as desired
• Power: 100W
• Voltage: 9-36 V DC
• Amperage: 12-24 V: 6.8-3.4 A

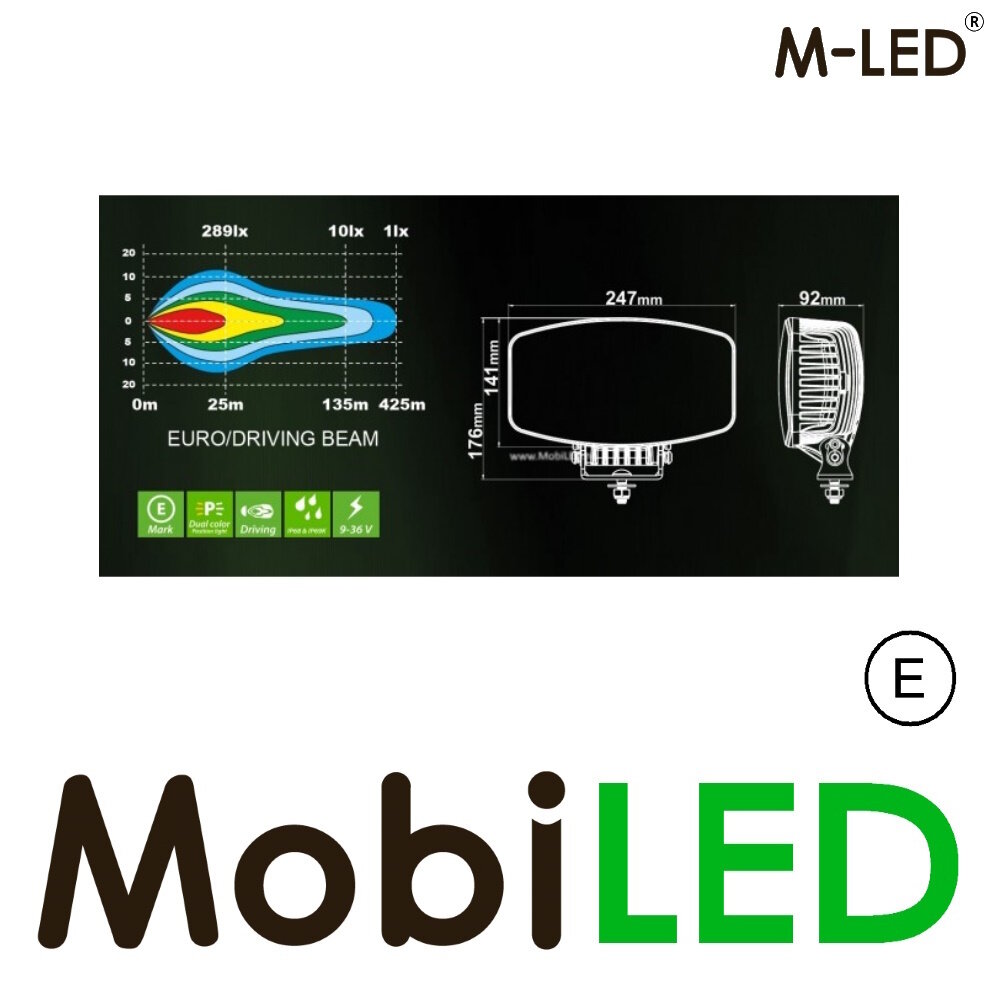

• Range: 850 m (0.25 lux), 425 m (1 lux)
• EMC protected (does not disturb the radio)
• Light output: 10000 lumens (theoretical), 8500 lumens (effective)
• Light color: 6000K
• ETM (Electronic Thermal Management)

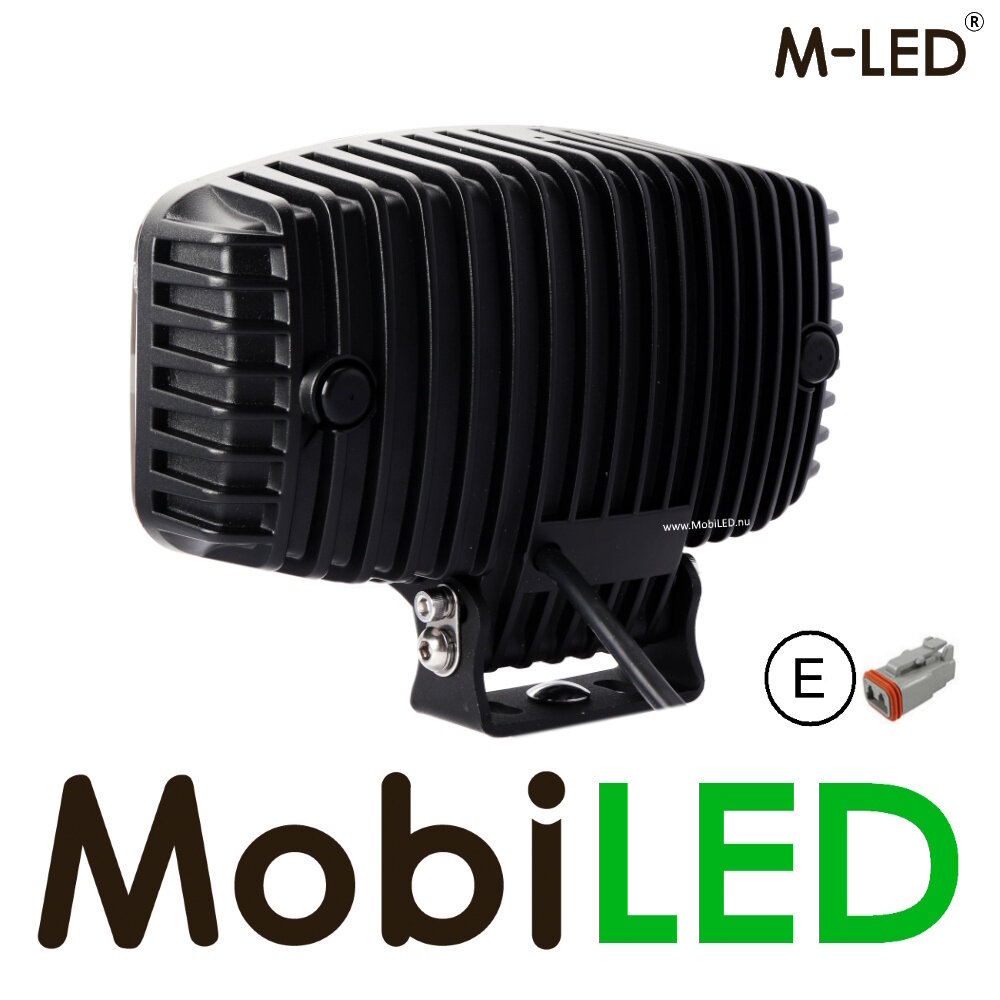

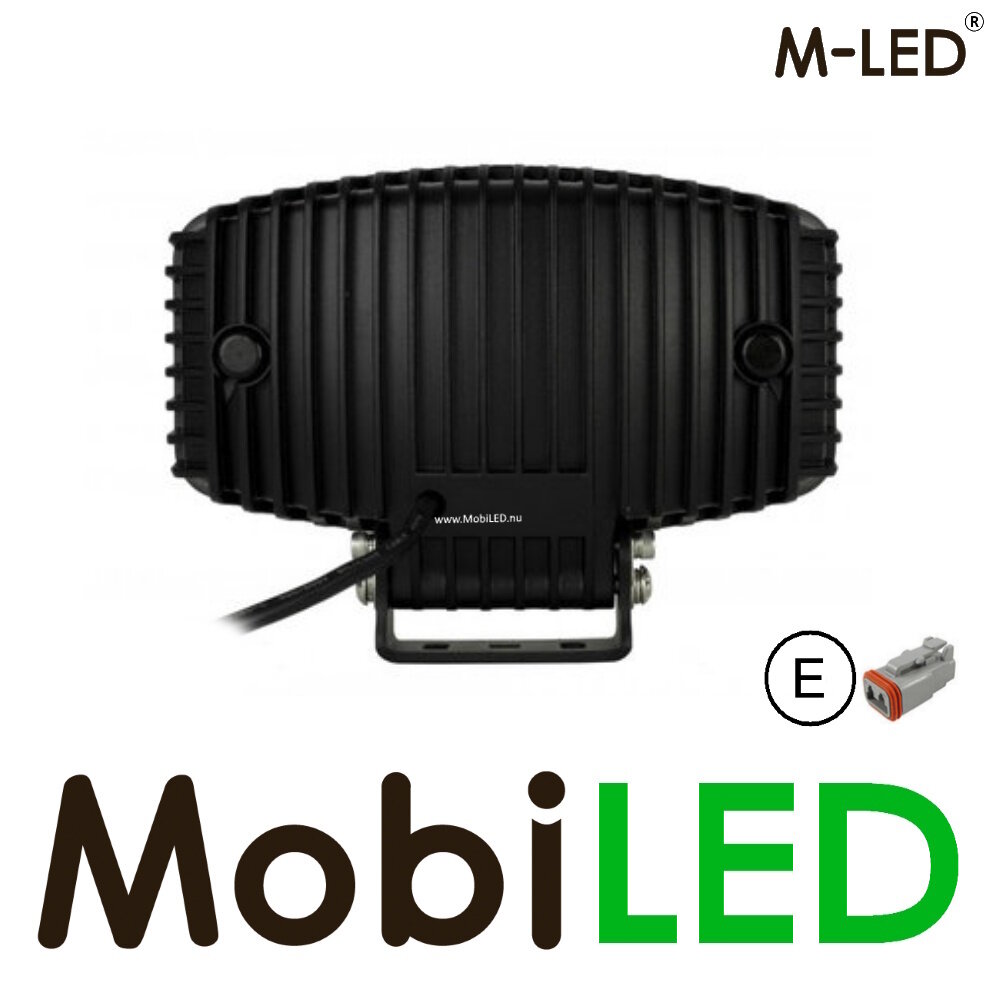

• Housing: aluminum with overpressure membrane
• Mounting: SS mounting bracket
• Classification: IP68 / IP69K (water / dustproof)

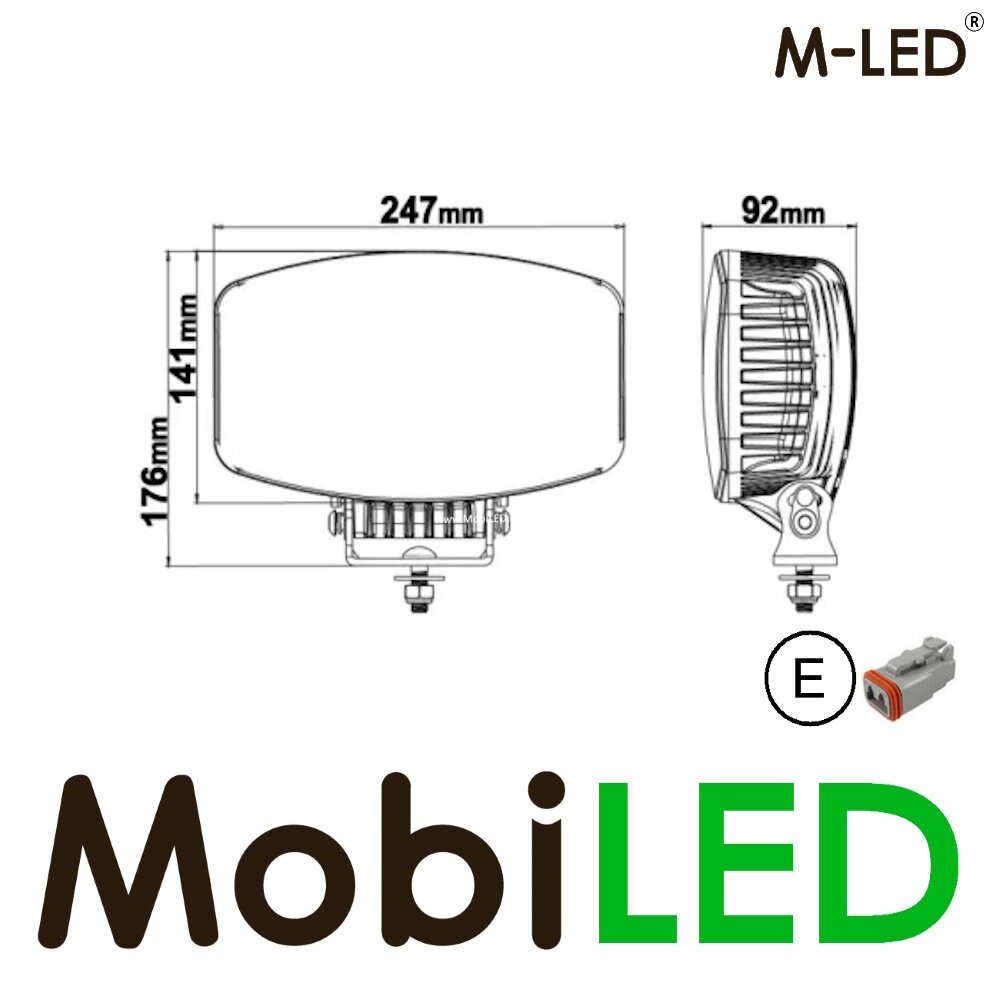

• Dimensions: 247 x 141 x 92 mm
• Weight: 1.82 kg
• Certification: E9 (ref. 37.5), ECE R112 / R10 / R7 (white position light)

Connection scheme:

• Red: light (+)
• Black: light / position light (-)
• White: white position light (+)
• Yellow: amber position light (+)
