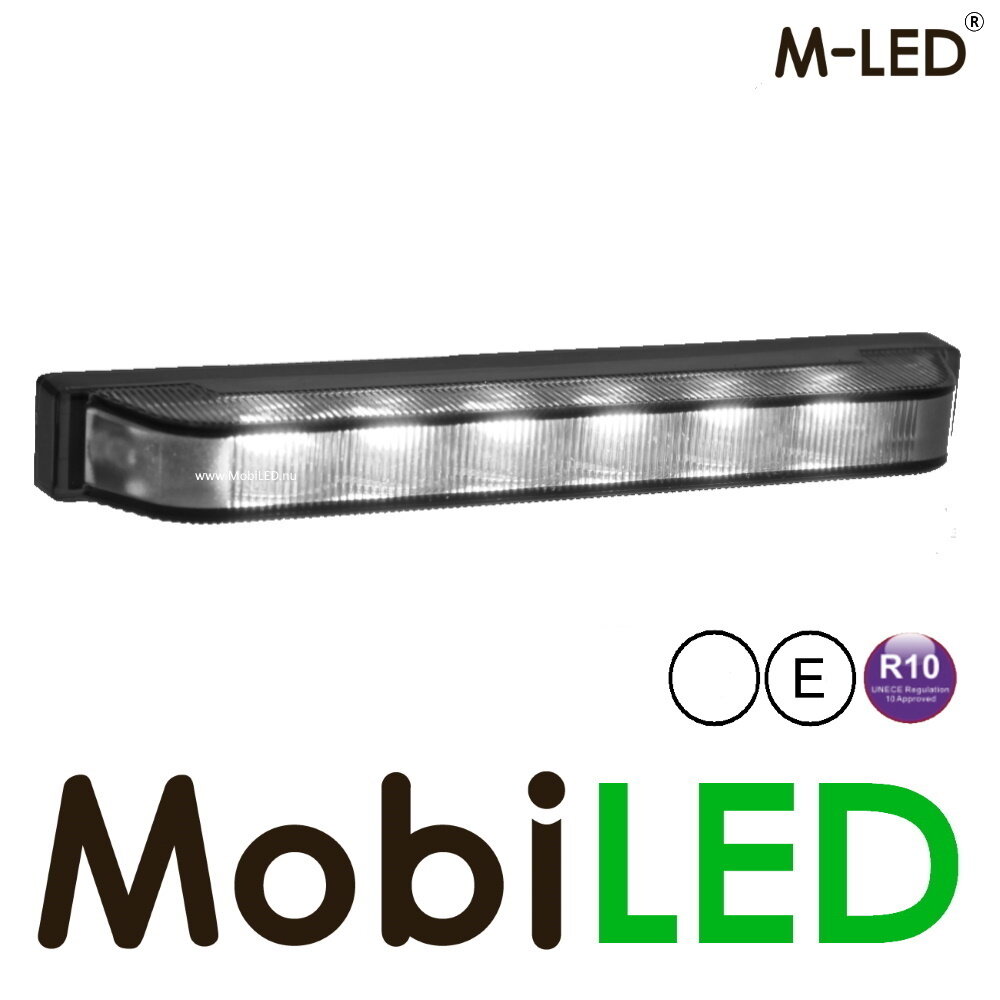

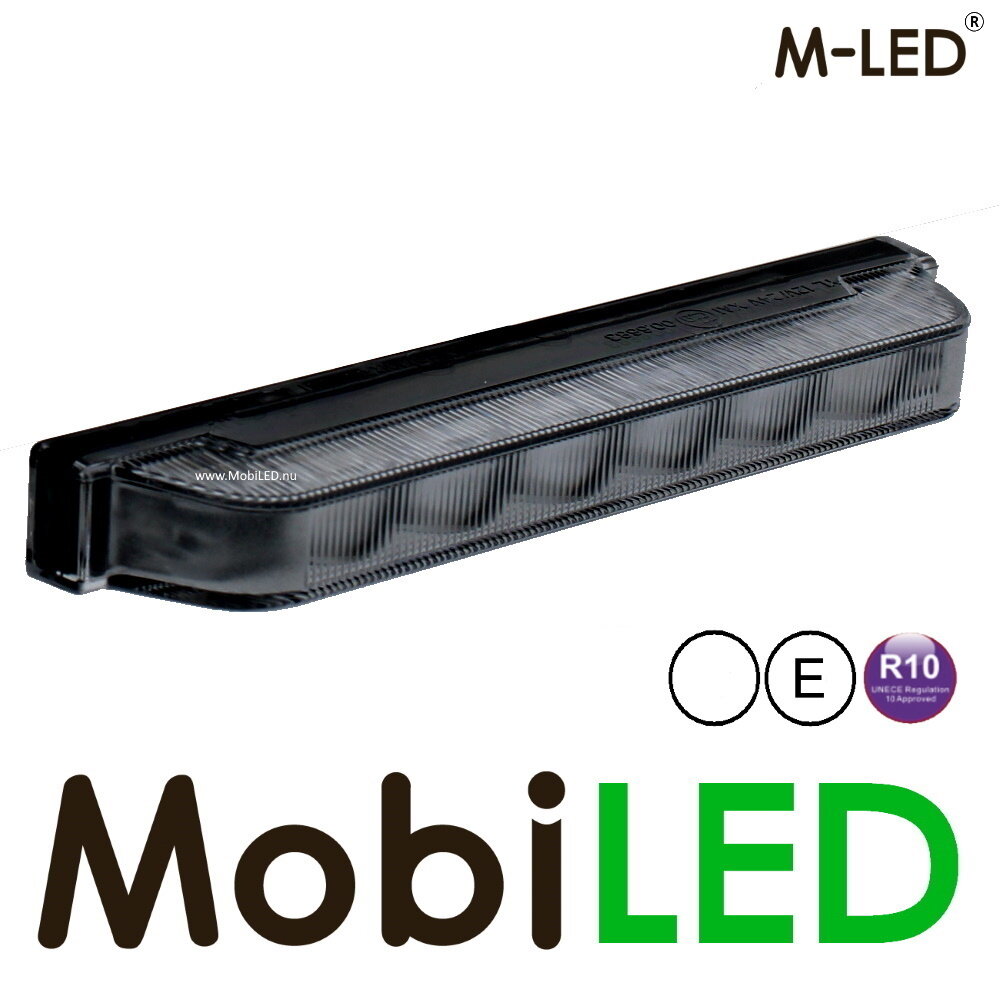

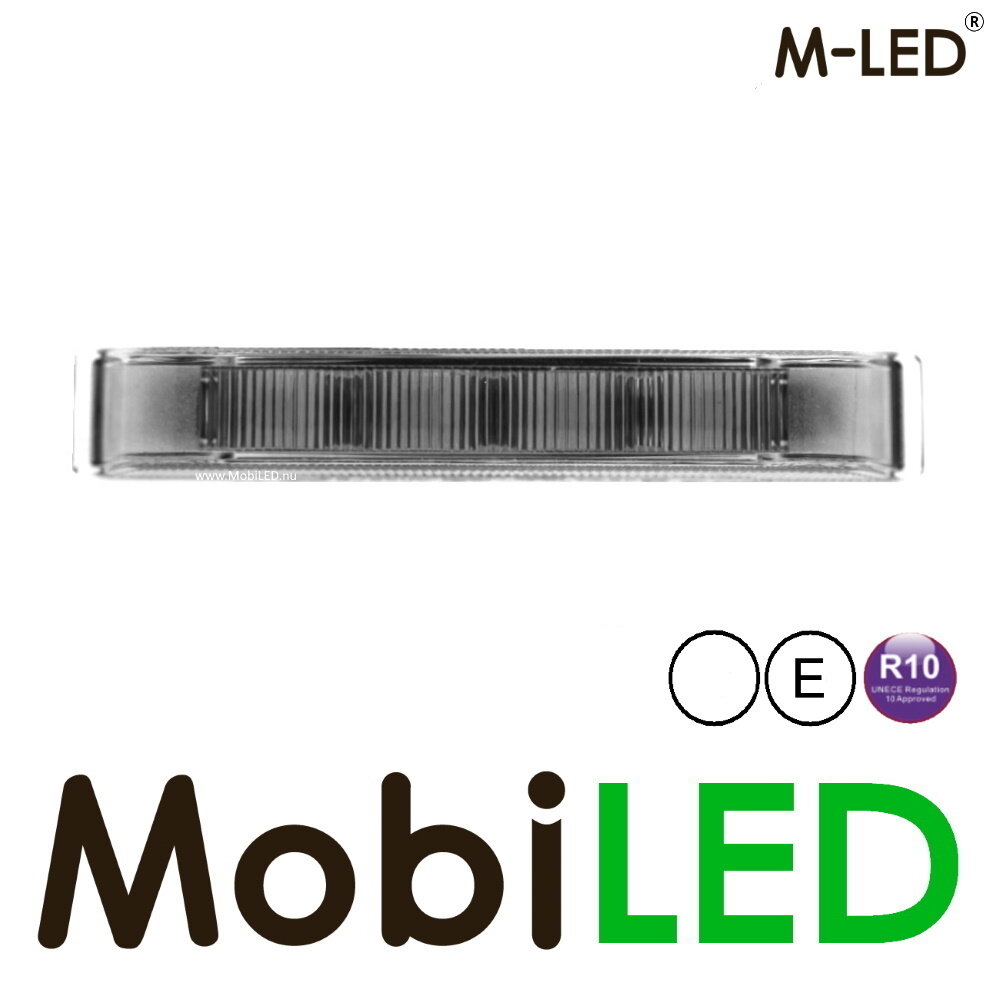

M-LED Ultra narrow flasher white Dark look 6 LEDs E-mark

This is an ultra narrow grill flasher in a very nice version, known as the Smoke look. Very contemporary and an eye-catcher on your vehicle. The flasher is white in color and ECE approved. It has 6 LEDs and 22 different flash patterns, including continuously on. There are several mounting methods. It can be synchronized with up to 14 other flashers. Moreover, it is equipped with a memory function.

Flash patterns:

1. Single flash
2. Single flash slow
3. Double flash
4. Double flash slow
5. Triple flash fast
6. Quadruple flash fast
7. Quadruple flash slow
8. Octuple flash fast
9. Octuple flash slow
10. Twelvefold flash
11. Sixteenfold flash
12. Single flash split
13. Double flash split
14. Quadruple flash split
15. Octuple flash split
16. Single flash split accelerated
17. Double flash split accelerated
18. SOS flash
19. Series (1,8,3,9,4,18)
20. Series (2,7,9,11,14,16)
21. Continuously on
22. #18,19,20 and 21 without change

Connection diagram:

• Black: mass
• Red: + VDC
• White: constant connection with black for low intensity
• Yellow: pattern selection and synchronization
