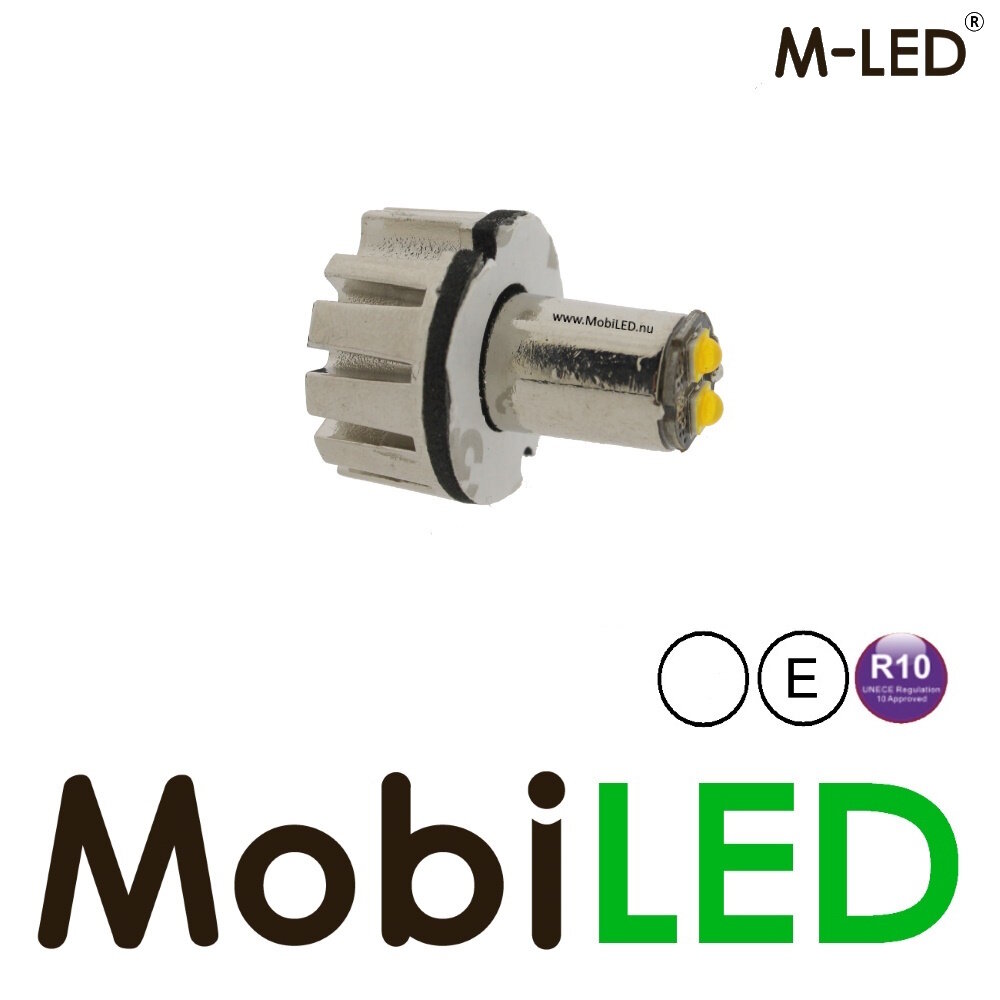

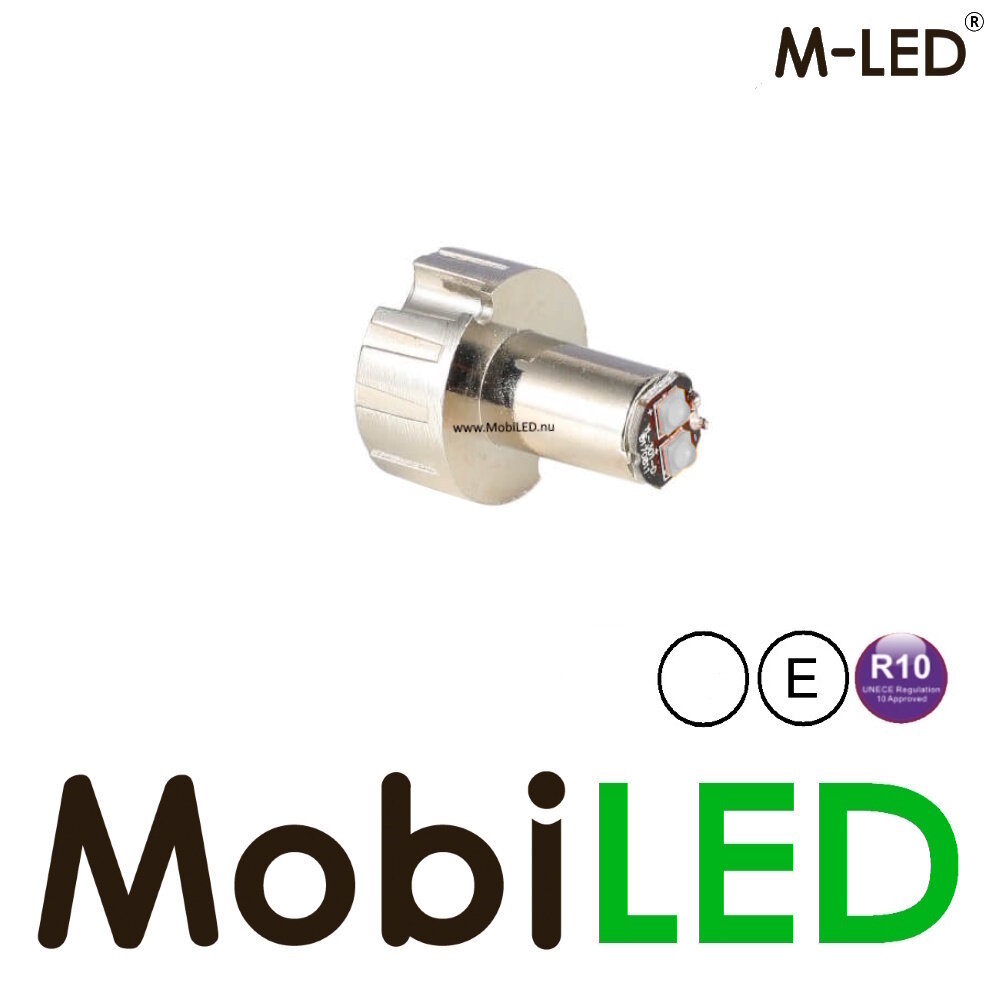

M-LED Undercover recessed/surface-mounting flasher white E-mark

This compact flasher is suitable for recessed mounting and surface mounting. The round flasher can be inconspicuously mounted in the headlight housing of your vehicle. The 2 LEDs in this flasher provide a striking light image in all directions. Control of the flasher is incorporated in the cable.
There is a choice of 26 flash patterns. The flasher will remember the last pattern you selected.
Of course, this light is multi-voltage and comes with all certificates.

Specifications:

• Voltage: 12-24V
• Light color: white
• Number of LEDs: 2
• Number of flash patterns: 26

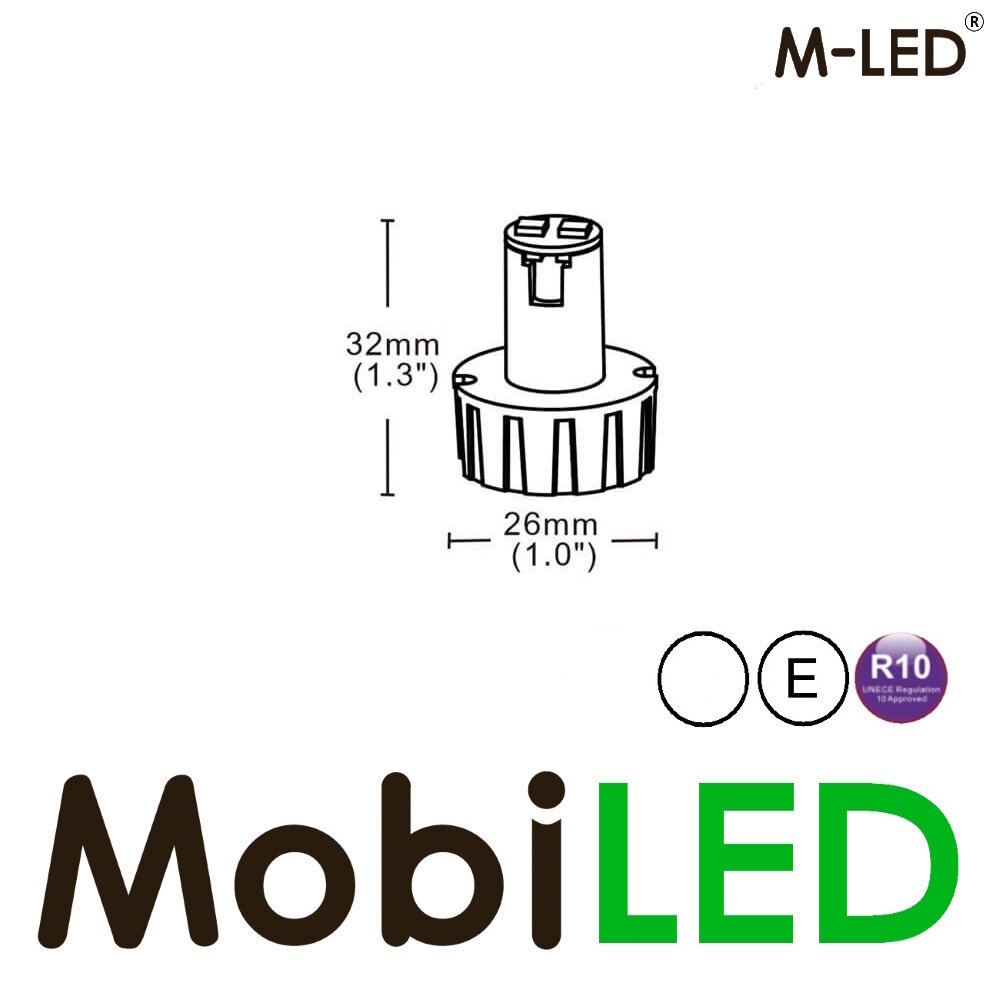

• Hole size: 24.5 mm
• Cable length: 2 x 1 m
• Water resistance: IP67
• Certification: CE, ECE R10, CISPR 25 Class 3

Flash Patterns:

1. Single flash
2. Single flash slow
3. Double flash
4. Double flash slow
5. Triple flash
6. Quadruple flash fast
7. Quadruple flash slow
8. Eightfold flash fast
9. Eightfold flash slow
10. Twelvefold flash
11. Sixteenfold flash
12. Single flash alternating
13. Double flash alternately
14. Triple flash alternately
15. Quadruple flash alternating
16. Eightfold flash alternating
17. Single flash split
18. Double flash split
19. Quadruple flash split
20. Eightfold flash split
21. Single flash split accelerated
22. Double flash split accelerated
23. SOS flash
24. Cycle (1,8,3,9,4,18)
25. Cycle (2,7,9,11,19,21)
26. Constantly on

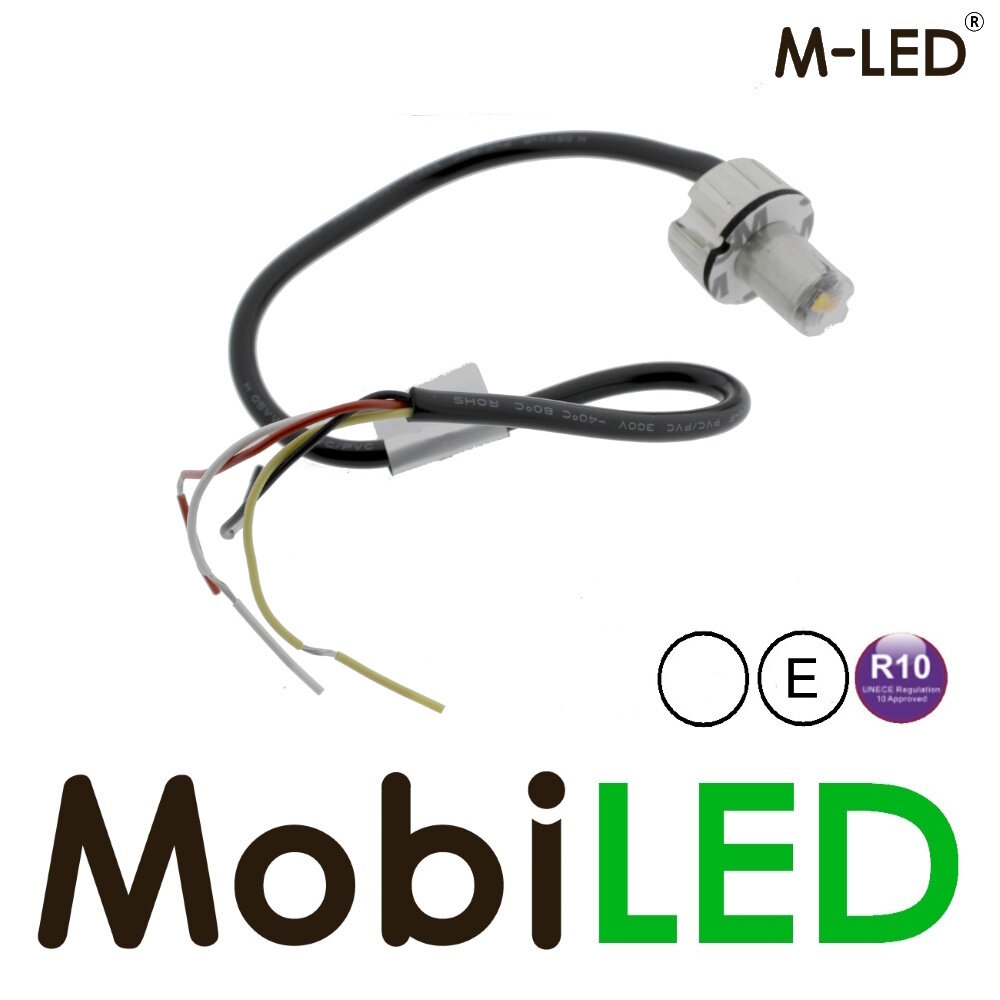

Connection diagram:

• Red: plus
• Black: minus mass
• Yellow: set flash pattern
• White: sync
