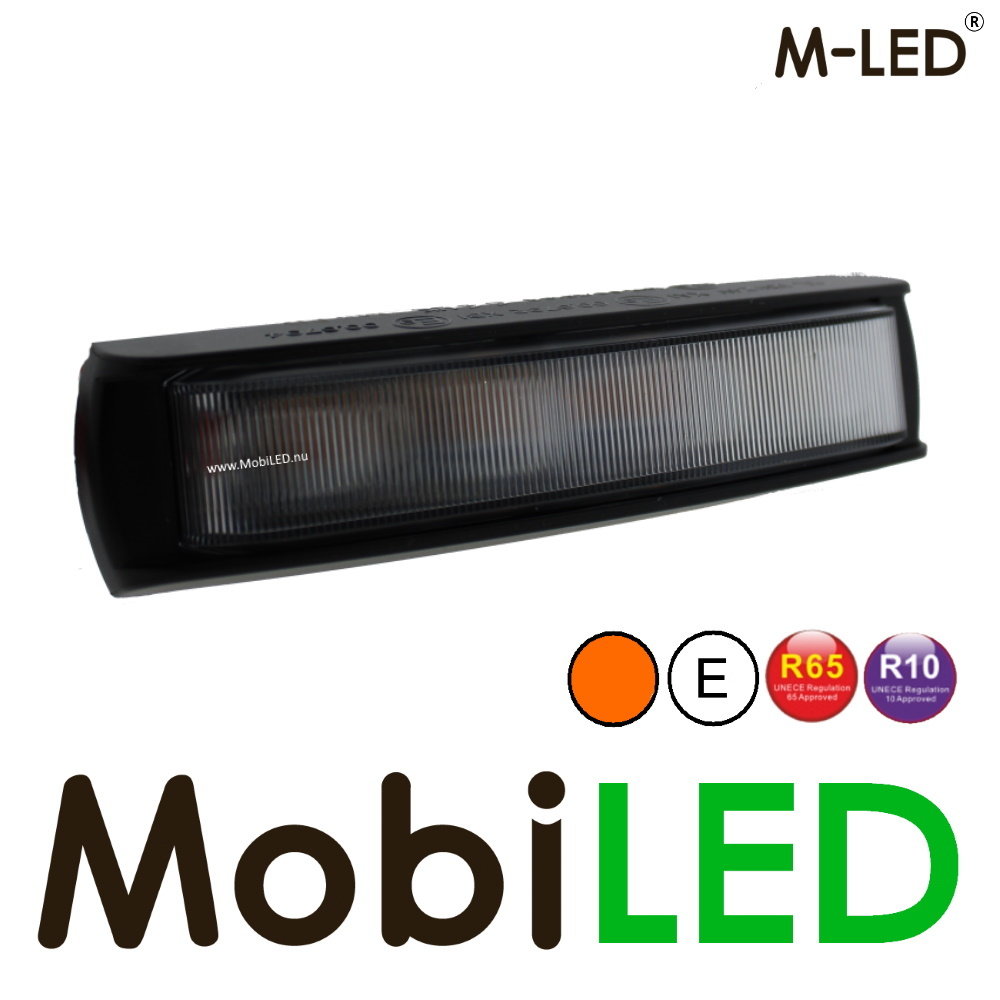

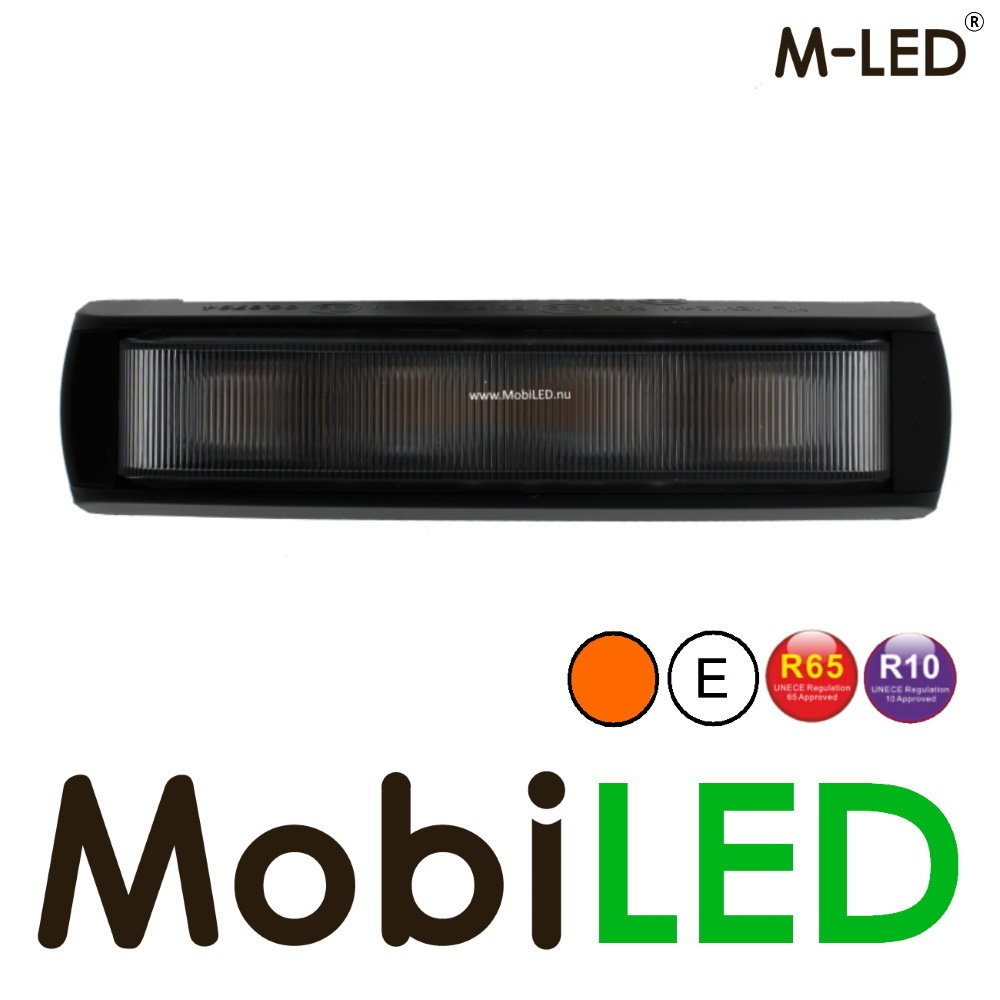

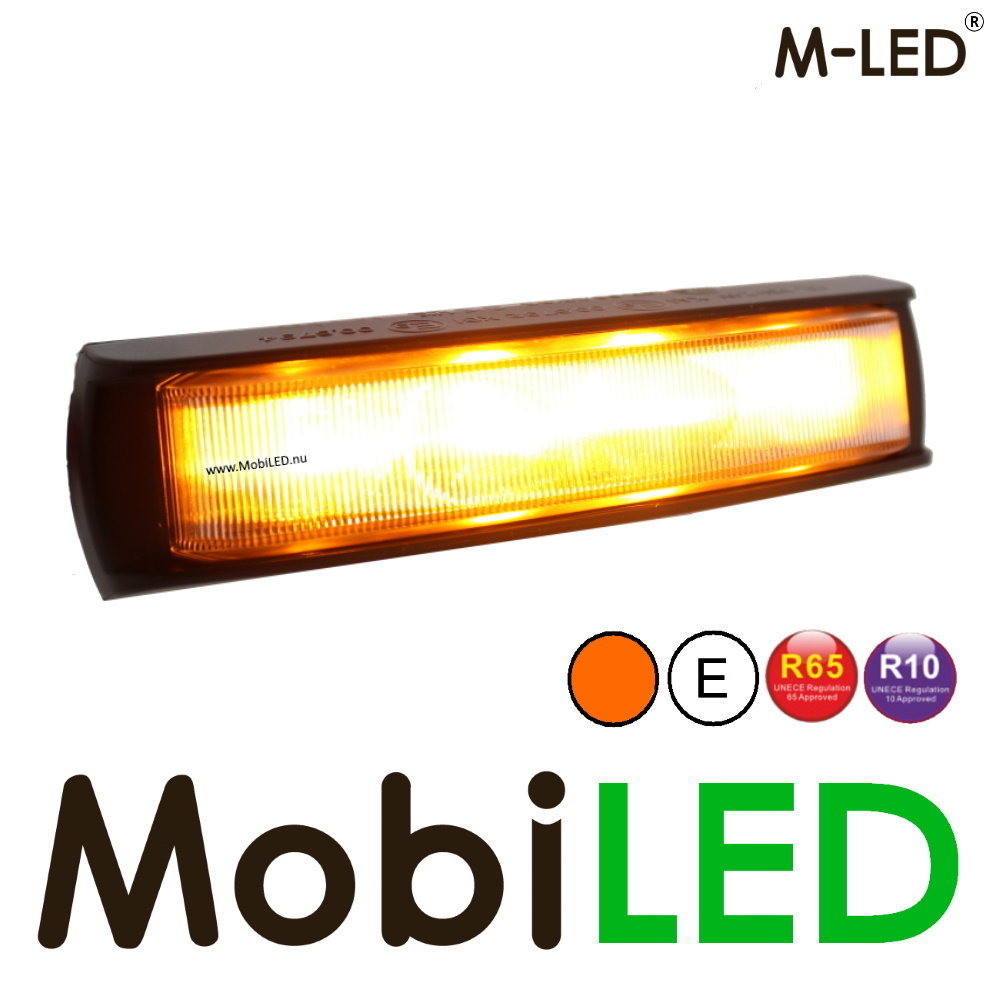

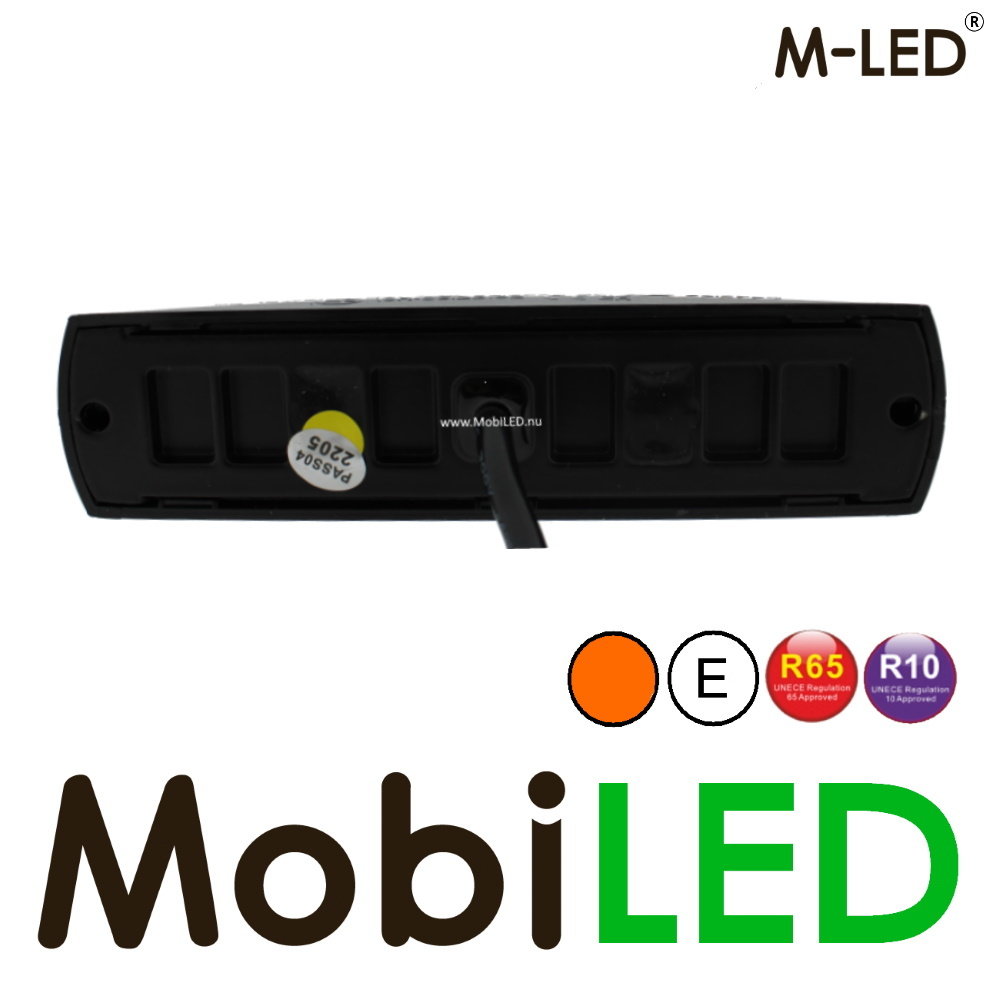

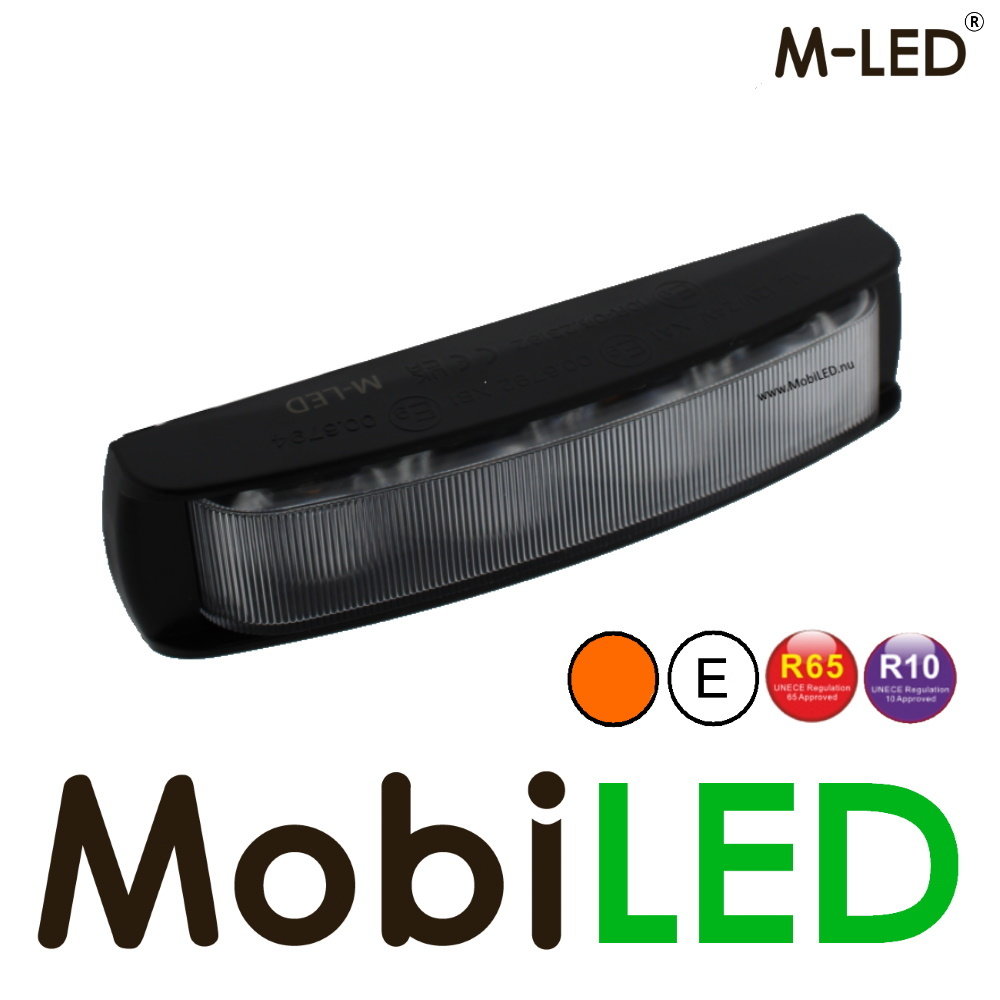

M-LED Wide angle flasher amber 6 LEDs E-mark

This is a flasher with the wide-angle range. The flasher is amber in color and ECE approved in R65 class 1.
The flasher has 6 LEDs and 22 different flash patterns (incl. constant on). It can be synced with up to 14 other flashers. In addition, it is equipped with a memory function.

Flash paterns:

1. Single flash
2. Single flash slow
3. Double flash
4. Double flash slow
5. Triple flash fast
6. Quadruple flash fast
7. Quadruple flash slow
8. Eightfold flash fast
9. Eightfold flash slow
10. Twelvefold flash
11. Sixteenfold flash
12. Single flash split
13. Double flash split
14. Quadruple flash split
15. Eightfold flash split
16. Single flash split accelerated
17. Double flash split accelerated
18. SOS flash
19. Series (1,8,3,9,4,18)
20. Series (2,7,9,11,14,16)
21. Steady on
22. #18,19,20 and 21 without alternating flash

Connection diagram:

• Black: mass
• Red: + VDC
• White: constant connection to black for low intensity
• Yellow: pattern selection and synchronization
