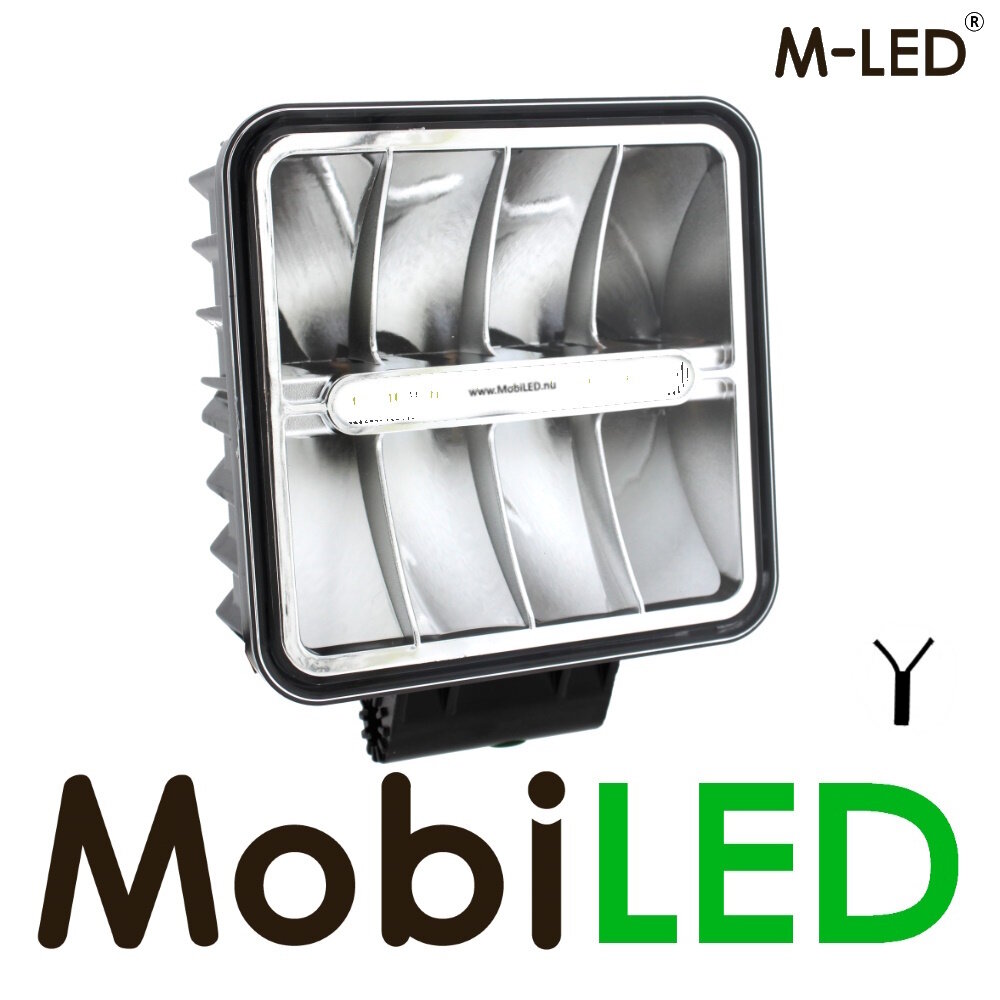

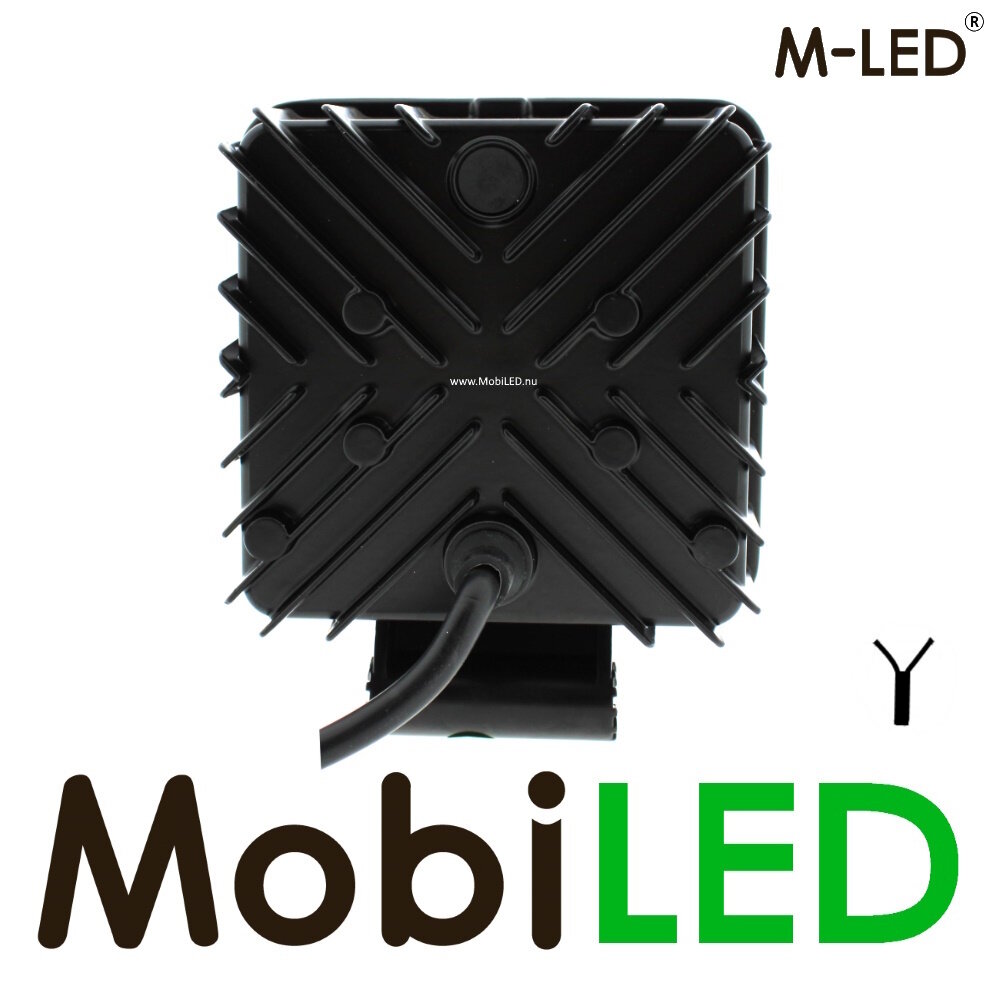

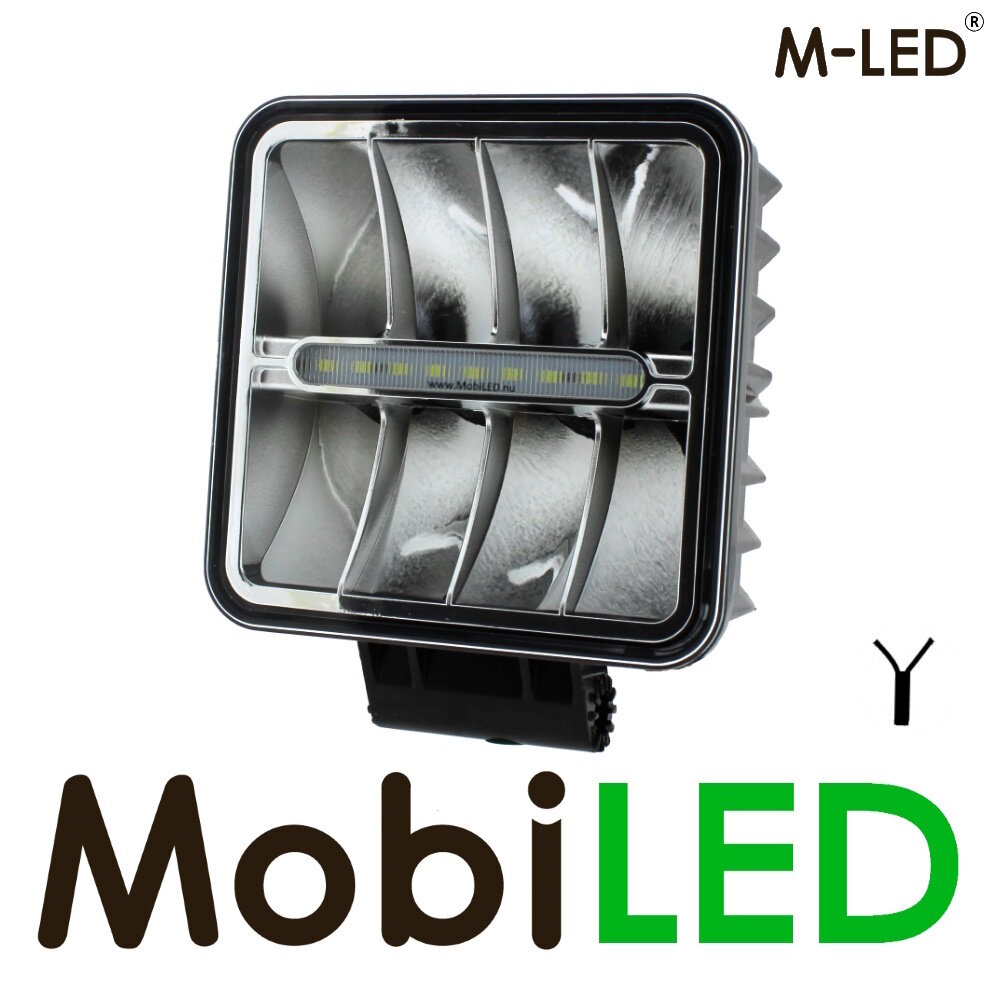

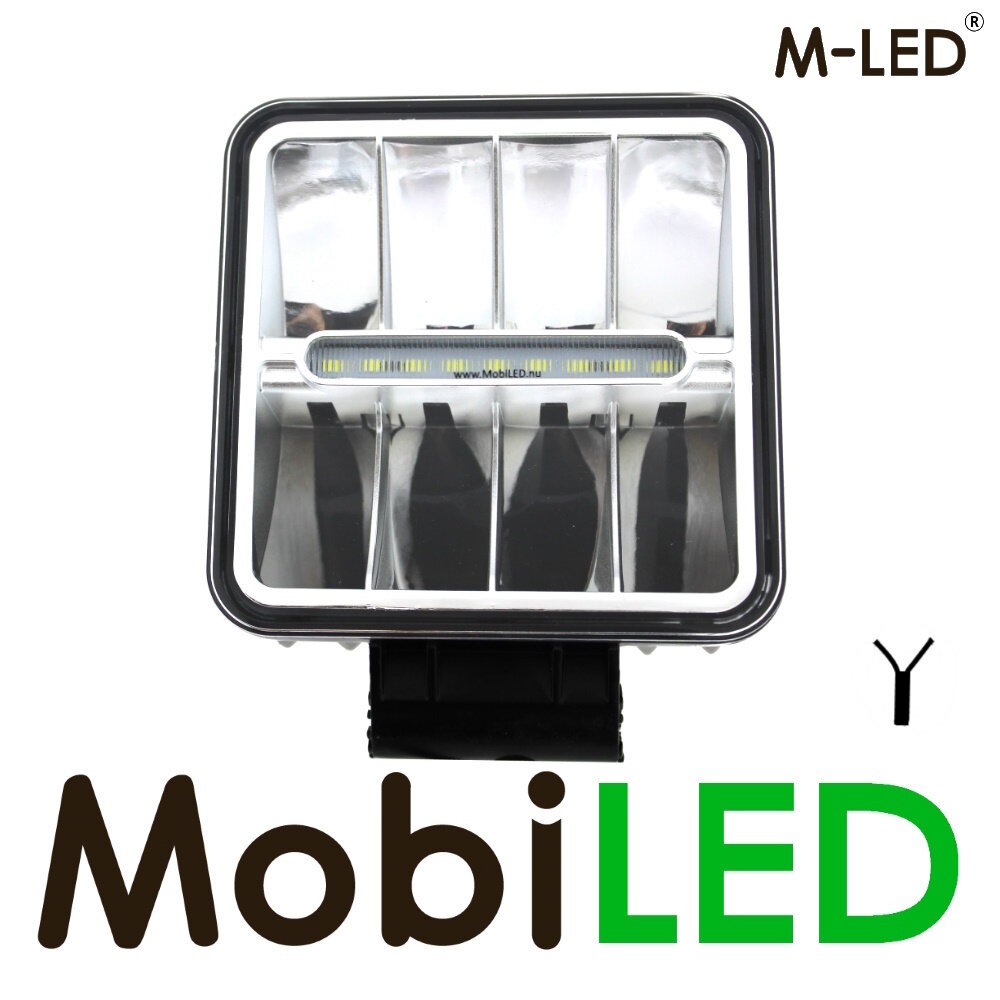

M-LED Work lamp with position light
17% sale
Product description
Powerful work lamp with a high light output. The light image of this lamp is somewhat narrower than a normal work lamp and therefore extends much further than a normal work lamp.This lamp is equipped with a position light that can be switched separately.
Wiring diagram:
Black: min / mass
Red: plus of the work light
Yellow: plus of position li...
Powerful work lamp with a high light output. The light image of this lamp is somewhat narrower than a normal work lamp and therefore extends much further than a normal work lamp.
This lamp is equipped with a position light that can be switched separately.
Wiring diagram:
- Black: min / mass
- Red: plus of the work light
- Yellow: plus of position light
Show more
Show less
Product specifications
- Article number
- WL148
- Length (cm)
- 11
- Height (cm)
- 11
- Height incl bracket (cm)
- 14
- Depth (cm)
- 4,8
- Shape
- Square
- Tension
- 10-30V
- Power
- 24W
- Current draw
- 12V: 2A/24V: 1A
- Light image
- Spot
- Lumens
- 2000
- Light colour
- Bright white (6000-6500K)
- Number of LEDs
- 8
- Mounting type
- Bolt / bracket
- Connection
- Cable
- Flush-mounted / surface-mounted
- Surface-mount
- IP rating
- IP67
- Packed per
- 1
