Marker Light Amber with turn signal flat mounting


Product description

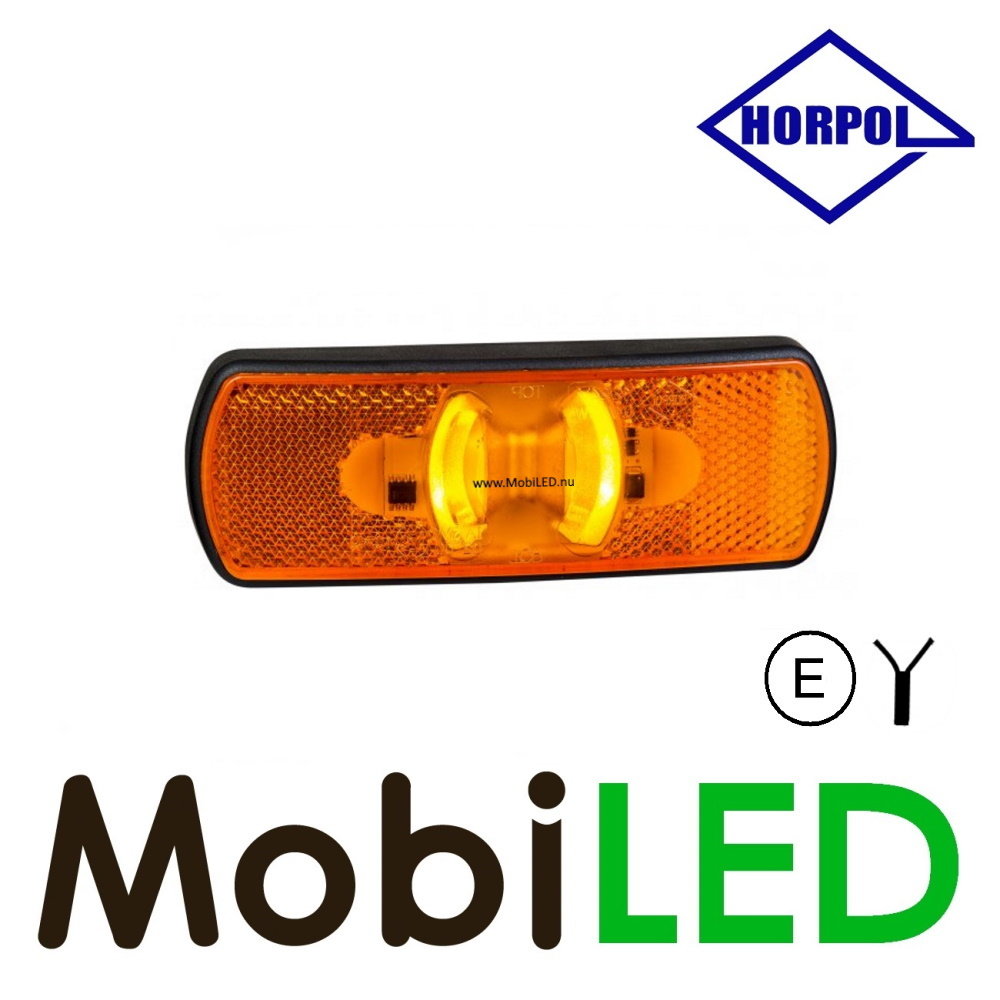

Two-in-one: This large rectangular LED marker lamp with reflector can also be used as a turn signal. The side marking and the turn signal have their own connecting wire.LED marking is mainly used as side marking, width/height lighting and contour lighting.This LED side marking is multi-voltage, so it can be used on 12 or 24 volts.
Connection diagr...
Two-in-one: This large rectangular LED marker lamp with reflector can also be used as a turn signal. The side marking and the turn signal have their own connecting wire.
LED marking is mainly used as side marking, width/height lighting and contour lighting.
This LED side marking is multi-voltage, so it can be used on 12 or 24 volts.
Connection diagram:
- Red: plus turn signal
- Blue: plus side marker
- White: mass
Show more
Show less
Product specifications
- Article number
- ZM086
- Length (cm)
- 12,2
- Height (cm)
- 4,4
- Depth (cm)
- 1,6
- Shape
- Rectangular
- Tension
- 12-24V
- Light colour
- Amber
- Number of LEDs
- 4
- Lens colour
- Amber
- Housing material
- Plastic

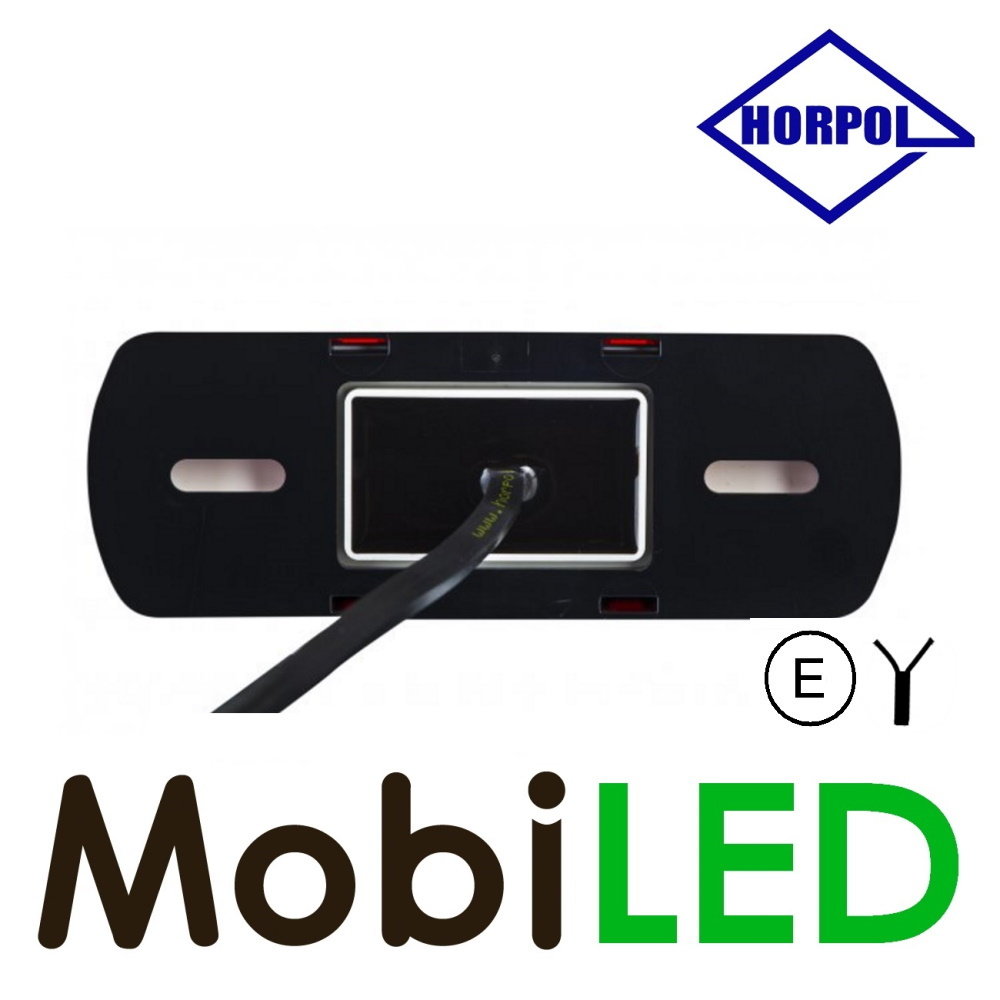

- Mounting type
- Screw
- Mounting options
- Flat mounting
- Bolt spacing / bolt size (cm)
- 6,5 - 9
- Connection
- Cable
- Cable Length (cm)
- 50
- Number of wire cores
- 3
- Wire diameter (mm²)
- 0,5 mm²
- Flush-mounted / surface-mounted
- Surface-mounted
- Operating temperature
- -30℃ tot +50℃
- Certification
- ECE
- IP rating
- IP68
- Vehicle side
- Side
- Indicator function
- Yes
- Reflector
- Yes
- Packed per
- 1
- Manufacturer article number
- LKD2218
