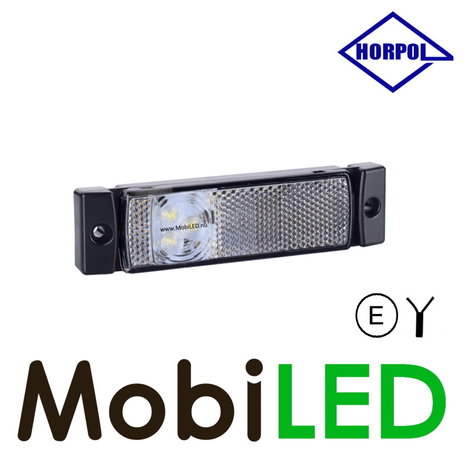

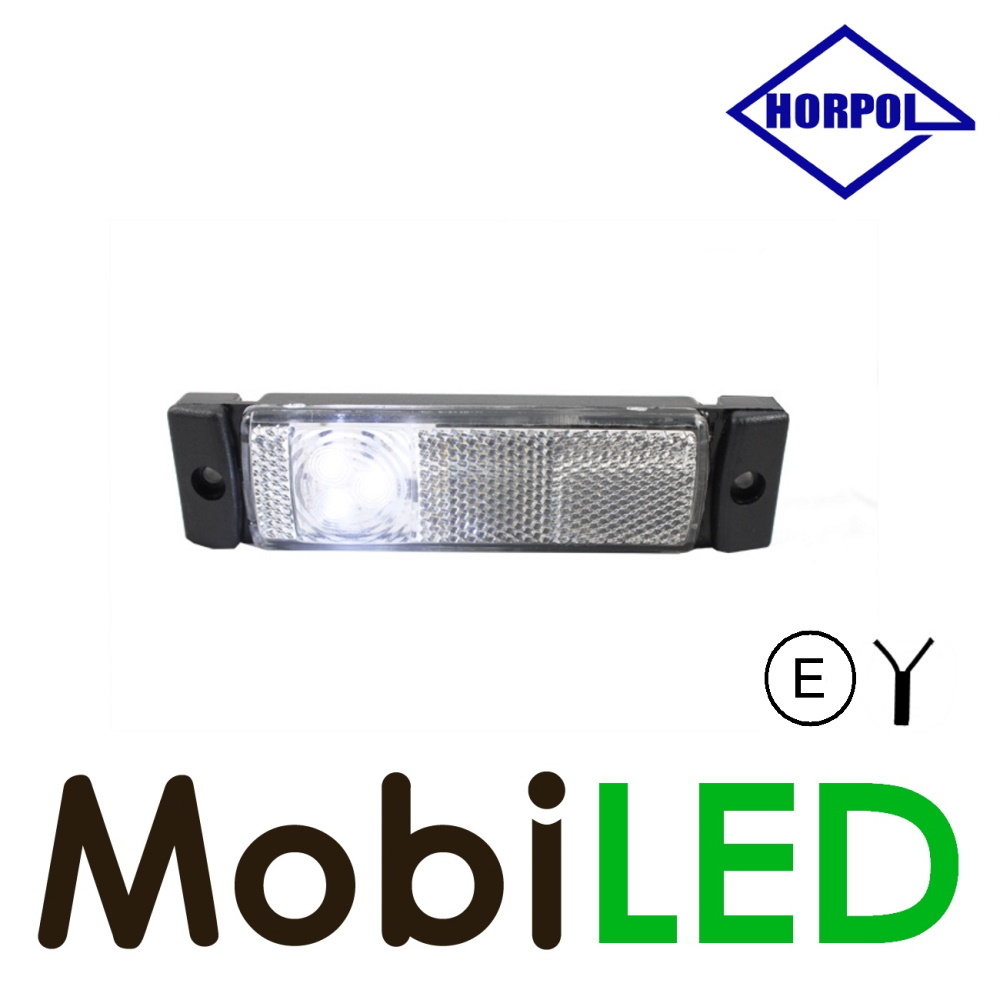

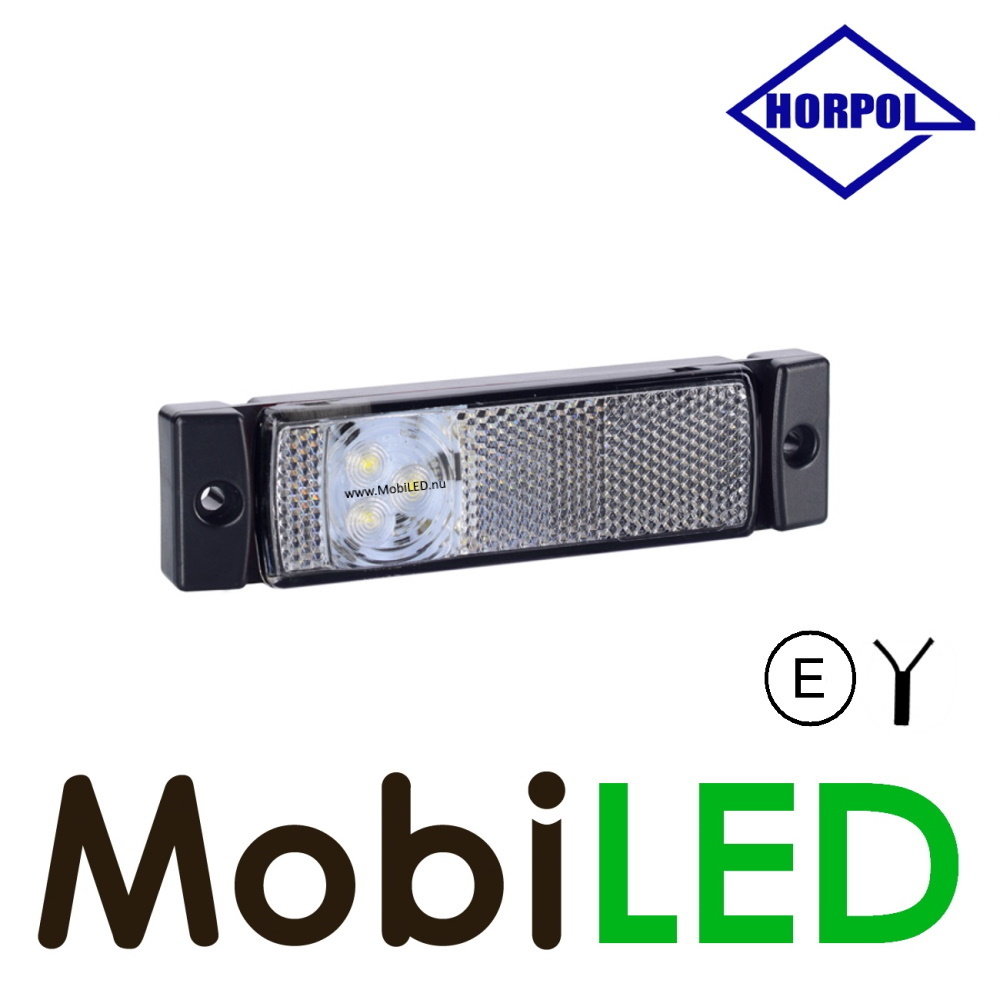

Marker light rectangular with reflector White 12-24 volts E-mark



Product description
Rectangular LED marker lamp with reflector.LED markings are mainly used as side markings, width/height lighting and contour lighting. This LED side marking is multi voltage, so it can be used on either 12 or 24 volts.This lamp is available in three colours: White, Amber and Red.Also available is a separate mounting bracket (ZM023) to mount the lamp...
Rectangular LED marker lamp with reflector.
LED markings are mainly used as side markings, width/height lighting and contour lighting. This LED side marking is multi voltage, so it can be used on either 12 or 24 volts.
This lamp is available in three colours: White, Amber and Red.
Also available is a separate mounting bracket (ZM023) to mount the lamp under or on the side of, for example, your trailer.
Show more
Show less
Product specifications
- Article number
- ZM020
- Length (cm)
- 13,2
- Height (cm)
- 3,3
- Depth (cm)
- 1,3
- Shape
- Elongated
- Tension
- 12-24V
- Light colour
- White
- Number of LEDs
- 3
- Housing material
- Plastic
- Mounting type
- Screw
- Mounting options
- Flat mounting
- Bolt spacing / bolt size (cm)
- 11,5
- Connection
- Cable
- Cable Length (cm)
- 45
- Number of wire cores
- 2
- Wire diameter (mm²)
- 0,75mm²
- Flush-mounted / surface-mounted
- Surface-mounted
- Operating temperature
- -30°C - +50°C
- Certification
- ECE
- IP rating
- IP67
- Vehicle side
- Universal (L/R)
- Reflector
- Yes
- Packed per
- 1
- Manufacturer article number
- LD 127
