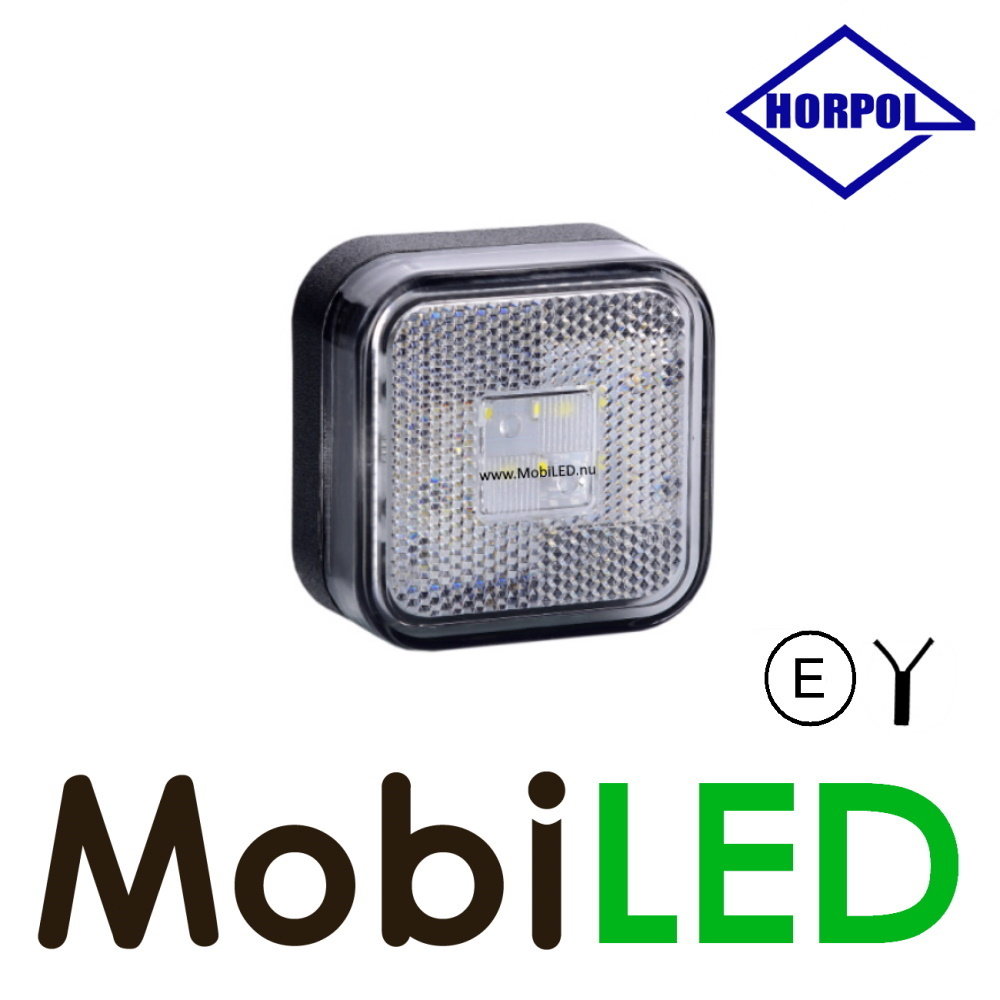

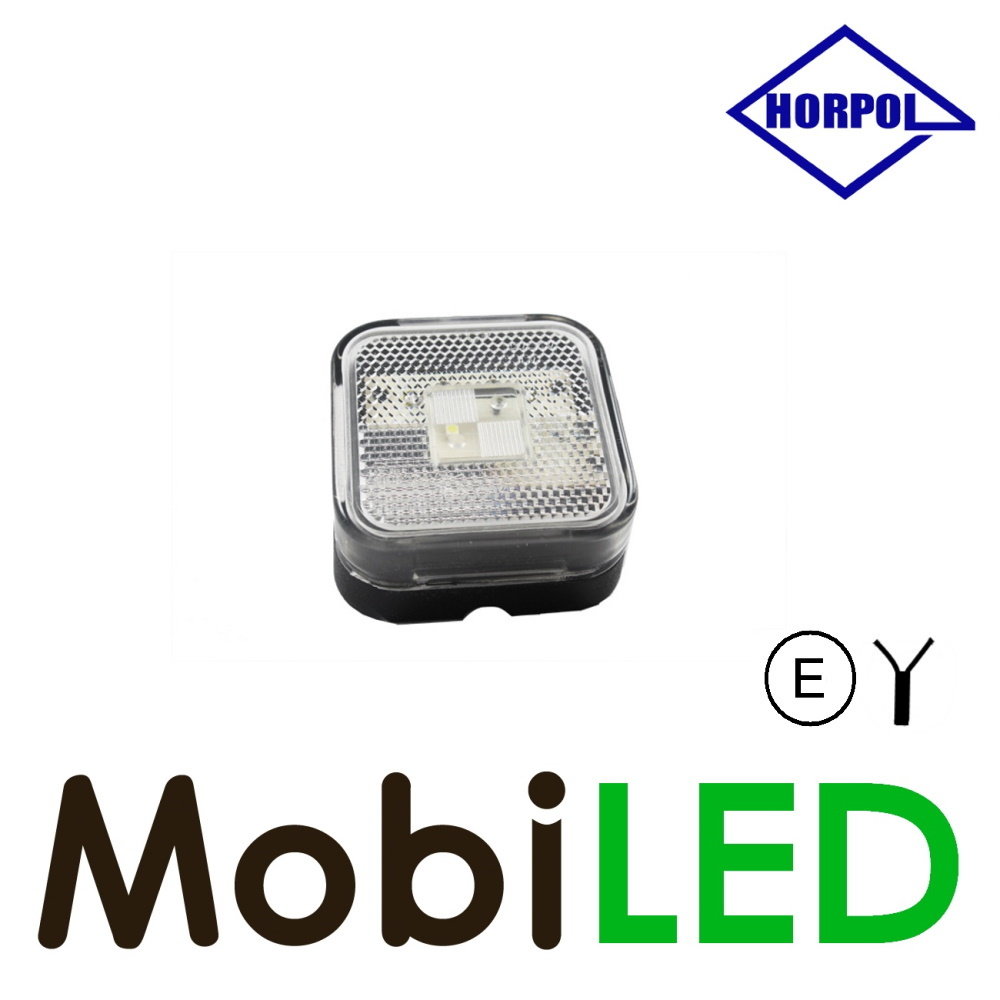

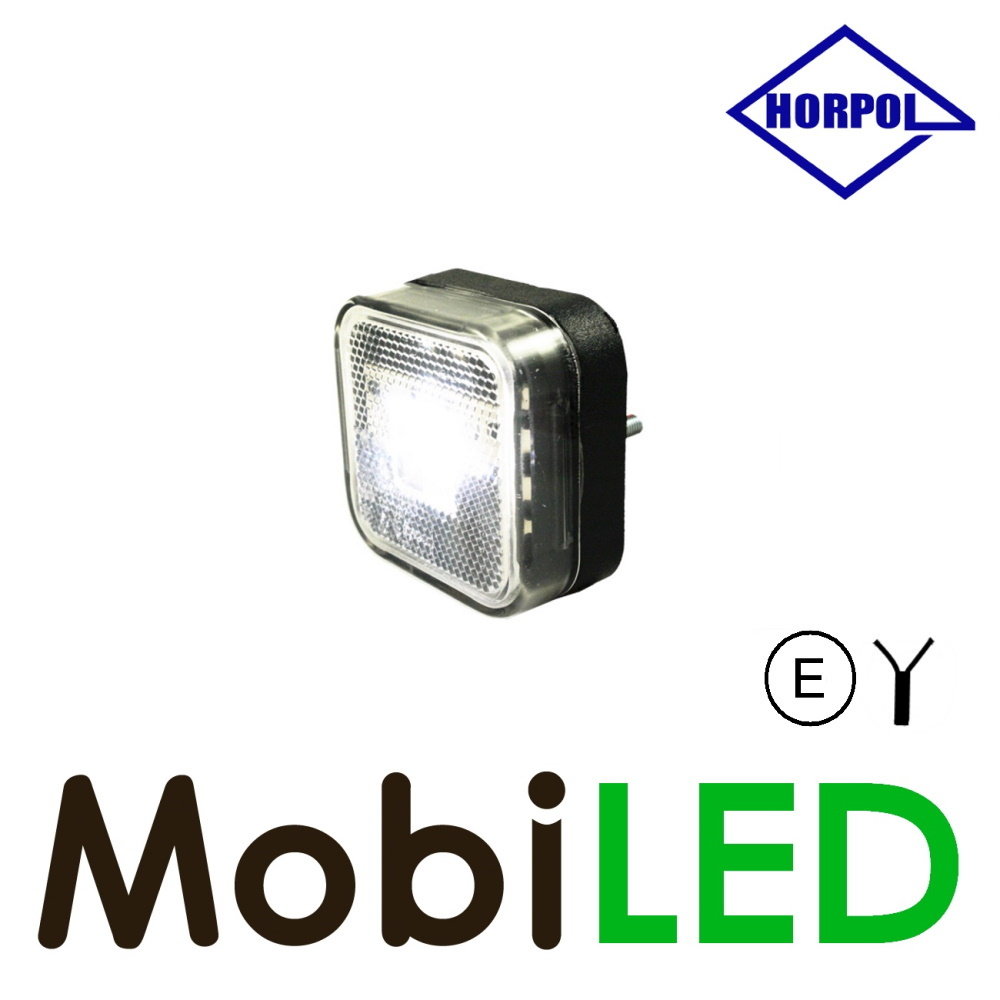

Marker light square White 2-24 volts E-mark with reflector




Product description
Square LED marker lamp with reflector.LED marking is mainly used as side marking, width/height lighting and contour lighting.This LED side marker is multi-voltage, so it can be used on both 12 and 24 volts.This lamp is available in three colours: White, Amber and Red.Also available is a separate mounting bracket (ZM019) to mount the lamp under or o...
Square LED marker lamp with reflector.
LED marking is mainly used as side marking, width/height lighting and contour lighting.
This LED side marker is multi-voltage, so it can be used on both 12 and 24 volts.
This lamp is available in three colours: White, Amber and Red.
Also available is a separate mounting bracket (ZM019) to mount the lamp under or on the side of, for example, your trailer.
Show more
Show less
Product specifications
- Article number
- ZM016
- Length (cm)
- 6,5
- Height (cm)
- 6,5
- Depth (cm)
- 3
- Shape
- Square
- Tension
- 12-24V
- Power
- 1W
- Light colour
- White
- Number of LEDs
- 2
- Lens colour
- Clear
- Housing material
- Plastic
- Mounting type
- Bolt M5
- Mounting options
- Flat mounting
- Bolt spacing / bolt size (cm)
- 4
- Connection
- Cable
- Cable Length (cm)
- 45
- Number of wire cores
- 2
- Wire diameter (mm²)
- 0,75mm²
- Flush-mounted / surface-mounted
- Surface-mounted
- Operating temperature
- -30°C tot +50°C
- Certification
- ECE
- IP rating
- IP67
- Vehicle side
- Universal (L/R)
- Position light function
- Yes
- Reflector
- Yes
- Packed per
- 1
- Manufacturer article number
- LD 096
