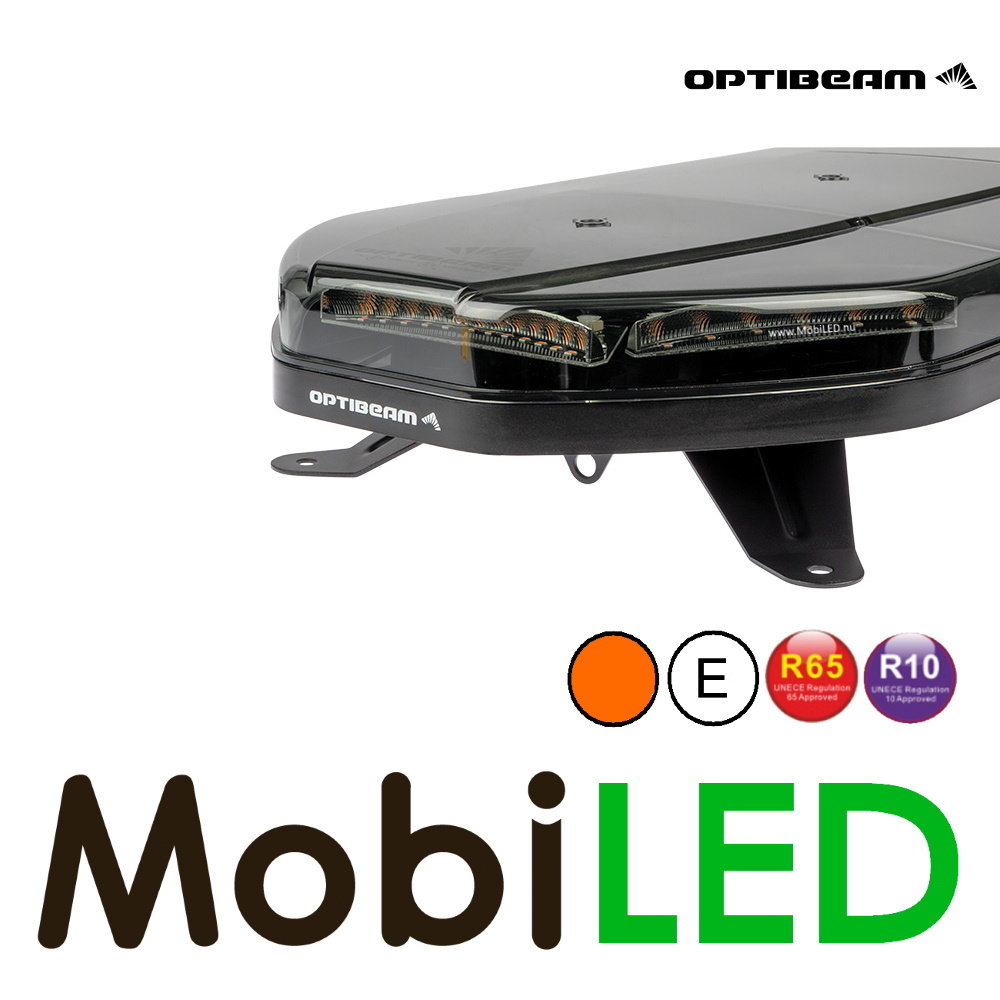

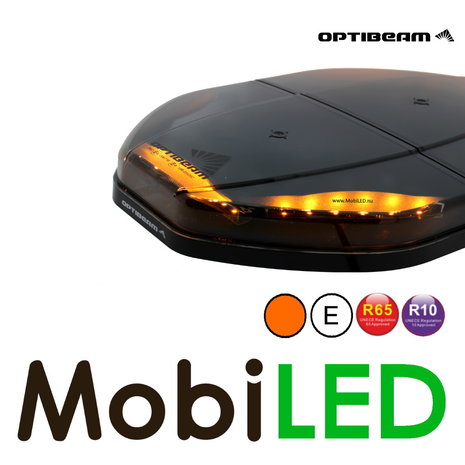

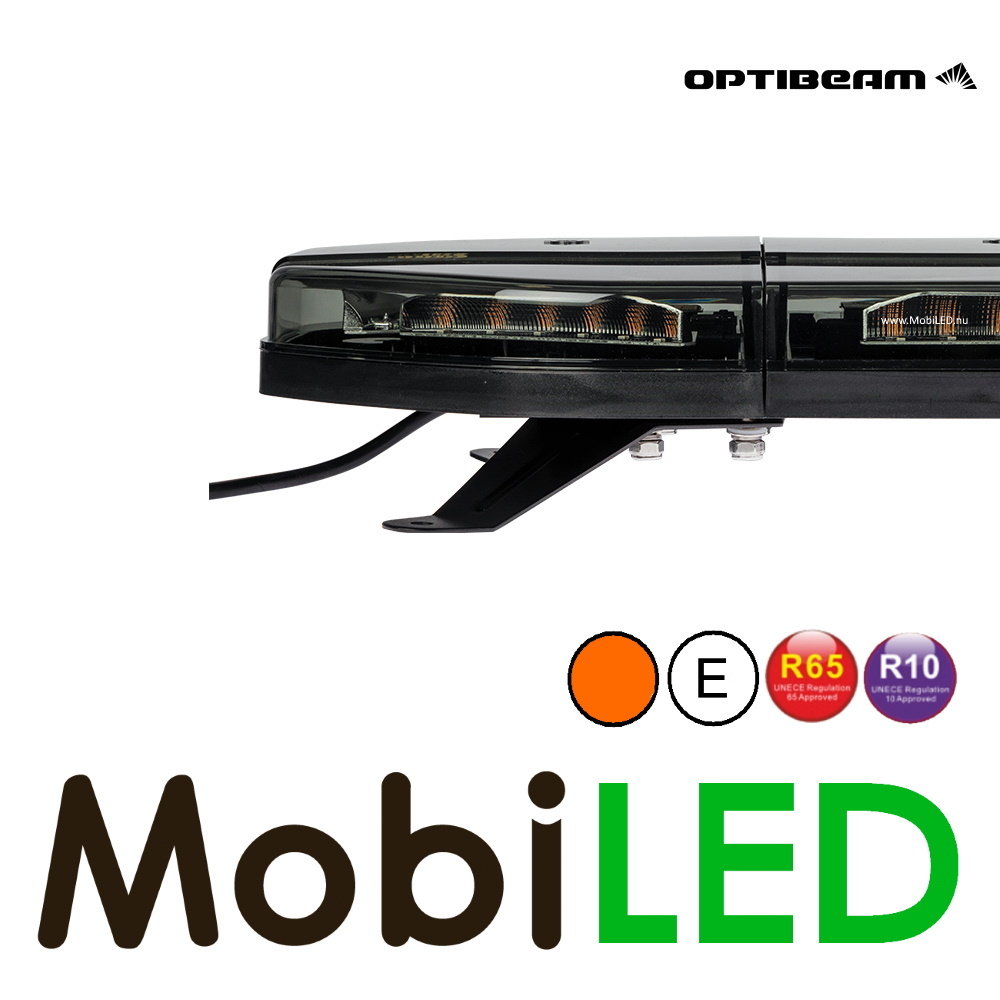

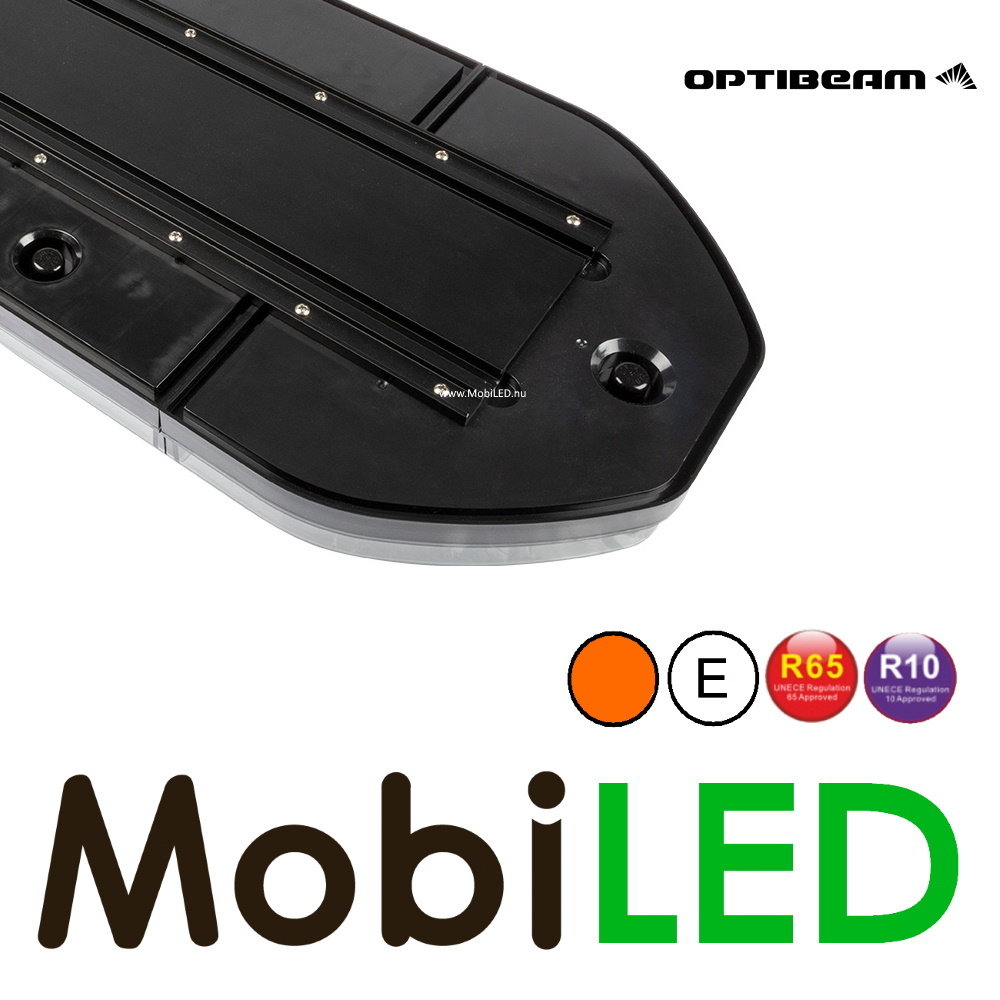

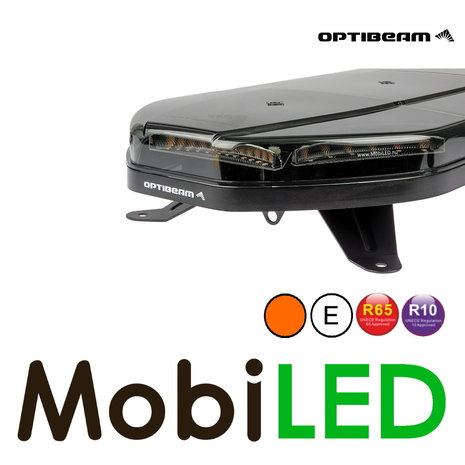

Optibeam Dark Phantom 400 mm roof set

Optibeam Dark Phantom 400 mm roof kit

The Optibeam Dark Phantom is a roof set in various sizes from 400 to 1400 mm. With its dark look and unobtrusive housing, the light is both attractive and easy to install. The lighting has 2 light intensities, full strength for off-road and work light, and a position that meets the regulations (ECE R65 Class 2), approved for the road.

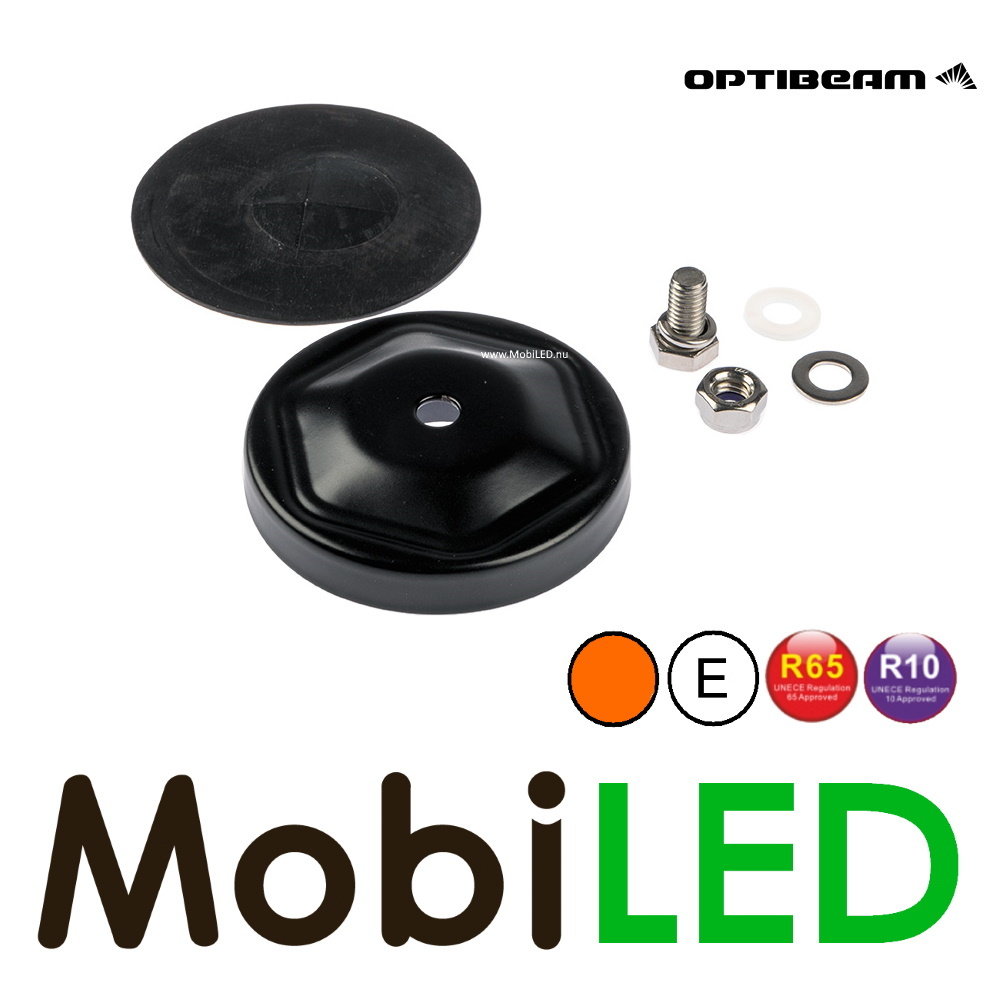

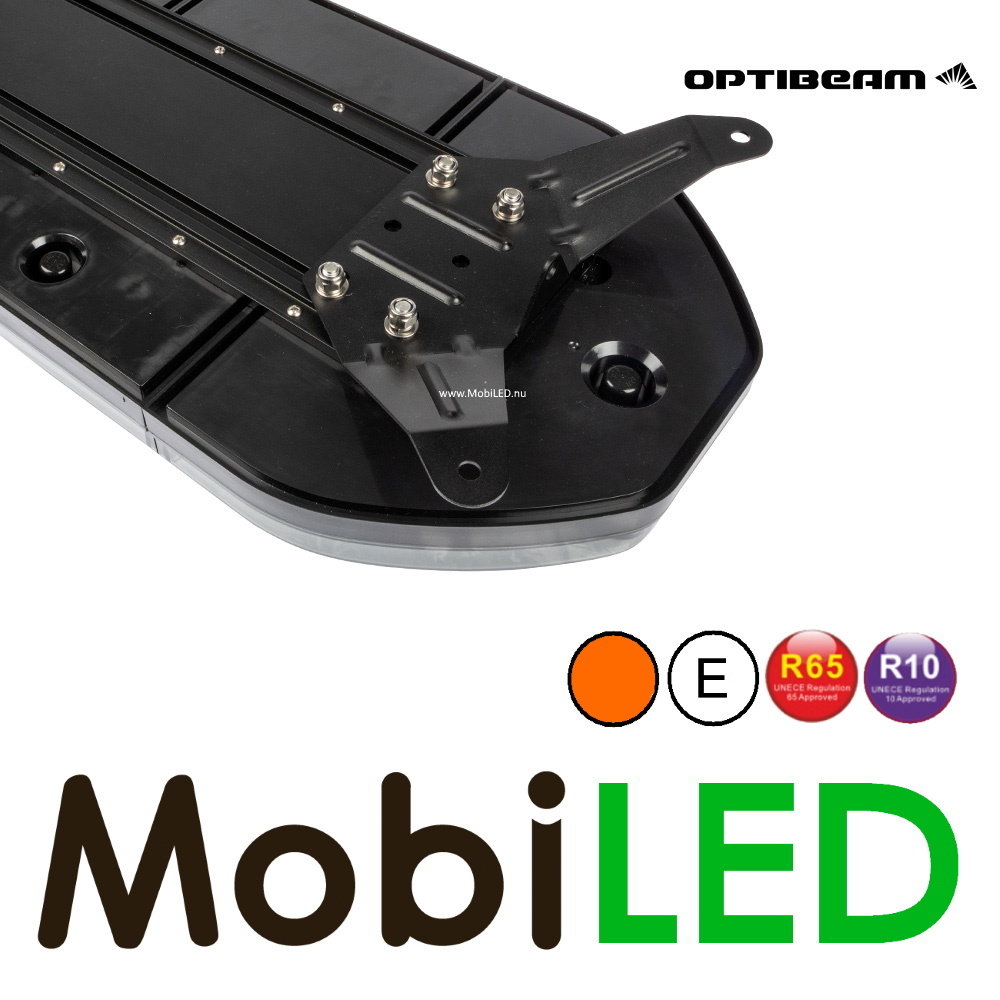

The warning lightbars are supplied with a selection of 8 flash patterns, which can be switched by the button on the cigarette plug. The item comes complete with black stainless steel brackets and magnets. In addition, it is protected against water, dust and vibrations, IP67.
Optibeam is a Finnish product that stands for optimum performance, reliability and quality. The lamps have been tested in the harsh winter conditions of Scandinavia and Finland, because of their quality the lamps have warranties of up to 3 years. Optibeam high performance lamps are perfect for even the most demanding users. Thanks to their excellent price-performance ratio, Optibeam LED lamps have become extremely popular with enthusiasts and professionals alike.

Specifications:

• Voltage: 12-24 V
• Power: 1.1 A @ 12 V - 0.75 A @ 24 V
• Number of LEDs: 36
• Dimensions: 400 x 59 (105) x 300mm
• Water resistance: IP67
• Housing: black polycarbonate
• Lens: clear polycarbonate

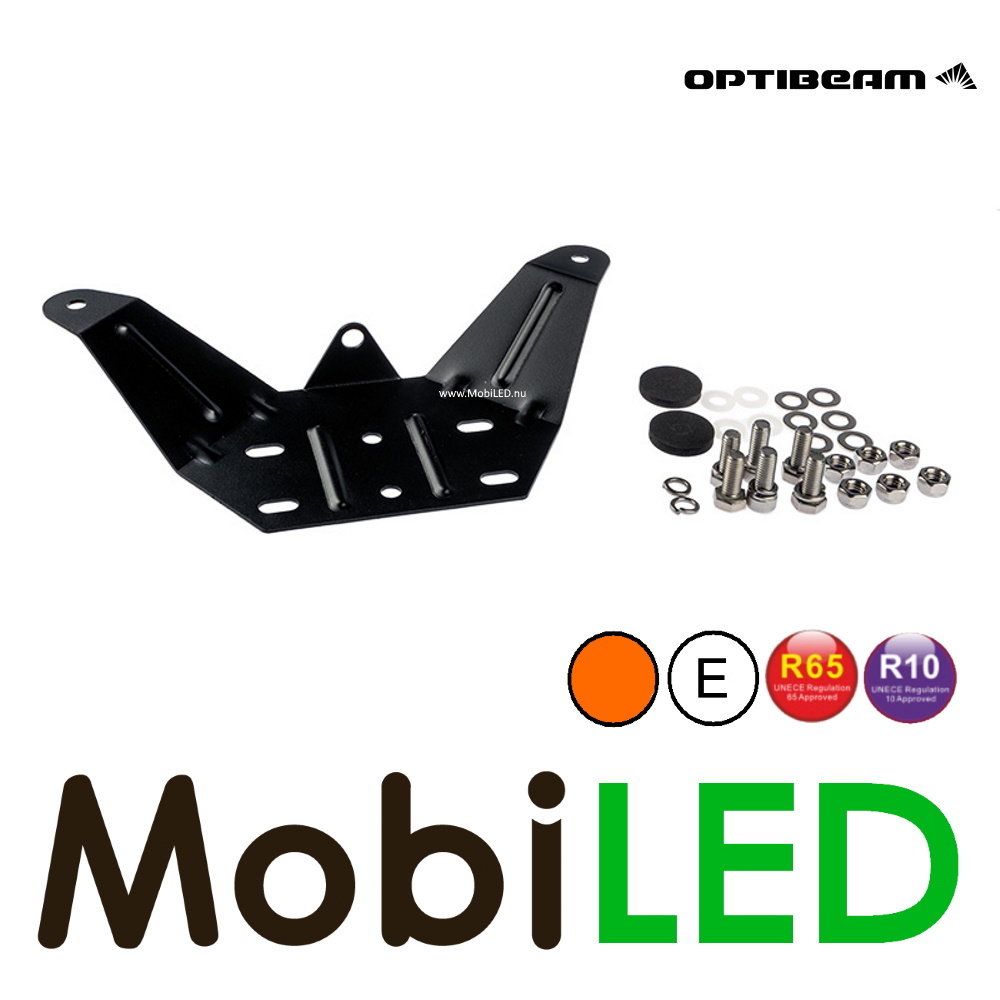

• Brackets: black stainless steel
• Cable length: 3.5 m
• Approvals: ECE R65 Class 2, ECE R10
• Item number Optibeam: 1603-140931

Connection diagram:

• Black: negative (earth)
• Red: positive
• Blue: for constant, connect the wire to the black wire, it overwrites other patterns

Warning:

Magnet mounting is ONLY for stationary use. It is forbidden to drive the vehicle if the lighting is mounted only with magnets. No guarantee is given on adhesion of magnets. MobiLED cannot be held liable for damage caused by the use of magnets.
