Optibeam Savage 9"

Optibeam Savage 9"

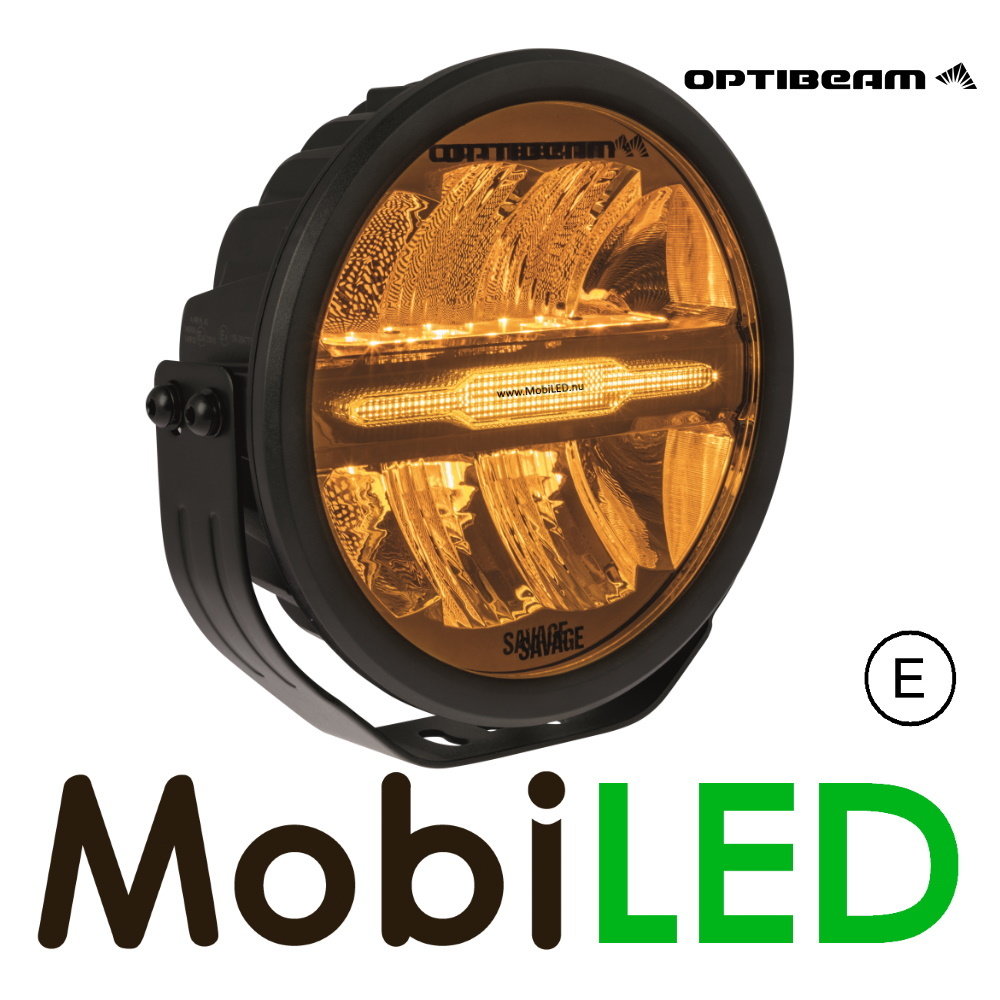

Brutally powerful Optibeam Savage spotlight, which complies with the R112 regulations, approved for on the road.

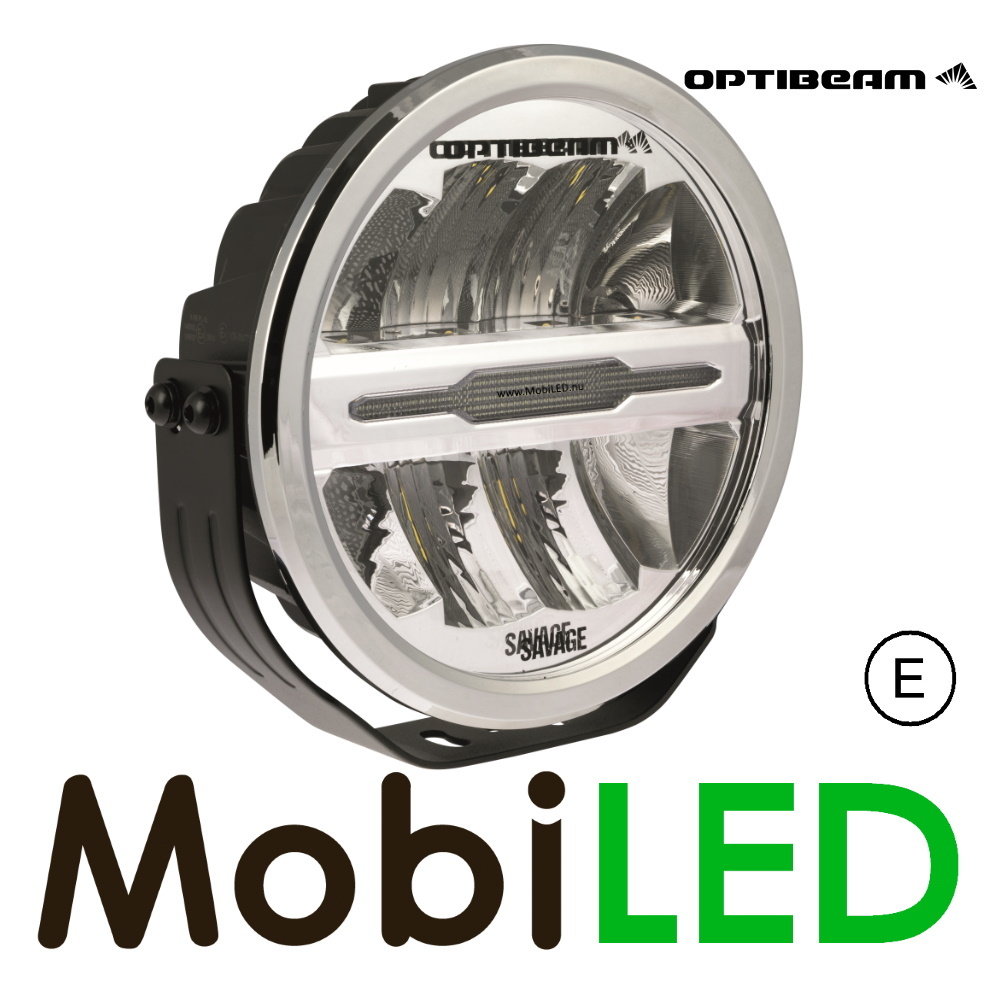

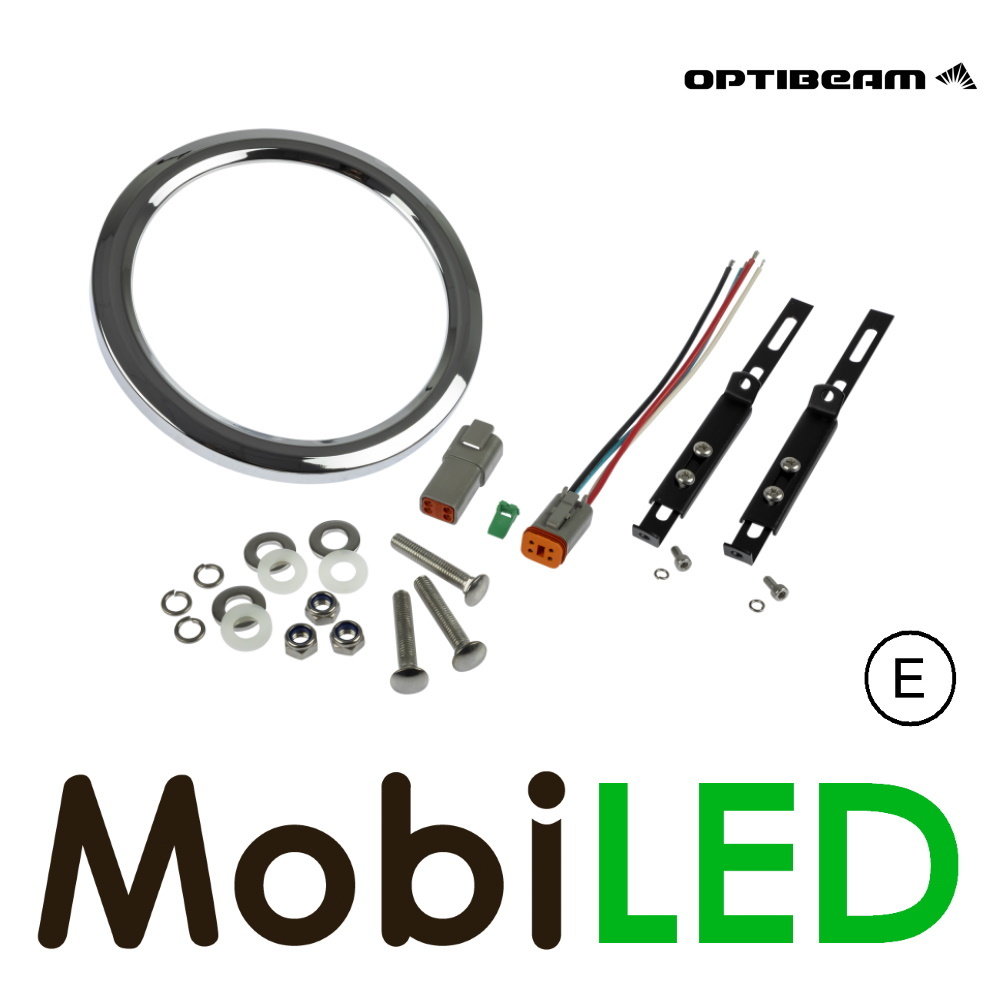

All Savage models are equipped with the sturdy Streetshine Ambient position lights. You can choose the color of the position light as desired amber or white. The Savage product family consists of light bars and spotlights in different sizes, all equipped with a beautiful Ambient position light. The item is supplied complete with stainless steel brackets for side or bottom mounting, stabilizing bars and connection material. It comes with a chrome ring that can be attached to the front.

Optibeam is a Finnish product that stands for optimum performance, reliability and quality. The lamps have been tested in the harsh winter conditions of Scandinavia and Finland, because of their quality the lamps have guarantees of up to 3 years. Optibeam high-quality lamps are perfect for even the most demanding users. Thanks to their excellent price-performance ratio, Optibeam LED lamps have become extremely popular with enthusiasts and professionals alike.

Specifications:

• Voltage: 9-36V
• Power: 4.55 A @ 13.7 V
• Number of LEDs: 8 x Osram
• Lumen theoretical: 7200 lm
• Lumen measured: 5500 lm
• Color temperature: 5000 K
• Range: 1 lux @ 431

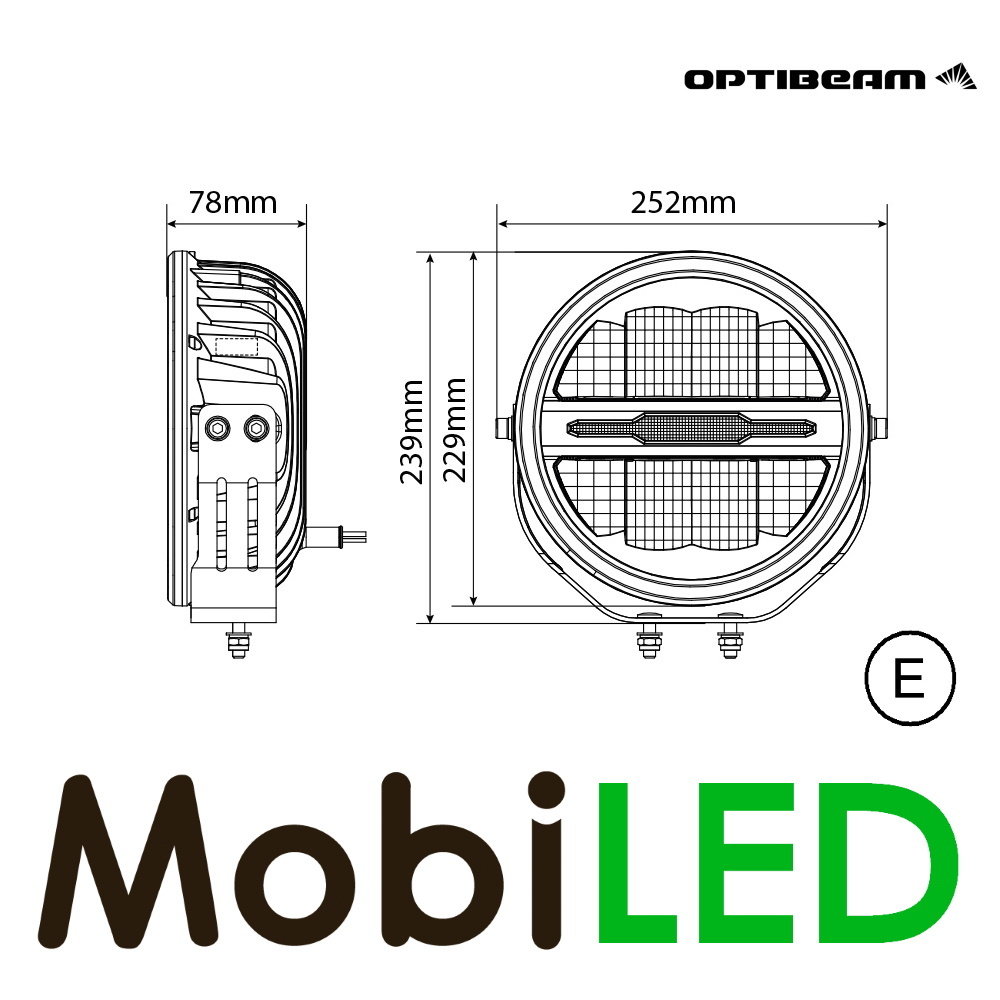

• Dimensions: 229 x 89 mm
• Connector: DT4
• Wire length: 2.2 m
• Water resistance: IP68
• Reference: 45
• Housing: aluminum
• Lens: PC
• Brackets: stainless steel
• Extra edge: chrome
• Approvals: ECE R112, ECE R10, R7
• Part number Optibeam: 1605-NS2075

Connection diagram:

• Black (-): ground
• Red (+): lighting
• White (+) with black: white position light
• Blue (+) with black: amber position light
