Optibeam SE7EN

Optibeam SE7EN

The NIN9 and SE7EN are the most powerful Optibeam spotlights. The lighting has 2 brightness levels, full brightness for off-road and work light, and a position that meets the R112 regulations, approved for on the road.

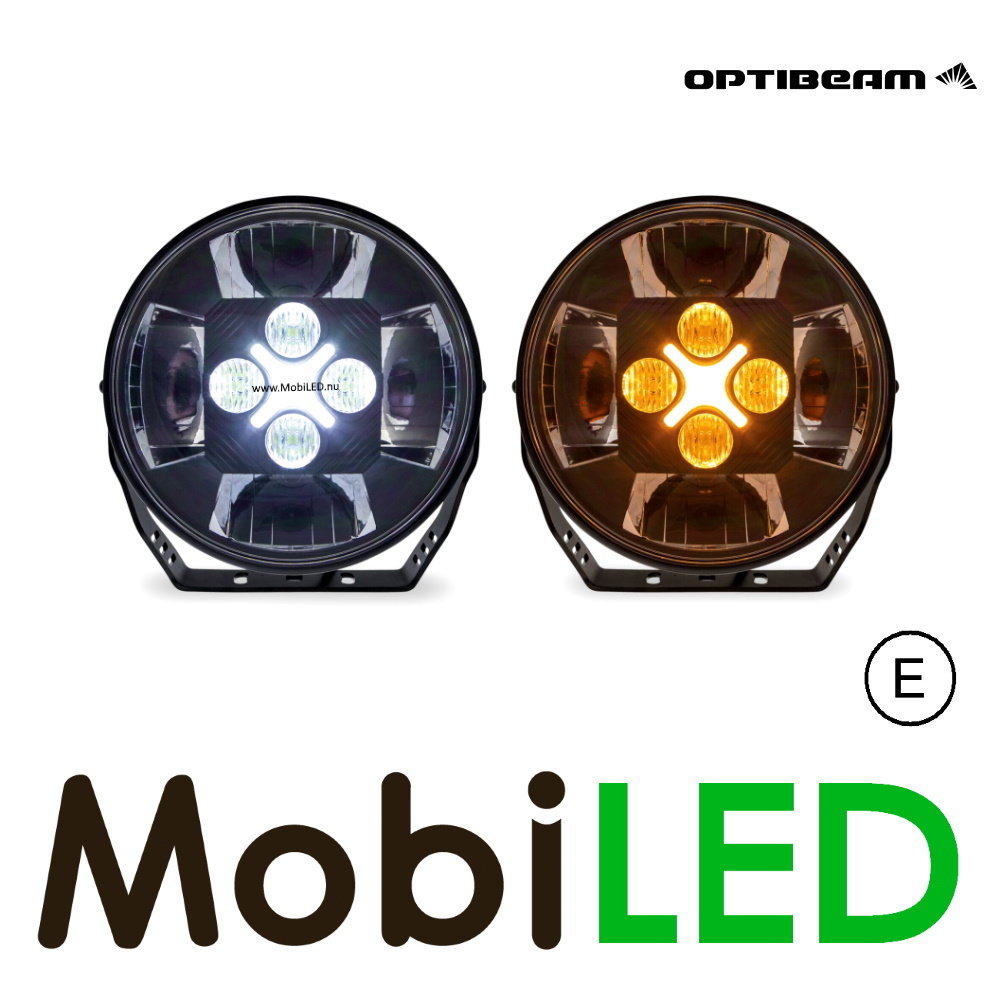

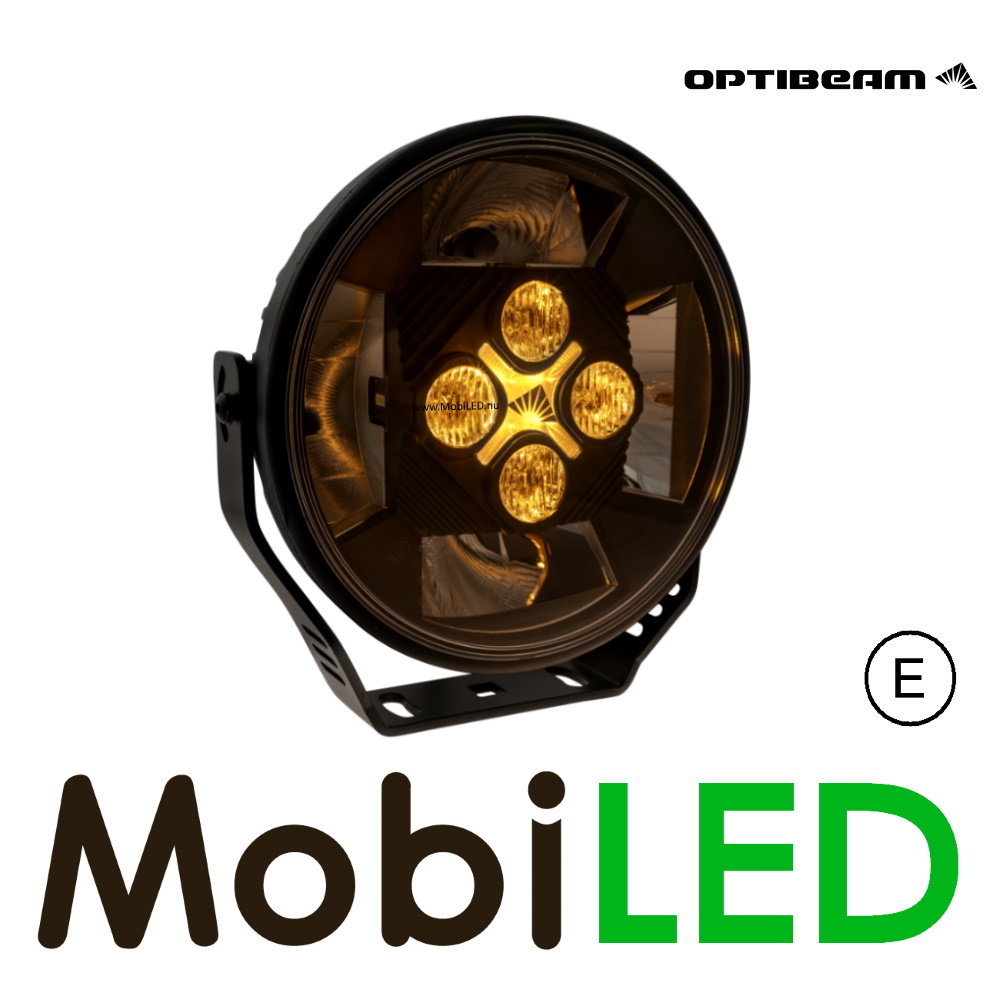

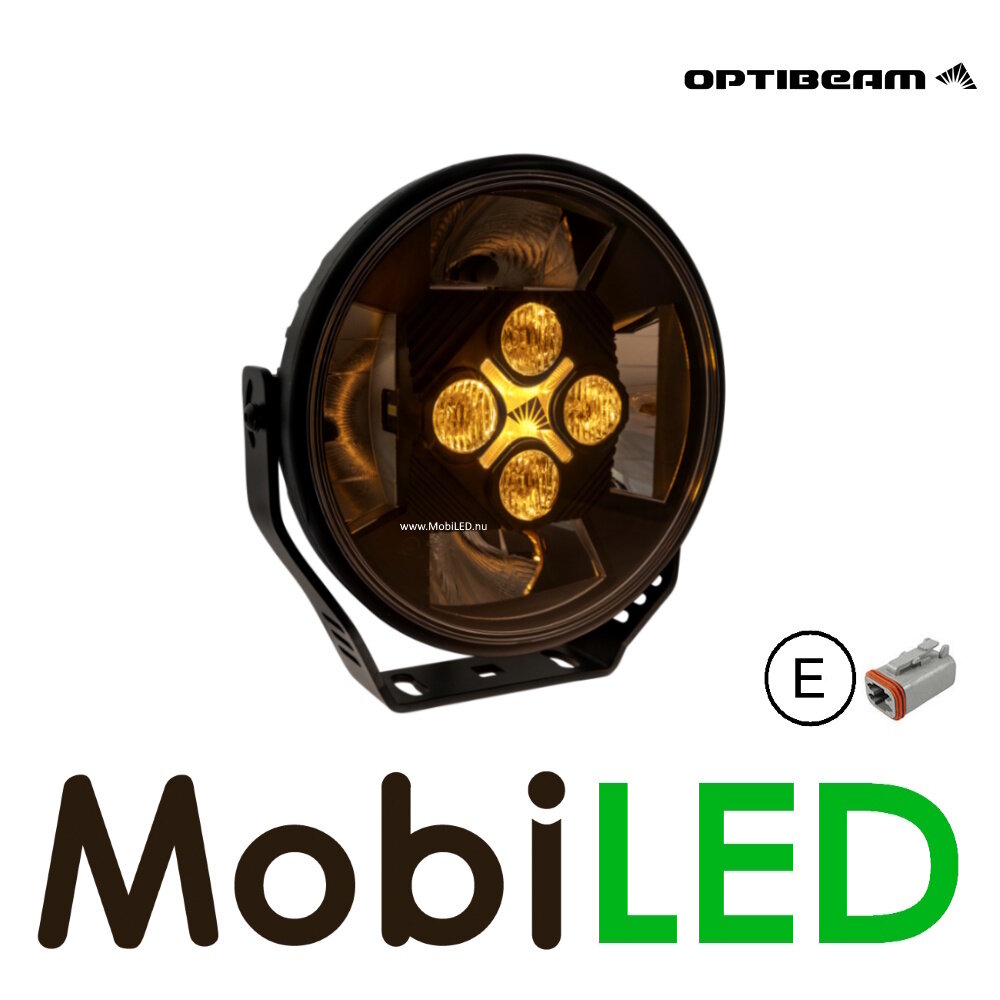

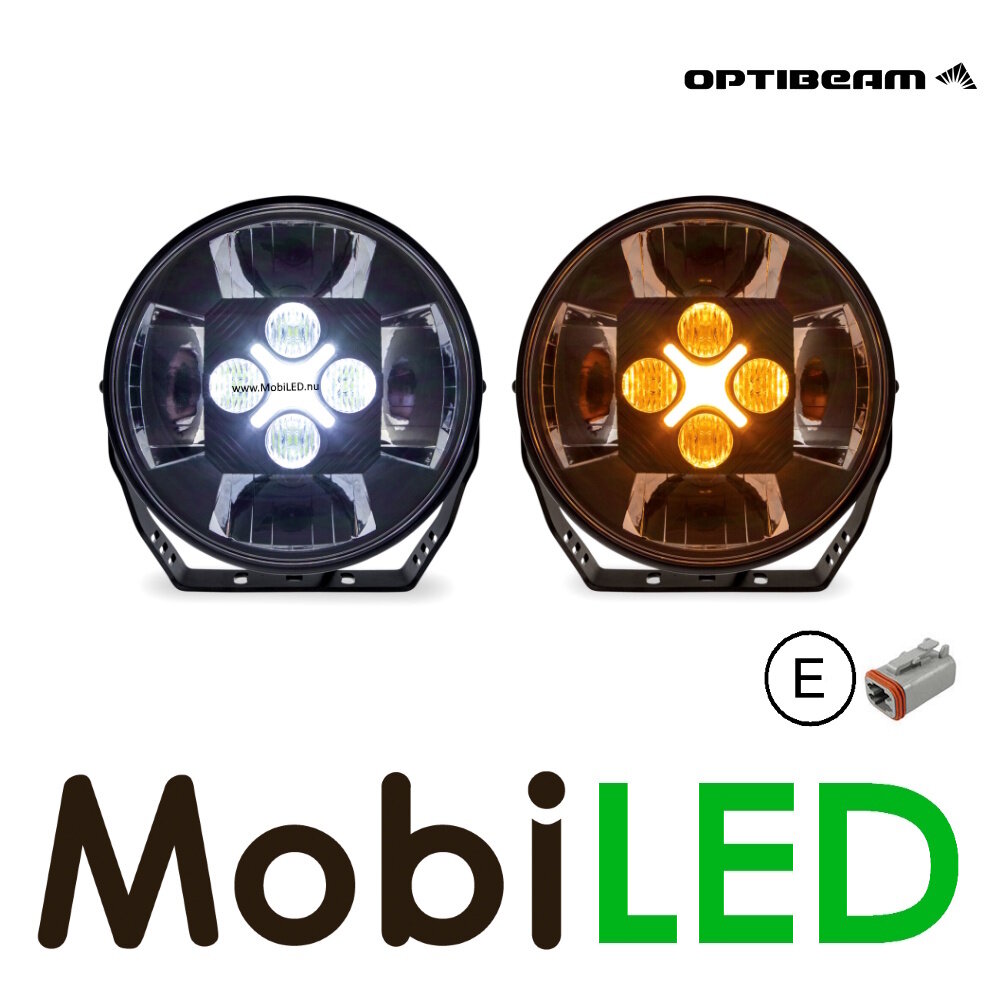

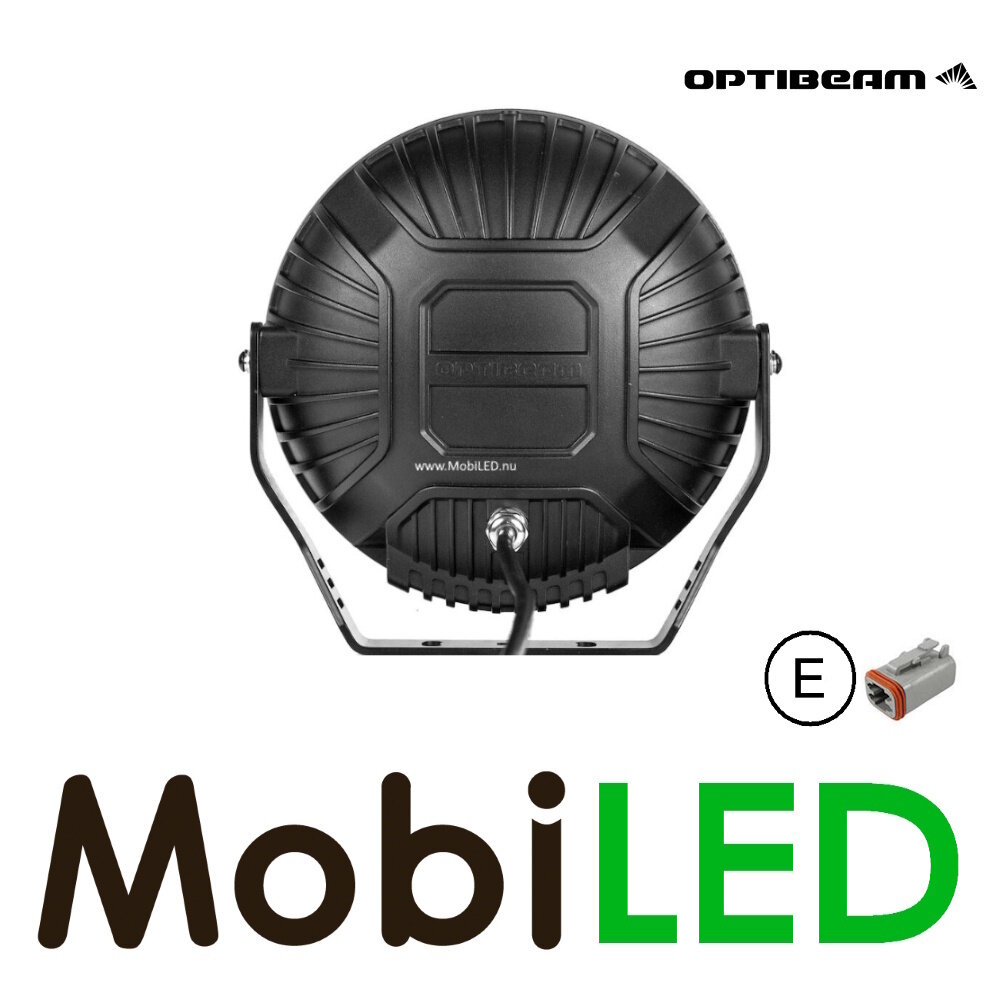

The models are equipped with position lights. You can choose the color of the position light as desired amber or white. The item is supplied complete with stainless steel bracket for side or bottom mounting, stabilizer bar and connection material.

Optibeam is a Finnish product that stands for optimum performance, reliability and quality. The lamps have been tested in the harsh winter conditions of Scandinavia and Finland, because of their quality the lamps have guarantees of up to 3 years. Optibeam high-quality lamps are perfect for even the most demanding users. Thanks to their excellent price-performance ratio, Optibeam LED lamps have become extremely popular with enthusiasts and professionals alike.

Specifications:

• Voltage: 9-36V
• Power: 8.06 A @ 13.7 V
• Number of LEDs: 8 x Osram
• Lumen theoretical: 10400 lm
• Lumen measured: 7400 lm
• Color temperature: 5500 K

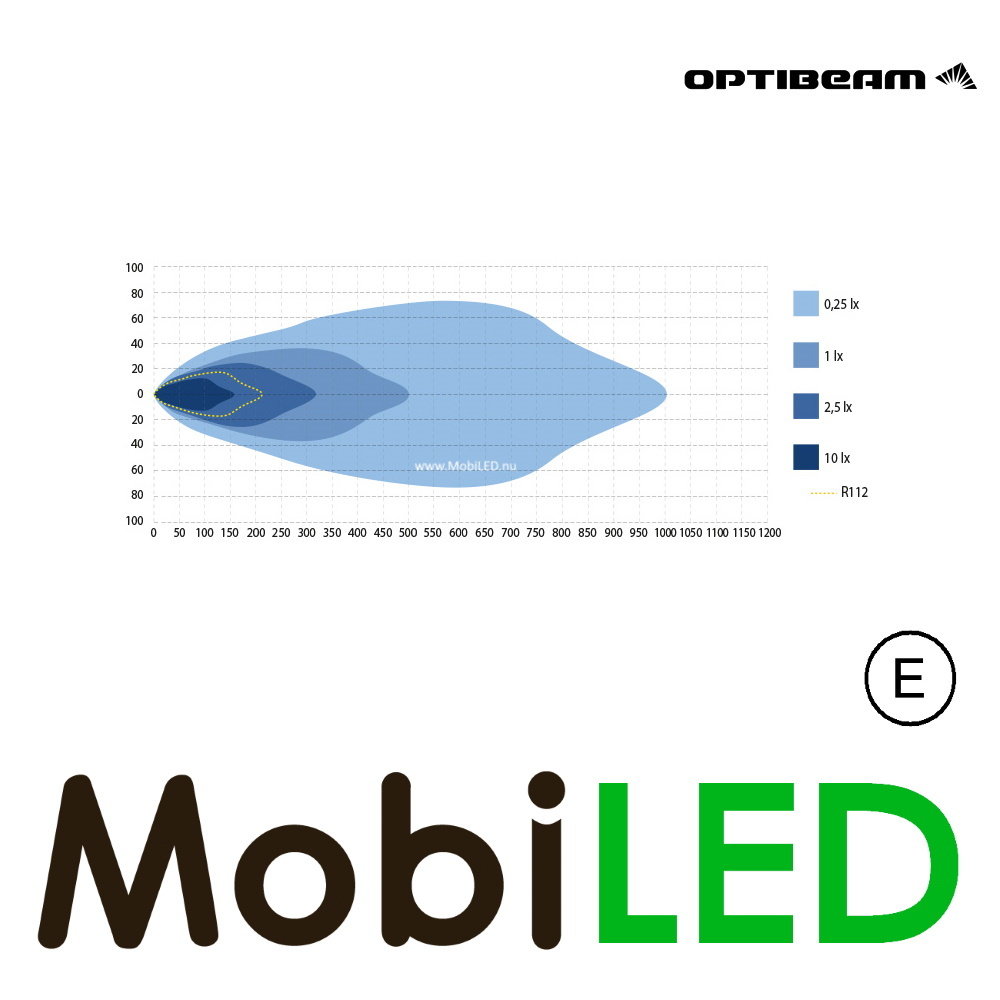

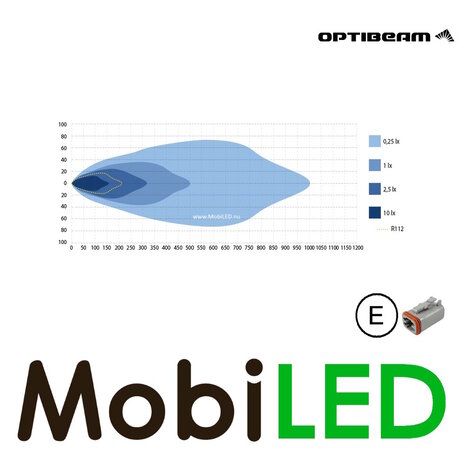

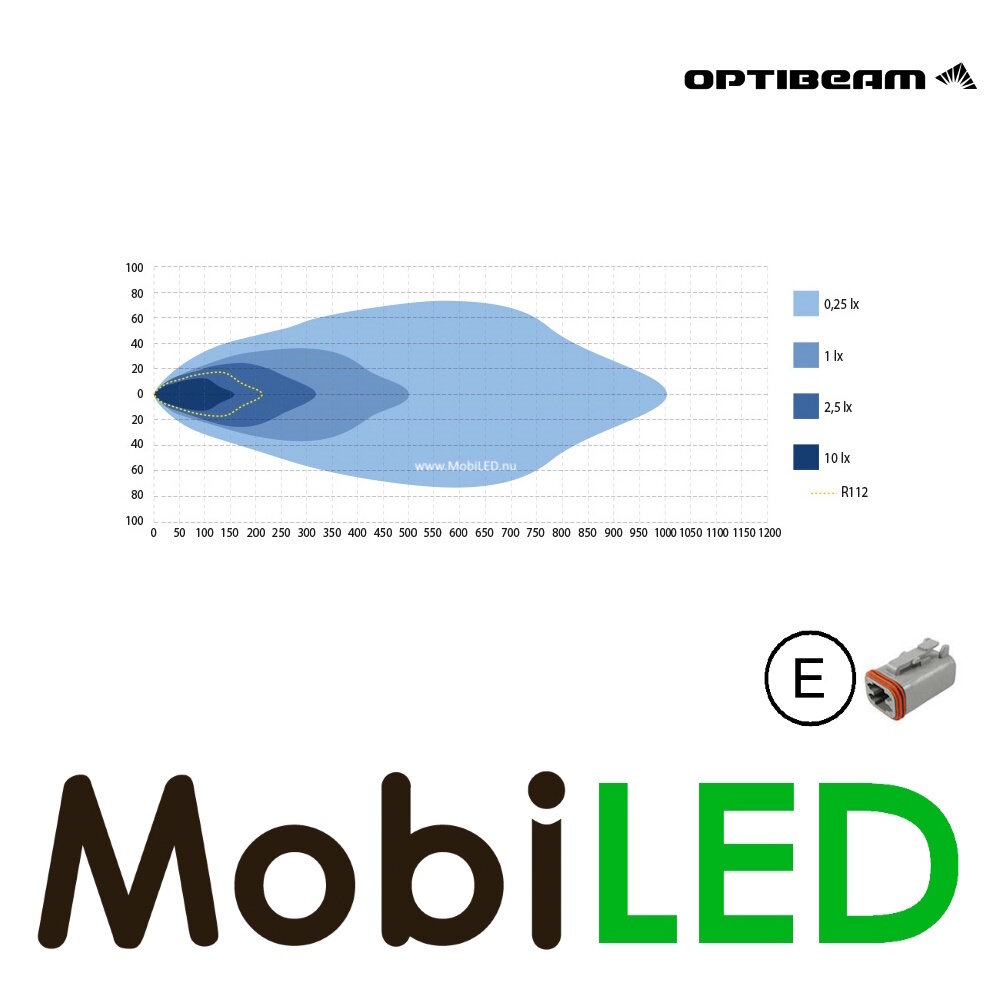

• Range: 1 lux @ 451 m, R112 1 lux @ 198 m

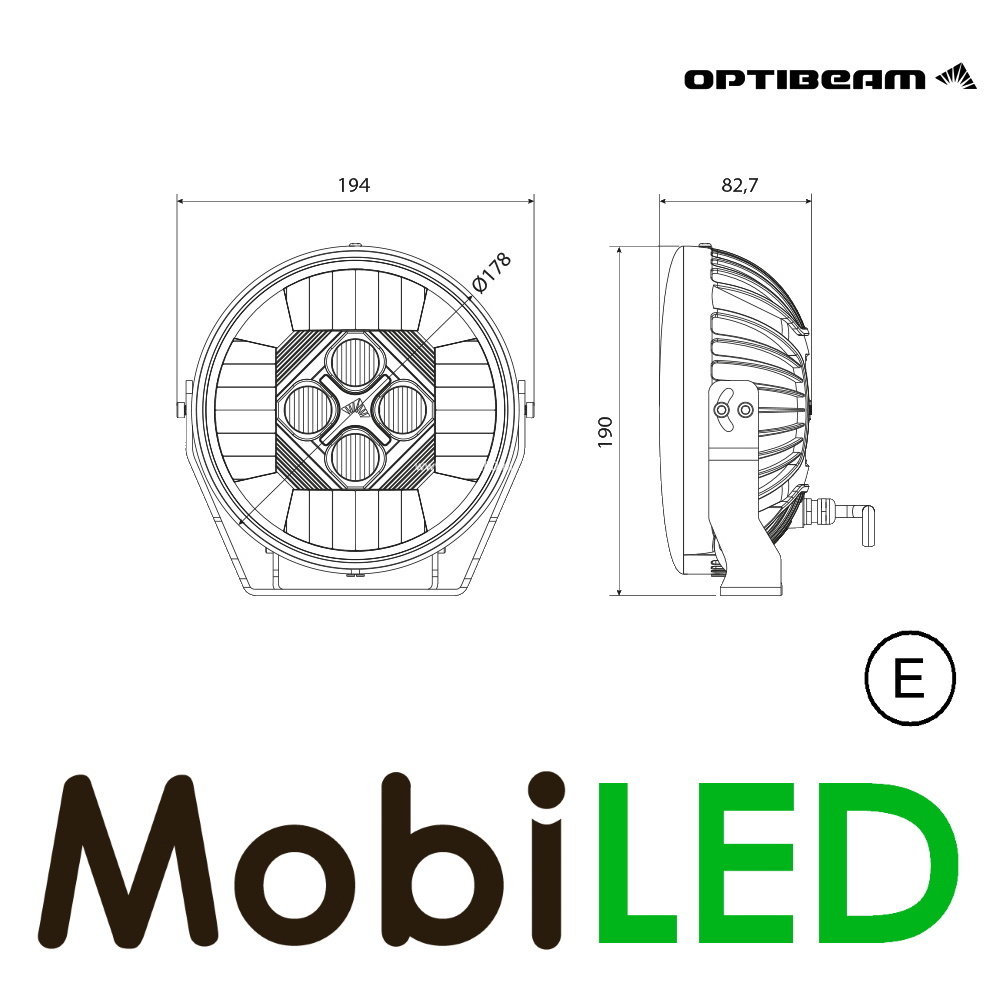

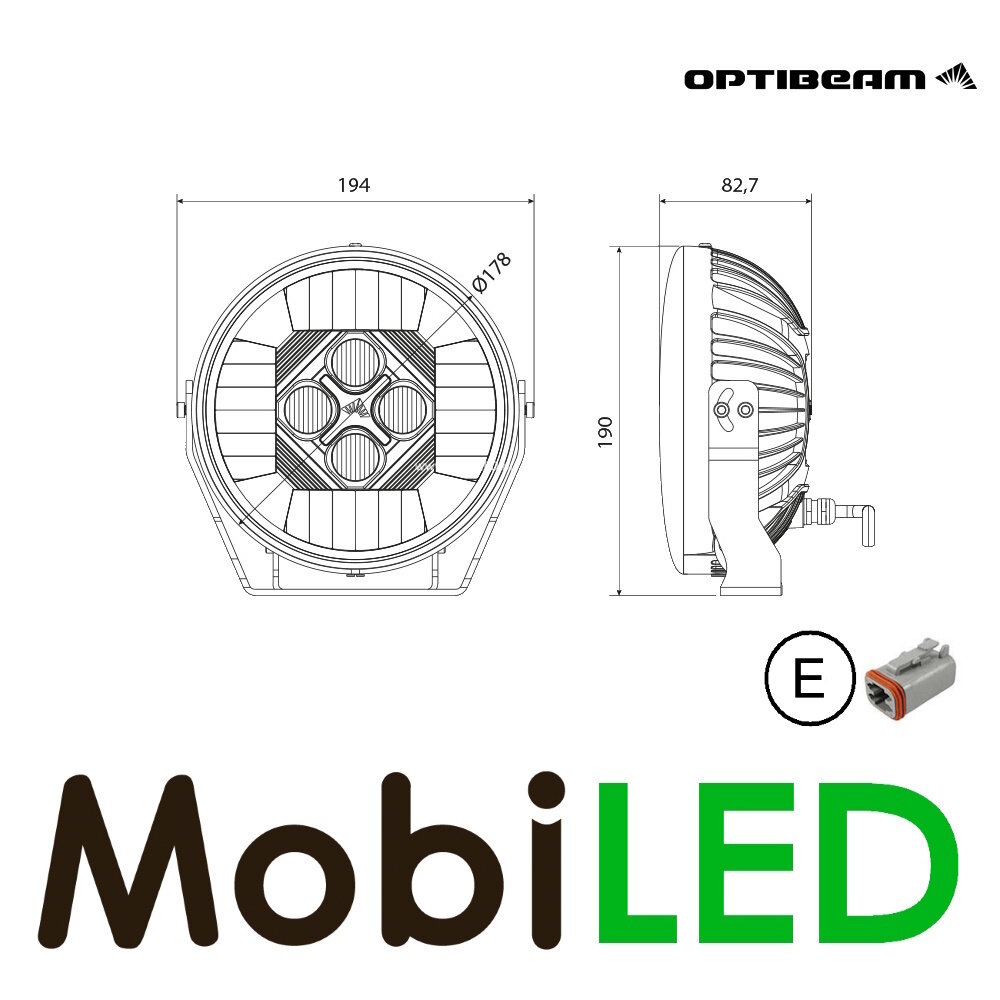

• Dimensions: 178 x 83 mm
• Connector: DT4
• Wire length: 0.85 m
• Water resistance: IP68
• Reference: 30
• Housing: aluminum
• Lens: PC
• Brackets: stainless steel
• Approvals: ECE R148/149 R10
• Part number Optibeam: 1605-NS2087

Connection diagram:

• Black (-): ground
• Red (+): lighting, only off road
• Brown (+) with red: lighting, with E-mark for road use
• White (+): white position light
• Yellow (+): amber position light
