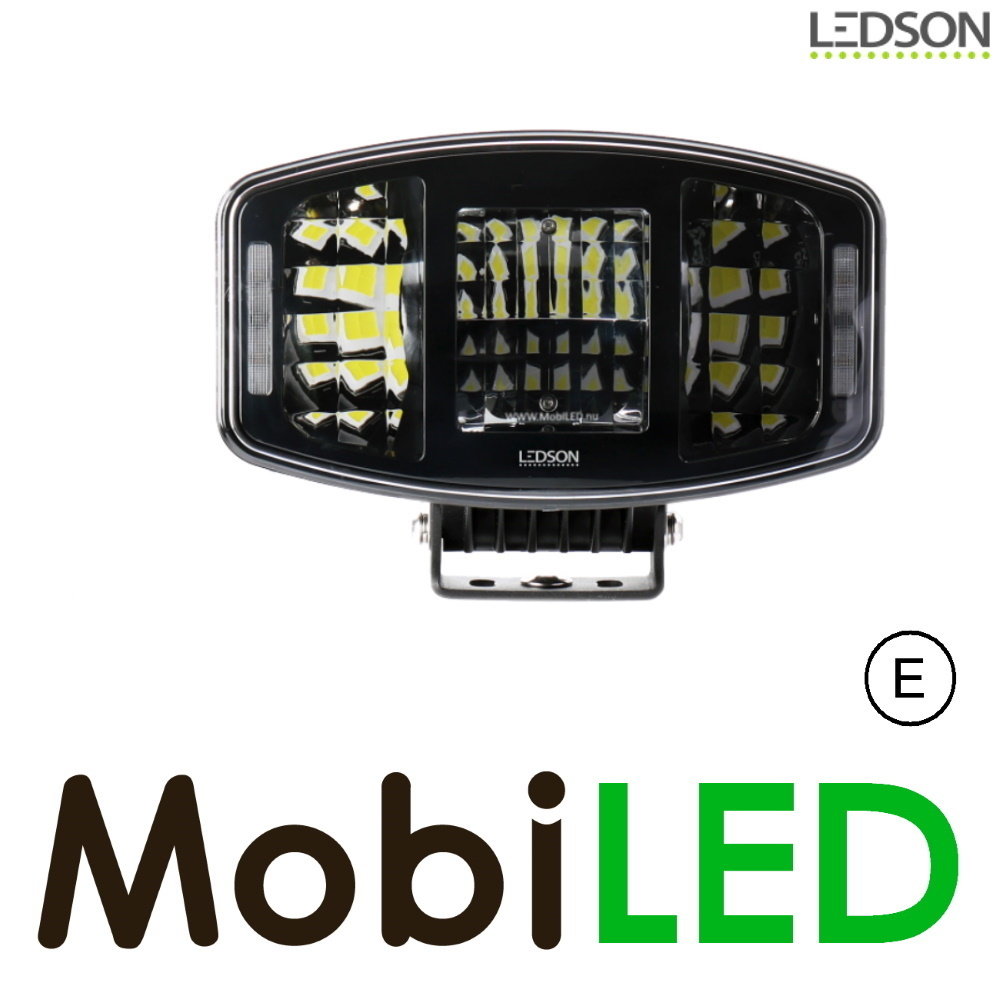

Orion 10" 100 W Jumbo with position light white/amber

Orion 10" 100 W Jumbo with position light white/amber

With its delicious and futuristic design, it's hard not to get caught up with the look of Ledson Orion+.  8500 Actual lumens and 1 lux brightness at 450 meters and 0.25 lux brightness at 850 meters (per auxiliary light) give you the visibility ahead on the road that you previously lacked!

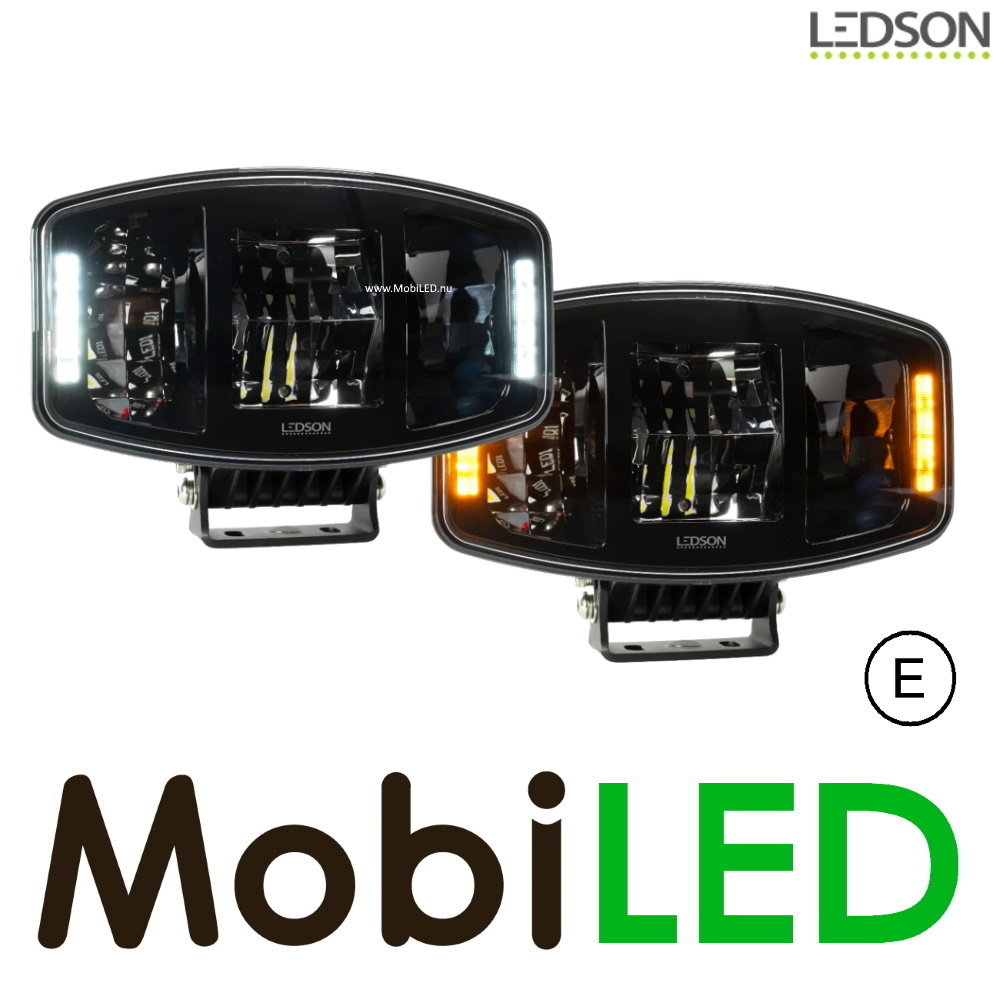

In addition to its beautiful design, the auxiliary light is also equipped with a stylish position light that can be set between xenon white and amber: you choose which one you want, if you get tired of one color with time, you just switch to the other. Orion+ has a range of E-markings ECE R112 / R10 / R7, 6000K light temperature for a modern look, ETM, EMC, side reflective optical system and more.
Thanks to its size and design, Orion+ fits really nicely mounted on both cars, larger cars and trucks.
Driving beams reflectors are all computer generated and manufactured to provide a similar light image as combo but more consistent and within the limits of what is legal. It mimics and enhances the car's existing headlight and light image.

Price per piece.

Note:

• Do not cut the DT connector as this will increase the risk of moisture damage and will void the warranty.

Specifications:

• Color position light: yellow/orange or xenon/white (use the color you want)
• Type of light: high beam that mimics and amplifies the normal light of the vehicle
• Certification: E-mark E9 (ref. 37.5), ECE R112 / R10 / R7 (white position light)
• Range: 850 m (0.25 lux), 425 m (1 lux)
• EMC protected (does not disturb the radio)
• Light output: 10000 lumens (theoretical), 8500 lumens (effective)
• Light color: cold white light (6000 K)
• ETM (Electronic Thermal Management) - adjusts the strength of the diodes depending on how hot they are, for optimal life
• Side-reflecting optical system
• Overpressure membrane
• Aluminum alloy heat sink
• Adjustable bracket in stainless steel
• Lexan polycarbonate front cover
• Power: 100 W (4x 25 W LEDs)
• Classification: IP68 / IP69K (water / dustproof)
• DT connector / DT adapter 2-4 pin included with the product
• Voltage 9-36 V
• Amperage: 12 V: 6.8 ​​A / 24 V: 3.4 A
• Width: 247 mm
• Height: 141 mm (176 mm incl. mounting)
• Depth: 92 mm
• Weight: 1.82 kg

Connection diagram:

• Red: + (light)
• Black: - (light / position light)
• White: + (white position light)
• Yellow: + (amber position light)
