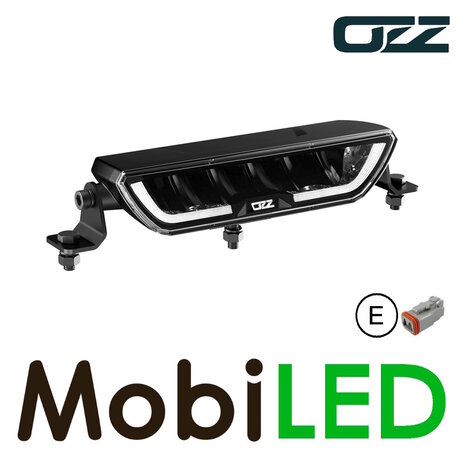

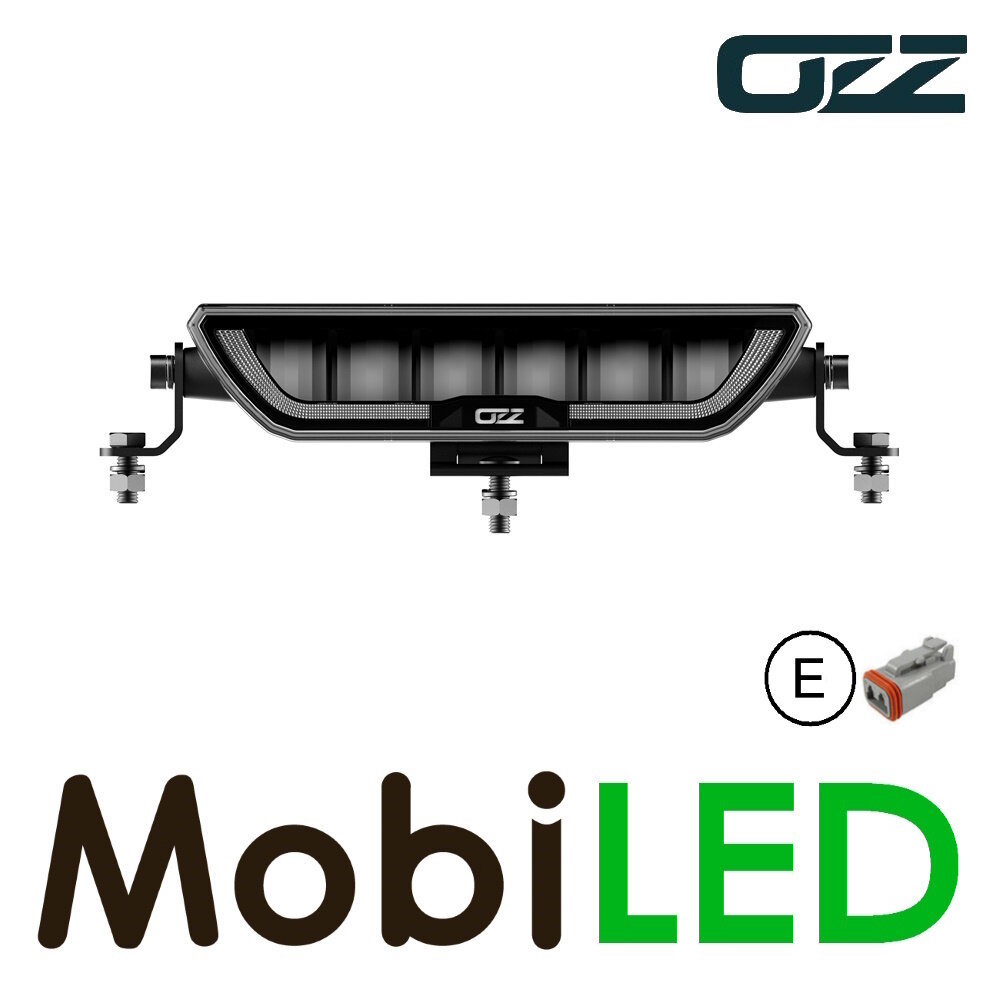

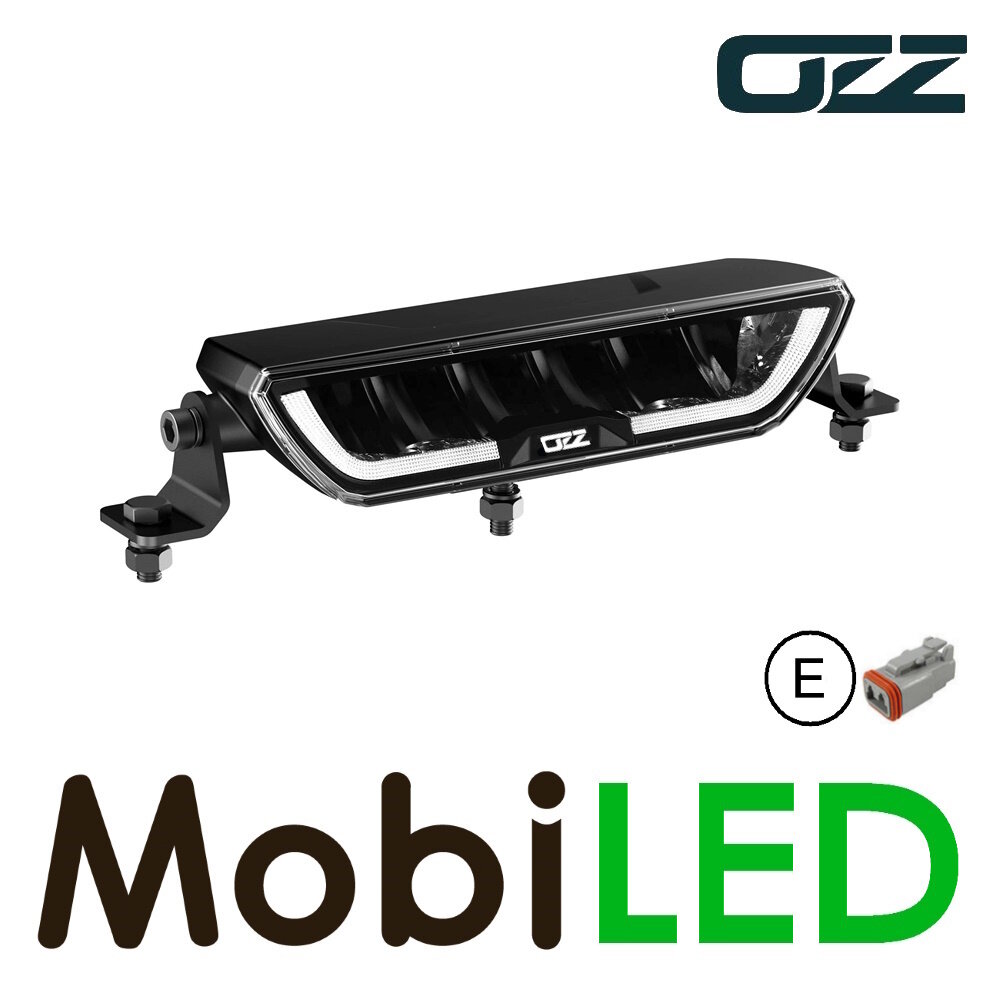

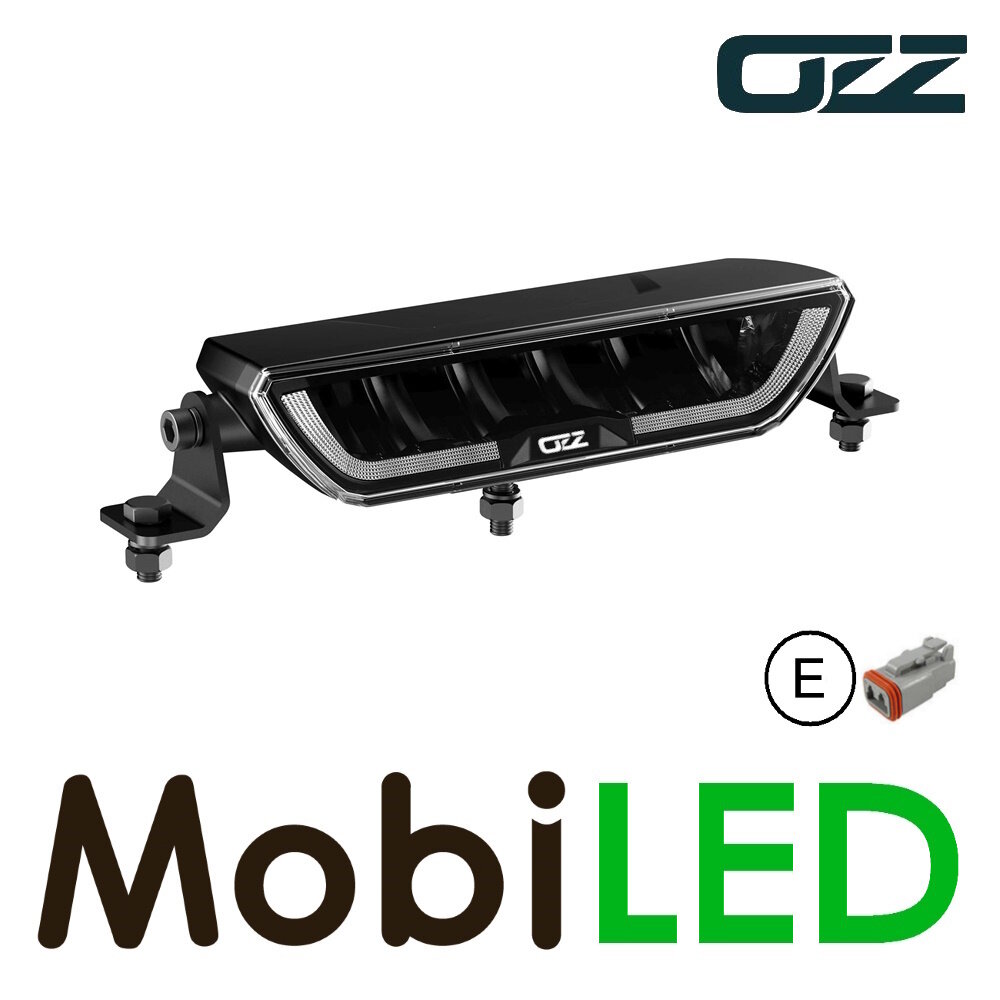

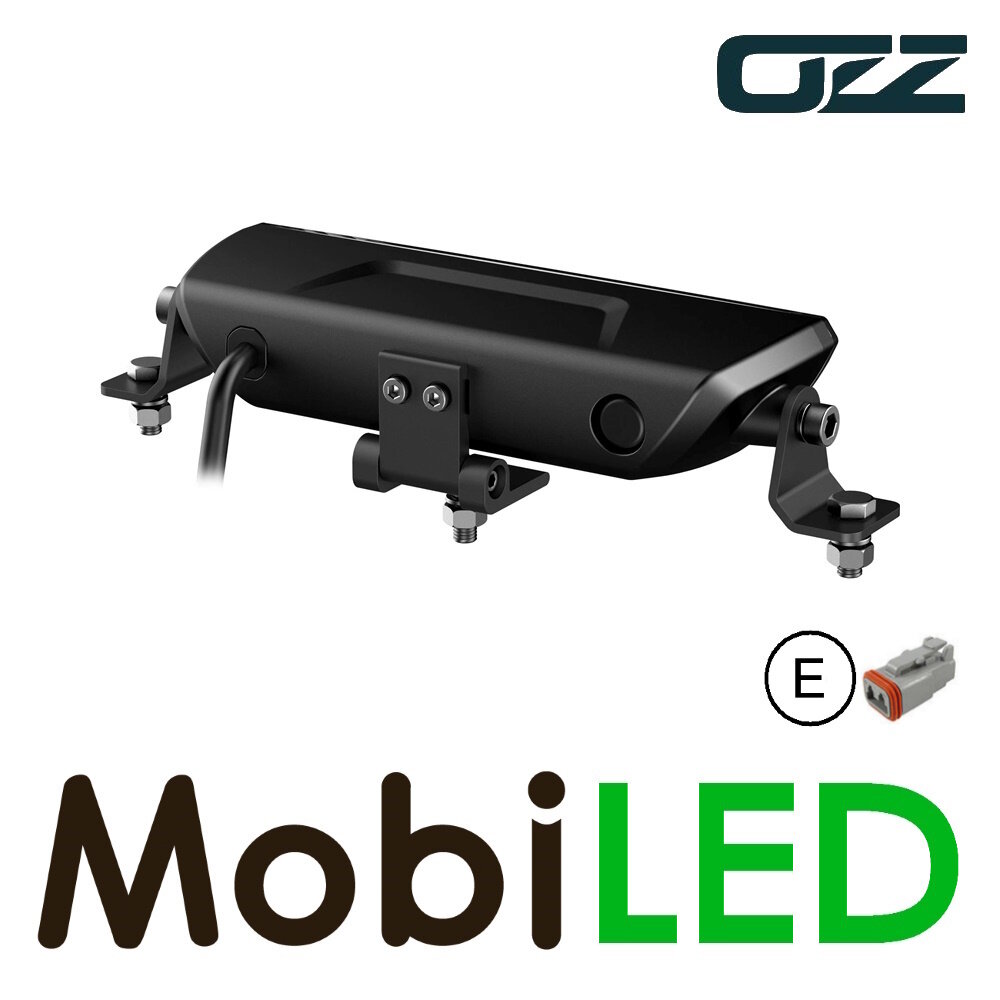

OZZ XB1 9" dynamic start-up dual color with DRL
![OZZ OZZ XB1 9" dynamic start-up dual color with DRL OZZ OZZ XB1 9" dynamic start-up dual color with DRL](https://cdn.webshopapp.com/shops/73605/files/447499661/78x78x2/ozz-ozz-xb1-9-dynamic-start-up-dual-color-with-drl.jpg)
![OZZ OZZ XB1 9" dynamic start-up dual color with DRL OZZ OZZ XB1 9" dynamic start-up dual color with DRL](https://cdn.webshopapp.com/shops/73605/files/447436000/78x78x2/ozz-ozz-xb1-9-dynamic-start-up-dual-color-with-drl.jpg)
![OZZ OZZ XB1 9" dynamic start-up dual color with DRL OZZ OZZ XB1 9" dynamic start-up dual color with DRL](https://cdn.webshopapp.com/shops/73605/files/447436003/78x78x2/ozz-ozz-xb1-9-dynamic-start-up-dual-color-with-drl.jpg)
![OZZ OZZ XB1 9" dynamic start-up dual color with DRL OZZ OZZ XB1 9" dynamic start-up dual color with DRL](https://cdn.webshopapp.com/shops/73605/files/447361527/78x78x2/ozz-ozz-xb1-9-dynamic-start-up-dual-color-with-drl.jpg)
![OZZ OZZ XB1 9" dynamic start-up dual color with DRL OZZ OZZ XB1 9" dynamic start-up dual color with DRL](https://cdn.webshopapp.com/shops/73605/files/447361528/78x78x2/ozz-ozz-xb1-9-dynamic-start-up-dual-color-with-drl.jpg)
![OZZ OZZ XB1 9" dynamic start-up dual color with DRL OZZ OZZ XB1 9" dynamic start-up dual color with DRL](https://cdn.webshopapp.com/shops/73605/files/447361525/78x78x2/ozz-ozz-xb1-9-dynamic-start-up-dual-color-with-drl.jpg)
![OZZ OZZ XB1 9" dynamic start-up dual color with DRL OZZ OZZ XB1 9" dynamic start-up dual color with DRL](https://cdn.webshopapp.com/shops/73605/files/447361529/78x78x2/ozz-ozz-xb1-9-dynamic-start-up-dual-color-with-drl.jpg)
![OZZ OZZ XB1 9" dynamic start-up dual color with DRL OZZ OZZ XB1 9" dynamic start-up dual color with DRL](https://cdn.webshopapp.com/shops/73605/files/447361530/78x78x2/ozz-ozz-xb1-9-dynamic-start-up-dual-color-with-drl.jpg)
![OZZ OZZ XB1 9" dynamic start-up dual color with DRL OZZ OZZ XB1 9" dynamic start-up dual color with DRL](https://cdn.webshopapp.com/shops/73605/files/447361531/78x78x2/ozz-ozz-xb1-9-dynamic-start-up-dual-color-with-drl.jpg)
![OZZ OZZ XB1 9" dynamic start-up dual color with DRL OZZ OZZ XB1 9" dynamic start-up dual color with DRL](https://cdn.webshopapp.com/shops/73605/files/447361532/78x78x2/ozz-ozz-xb1-9-dynamic-start-up-dual-color-with-drl.jpg)

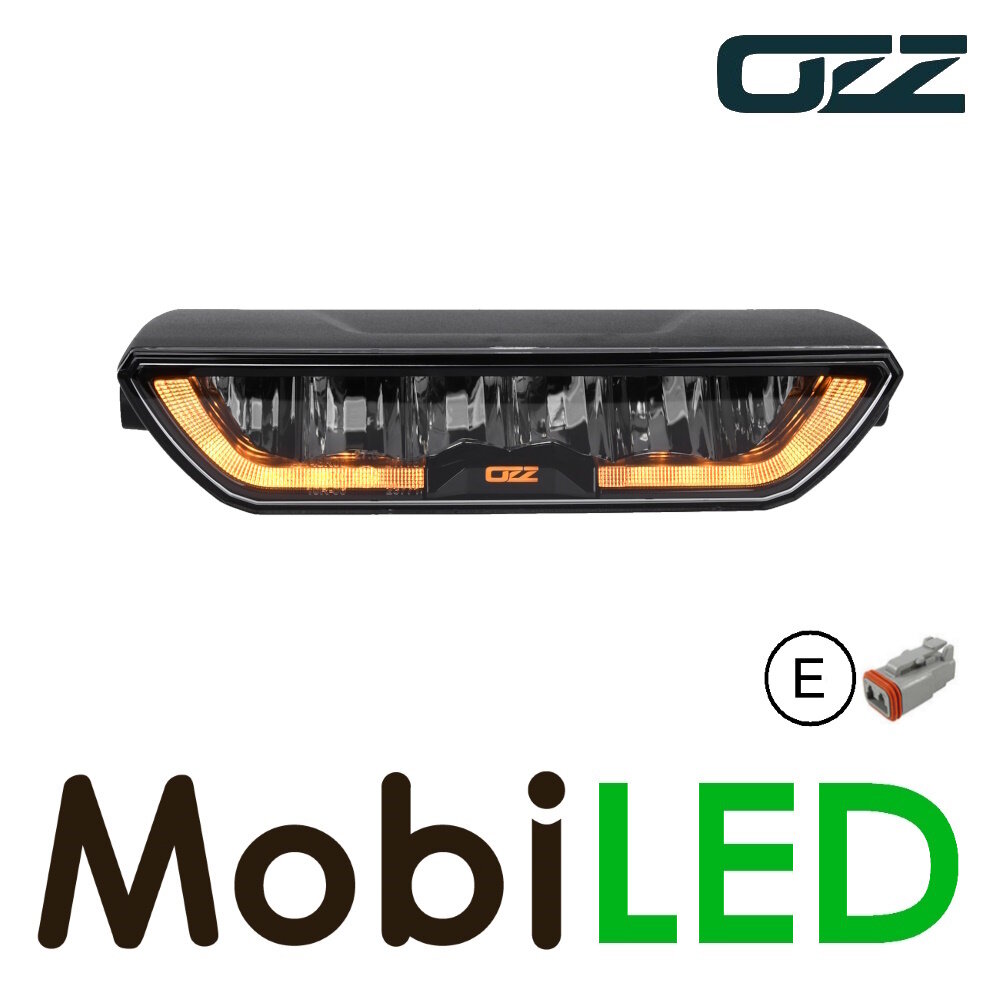

Where performance, design and technology go hand in hand. A solid, appealing design that feels at home on any vehicle. OZZ lamps are distinguished by the introduction of the "Dynamic" start-up. When starting the lamp, the position light goes through a pattern before it lights up completely. The position light can be switched white or amber depending on your personal style.
A solid aluminum housing that is neatly painted ensures sufficient cooling of this powerhouse. The front of the LED bar is made of high-quality impact-resistant polycarbonate.
A beautiful lamp that will certainly not look out of place on your vehicle.
Note: cutting off the connector will void the warranty.
Connection diagram:
- Black: mass, -
- Red: plus driving light (E-approval R112)
- White: plus White position light (E-approval R7)
- Yellow: plus amber position light (no E-mark)
Product specifications
- Article number
- LB382

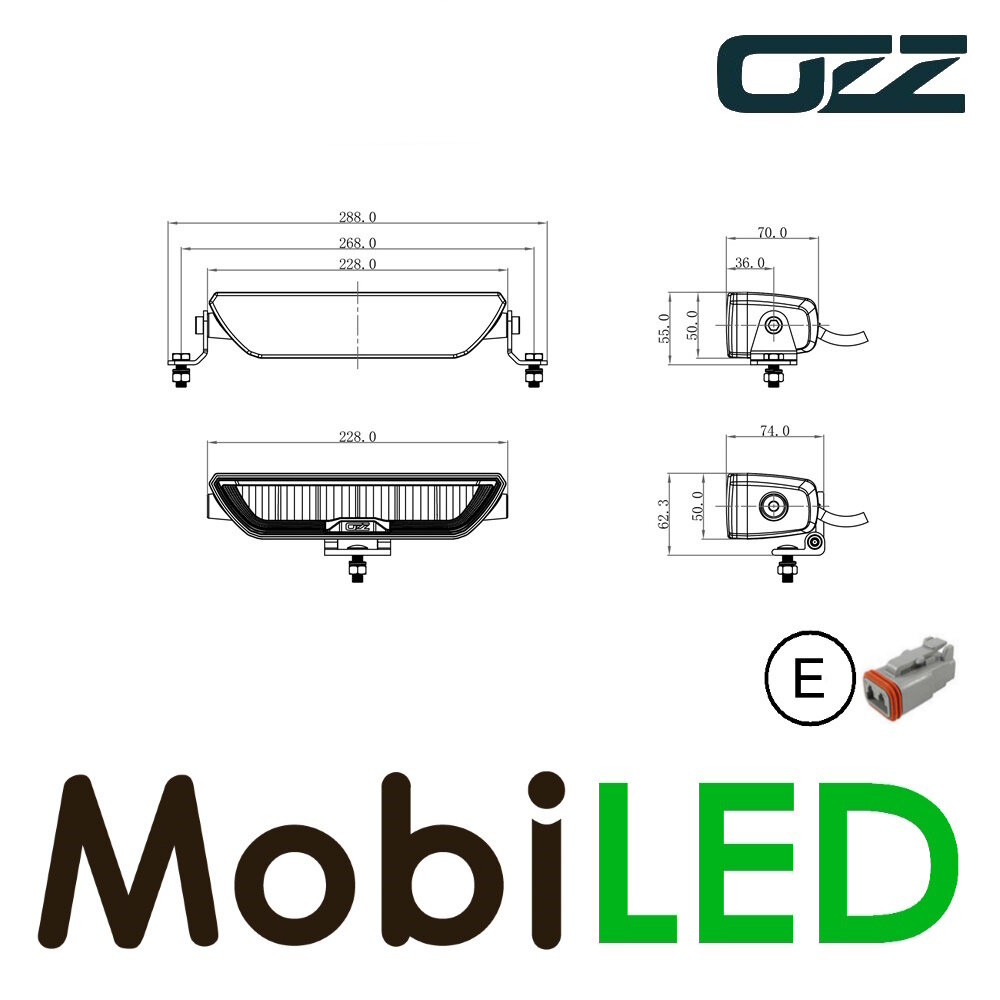

- Length (cm)
- 22,8 (+ bracket: 28,8)
- Height (cm)
- 5
- Height incl bracket (cm)
- 5,5
- Depth (cm)
- 7
- Weight (gr)
- 750
- Shape
- Elongated
- Tension
- 12-24V
- Power
- 60W
- Lumens
- 4960 (theoretical), 3100 (practical)
- Light colour
- Bright white (4500-6000K)
- Number of LEDs
- 6
- LED Type
- Osram P9 + CREE
- Position light function
- Yes, white or amber
- Light image
- Combo

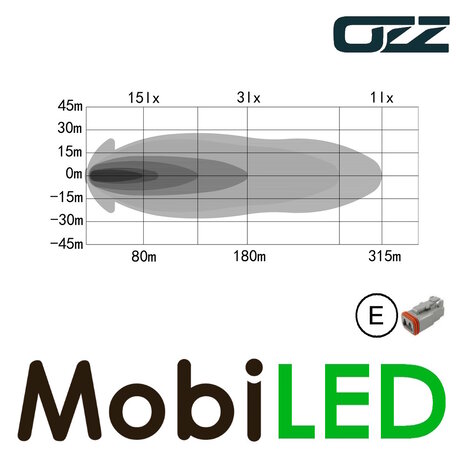

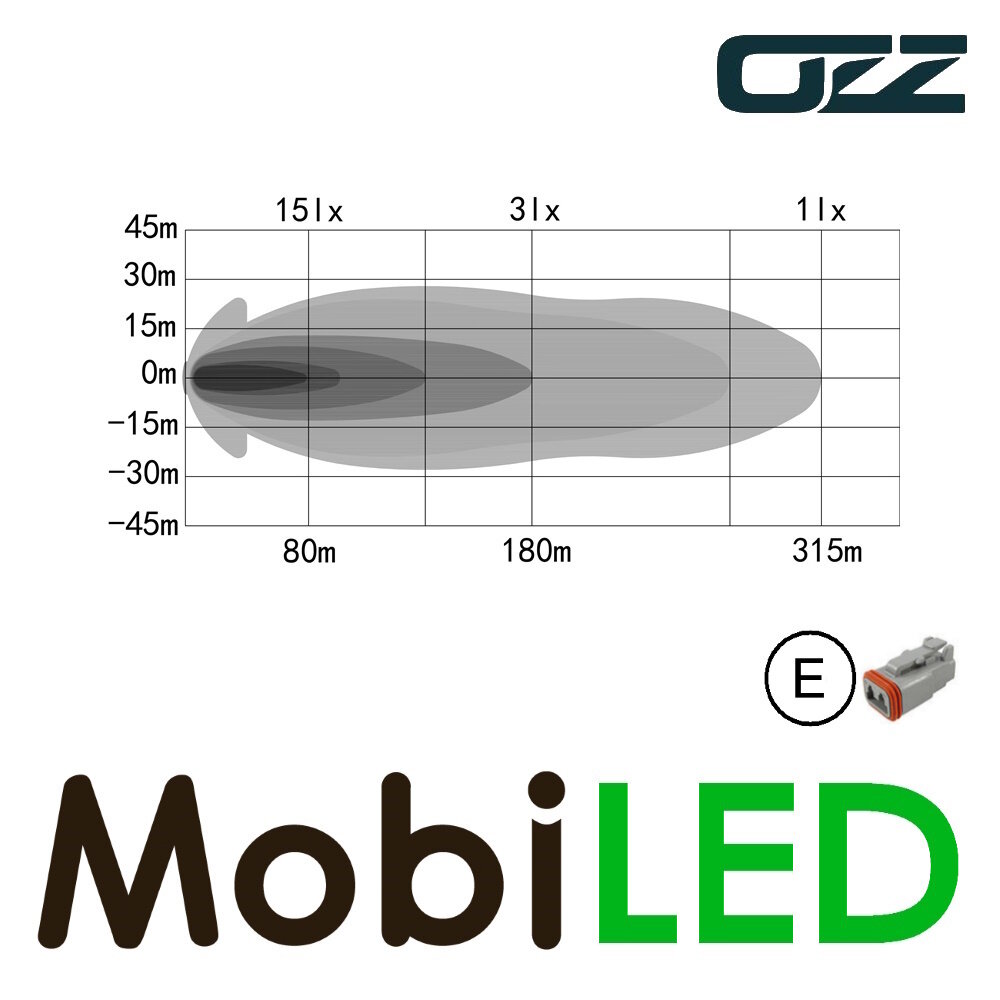

- Beam range
- 1 lux@315 m
- Housing colour
- Black
- Lens colour
- Transparant
- Housing material
- Aluminum
- Lens material
- PC
- Mounting bracket material
- Stainless steel
- Mounting type
- Bottom / side mounting with M8 bolt
- Connection
- DT-connector
- Cable Length (cm)
- 100
- Number of wire cores
- 4
- Operating temperature
- -40°C - +60°C
- IP rating
- IP68 & IP69K
- Certification
- ECE R10, R112, R7
- Packed per
- 1
- Manufacturer article number
- 7333213101510 / 88203
