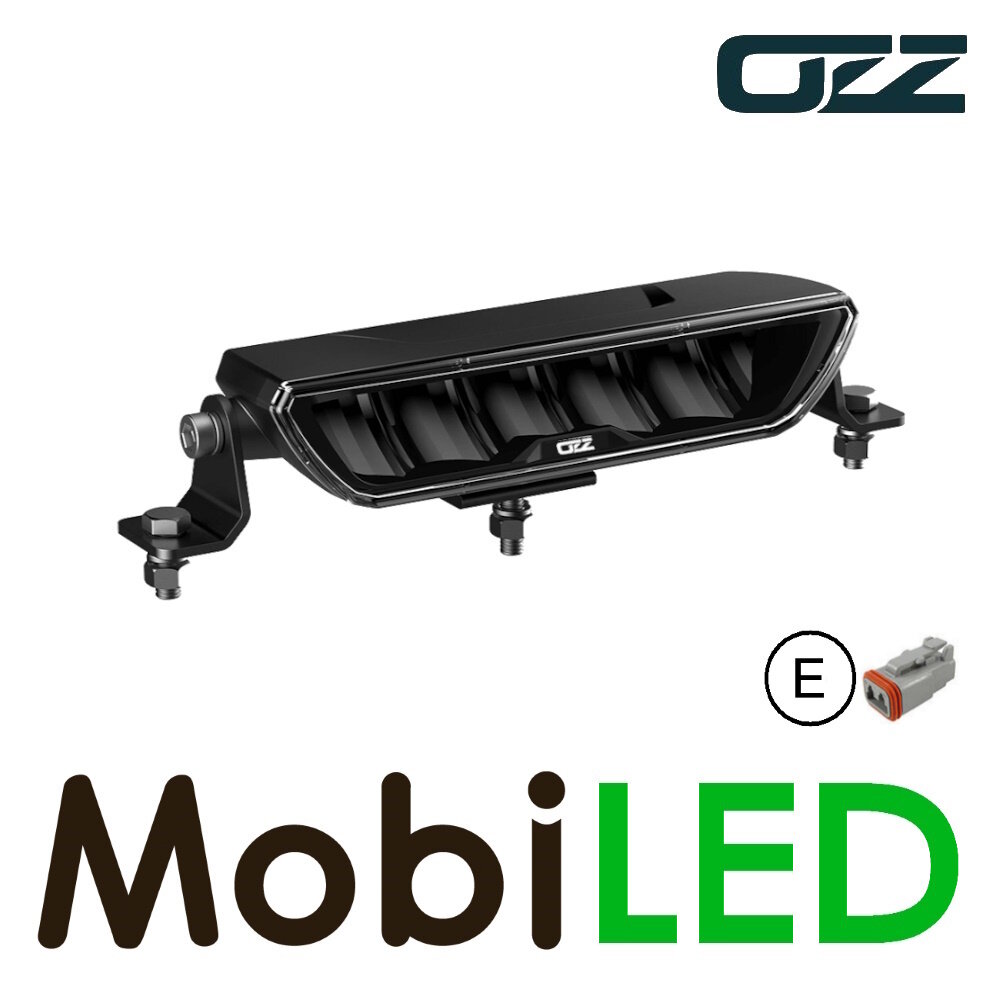

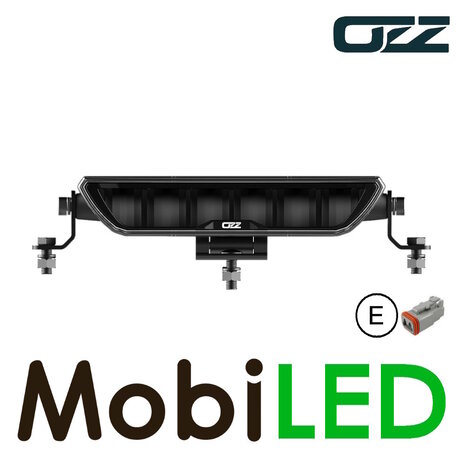

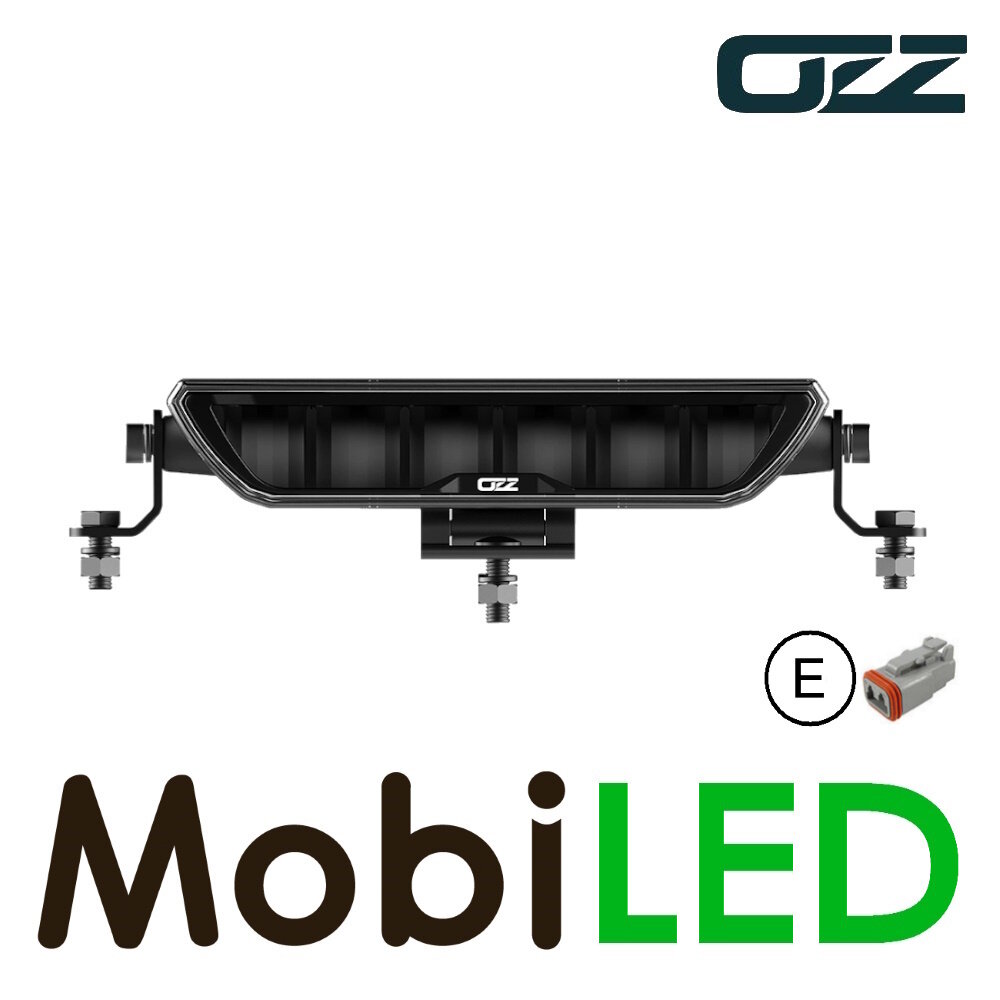

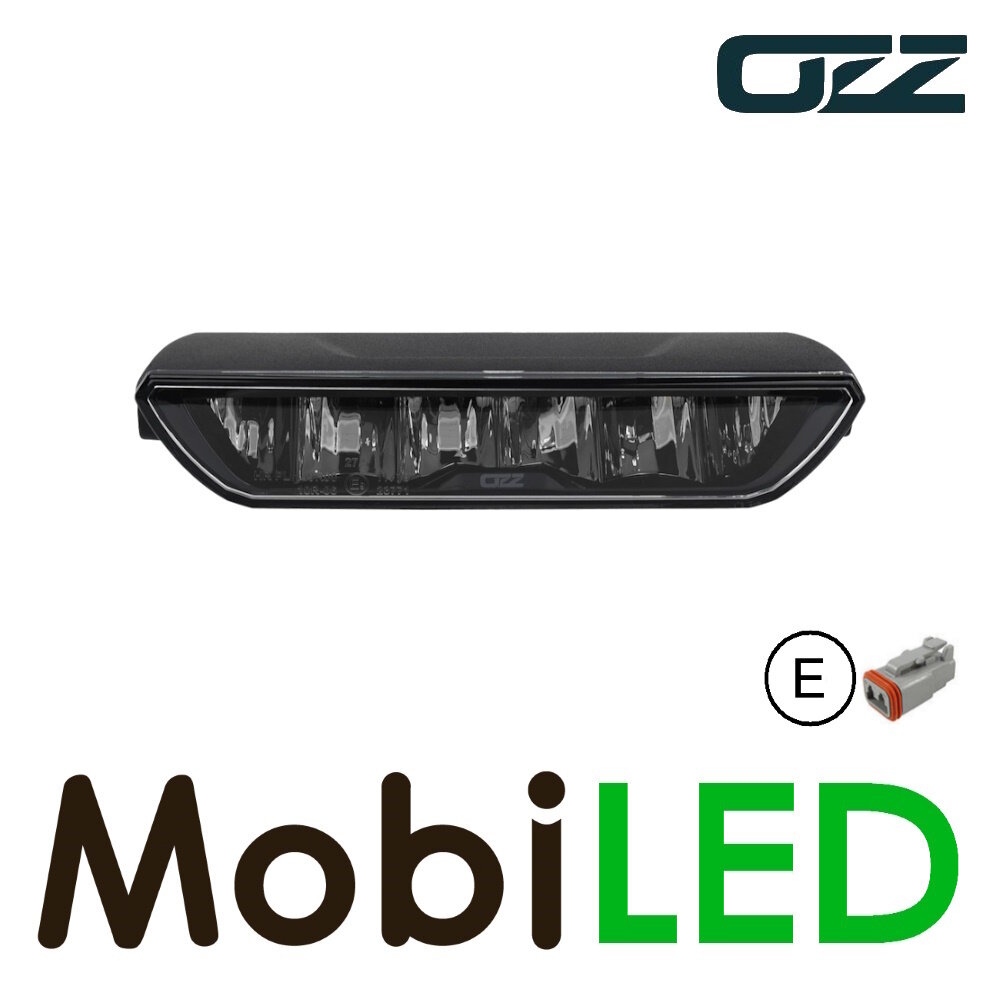

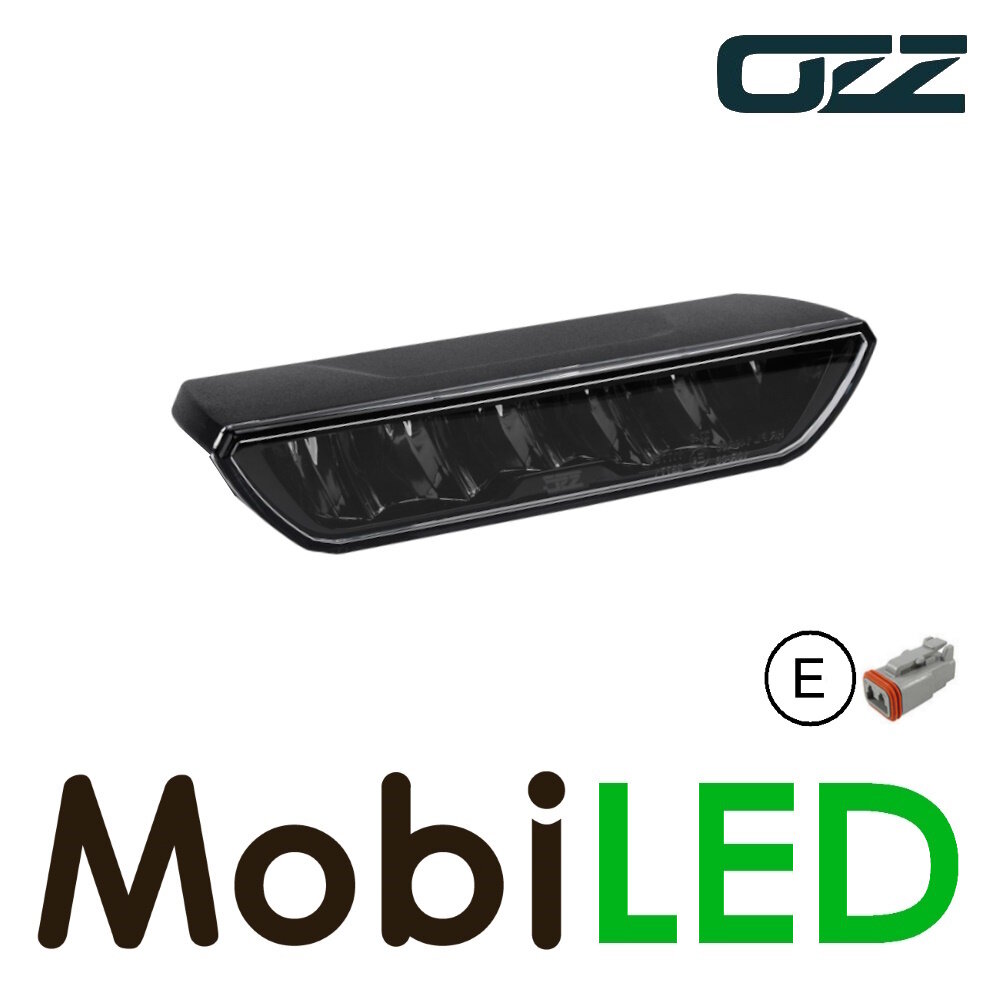

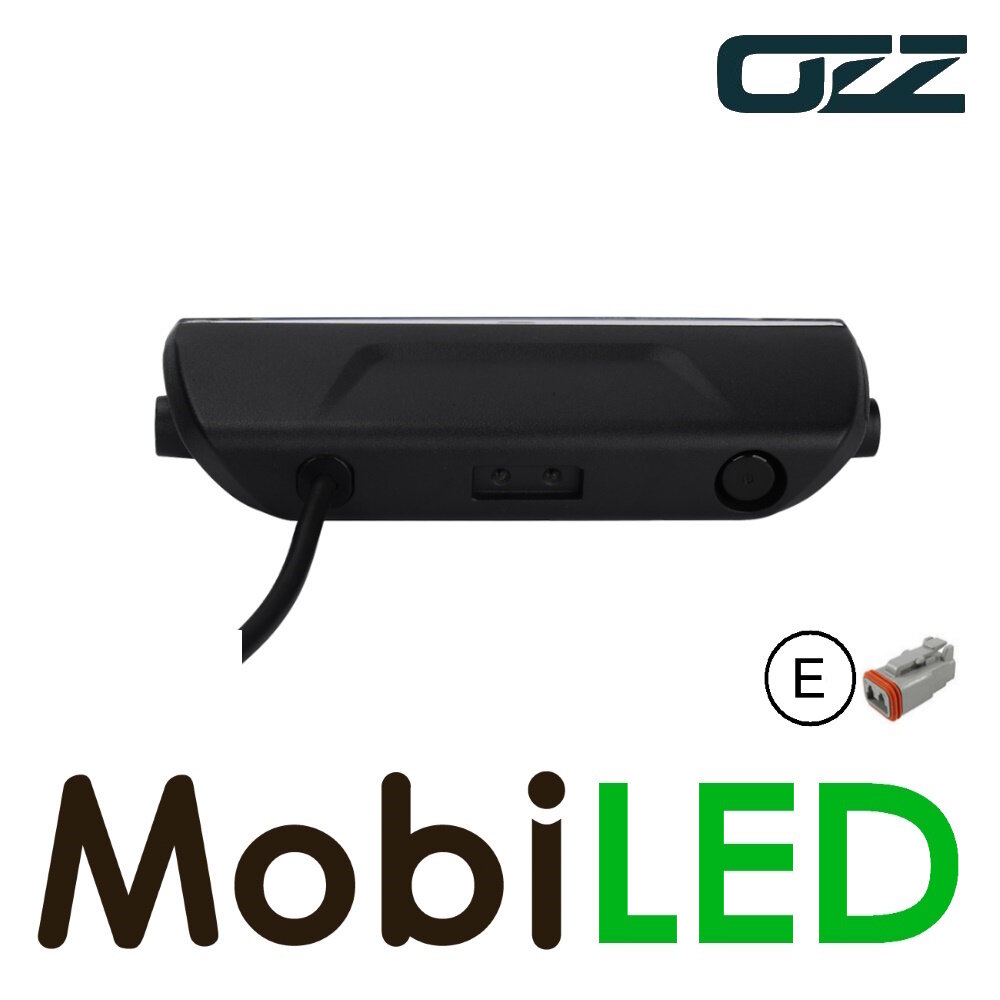

OZZ XB1 22,8 cm dynamic start-up Black
Where performance, design and technology go hand in hand. A solid, appealing design that feels at home on any vehicle. OZZ lamps are distinguished by the introduction of the "Dynamic" start-up. When starting the lamp, the position light goes through a pattern before it lights up completely. The position light can be switched white or amber depending on your personal style.
A solid aluminum housing that is neatly painted ensures sufficient cooling for this powerhouse. The front of the lightbar is made of high-quality impact-resistant polycarbonate.
Note: cutting off the connector will void the warranty.
Product specifications
- Article number
- LB387
- Length (cm)
- 22,8
- Height (cm)
- 5
- Height incl bracket (cm)
- 5,5
- Depth (cm)
- 7
- Weight (gr)
- 750
- Shape
- Elongated
- Tension
- 10-32V DC
- Power
- 60W
- Lumens
- 3100
- Light colour
- Bright white (4500-6000K)
- Number of LEDs
- 6
- LED Type
- Osram P9
- Position light function
- No
- Light image
- Combo
- Beam range
- 1 lux@315 m
- Housing colour
- Black
- Lens colour
- Transparant
- Housing material
- Aluminum
- Lens material
- PC
- Mounting bracket material
- Stainless steel
- Mounting type
- Bottom / side mounting with M8 bolt
- Connection
- DT-3 connector
- Cable Length (cm)
- 100 (80 +20)
- Operating temperature
- -40°C - +60°C
- IP rating
- IP68 & IP69K
- Certification
- ECE R10, R112, R7, ref 27,5
- Packed per
- 1
- Manufacturer article number
- 7333213101527 / 88204
