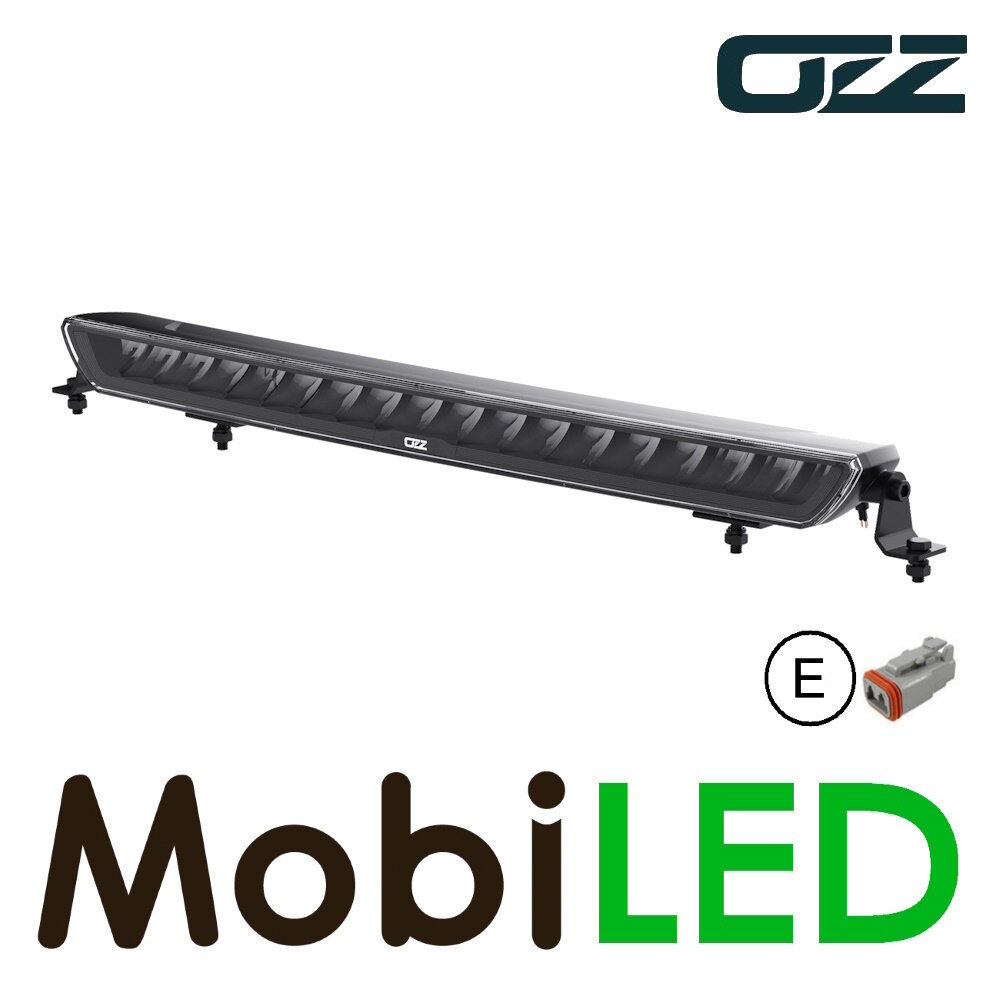

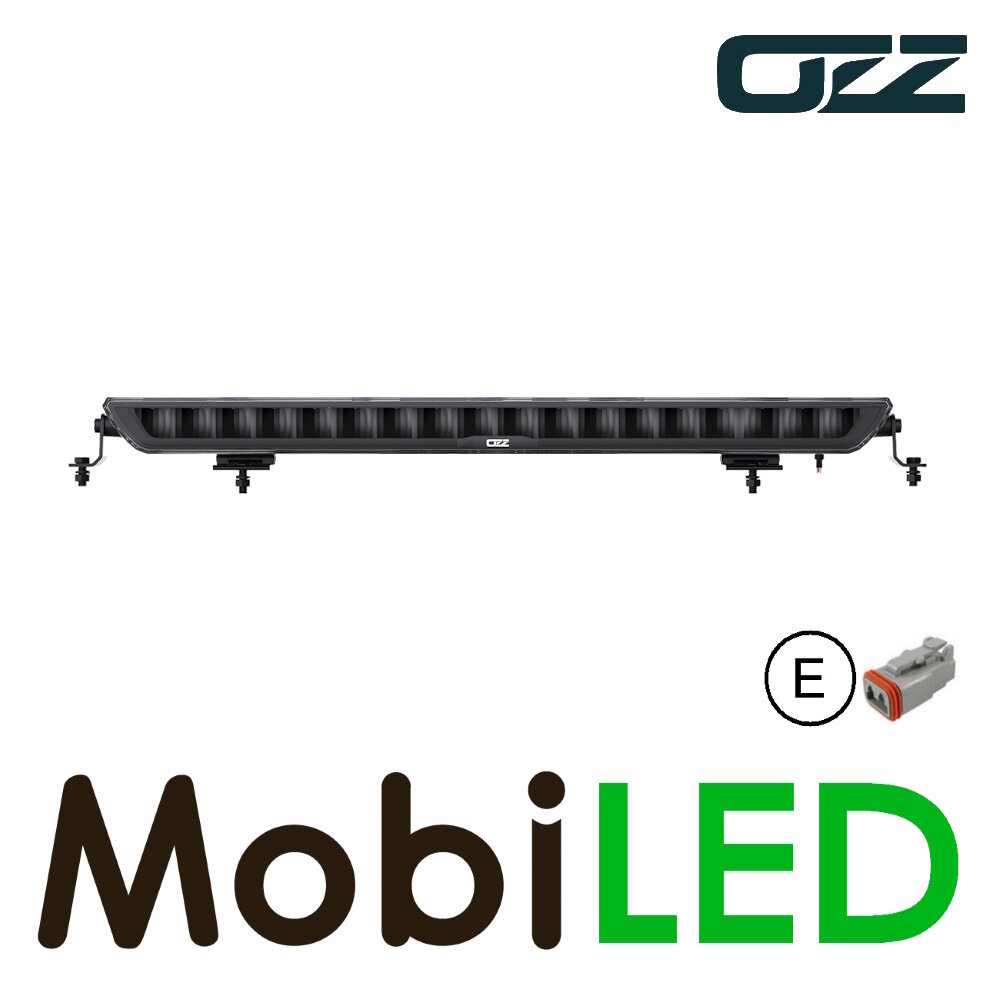

OZZ XB1 68.6 cm dynamic start-up, boost function Black








Where performance, design and technology go hand in hand. A solid, appealing design that feels at home on any vehicle. OZZ lamps are distinguished by the introduction of the "Dynamic" start-up. When starting the lamp, the position light goes through a pattern before it lights up completely.
This lamp is equipped with a BOOST function. By activating the boost function, the lamp turns on at high power and increases the output by 50% to 150% of the normal output.
A solid aluminum housing that is neatly painted ensures sufficient cooling for this powerhouse. The front of the lightbar is made of high-quality impact-resistant polycarbonate.
Note: cutting off the connector will void the warranty.
Product specifications
- Article number
- LB423

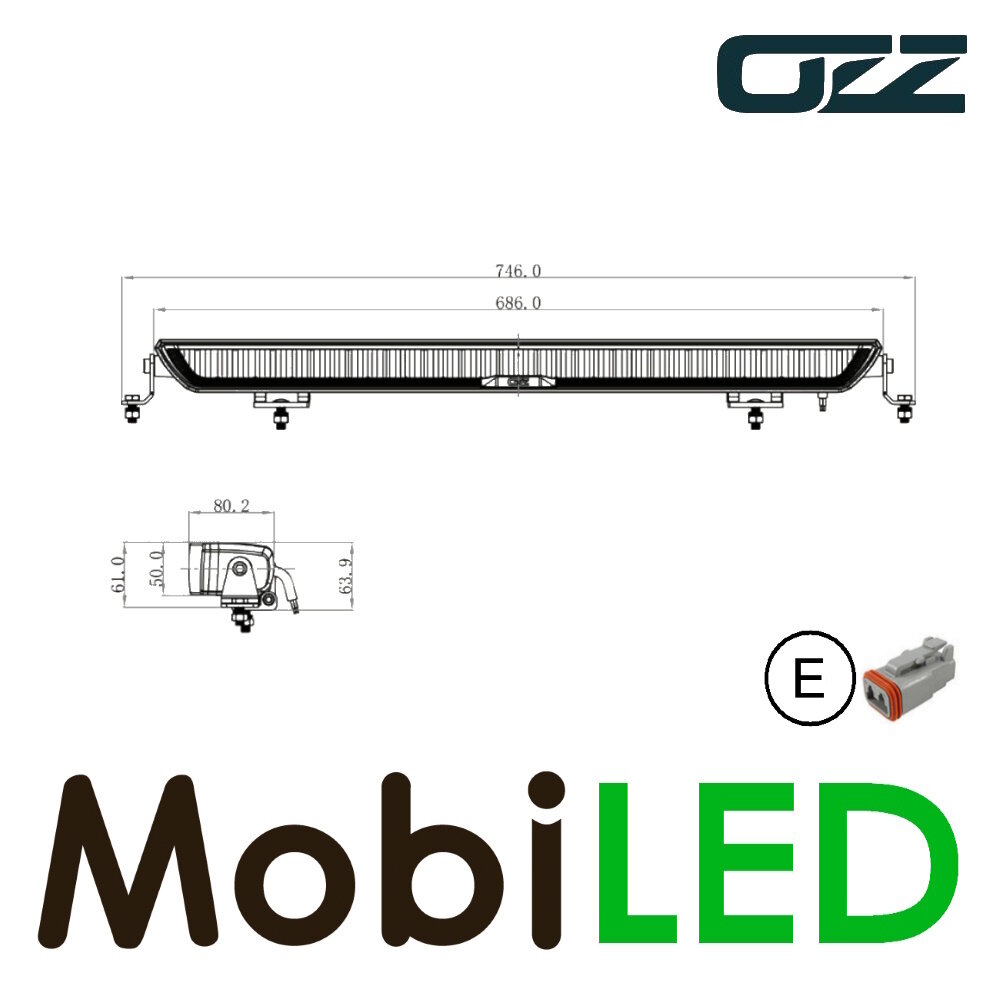

- Length (cm)
- 68,6 (74,6)
- Height (cm)
- 5
- Height incl bracket (cm)
- 6,39
- Depth (cm)
- 8,02
- Weight (gr)
- 3000
- Shape
- Elongated
- Tension
- 10-32V
- Power
- 180W
- Lumens
- 18000 theoretical, 9780 practical (7040 in R112)
- Light colour
- 5000K
- Number of LEDs
- 18

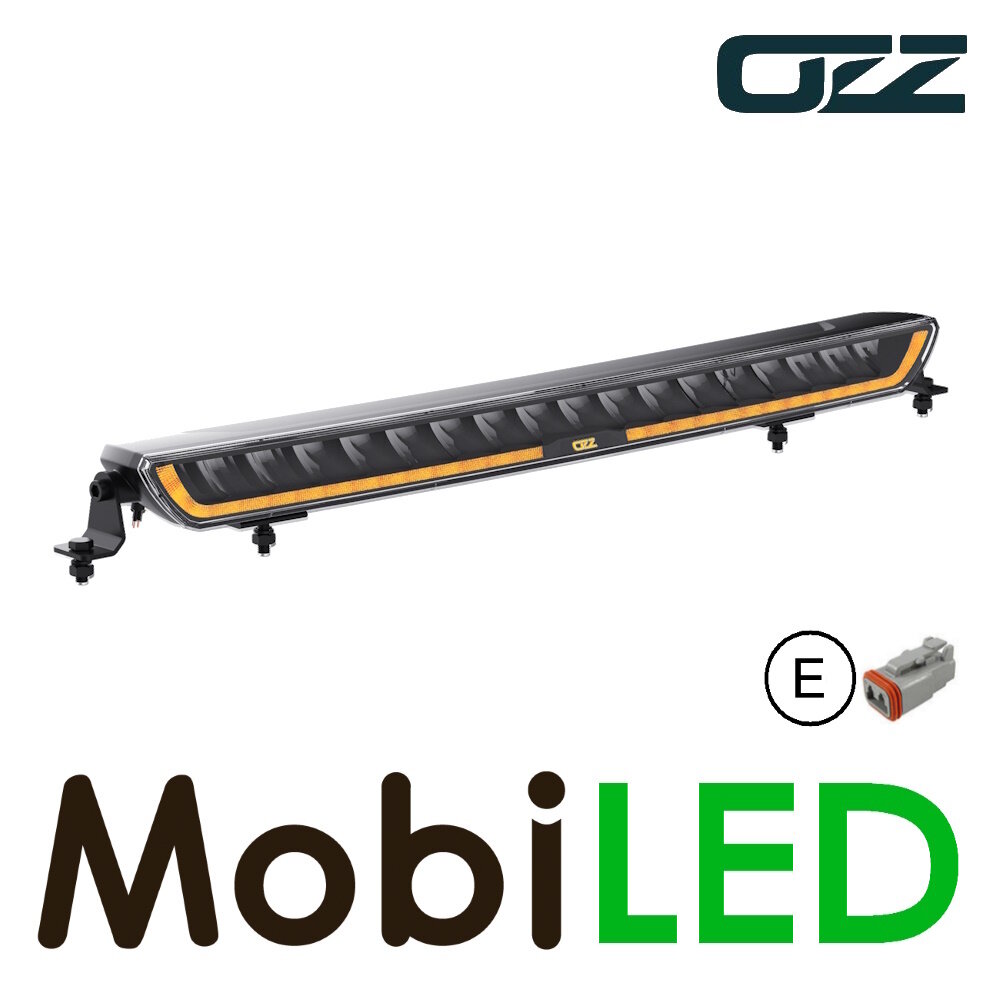

- Position light function
- y
- High beam function
- Yes
- Light image
- Combo

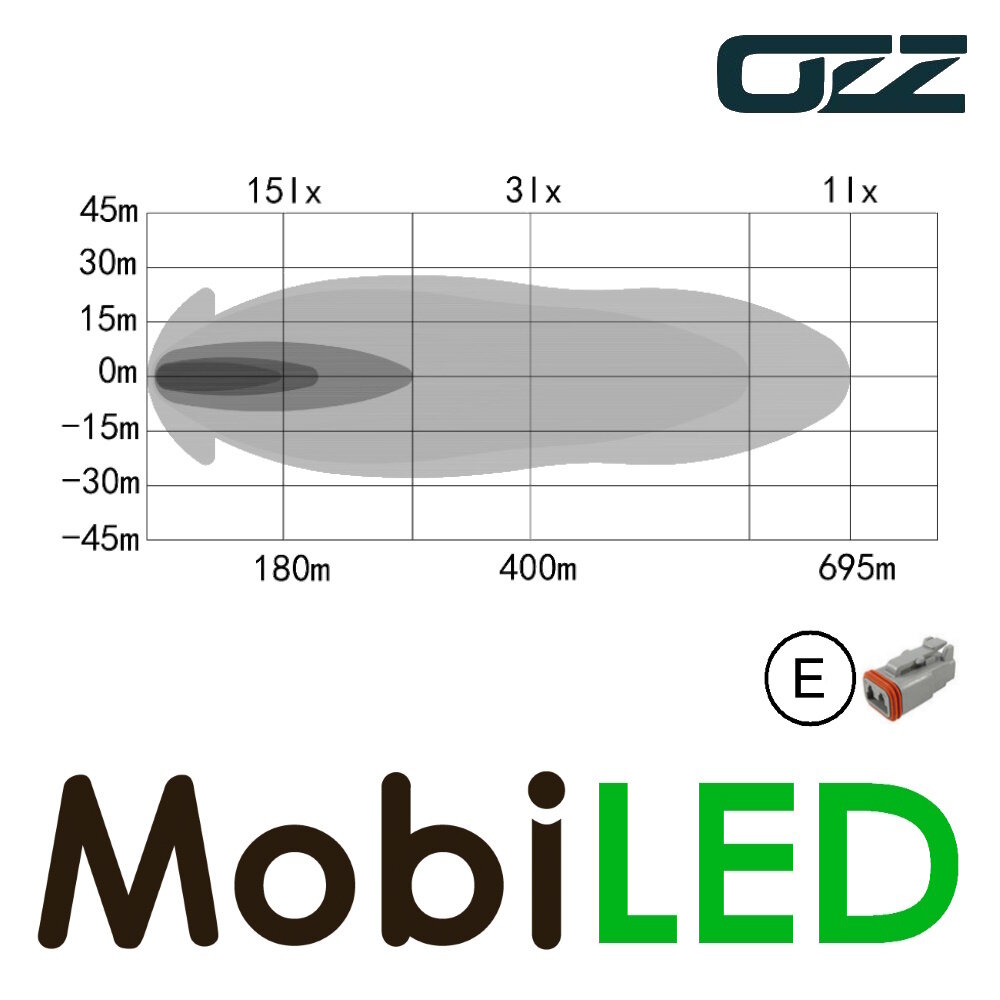

- Beam range
- 1 lux@695 m (480 m in R112)
- Housing colour
- Black
- Lens colour
- Transparant
- Housing material
- Aluminum
- Lens material
- PC
- Mounting bracket material
- Stainless steel

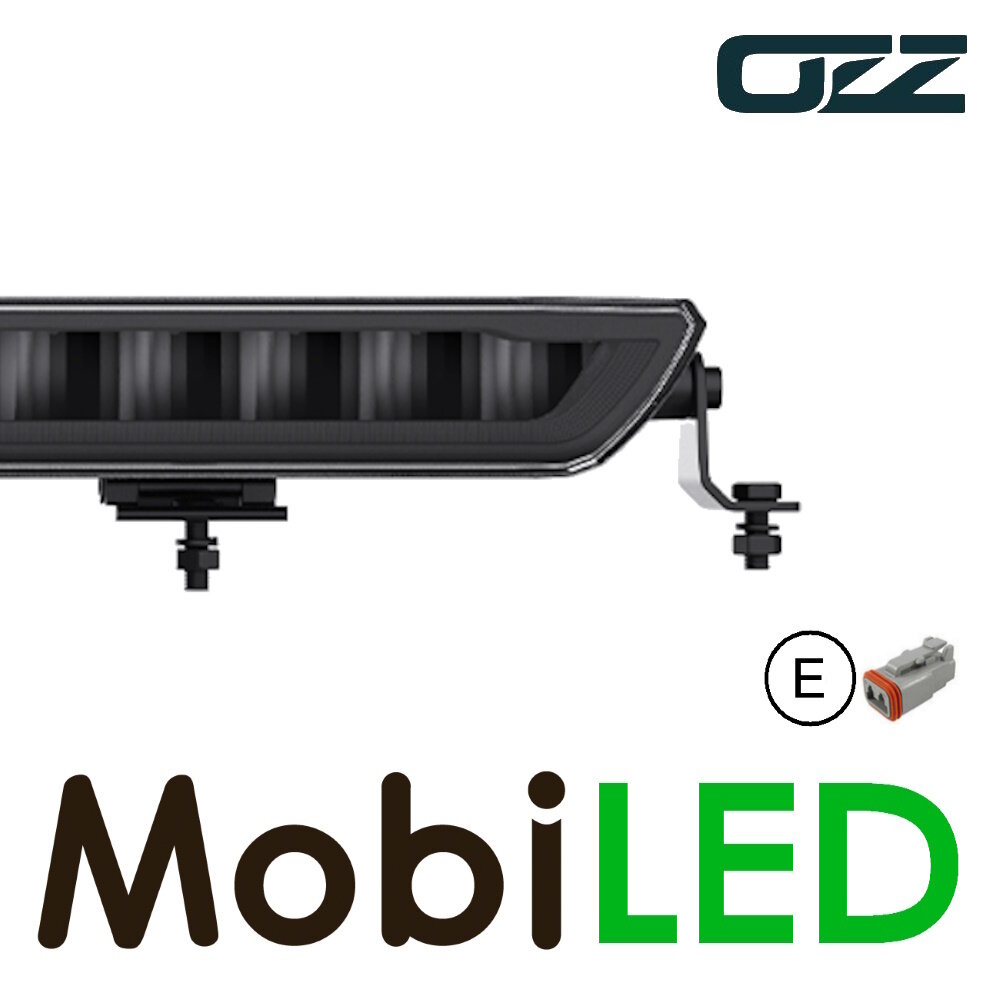

- Mounting type
- Bottom / side mounting
- Connection
- DT connector 4-pin
- Cable Length (cm)
- 270
- Operating temperature
- -40°C - +60°C
- IP rating
- IP68 & IP69K
- Certification
- ECE R10,R112, R7, ref 50
- Packed per
- 1
- Manufacturer article number
- 7333213101886 / 88205
