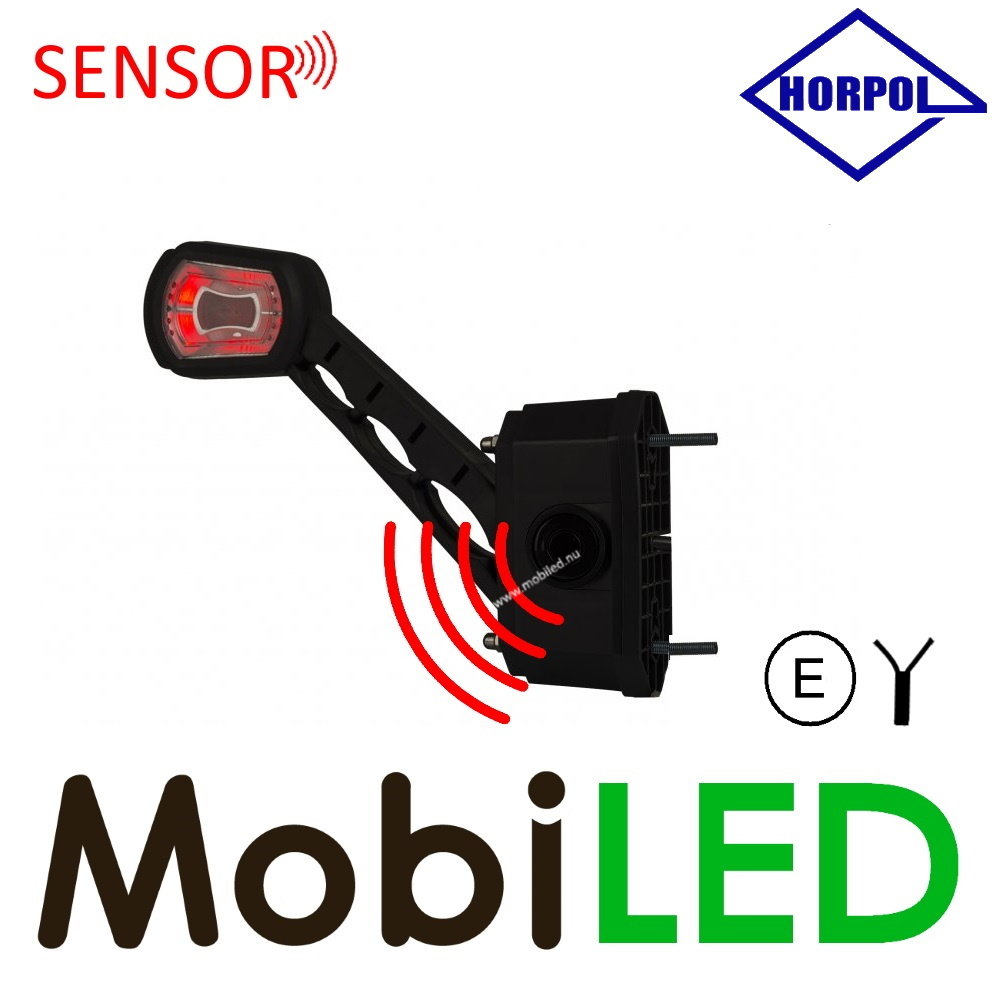

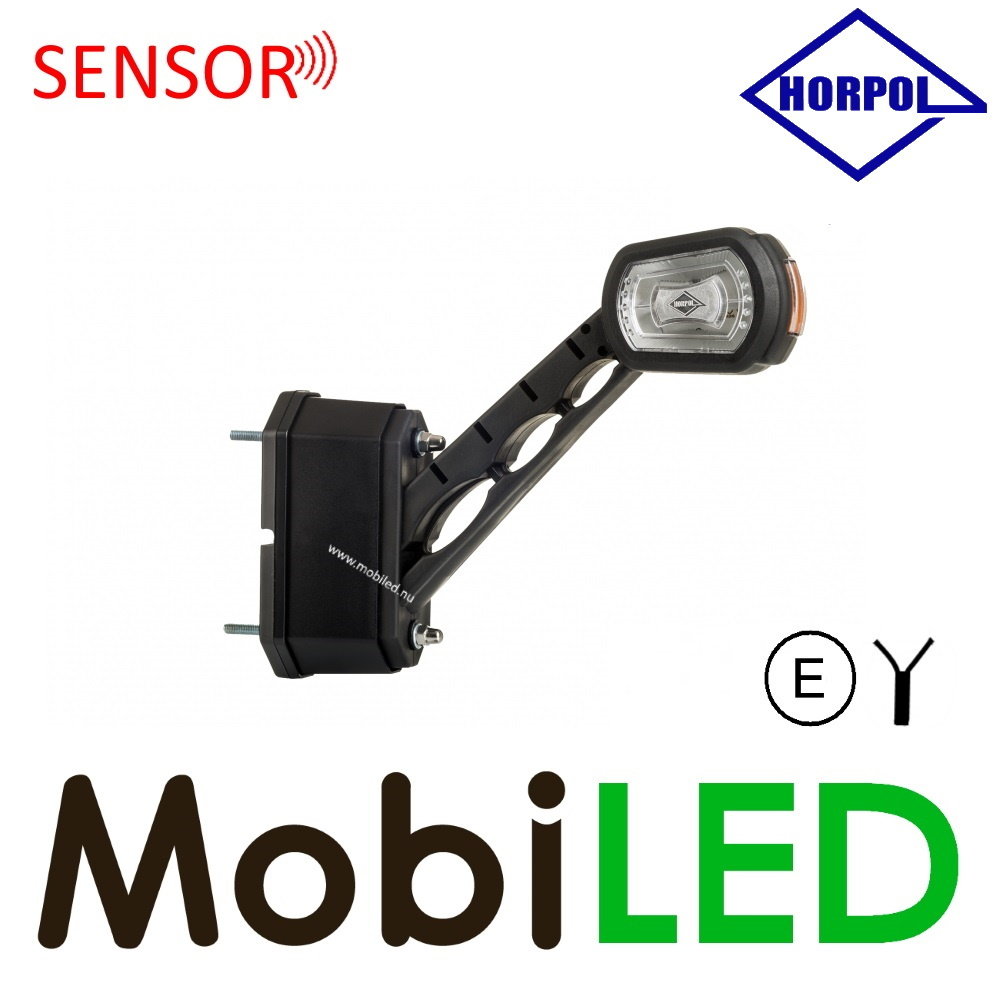

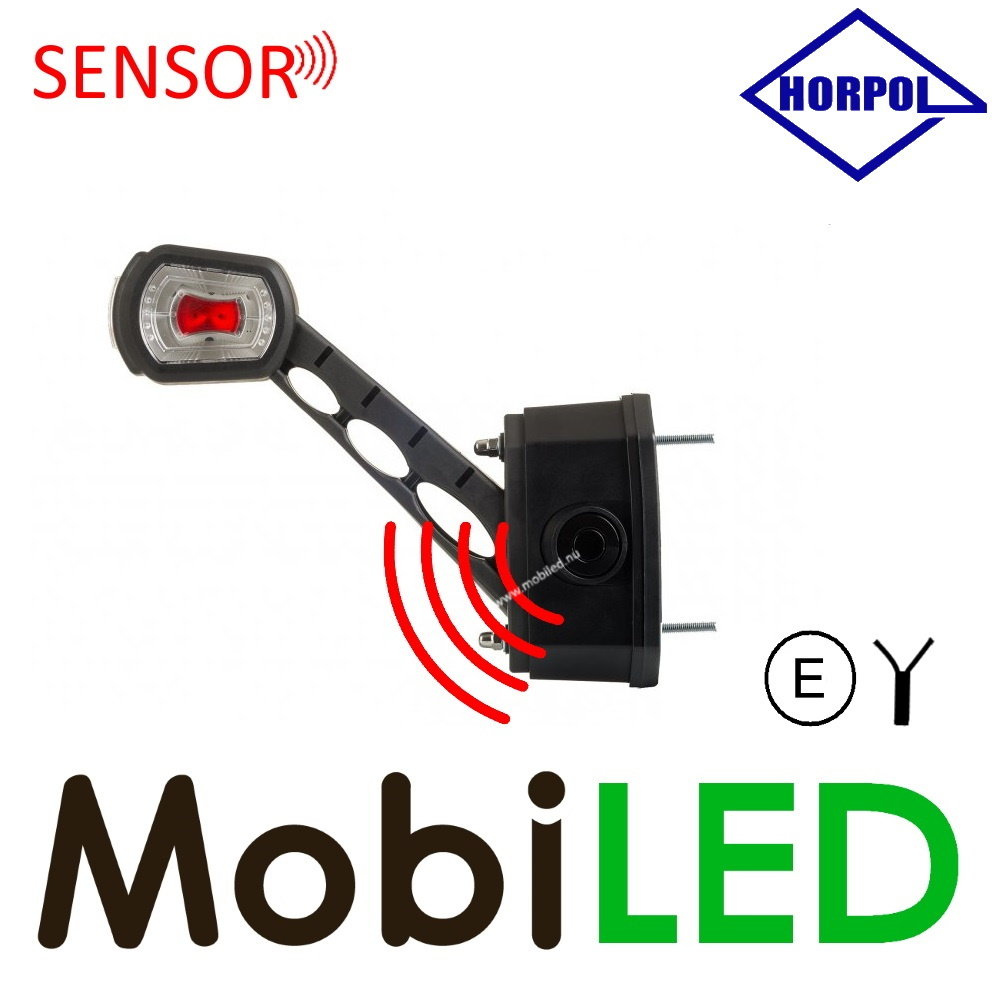

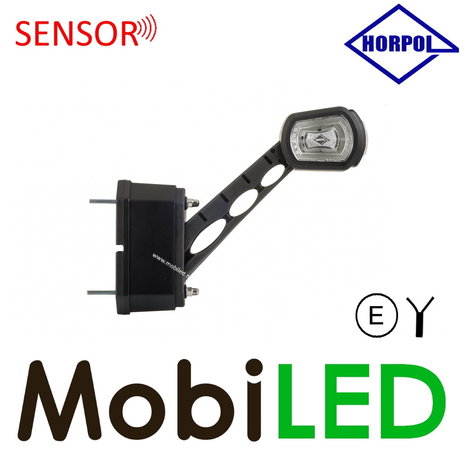

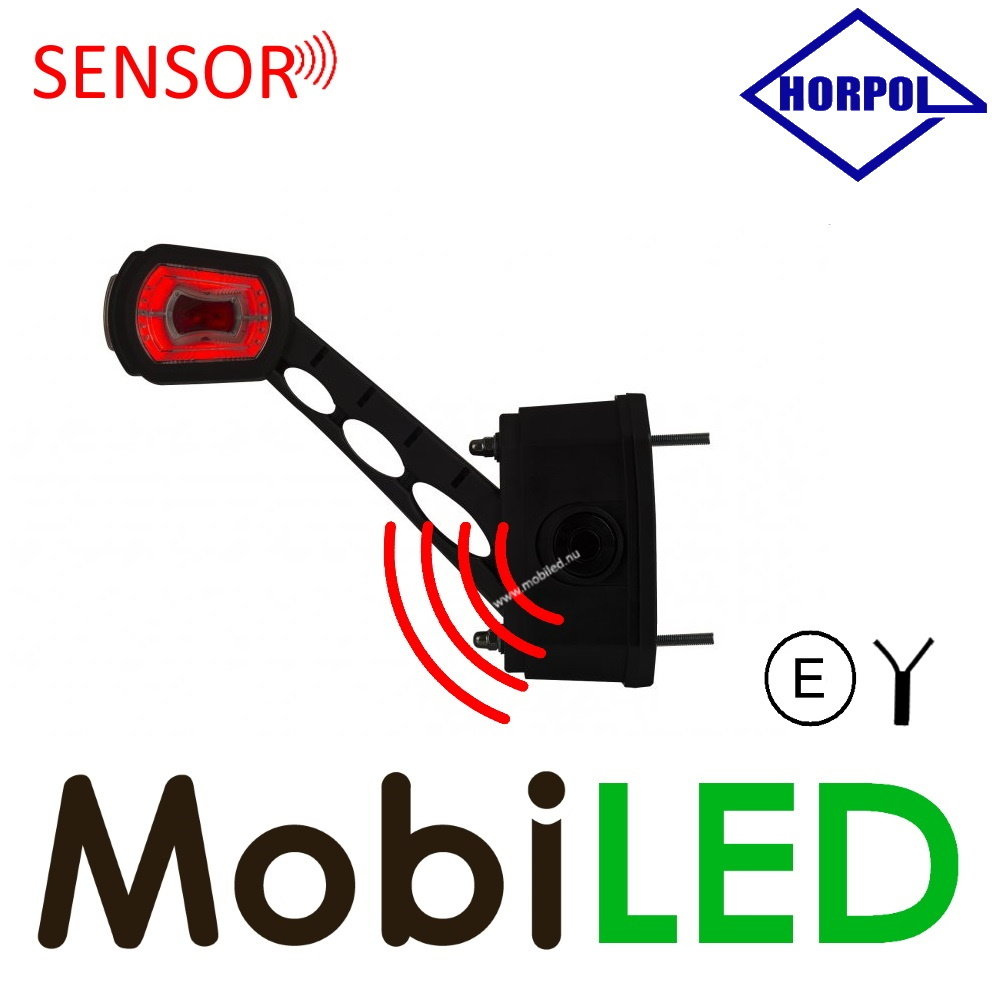

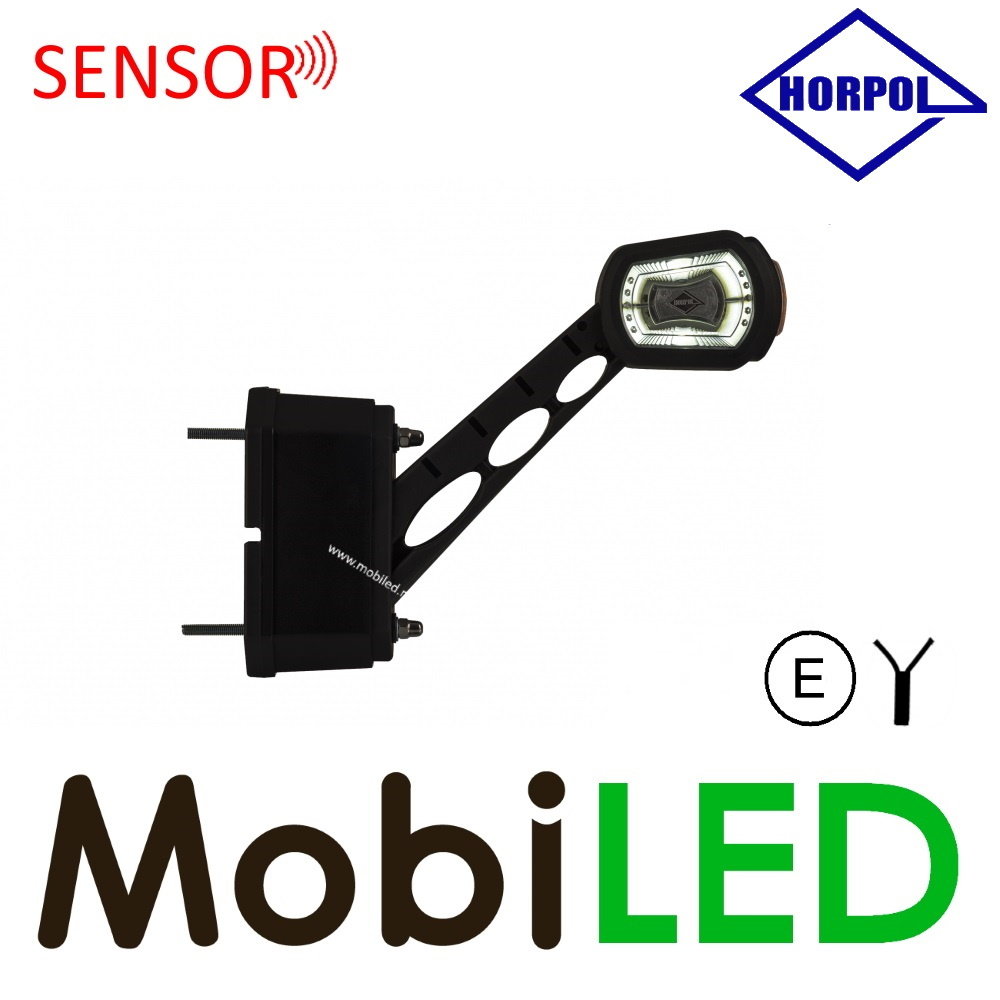

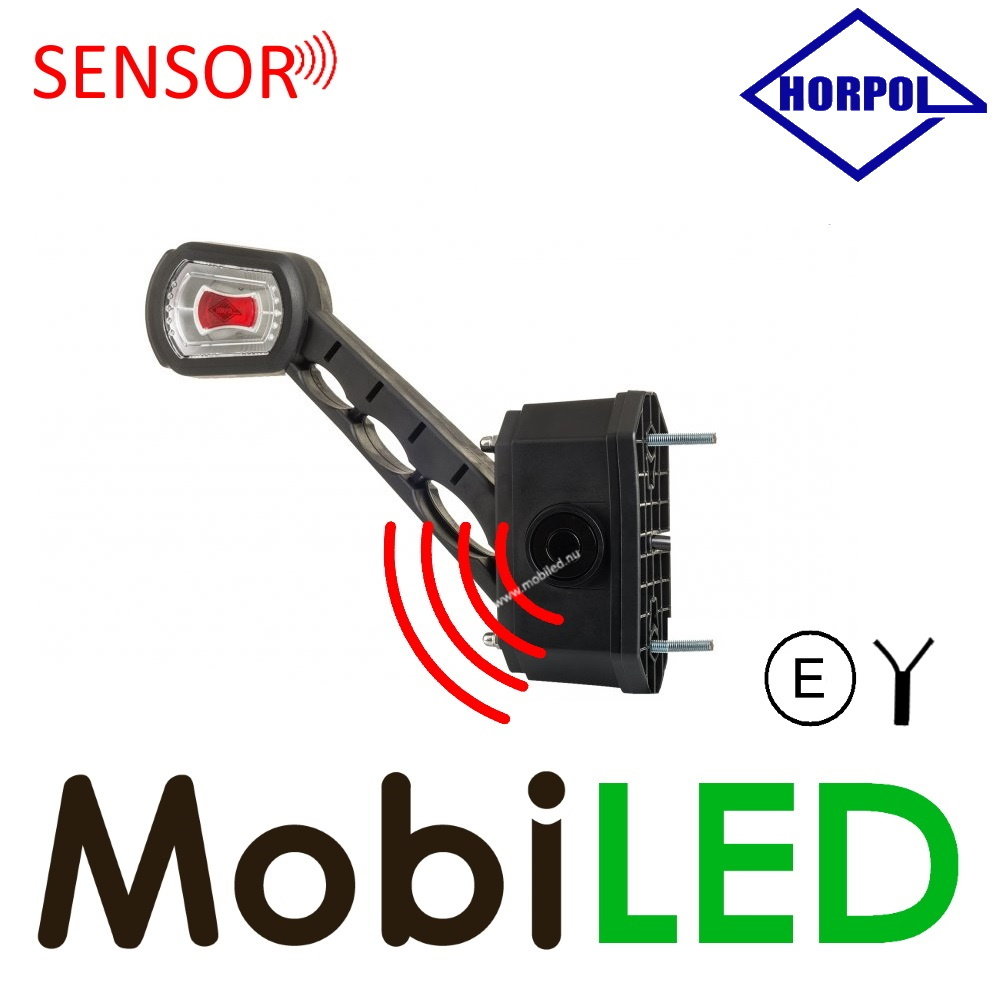

Pendant lamp oblique model Left red /amber /white with sensor 12/24 volts E-mark
This pendant lamp with reversing sensor is multi-voltage (12-24 volts) and can therefore be widely used on any trailer, trailer truck or tractor. Installation is just as easy as with normal width lighting. There are three 1.5 m wires on the module: for ground, lighting and reversing lamp.
The sensor pendant lamps have a modern design and appearance. White lighting at the front, red at the back and amber on the side. The colors are stuck in the lamp and cannot be changed. So there is a left or right version, keep that in mind when ordering.
Product specifications
- Article number
- PV060
- Length (cm)
- 21,6
- Height (cm)
- 18,4
- Depth (cm)
- 3,7
- Shape
- Long oblique model
- Housing colour
- Black
- Light colour
- Red / Amber/ White
- Lens colour
- Transparant
- Tension
- 12-24V
- Power
- 1,0/2,4W
- Bolt spacing / bolt size (cm)
- 7,8
- Connection
- Cable
- Number of wire cores
- 3
- Cable Length (cm)
- 150
- Wire diameter (mm²)
- 0,5
- Certification
- ECE
- IP rating
- IP68
- Vehicle side
- Left
- Operating temperature
- -30°C - +50°C
- Packed per
- 1
- Manufacturer article number
- LDCC2713
