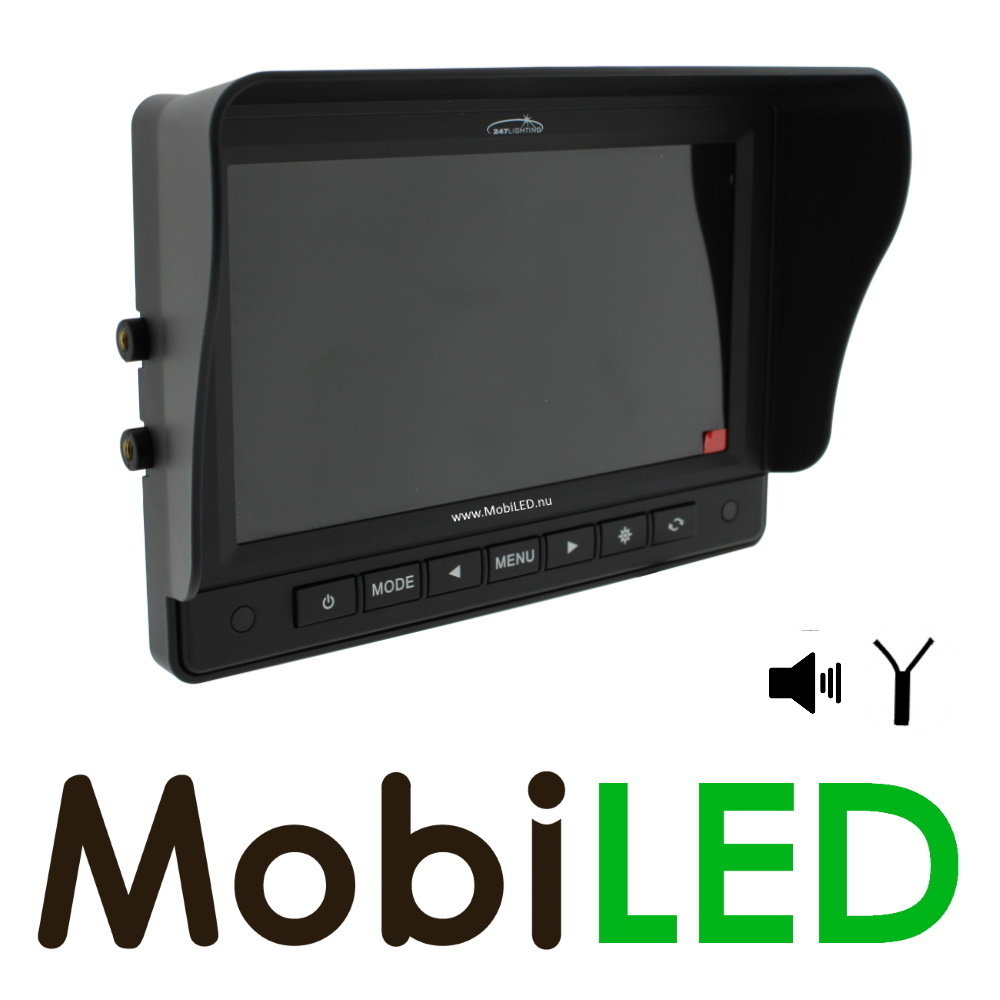

Quad monitor 10" for wired camera's

This monitor is used in combination with a maximum of 4 cameras and has several options to show multiple camera's in split screen mode. You can use this monitor as a replacement for any wired monitor in our range or new in combination with all wired cameras in our range. This monitor is equipped with an audio function, if you want to use this you must use at least 1 camera with audio transmission.

Monitor Specifications:

• Screen: 10.1” (236mm) Quad Split Digital HD Monitor
• Display Resolution: 1024 RGB (H) x 800 (V) Dot
• TV Colour System: NTSC/PAL
• OSD Menu: Brightness; Contrast; Colour; Mode; Language;Mirror; Back Delay; Guideline; Reset
• U Bracket Mount
• Video Input: 4 Way
• Brightness: 450cd/m2 / Contrast: 500:1
• 14 Pin Cable Connection / 1500mm Cable Length
• Audio: Yes / Input: 1 Channel Audio
• Dimensions: 252mm*166mm*32mm
• ECE REG 10 Approved
• IP Rated: IP54
• Operating Temperature: -20°C - +70°C
