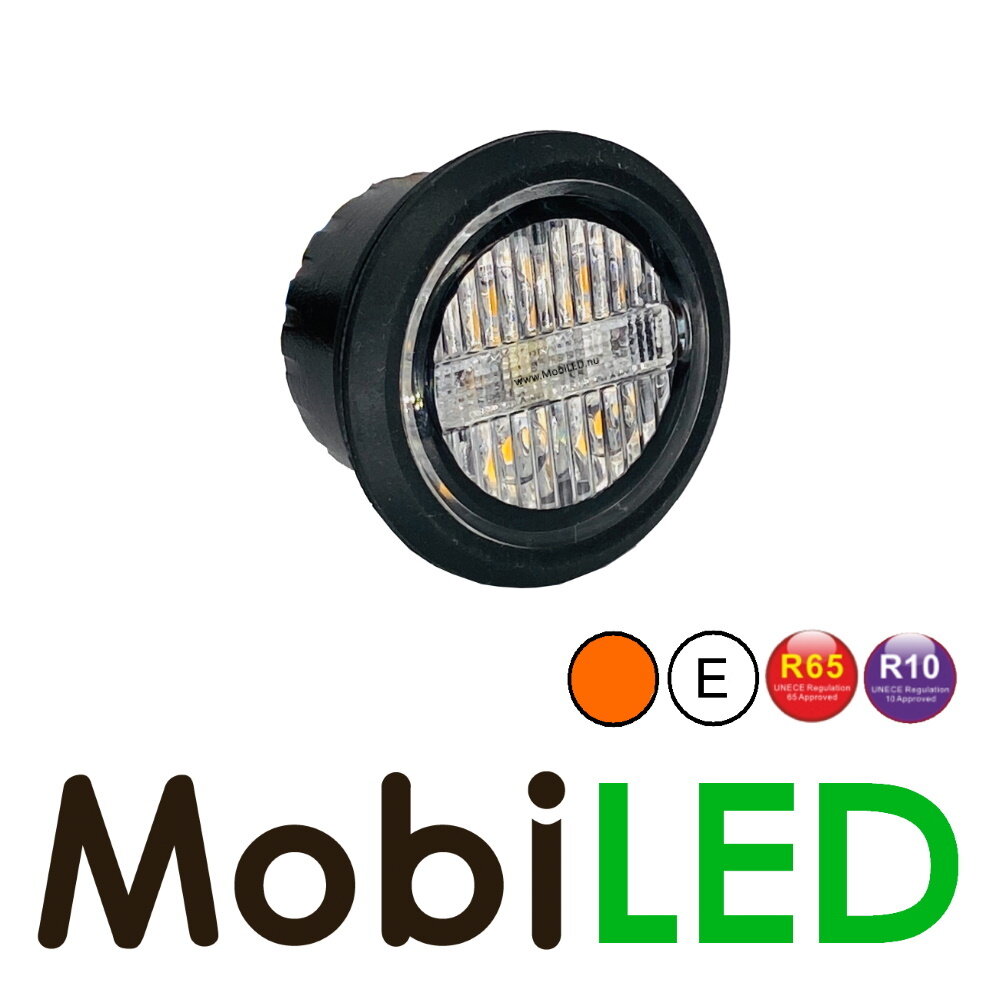

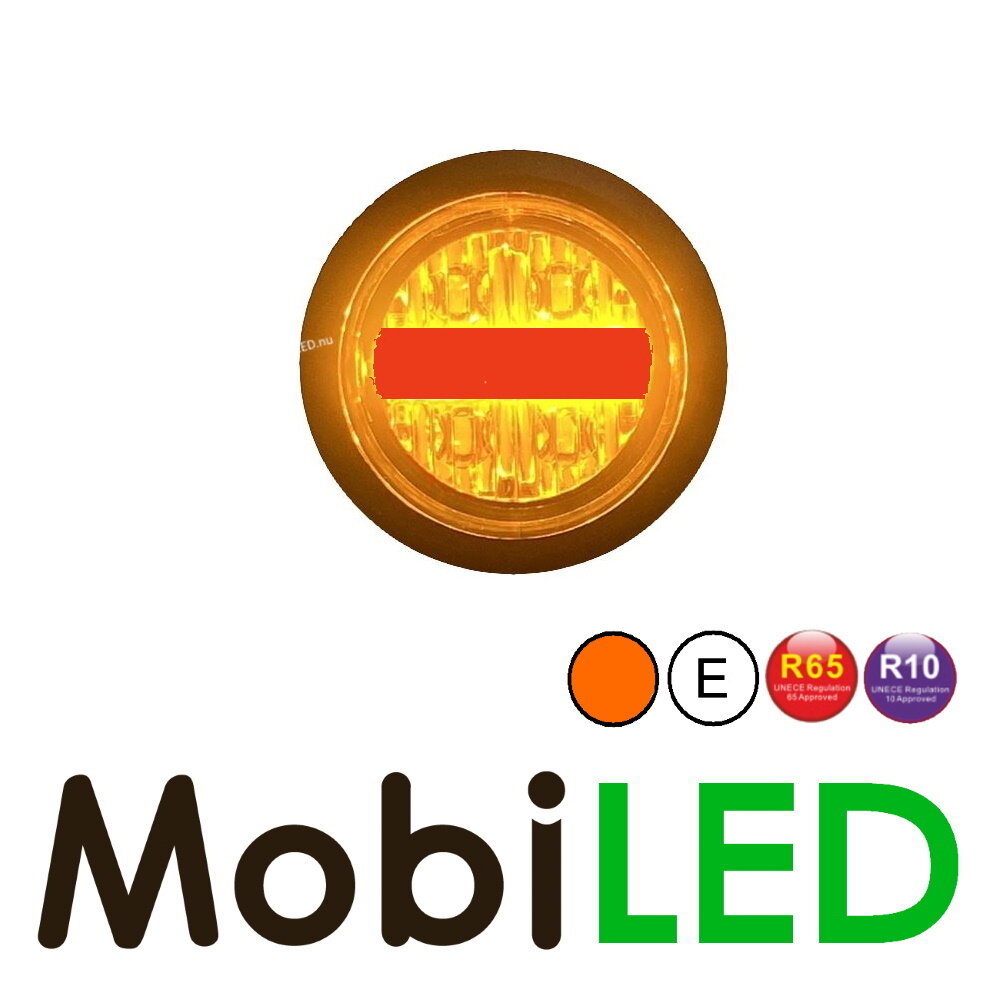

Recessed mount flasher with position light amber/red

This compact flasher is suitable for recessed mount, the round flasher can be mounted inconspicuously in your vehicle. The LEDs in this flasher give a striking amber light image. The position light is red colored. Control of the flasher is incorporated in the cable. There is a choice of 20 flash patterns.

Flash patterns:

1. Single flash R65
2. Double flash R65
3. Single flash SAE
4. Double flash SAE
5. Triple flash SAE
6. Quadruple flash SAE
7. Octuple flash SAE
8. Mega flash SAE
9. Single flash (combo)
10. Double flash (combo)
11. Single - double flash (fast)
12. Single - double flash (slow)
13. Single - octuple flash
14. Single - mega flash
15. Double - triple flash
16. Single - triple - octuple flash
17. Bend flash
18. Random flash
19. Constantly on
20. Mega - constantly on

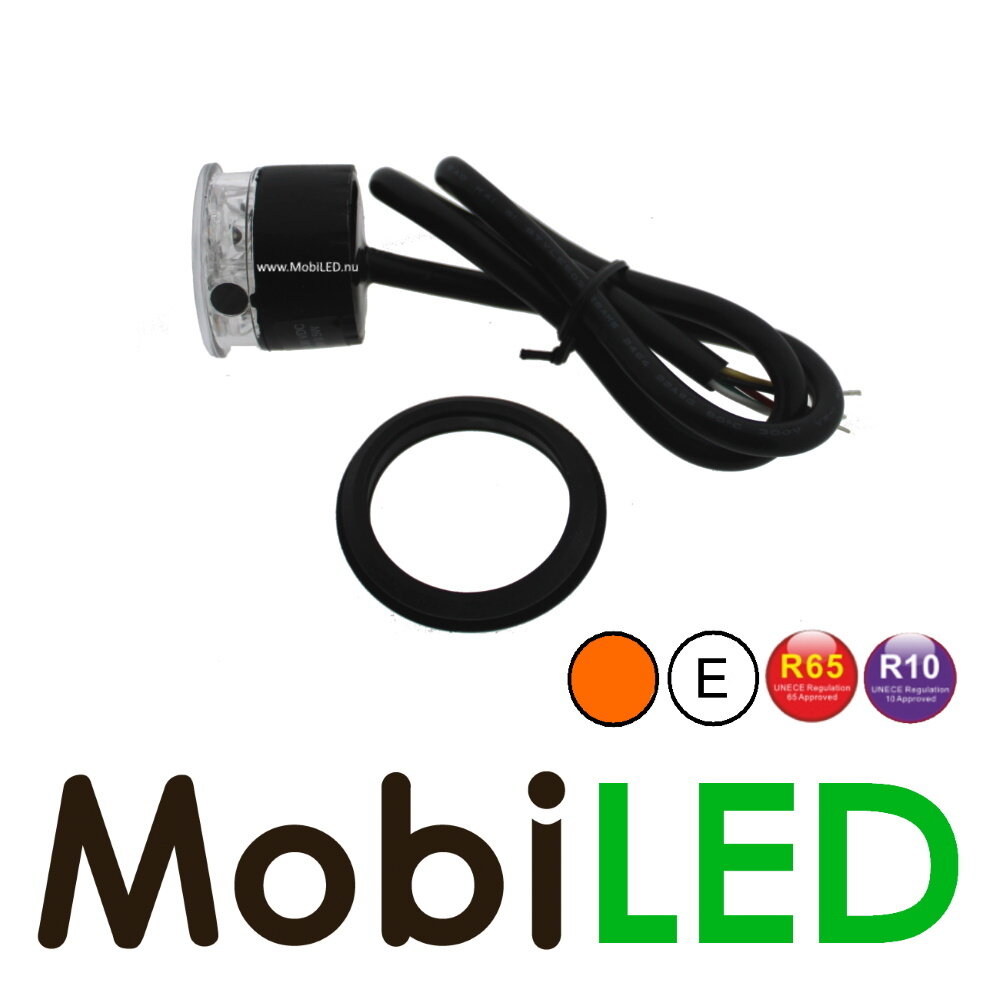

Connect as follows:

• Red: plus
• Black: minus / mass
• Yellow: sync flash patterns
• White: swap flash patterns
• Green: position light
