Recessed mount flasher with position light amber/white

Recessed mount flasher with position light amber/white

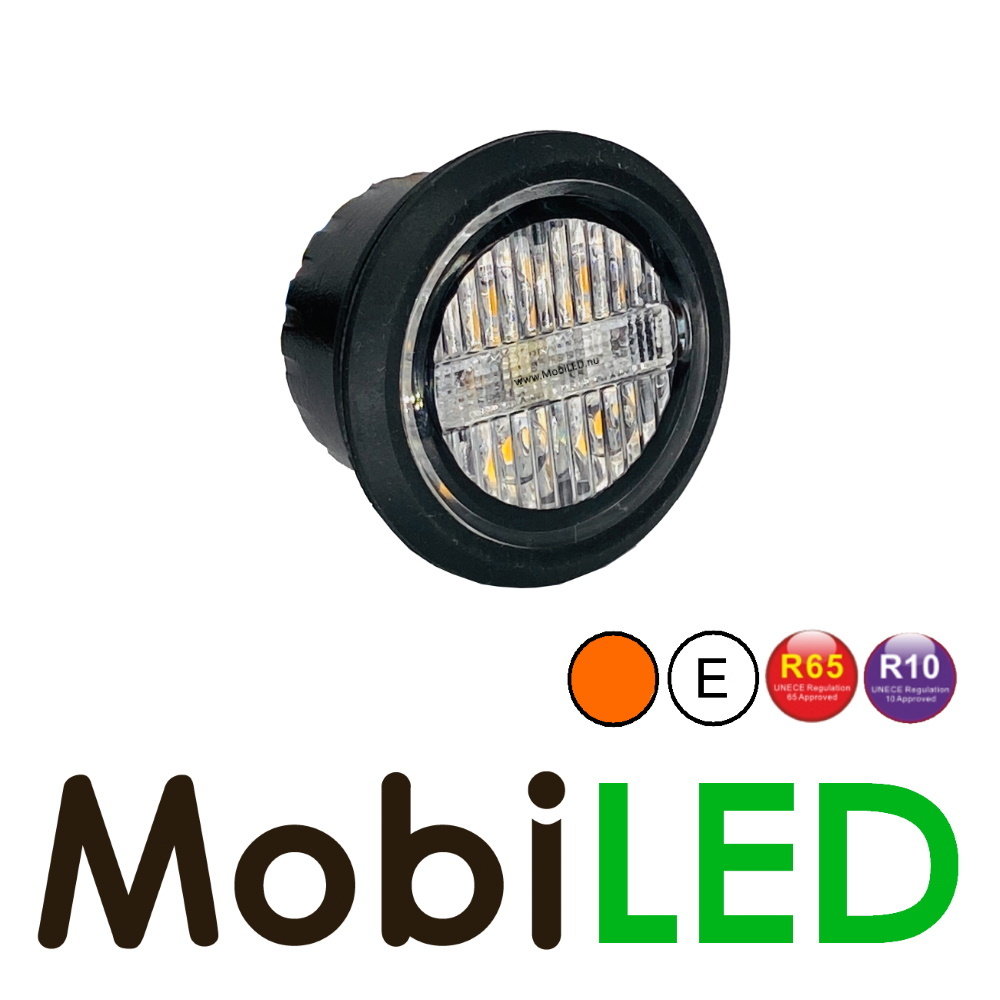

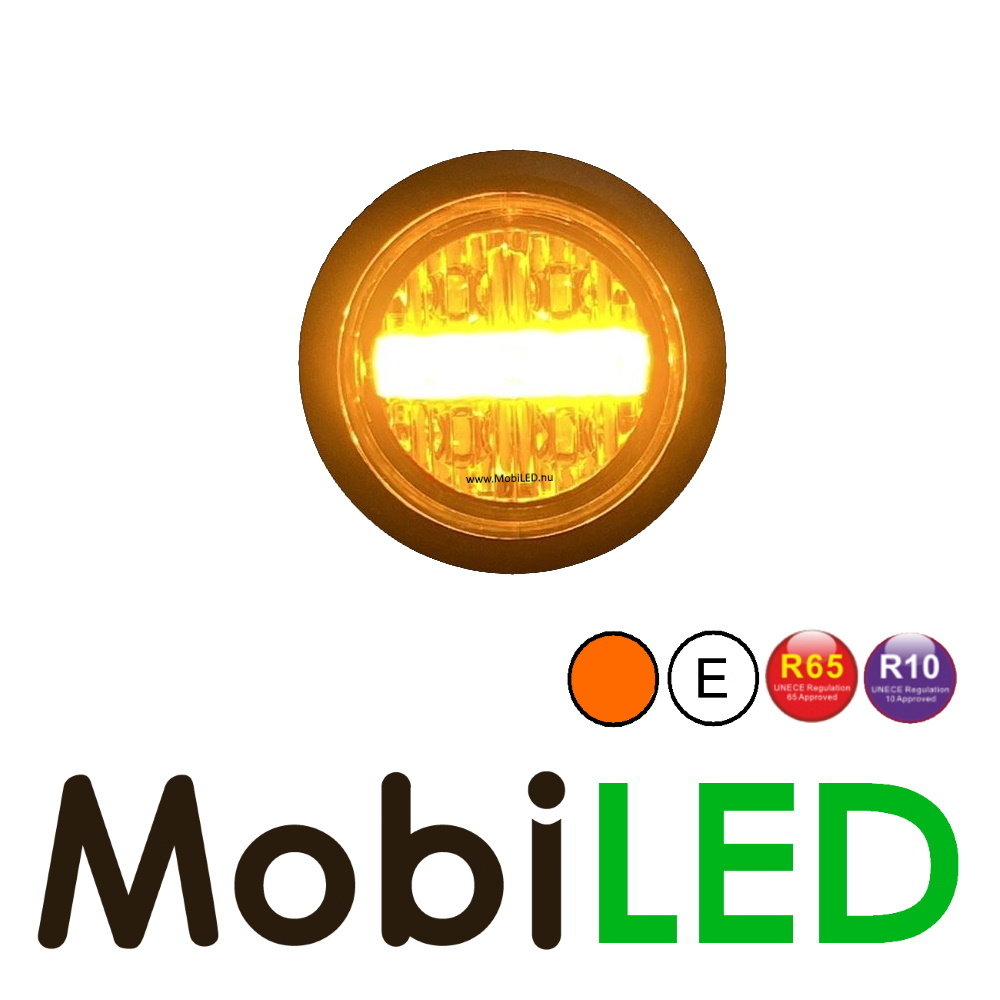

This compact flasher is suitable for recessed mount, the round flasher can be mounted inconspicuously in your vehicle. The LEDs in this flasher give a striking amber light image. The position light is white colored. Control of the flasher is incorporated in the cable. There is a choice of 20 flash patterns.

Specifications:

• Voltage: 12-24 V
• Power: 6 W
• Light color: amber

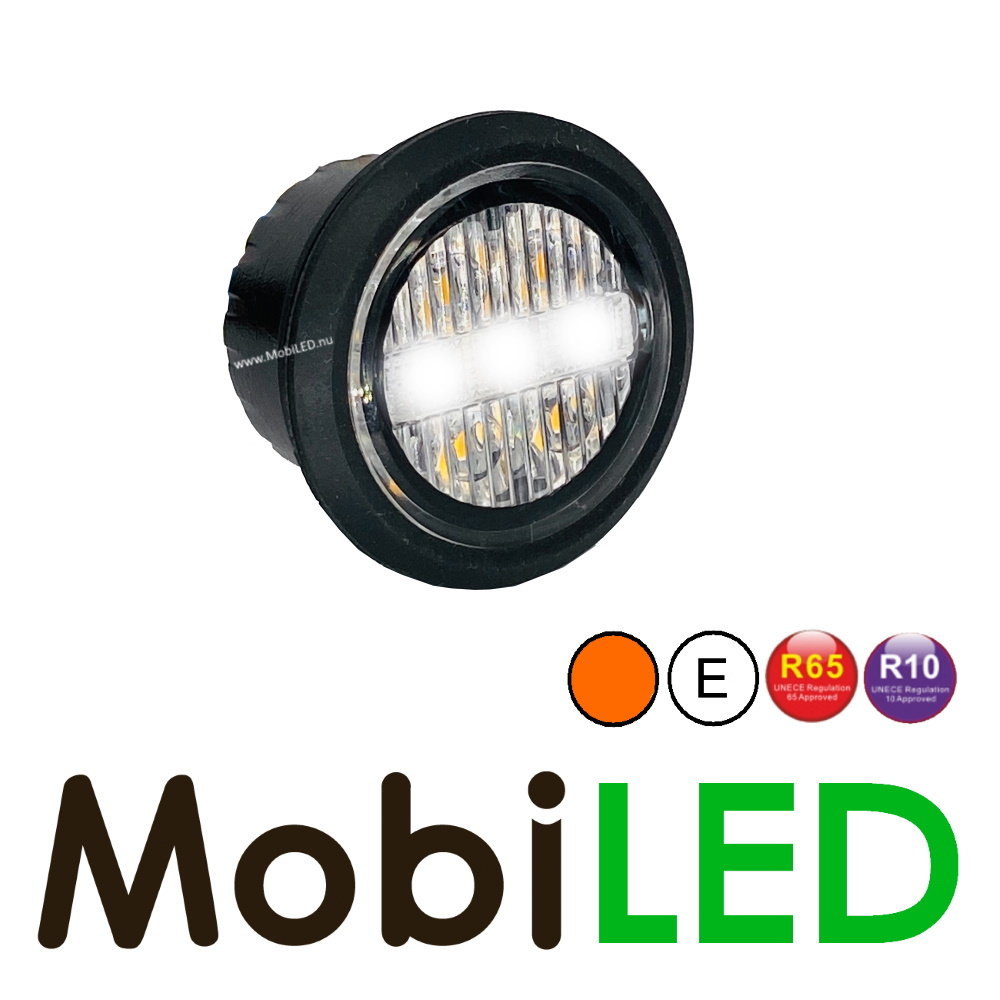

• Position light: white
• Number of flash patterns: 20
• Dimensions: 34 x 25 mm

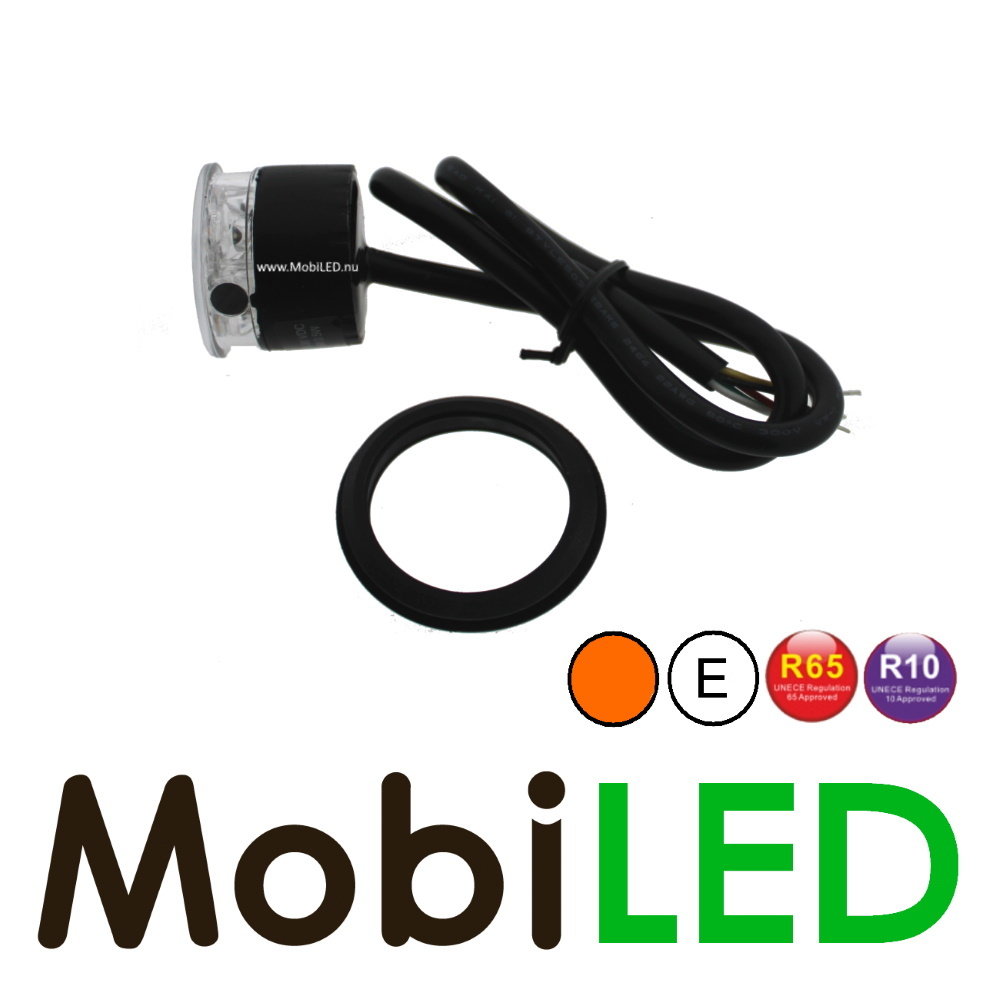

• Cable length: 0.5 m
• Water resistance: IP69
• Certification: ECE R65 Class 1 Amber, R148, R10

Flash patterns:

1. Single R65
2. Double R65
3. Single SAE
4. Double SAE
5. Triple SAE
6. Quadruple SAE
7. Quintuple SAE
8. Mega SAE
9. Single (combo)
10. Double (combo)
11. Single - double (fast)
12. Single - double (slow)
13. Single - quadruple
14. Single - mega
15. Double - triple
16. Single - Triple - Quintuple
17. Warp
18. Random
19. Steady
20. Mega - steady

Connect as follows:

• Red: plus
• Black: minus / mass
• Yellow: sync flash patterns
• White: swap flash patterns
• Green: position light
