Reversing camera kit, monitor and camera wireless

With this kit you can always reverse safely. The camera provides a good view of what is behind your vehicle. The monitor is the ideal tool to reverse safely and neatly without hitting obstacles or endangering people.

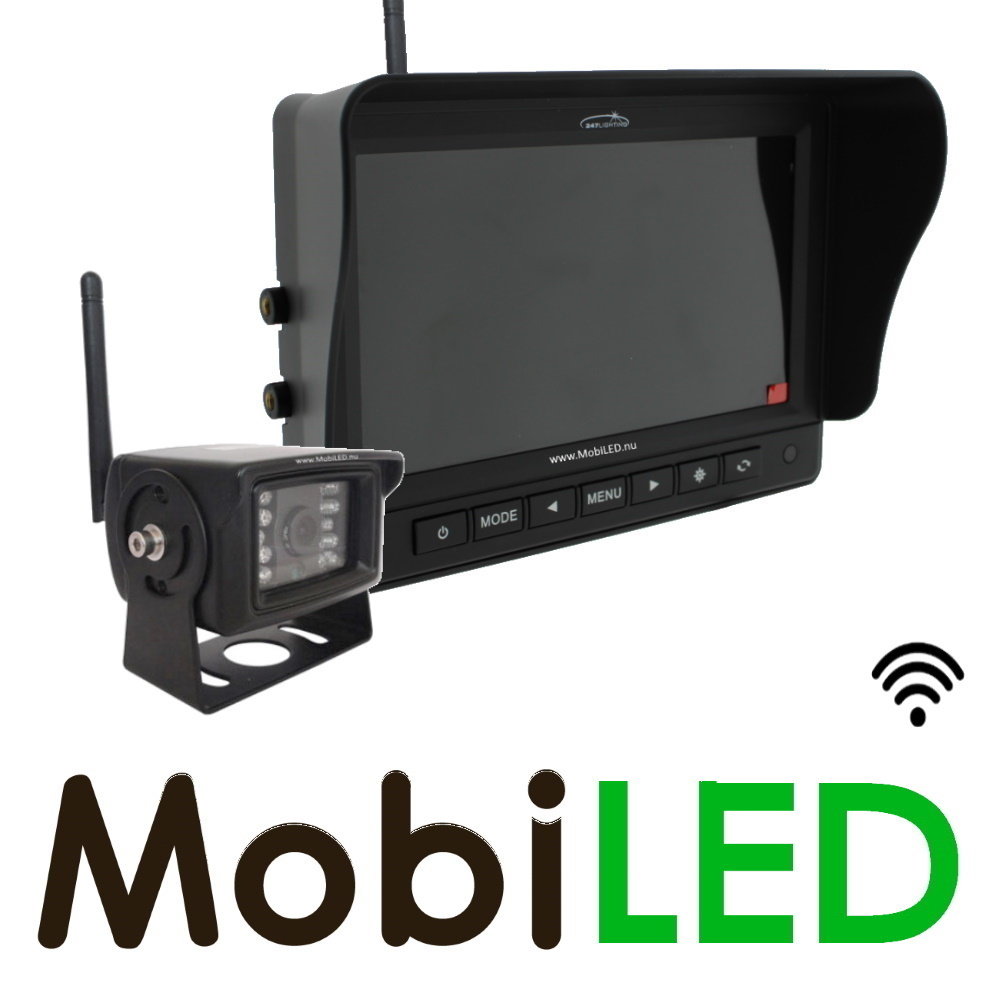

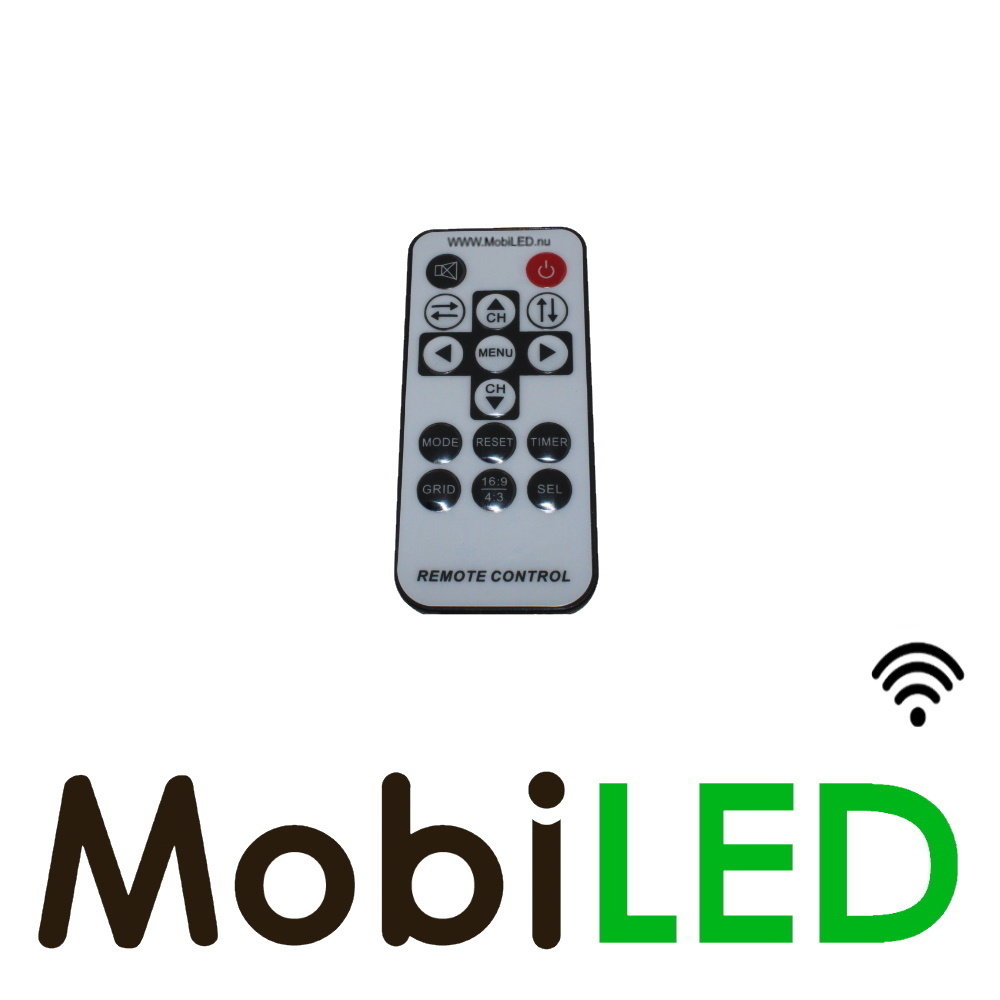

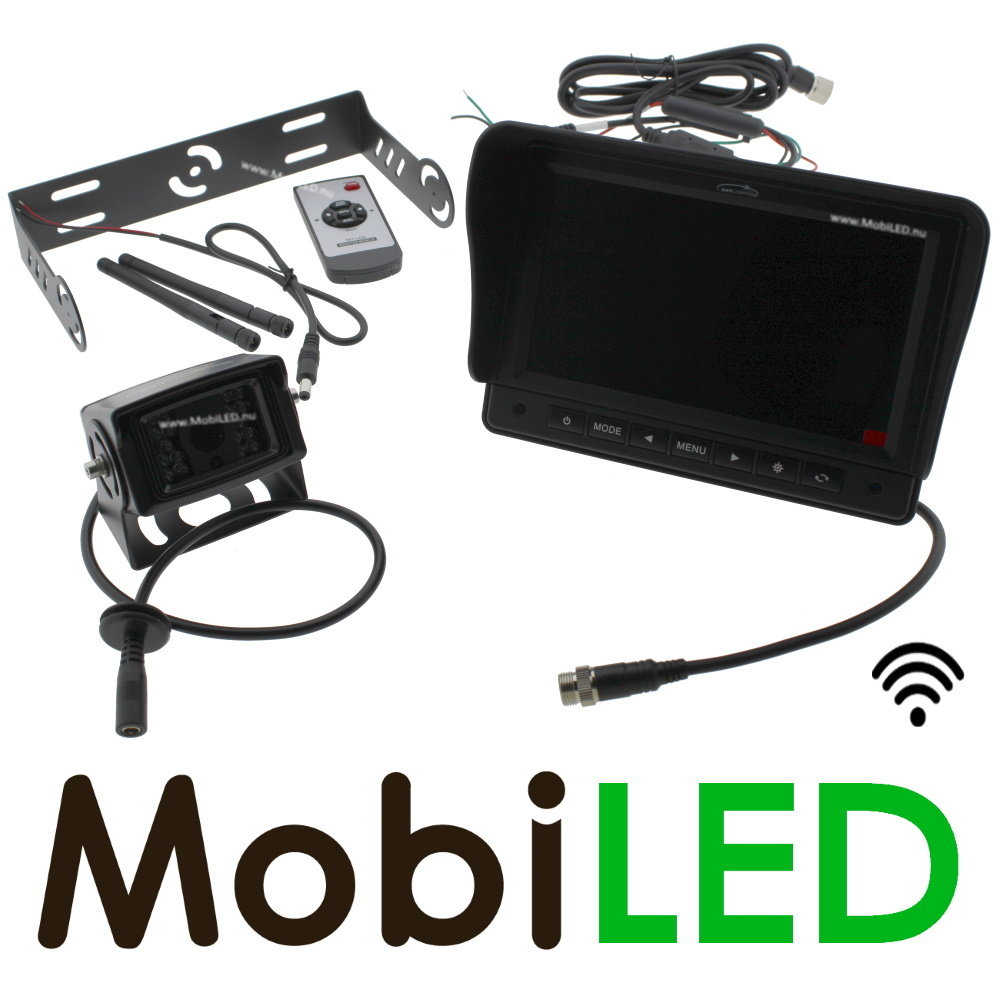

The set consists of a camera, monitor, remote control and necessary connection materials. The whole is multi-voltage and equipped with sound. This set can be expanded even further with an extra wired camera of your choice and extension cable.

The additional camera only works wired. If you do not want that, we recommend CA011, which can be connected to additional wireless cameras.

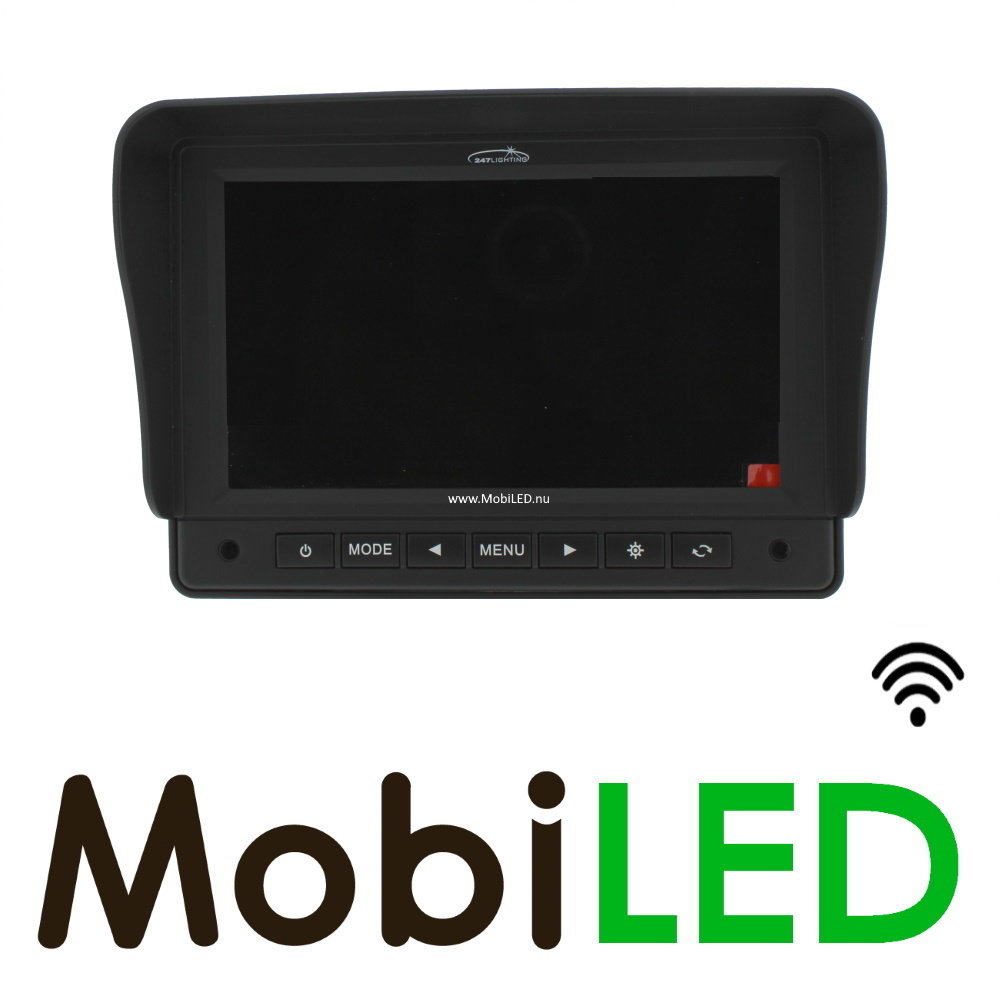

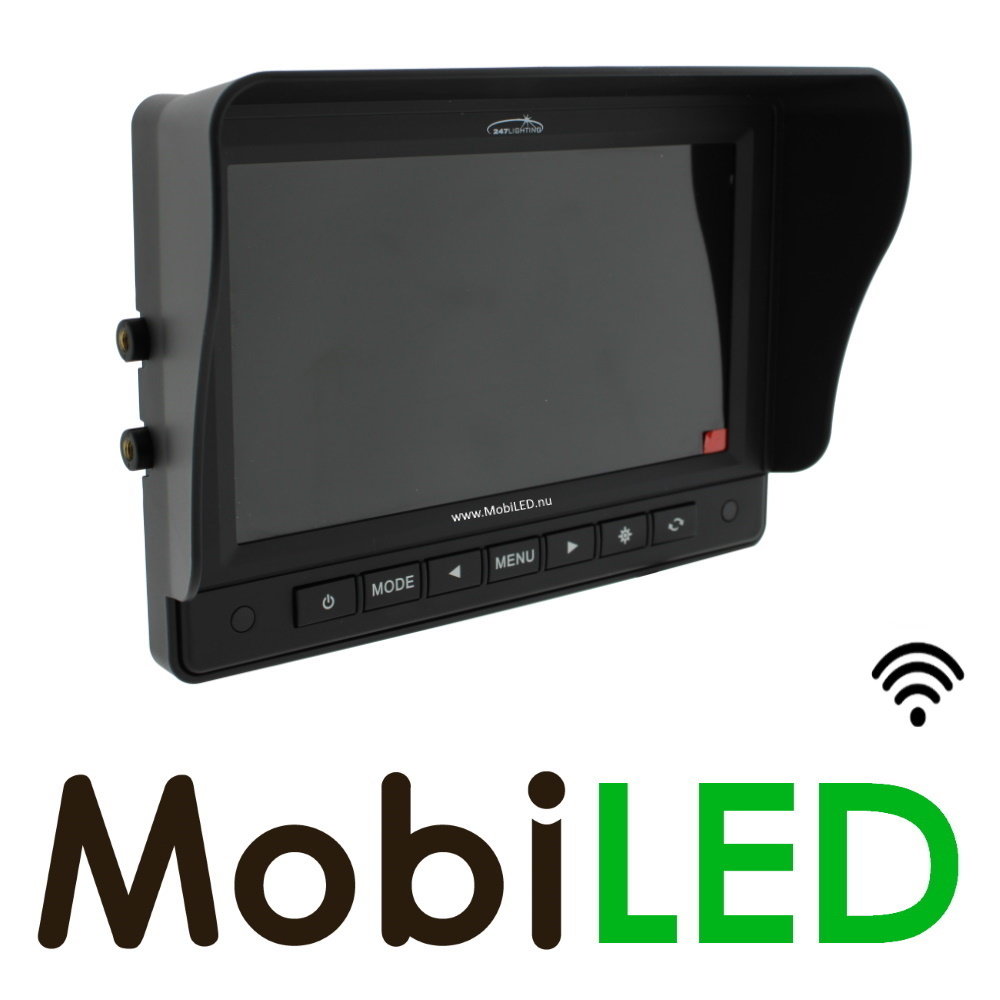

Monitor specifications:

• Screen size: 7 ”(178mm) digital TFT panel monitor
• Screen resolution: 800RGB (H) x 480 (V) DOT
• Video mode: NTSC / PAL (auto switch)
• OSD menu: brightness; Contrast; Color; Mode; Language setting; Mirror; Directive; Reset
• Video: brightness: 300cd / m2 / contrast: 400: 1
• Cable connection: 4-pin connection for additional camera
• Cable length: 1.8 m
• Signal: unobstructed up to 100 m
• Bracket Mount: U
• Voltage: 9-32 volts
• Dimensions: 204 x 141 x 78 mm
• Certification: ECE approved Reg 10 / CE approved

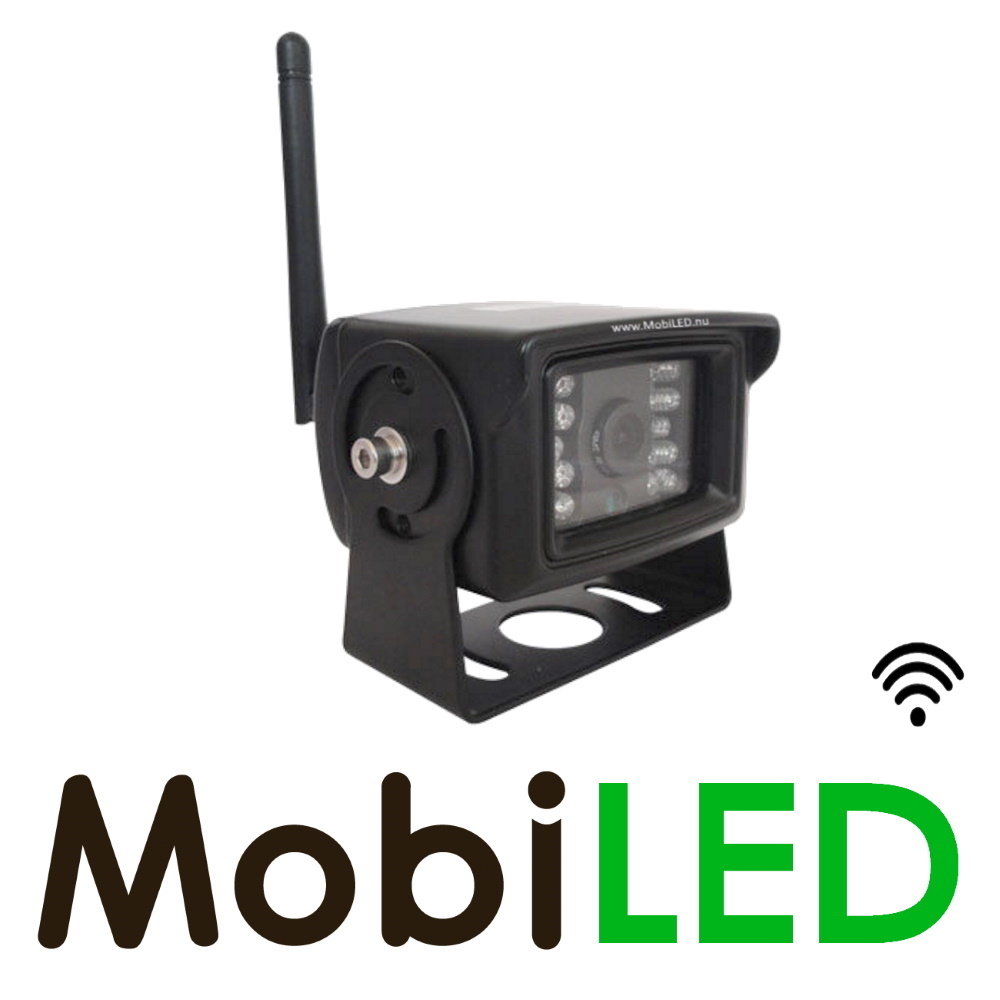

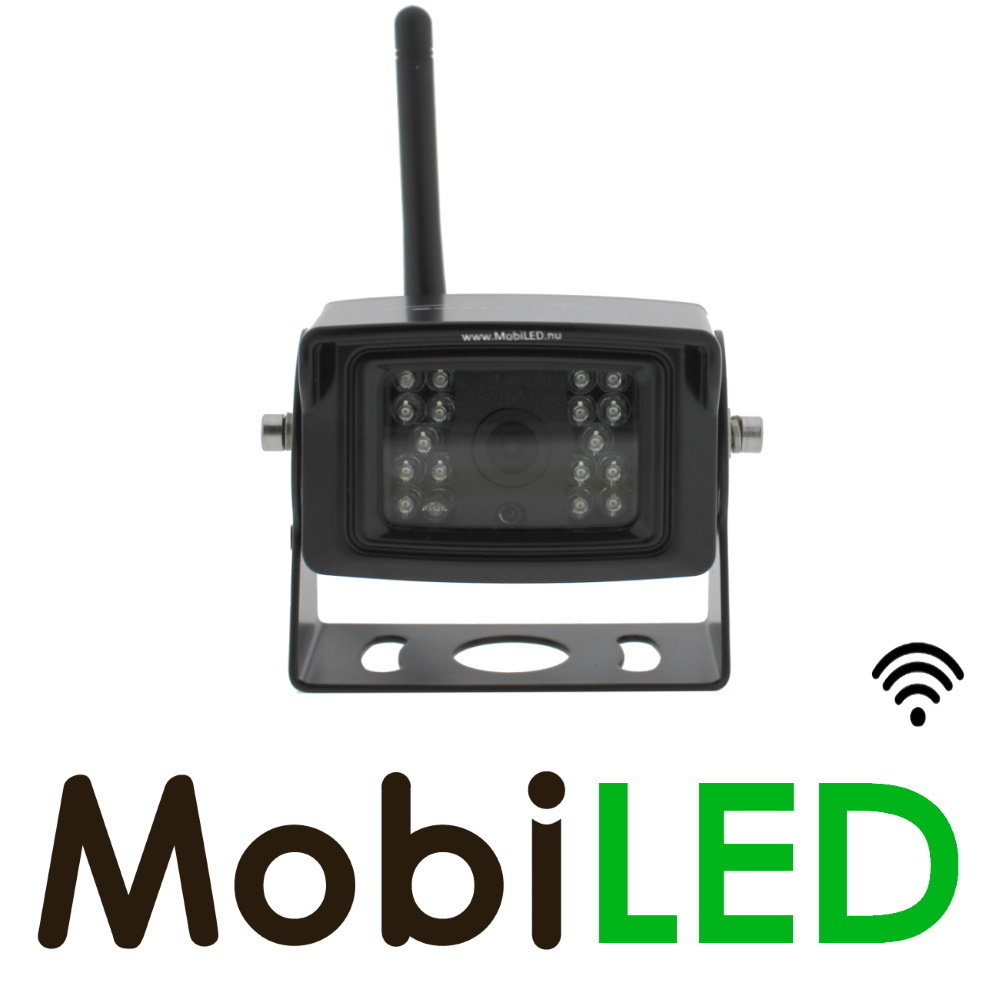

Camera specifications:

• Operating System: CMOS 1099
• Voltage: 9-32 volts
• NTSC: 960 * 576, PAL: 960 * 576
• Horizontal resolution (TV lines): 600TVL
• Audio function: no
• Built-in lens: 2.8mm
• Infrared LEDs: 18
• Night vision: 10m
• Viewing angle: 120 °
• Video output: 1.0Vpp / 75Ω
• Cable length: 450 mm
• Operating temperature: -20 ° C ~ + 70 ° C
• Dimensions: 95 x 70 x 65 mm
• Water resistance: IP67
• Certification: CE approved
