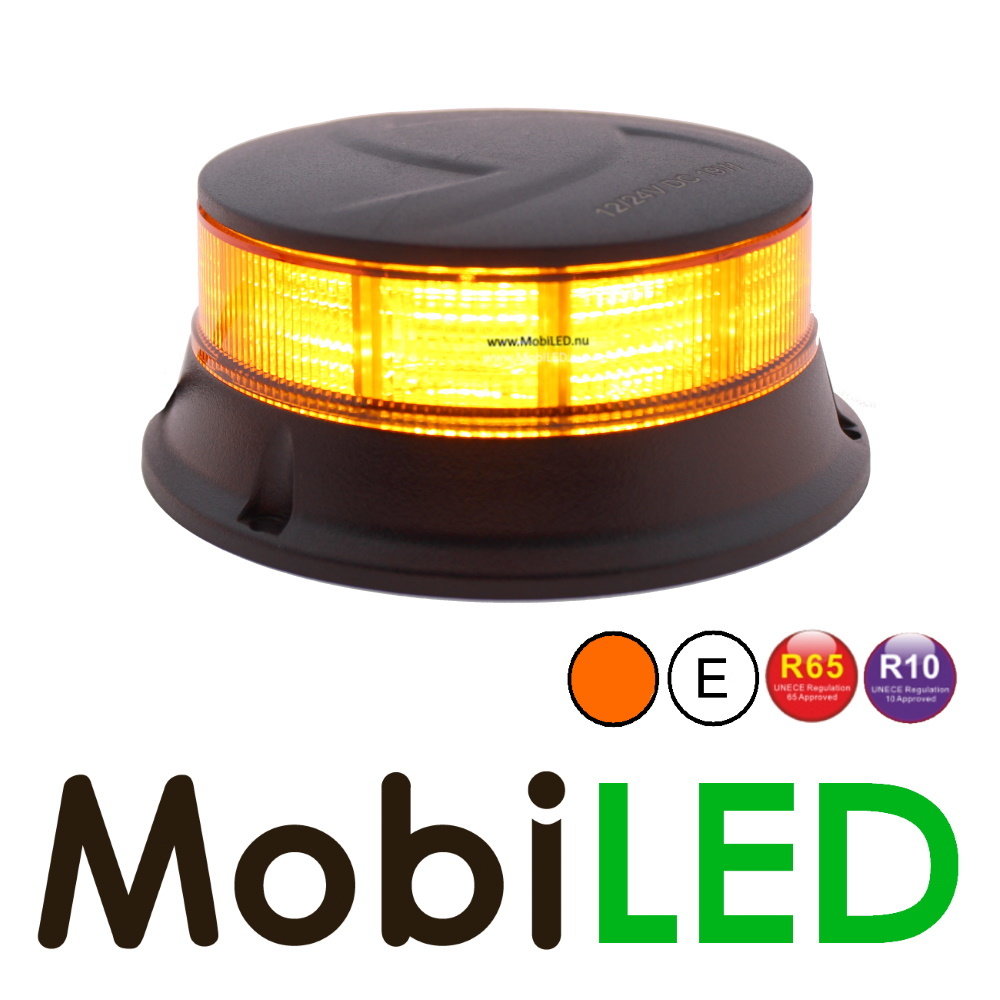

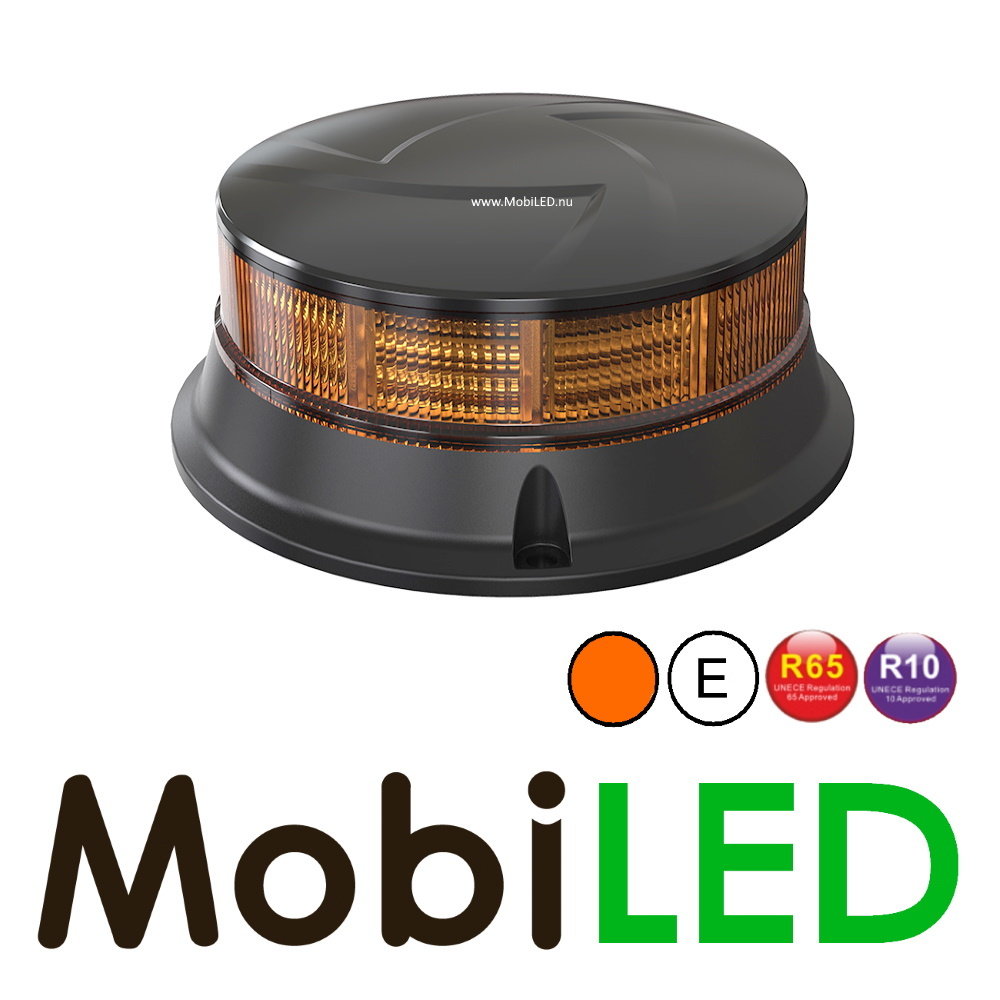

Rotating beacon/flash amber fixed mounting E-mark

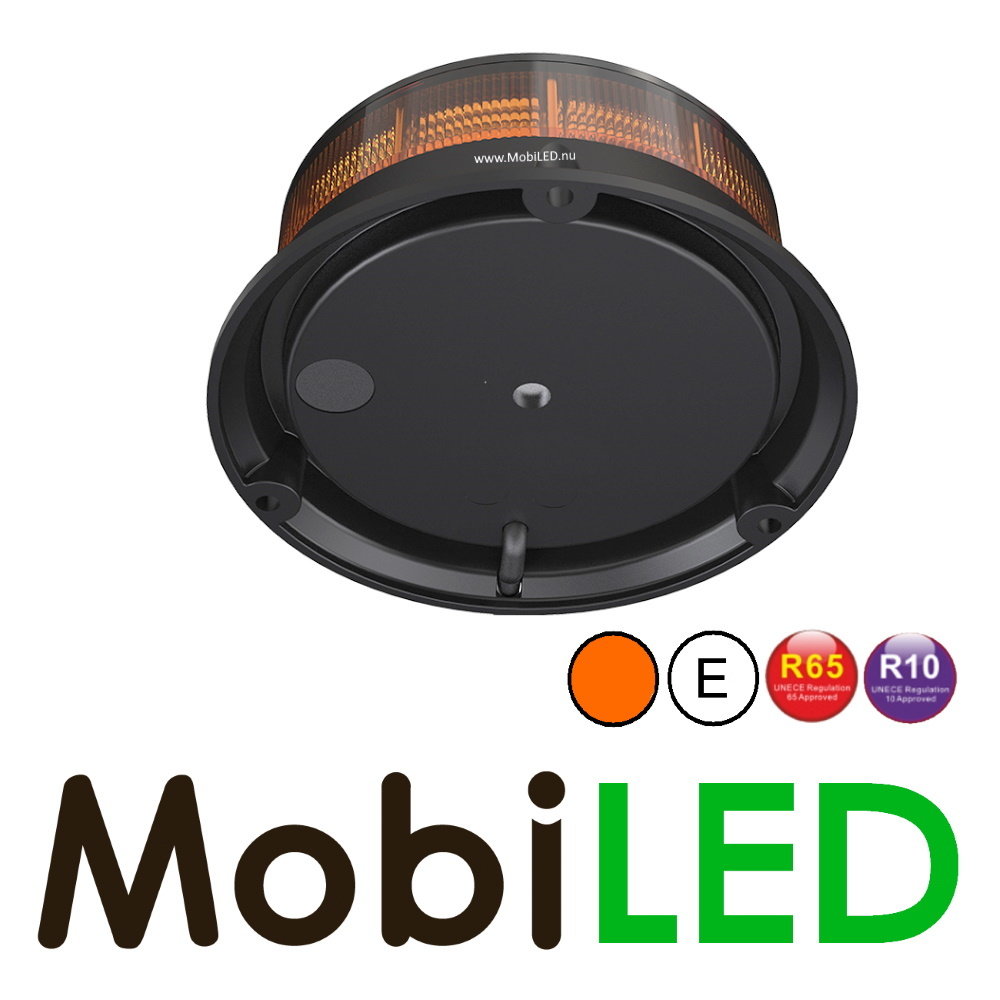

Small compact beacon that can be easily mounted anywhere with 3 screws. The unique LEDs provide a focused signal for superior clarity. The lens provides an excellent horizontal distribution of the light.
The lamp is multi-voltage and equipped with ECE R65 and SAE J845 approval.
The 3 axis and 4 rotation patterns offer numerous flash options. Ideal for everyday use.

Specifications:

• Voltage: 12-24 V
• Color: amber
• Number of LEDs: 30
• Mounting: fixed
• Flash patterns: 7
• Water resistance: IP67
• Certification: SAE, ECE R65, EMC R10

Connection diagram:

• Red: +
• Black: -
• Yellow: connect briefly to the + for pattern change
