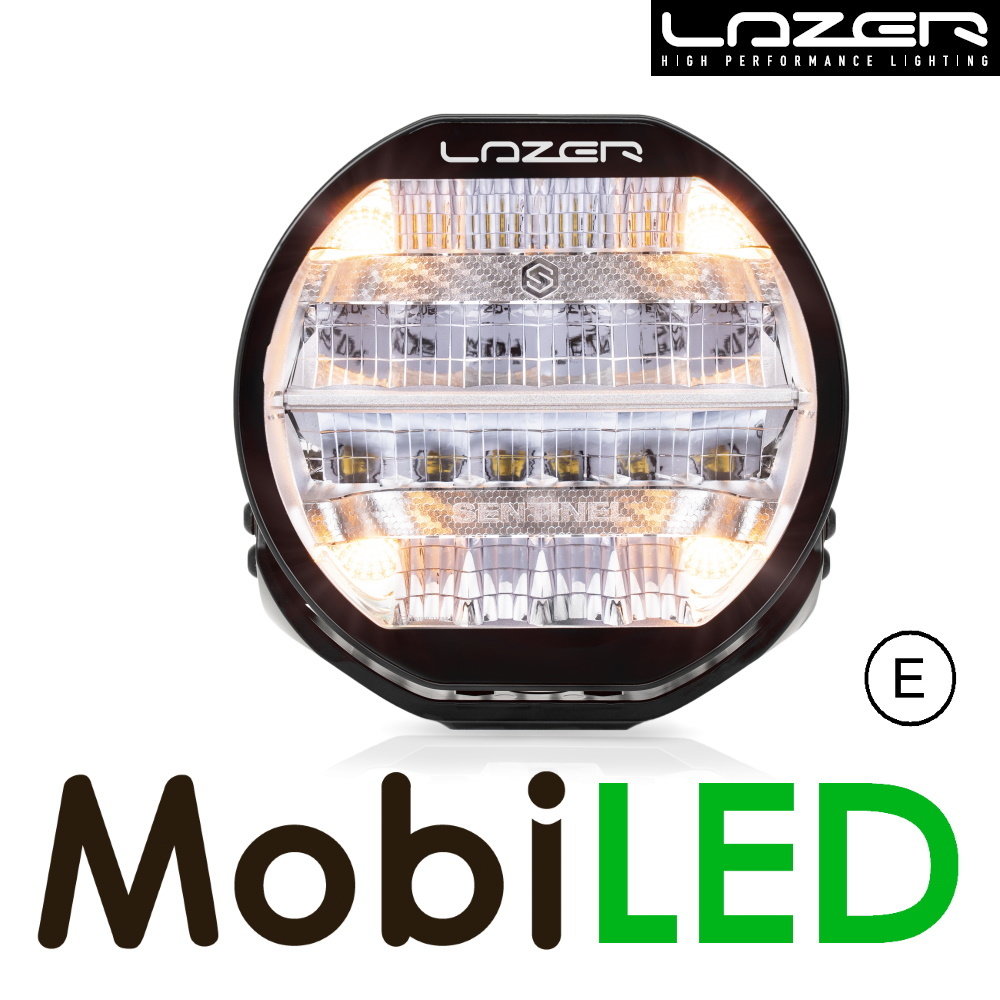

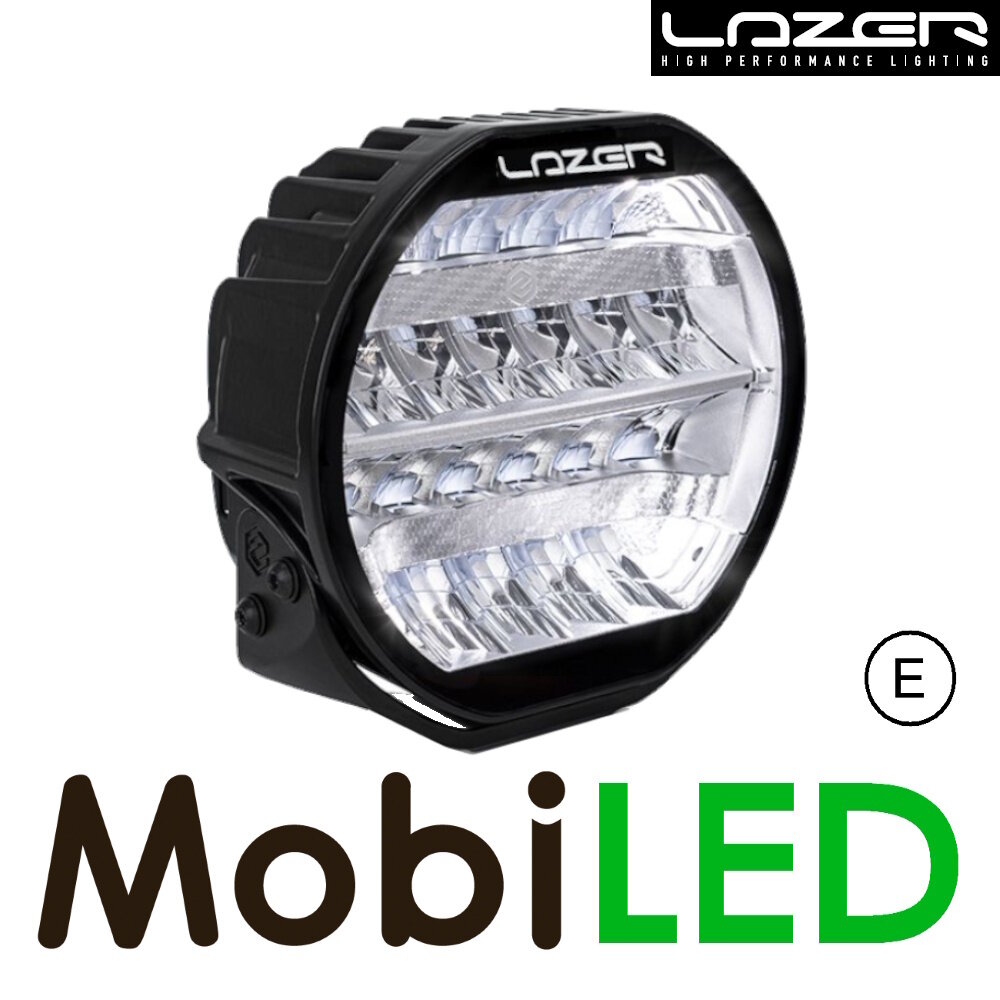

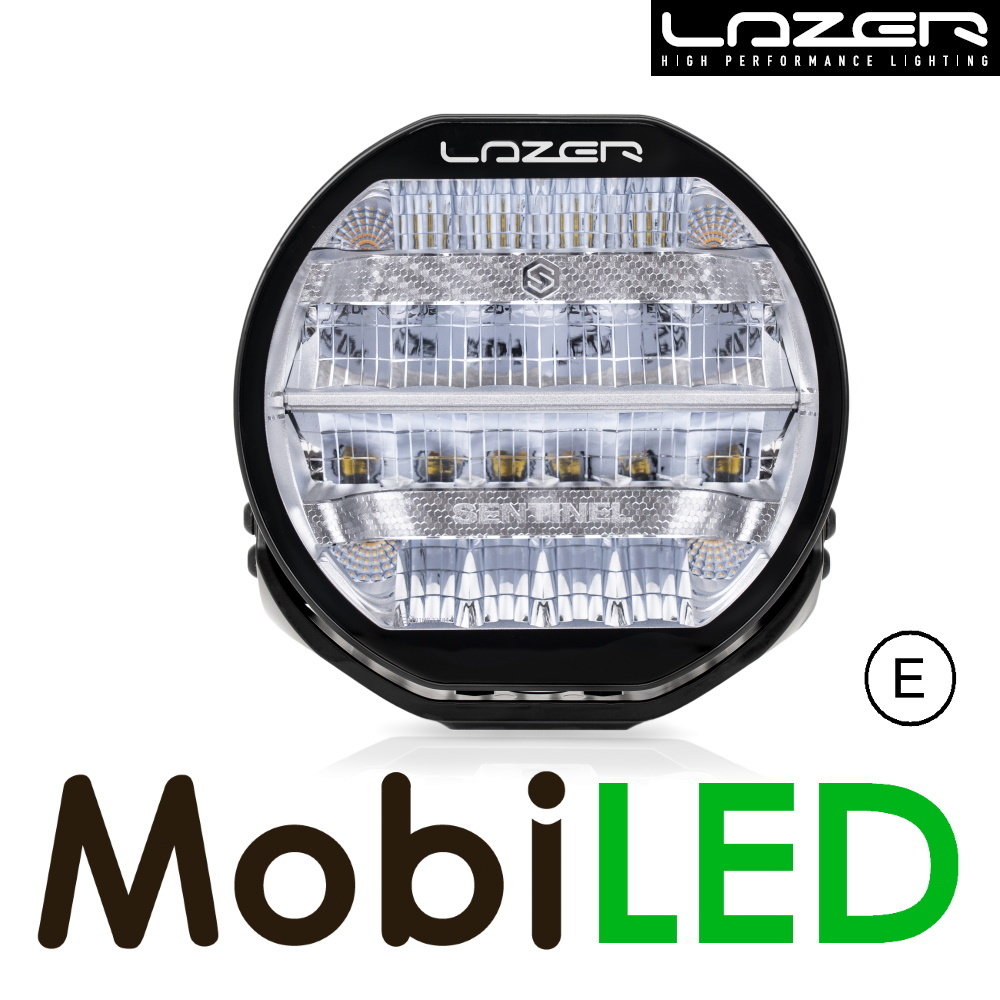

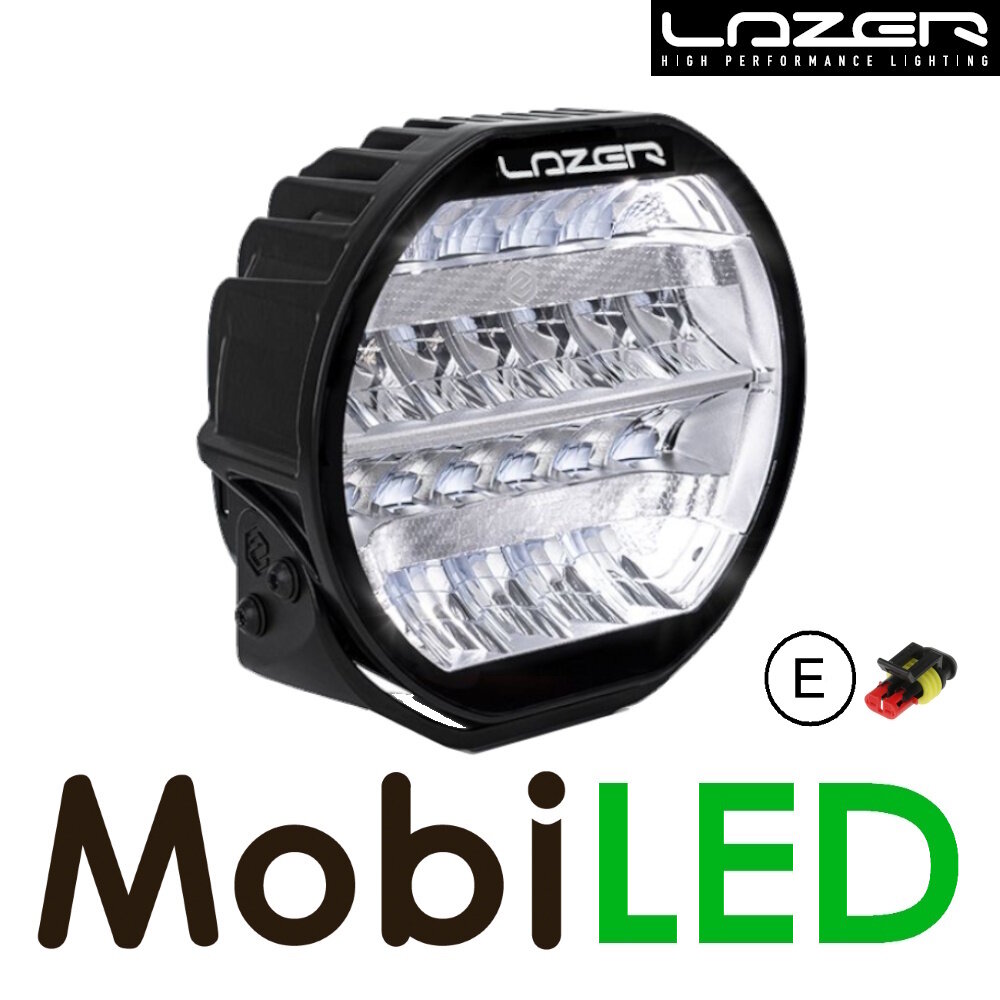

Sentinel spot light standard with position light Chrome 9 inch 87 Watt

The LAZER Sentinel spotlight has an exceptional design and high quality.

The chrome circuit boards, the chrome bezel and the intricate hexagonal design give the LED lamp a unique, contemporary look.

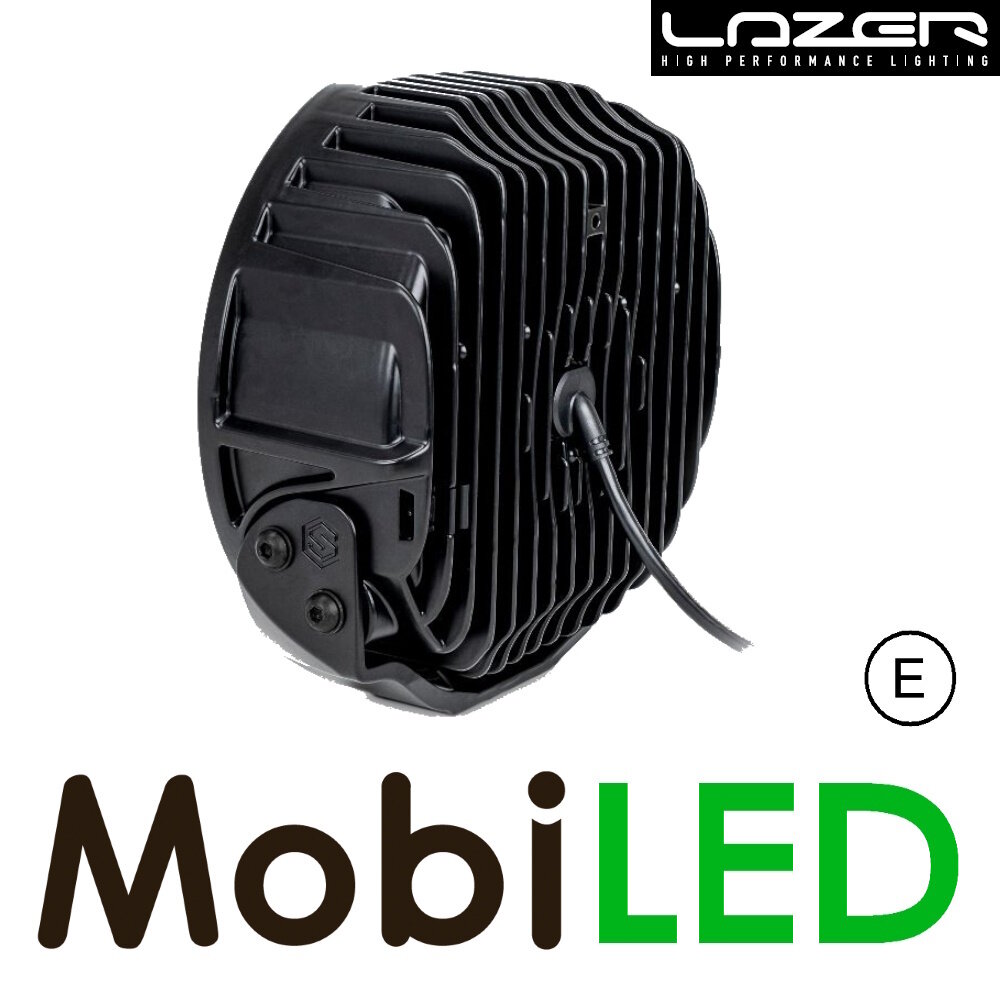

The 20 high power LEDs and the vacuum metallic lens provide a wide beam of light. The electronic heat management system optimises the light output, making the LEDs last longer. The aluminium housing is anodised and powder-coated for protection against corrosion and chemicals. The lens is made of virtually unbreakable polycarbonate with hardcoat. The slim aluminium mounting bracket has a Sentinel stamp. Like the housing, the bracket has also been pretreated before being powder-coated in satin black.

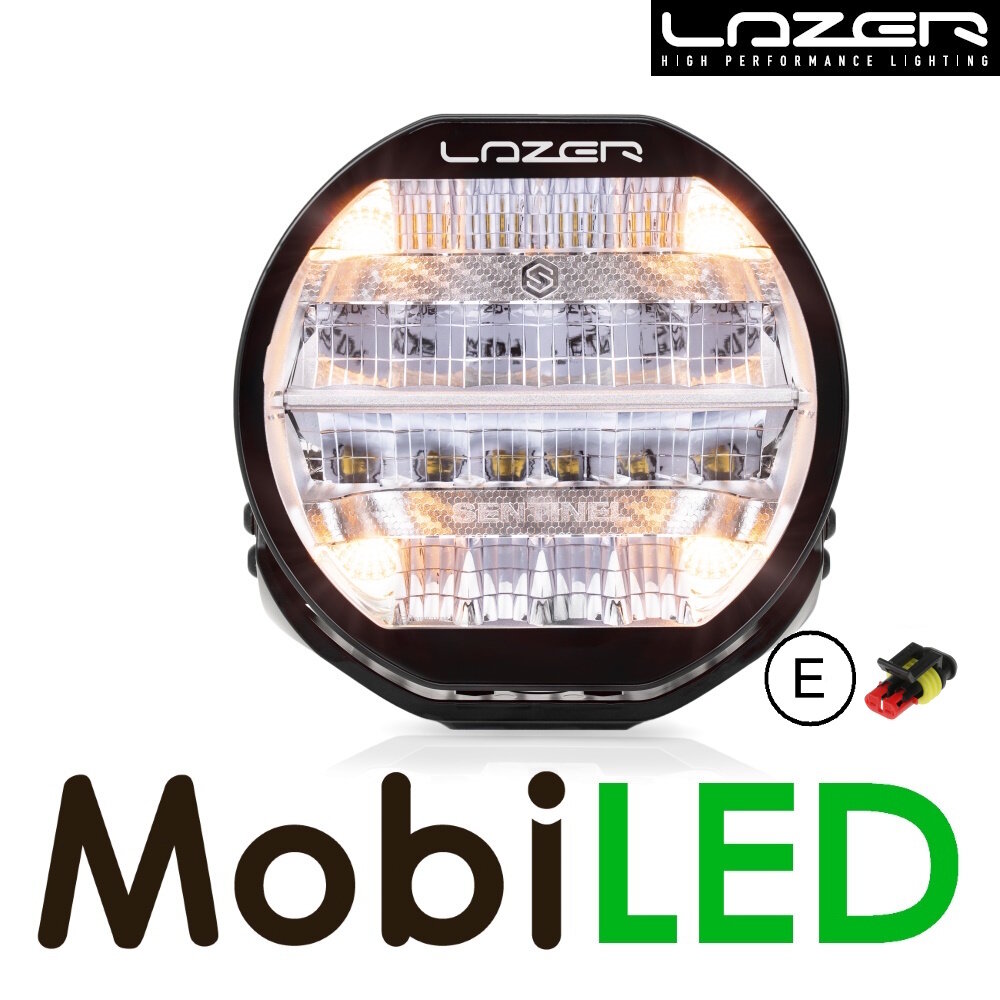

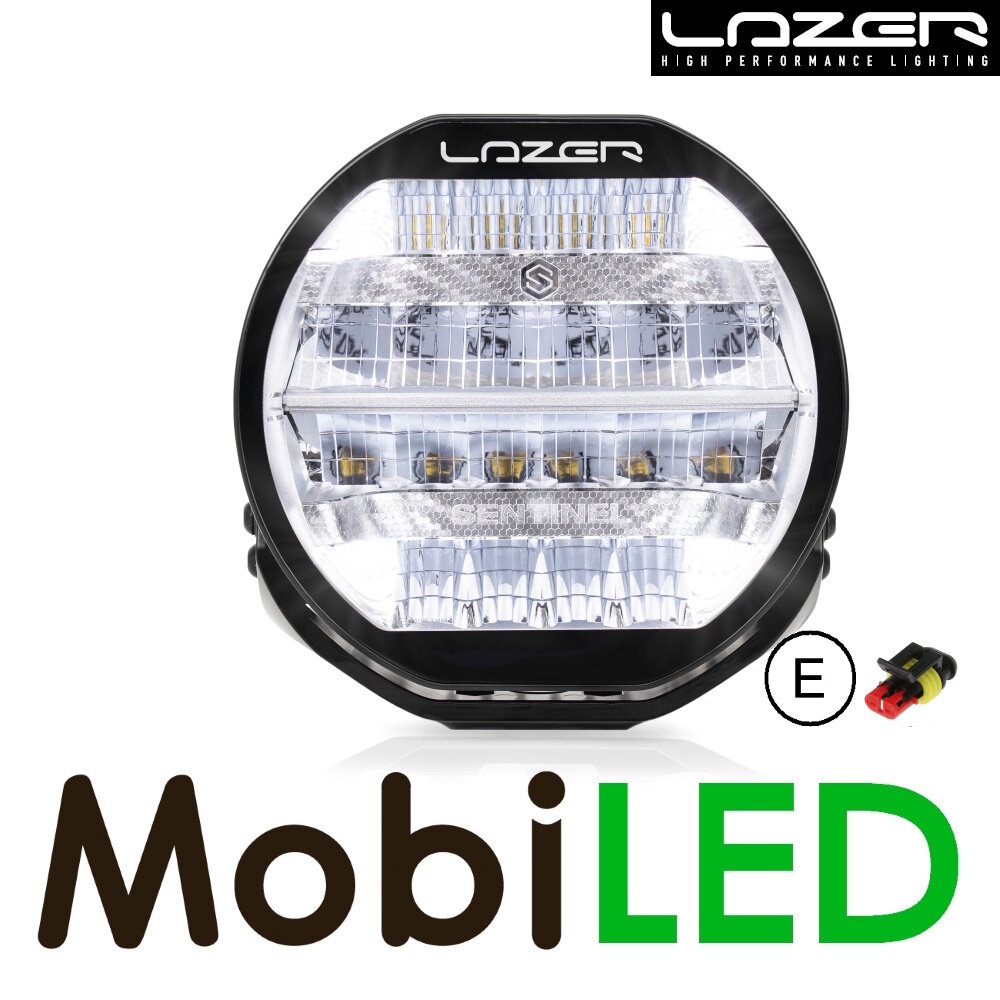

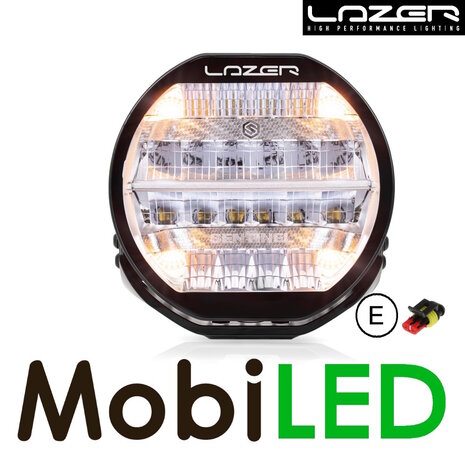

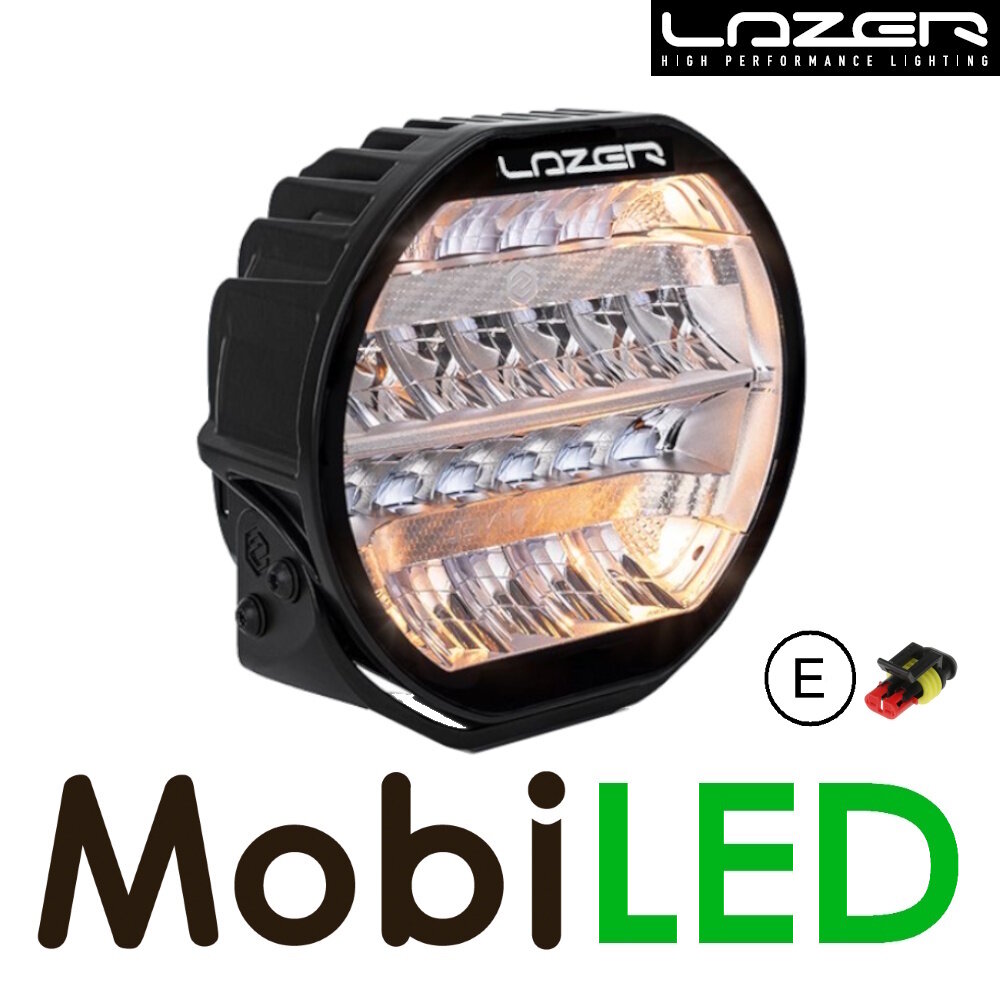

On installing the lamp, either the white or the amber position light can be connected. The white position lamp is UNECE R7 certified.

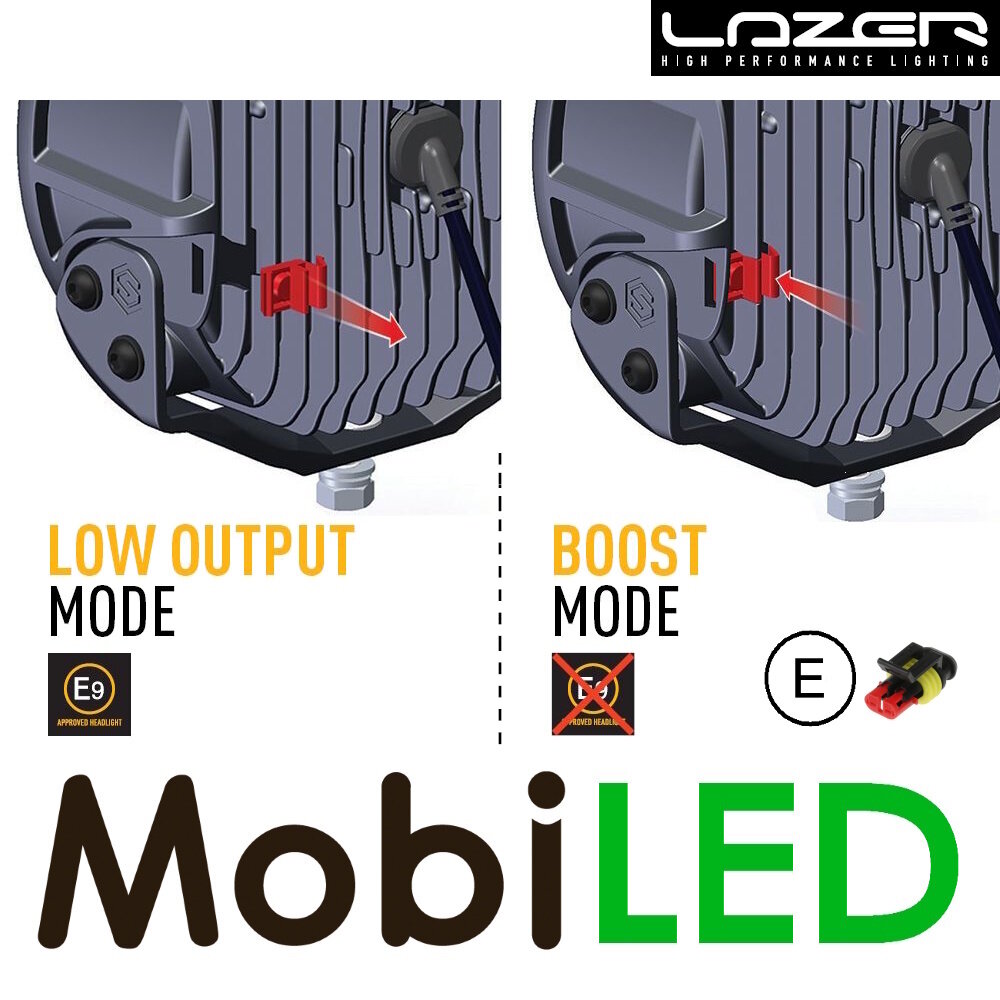

Thanks to E-Boost technology, these lamps can be operated in two modes: E-Boost and E-Certified mode. The E-Boost mode gives a higher light output than the UNECE R112 allows. Therefore, the lamp is only R112 certified in E-Certified mode.

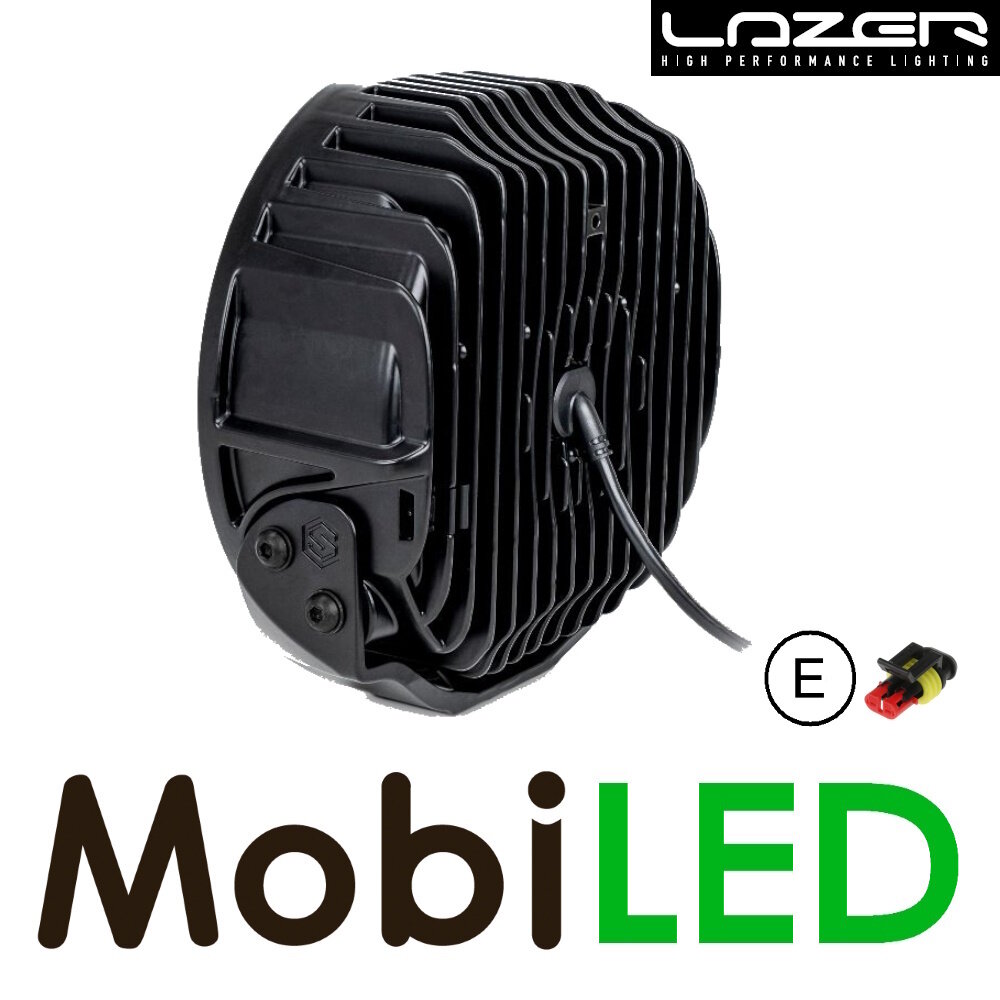

The spotlight is supplied with pre-wired 3-pin superseal connectors (m+f).

With its exceptional design, the LAZER Sentinel impresses at all times, also during the day.

Specifications:

• Voltage: 10-32V
• Power: 87 W E-Boost mode (17 W E-mark mode)
• Consumption at 10V: 8.1 amp E-Boost mode (1.6 amp E-mark mode)
• Number of LEDs: 20
• Lumen: 9,520 E-Boost mode (1,904 E-mark mode) (theoretical)

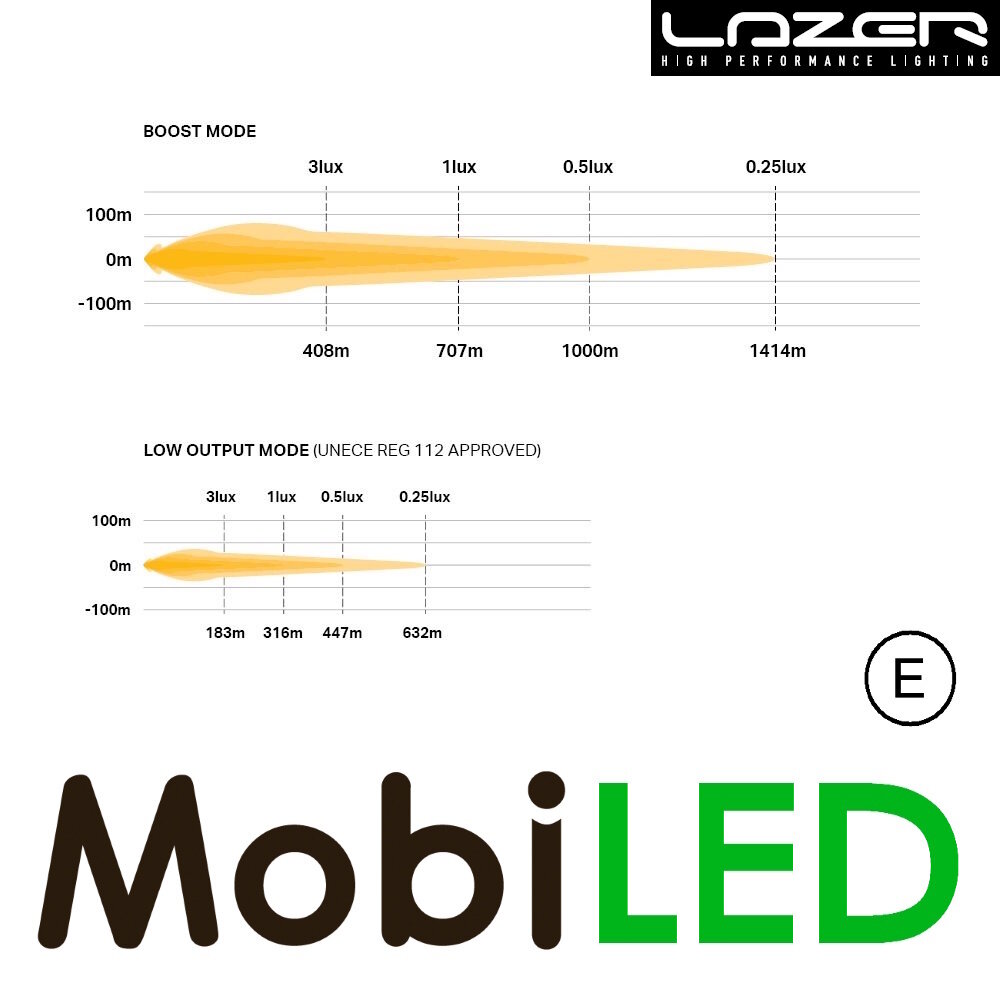

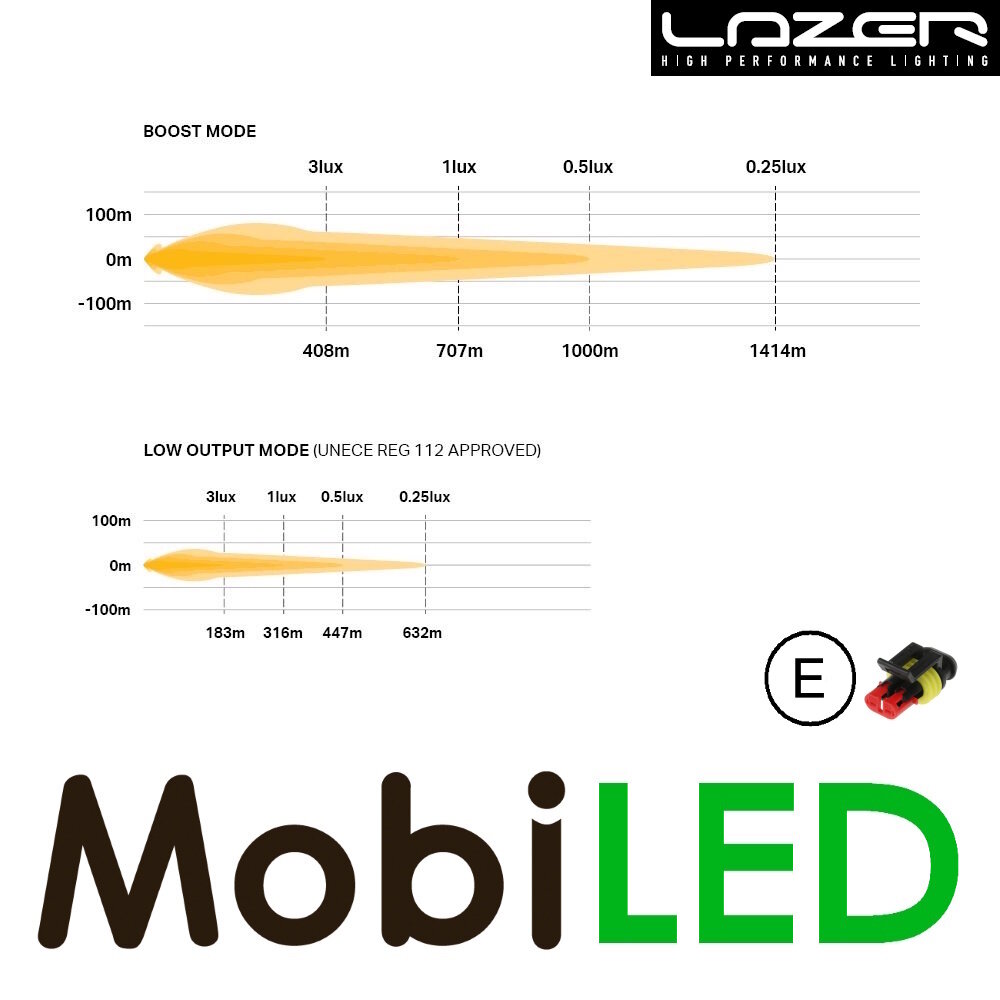

• Light range: 1 LUX @: 707 m (316 m), 0.25 LUX @: 1414 m (632 m)
• Light pattern: wide, 52 degree angle
• Light color: 5000K
• Startup time: 5 ms
• Water resistance: IP68

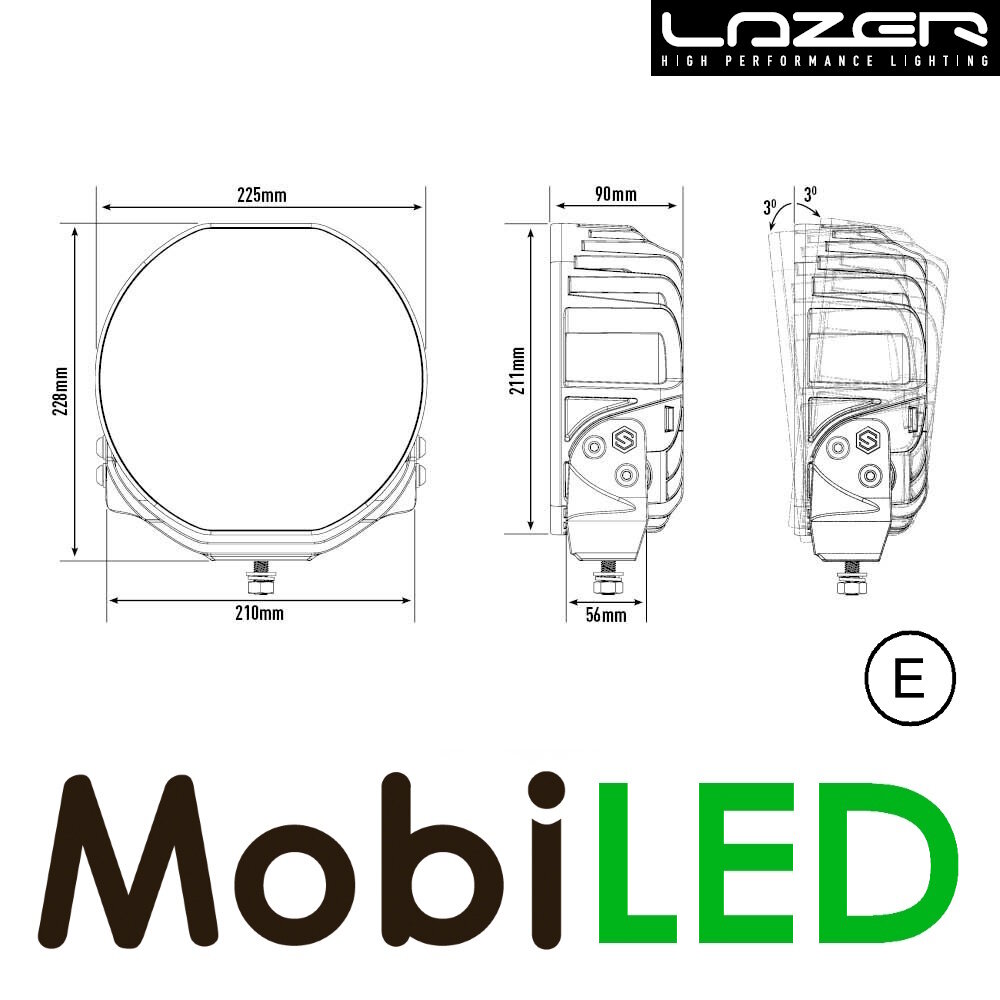

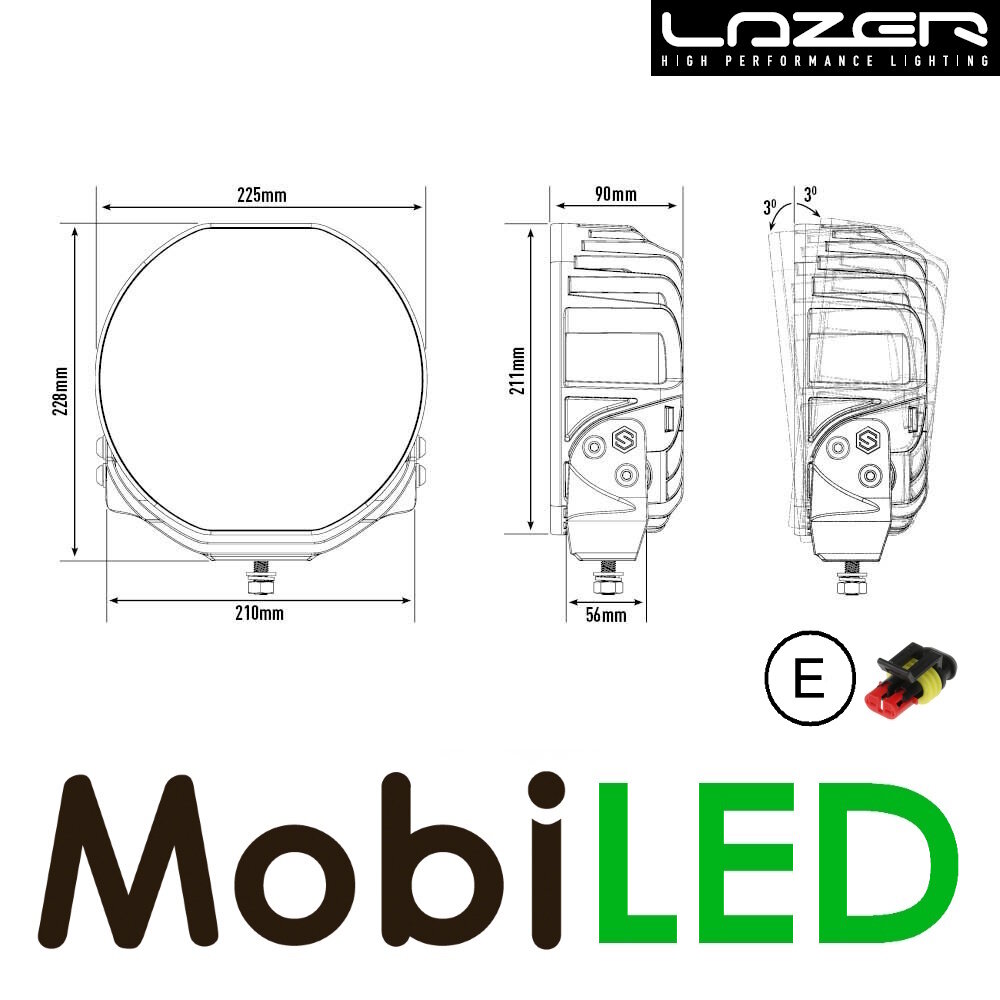

• Dimensions: 210 x 211 x 90 mm (225 x 228 x 90 mm incl. brackets)
• Housing: aluminum
• Mounting brackets: stainless steel
• Weight: 2.5 kg
• Certification: R112 (E-mark mode), R7 (white)
• Lazer part number: 0S9-PL-CHR-SM
