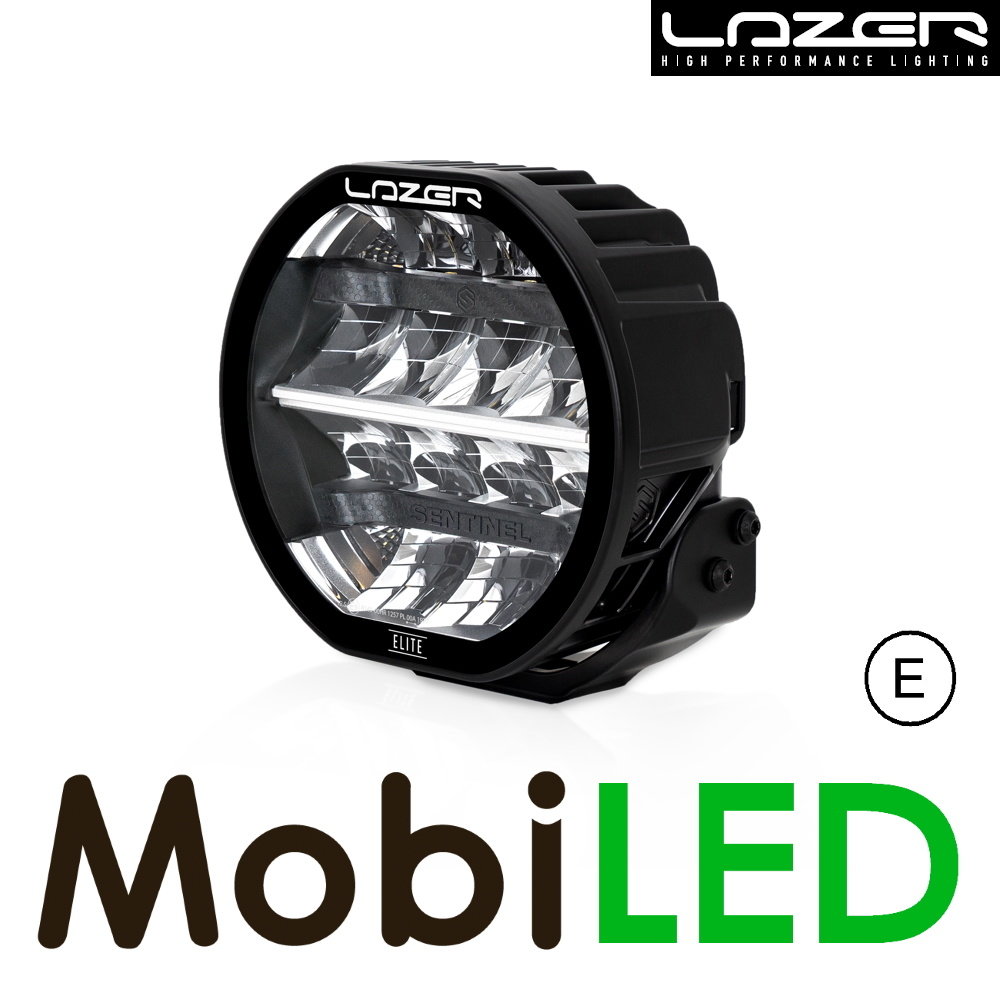

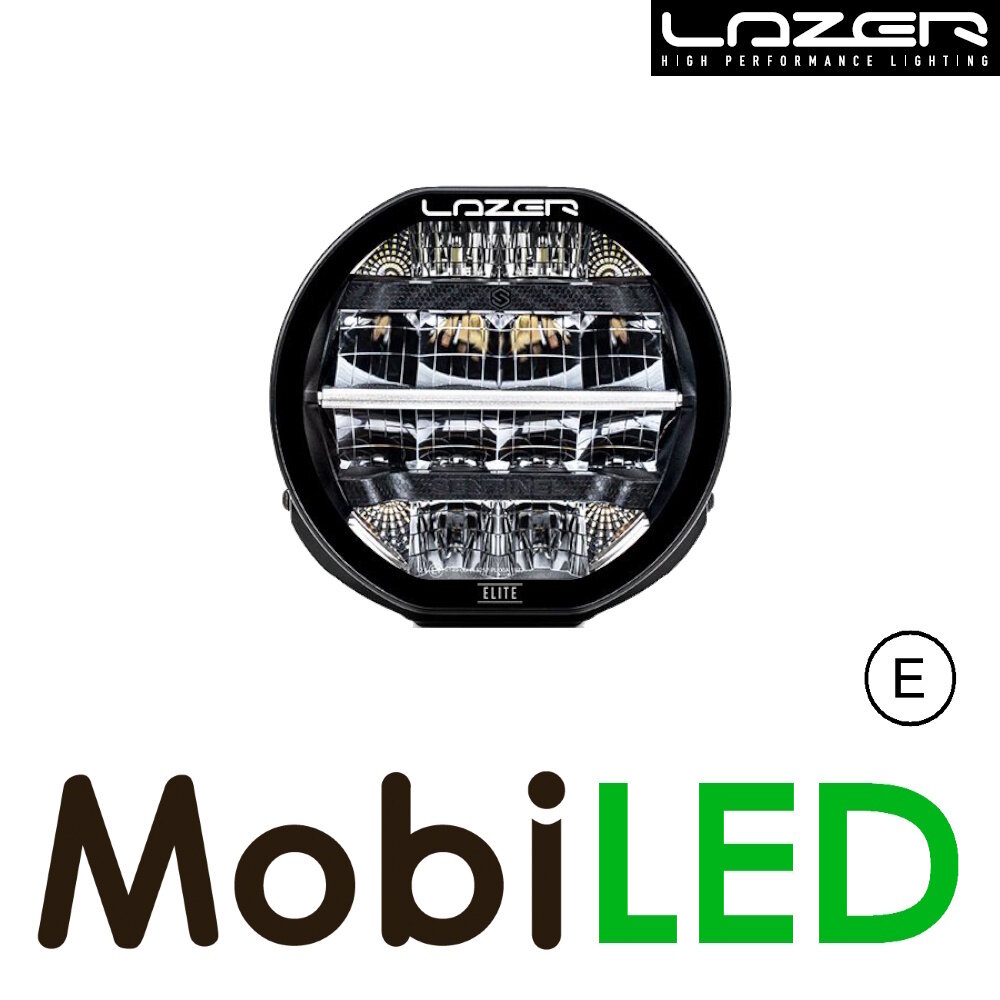

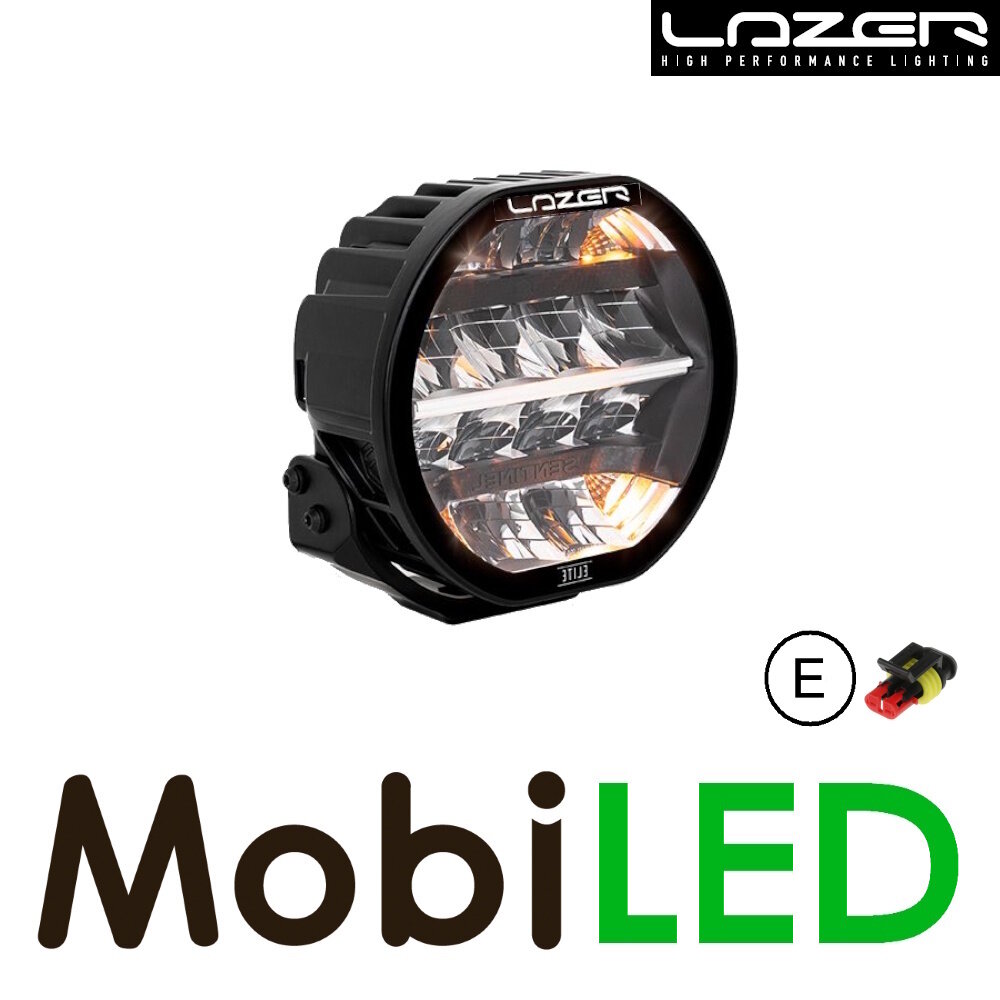

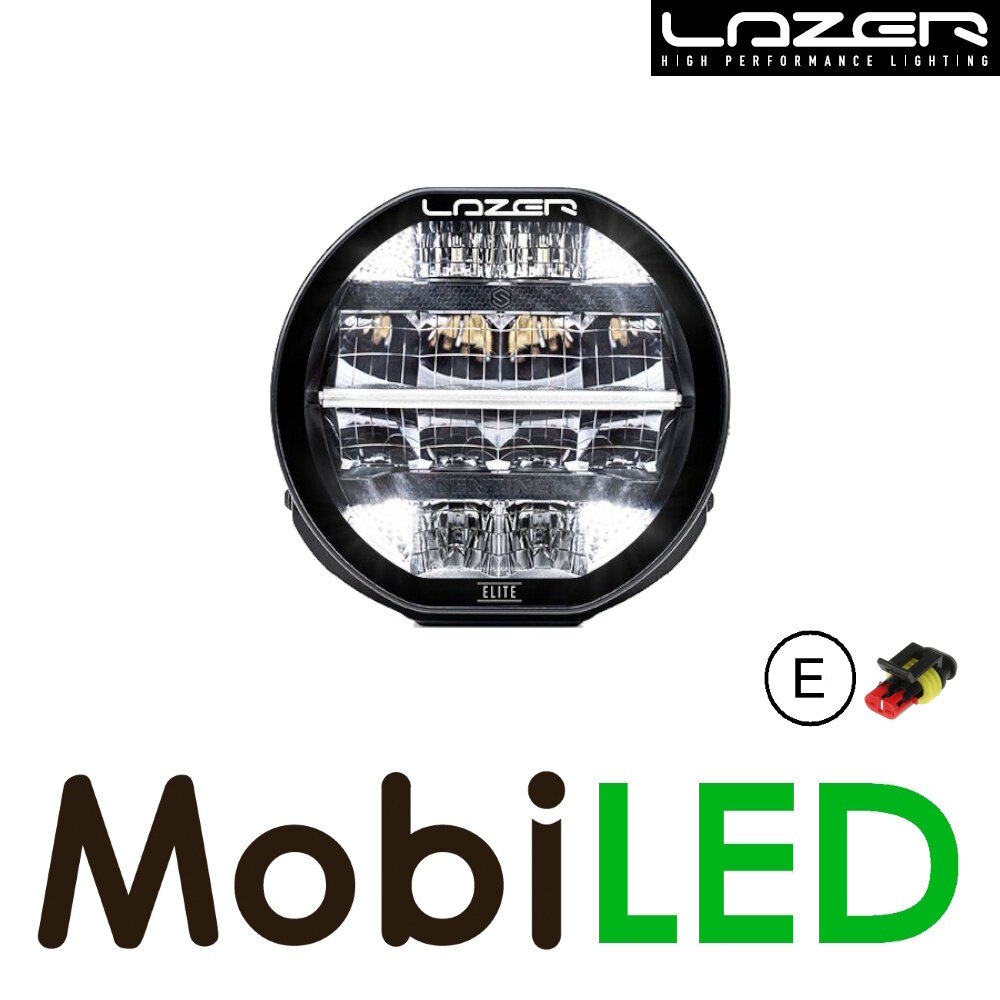

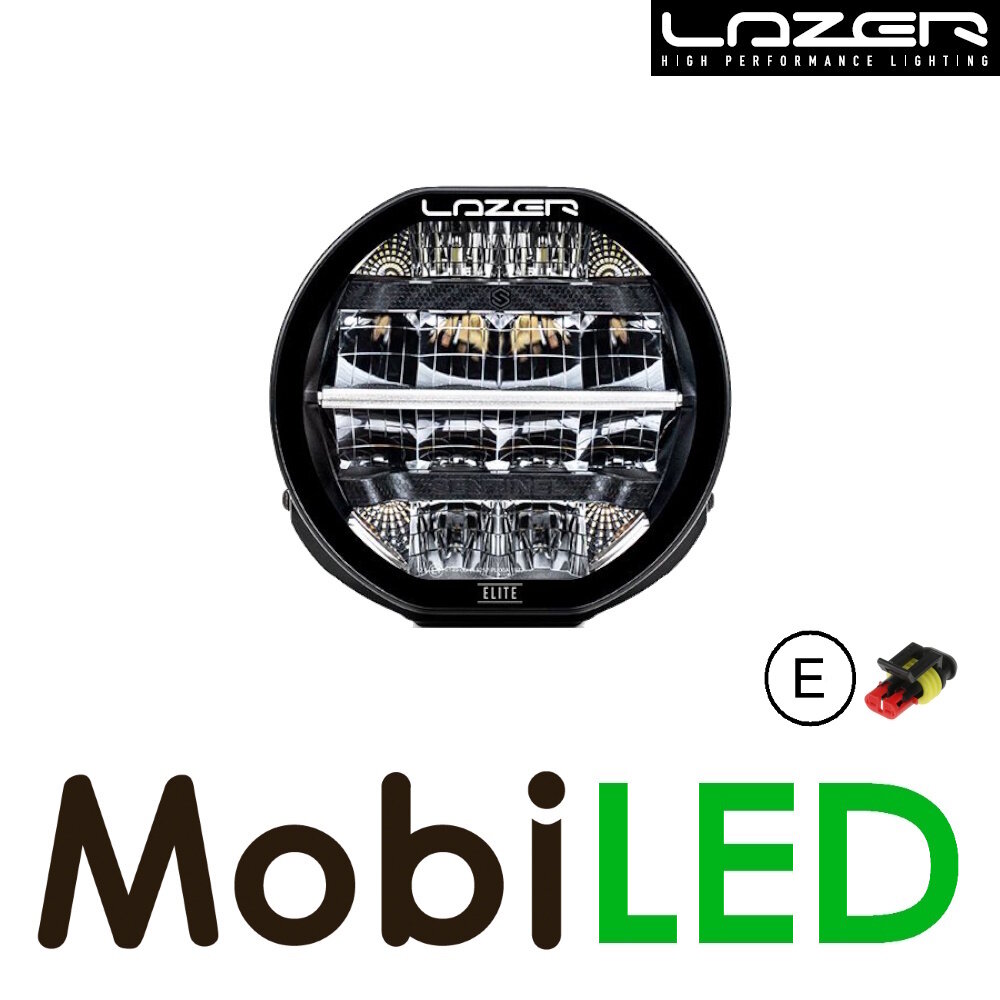

Sentinel elite 7 inch 110W Black

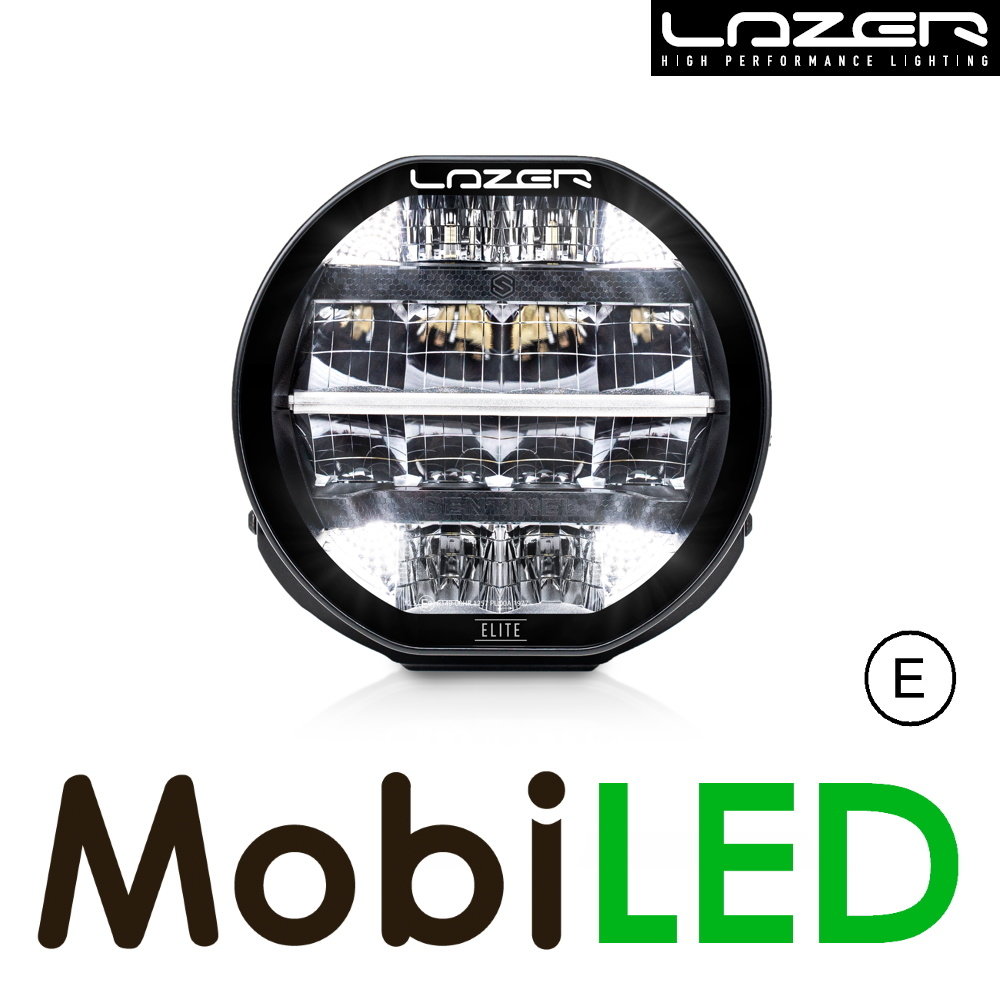

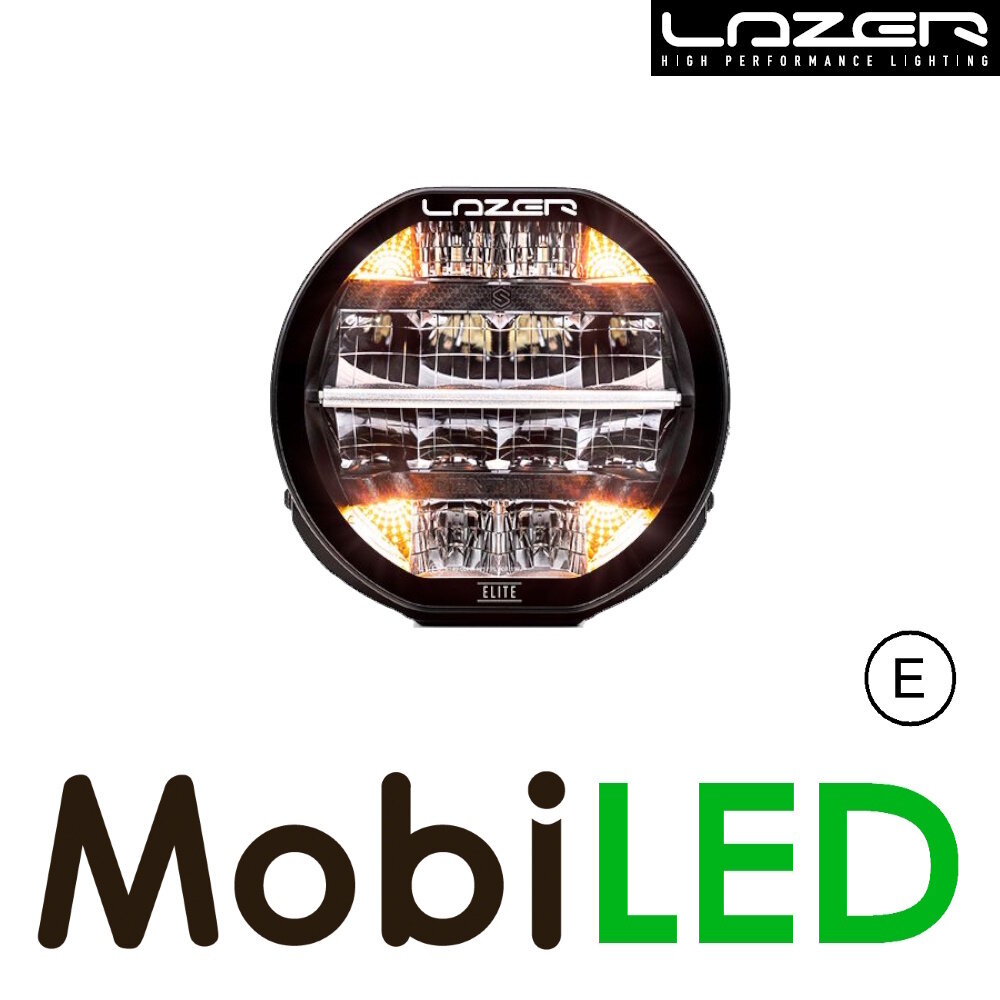

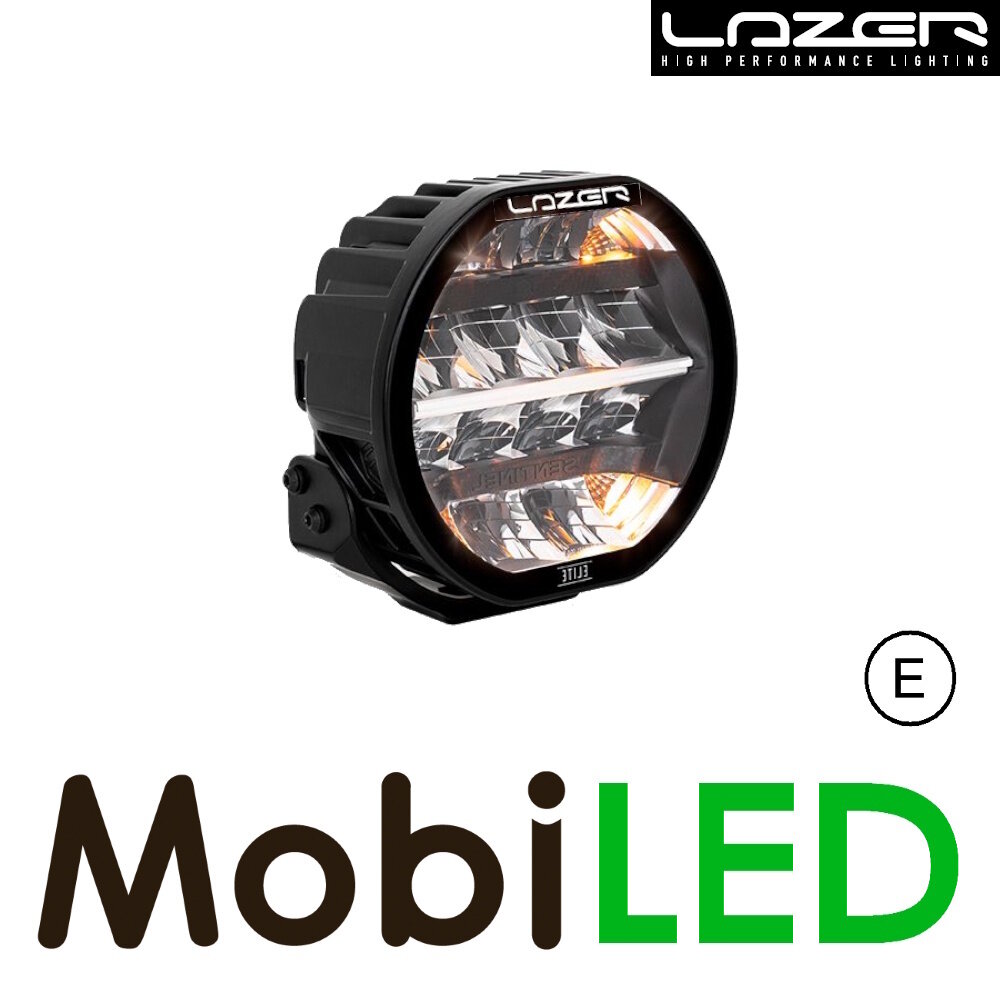

The black circuit boards, the black bezel and the intricate hexagonal design give the LED lamp a unique, contemporary look.

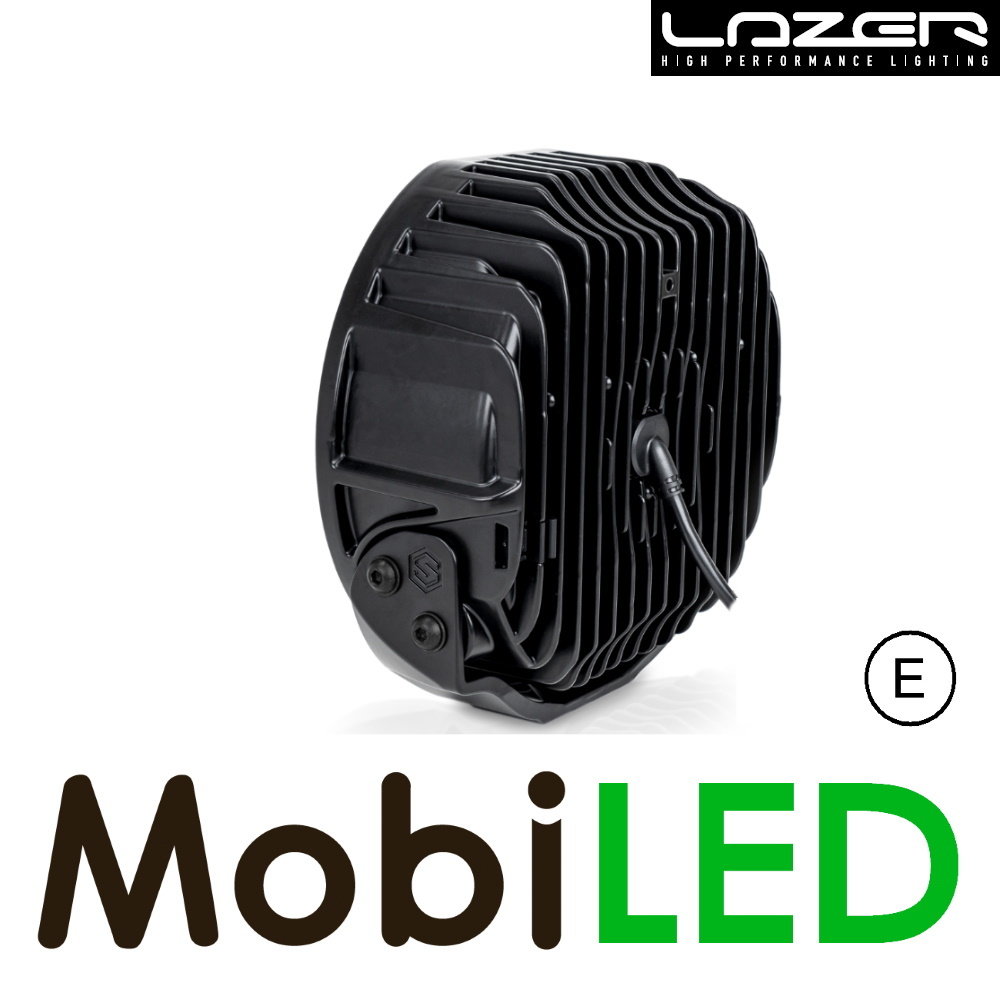

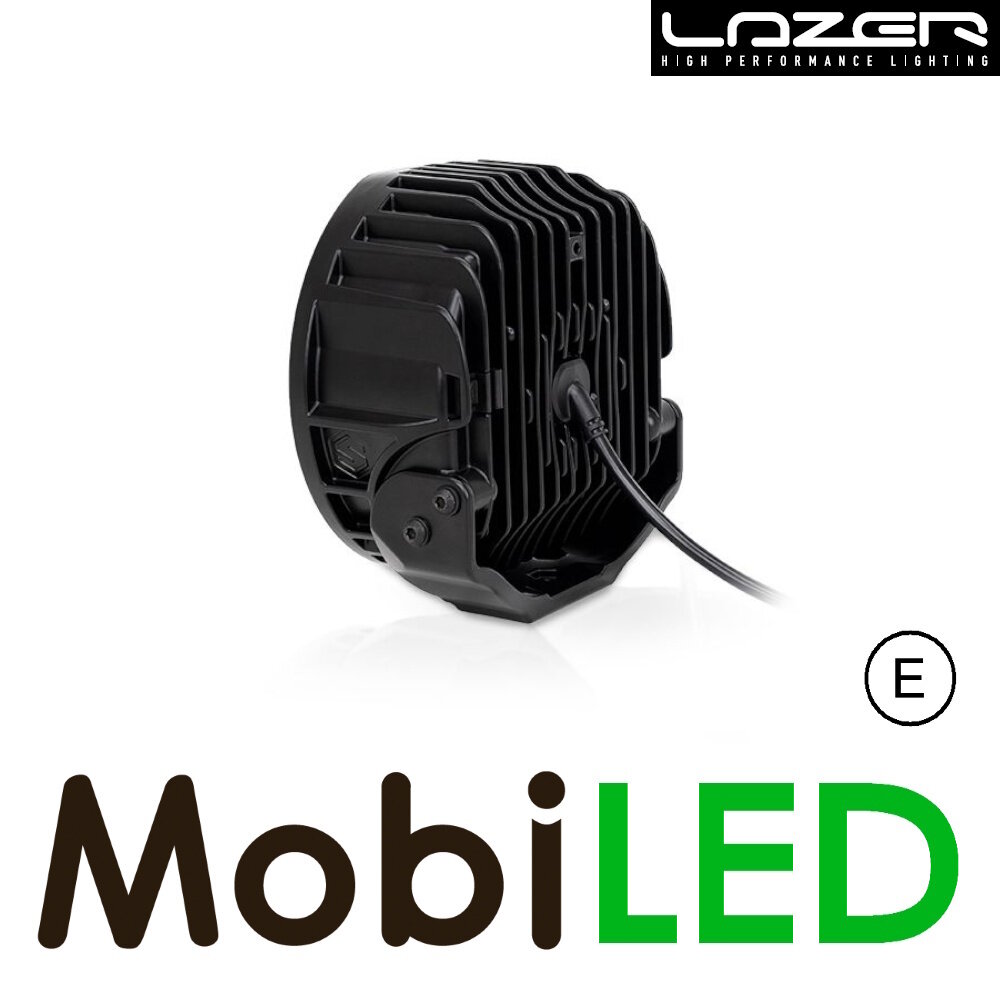

The 24 high output LEDs and the vacuum metallic lens provide a wide beam of light. The electronic heat management system optimises the light output, making the LEDs last longer. The aluminium housing is anodised and powder-coated for protection against corrosion and chemicals. The lens is made of virtually unbreakable polycarbonate with hardcoat. The slim aluminium mounting bracket has a Sentinel stamp. Like the housing, the bracket has also been pretreated before being powder-coated in satin black.

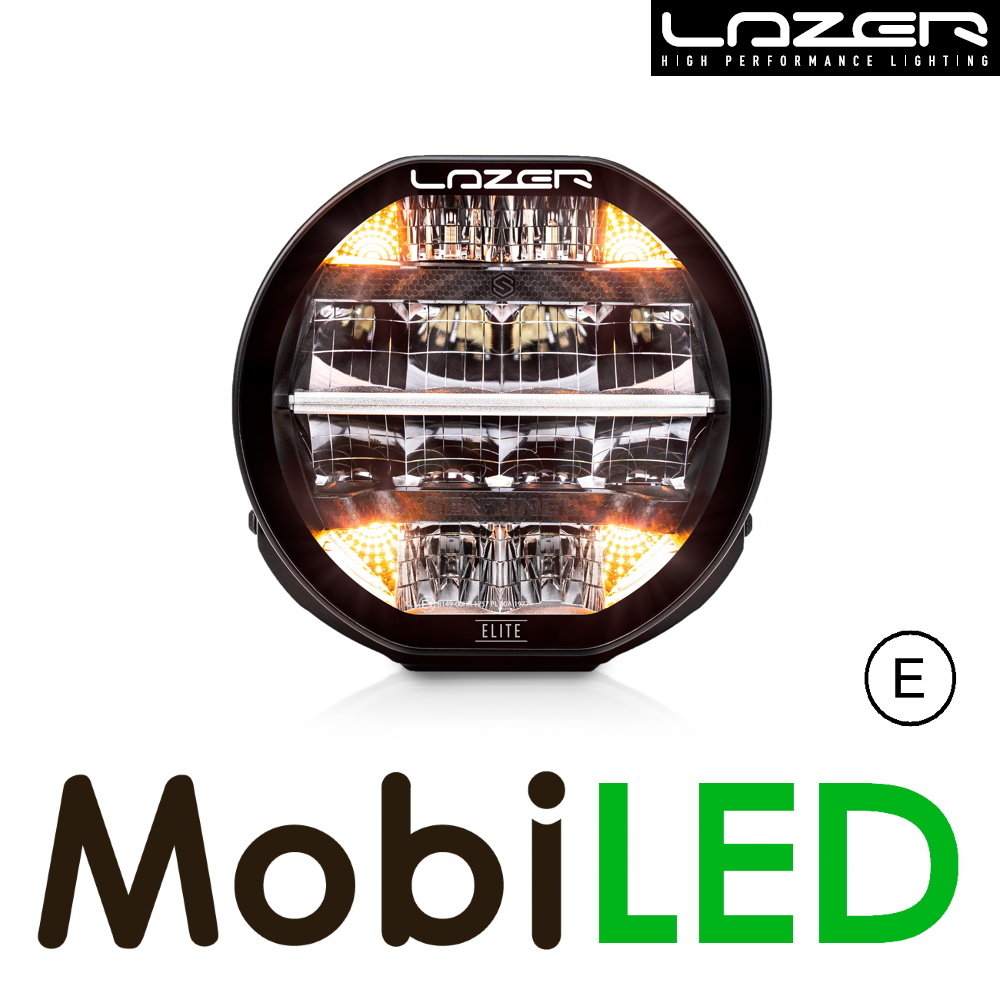

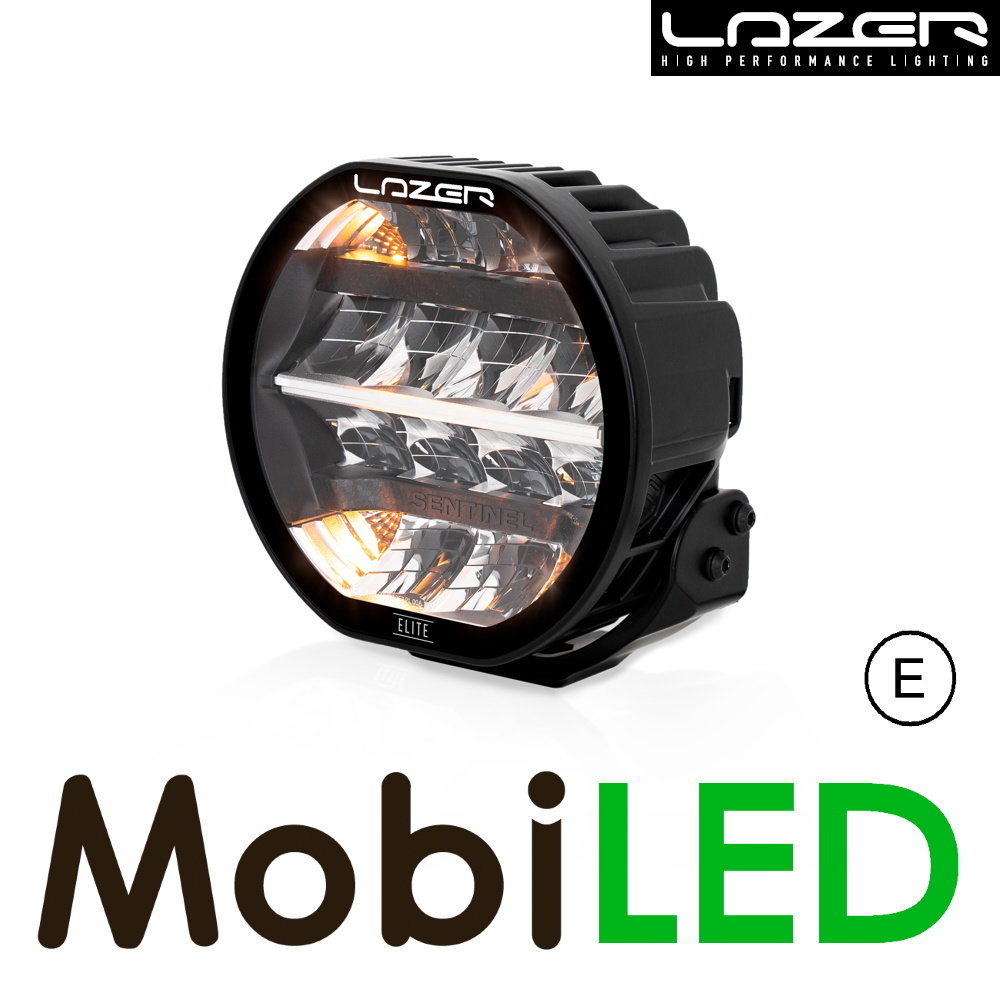

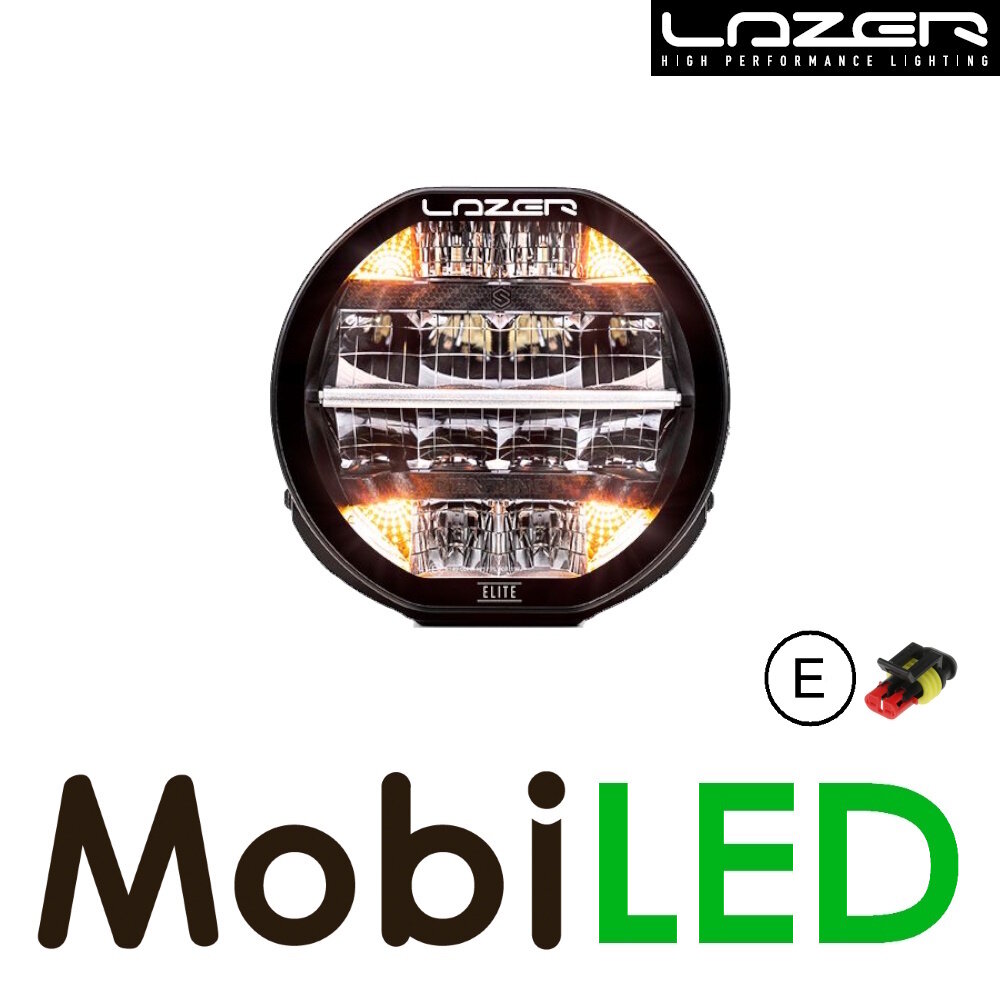

On connecting the lamp, either the white or the amber position light can be wired. The white position light is UNECE R149 certified.

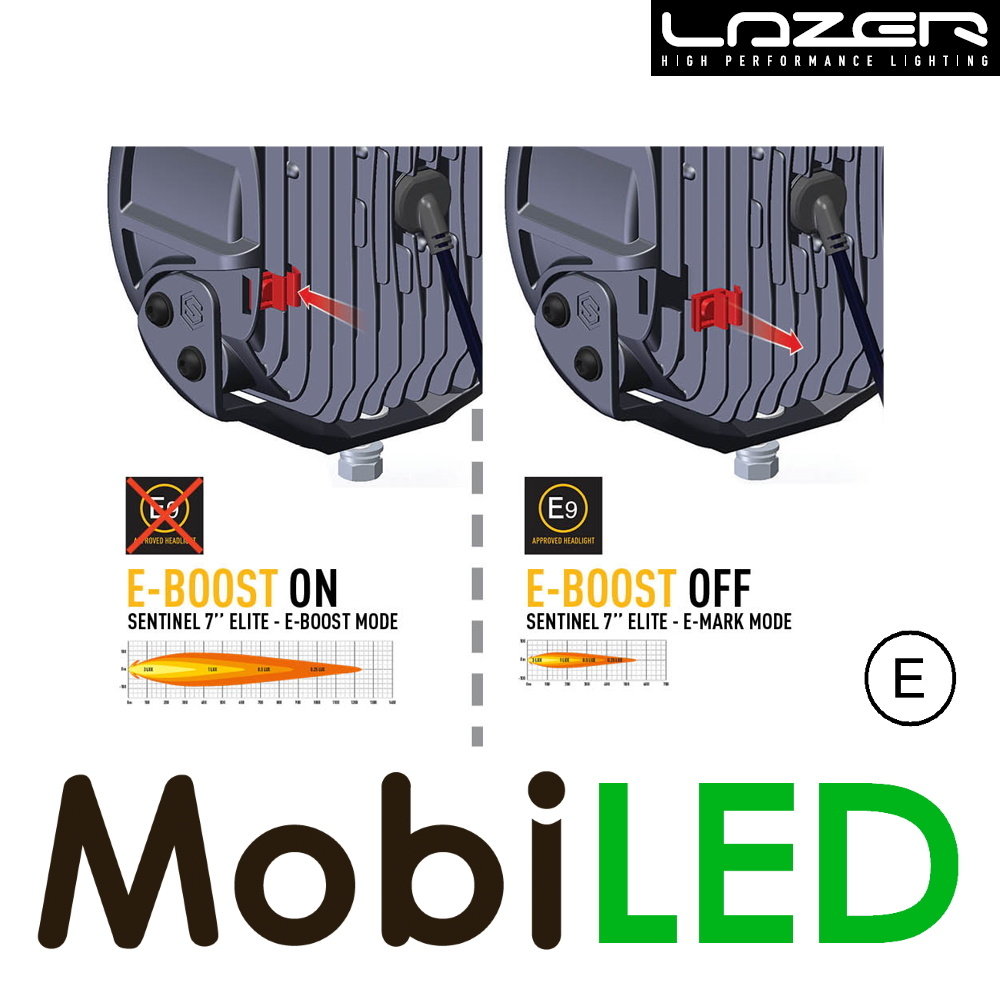

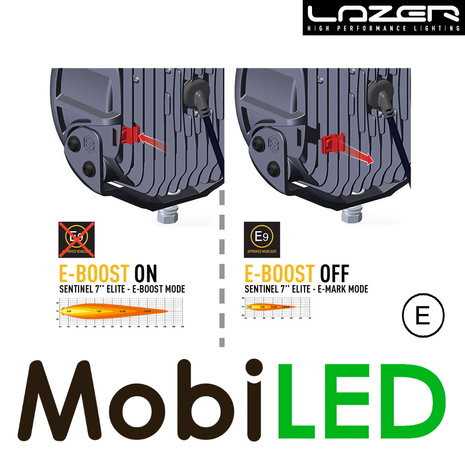

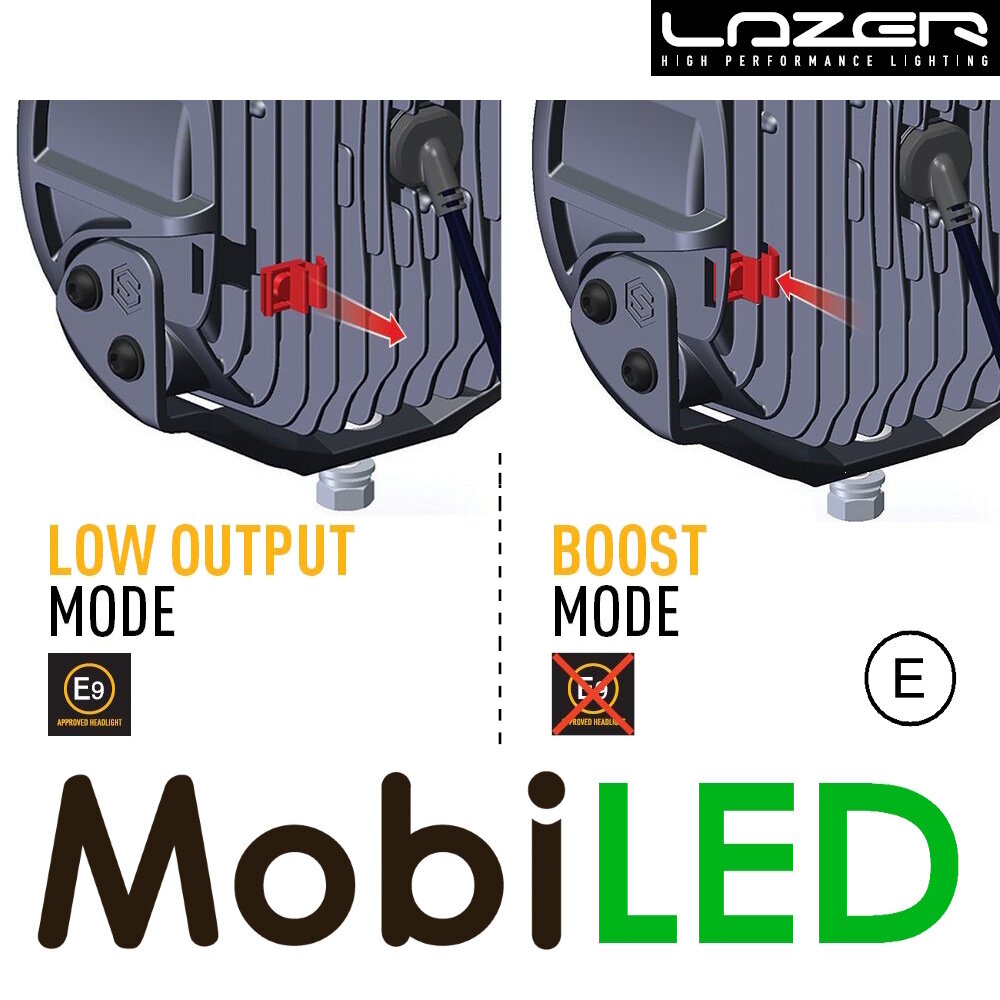

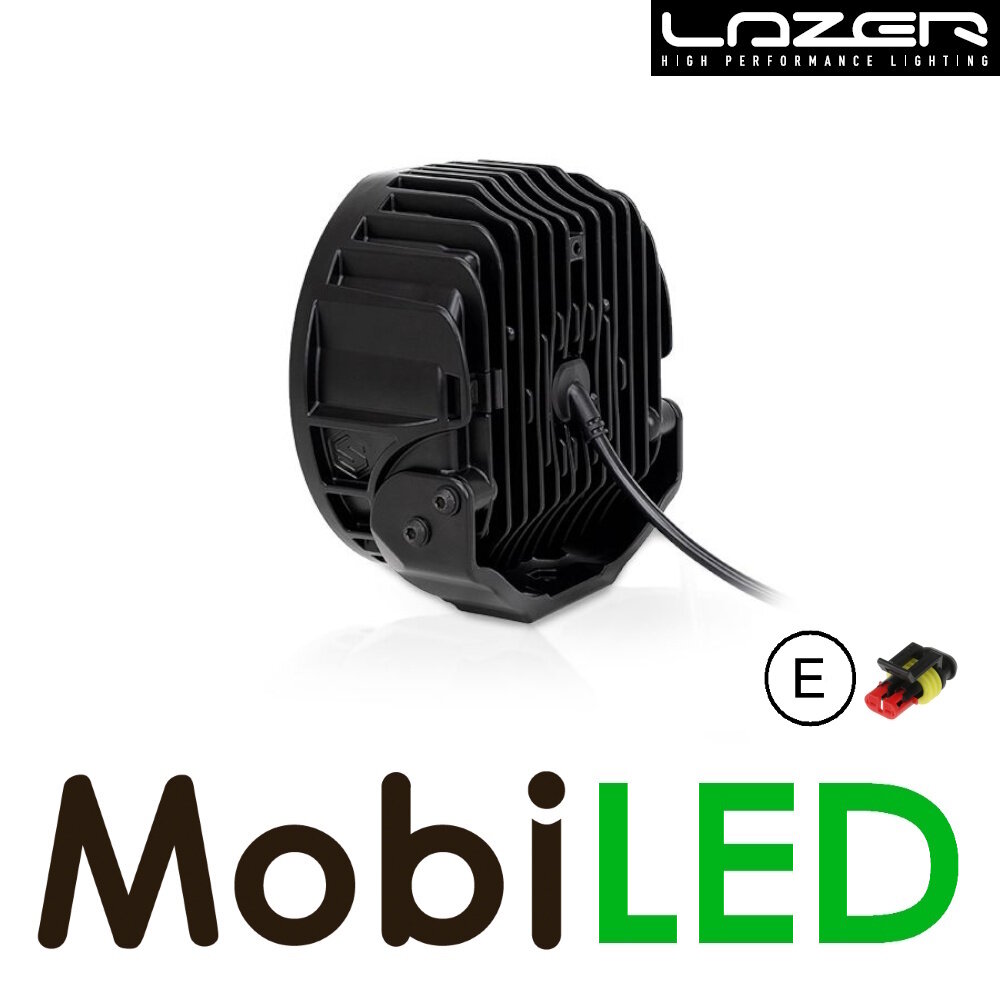

These lamps can be used in two modes: E-Boost and E-Certified mode. The E-Boost mode gives a higher light output than is allowed on public roads. By removing the boost cap at the back of the Sentinel, the E-certified mode is activated, keeping the light output within UNECE R148 standards. If you are off-road and you want 100% light output, simply place the Boost cap back on the lamp.

As with all LAZER products, Sentinel lamps are designed, developed and manufactured in the UK.

The spotlight is supplied with pre-wired 2-pin superseal connectors (m+f).

With its exceptional design, the LAZER Sentinel impresses at all times, also during the day.

Specifications:

• Voltage: 10-32V
• Power: 110W E-Boost mode (22W E-certified mode)
• Consumption at 10V: 8.8 amp E-Boost mode (1.8 amp E-certified mode)
• Number of LEDs: 24
• Lumen, theoretical: 10,248 E-Boost mode (2,049 E-certified mode)

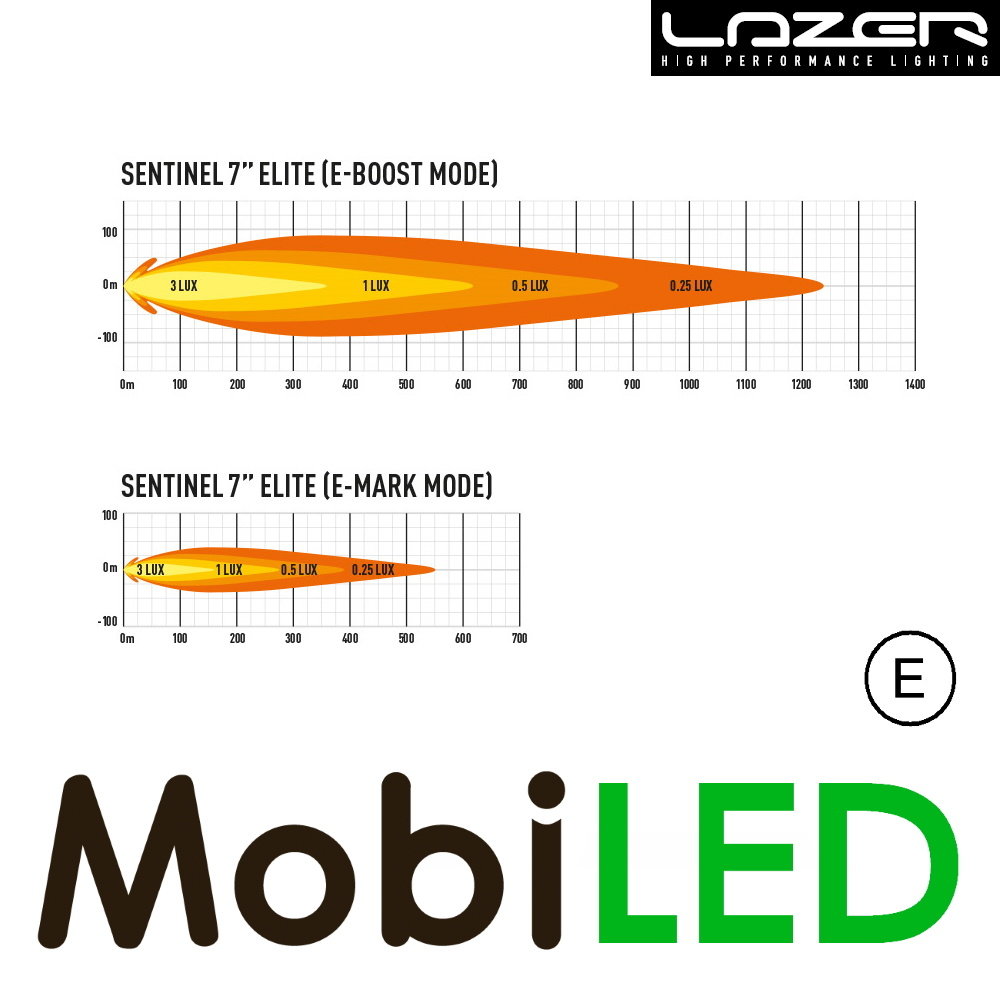

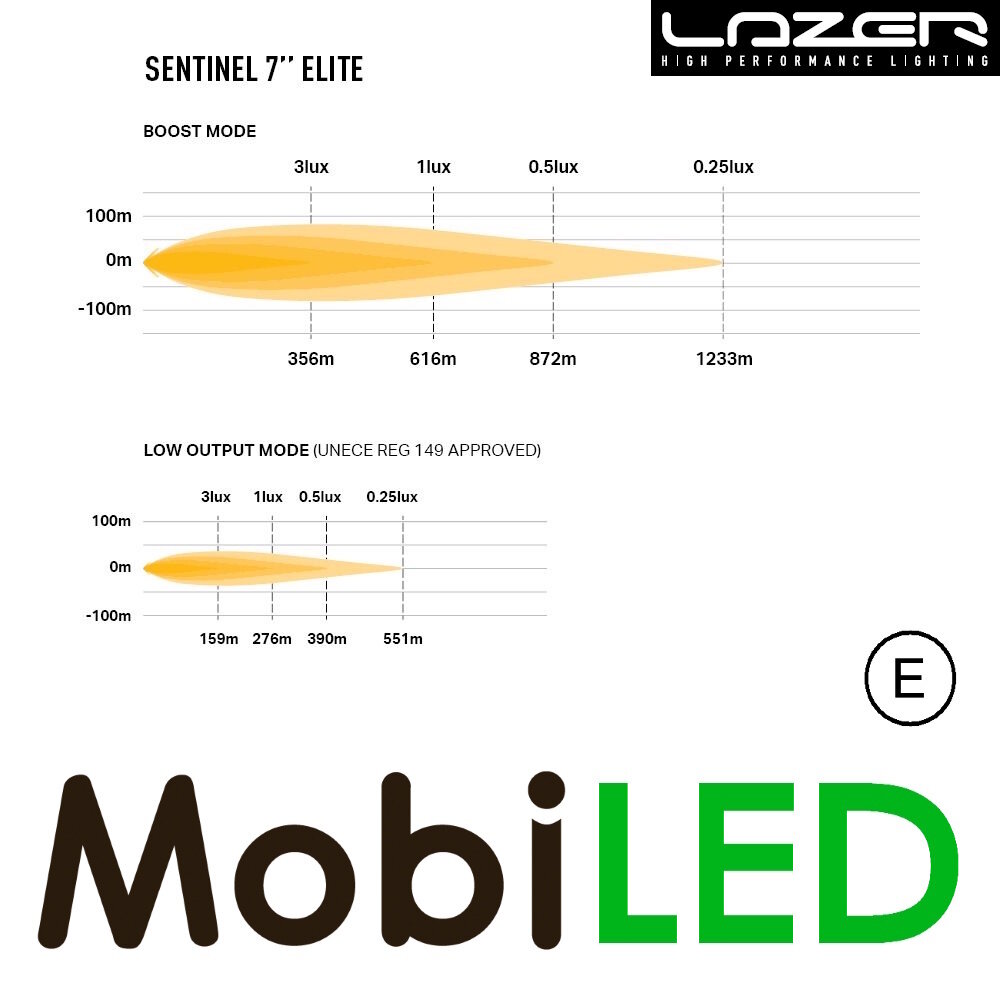

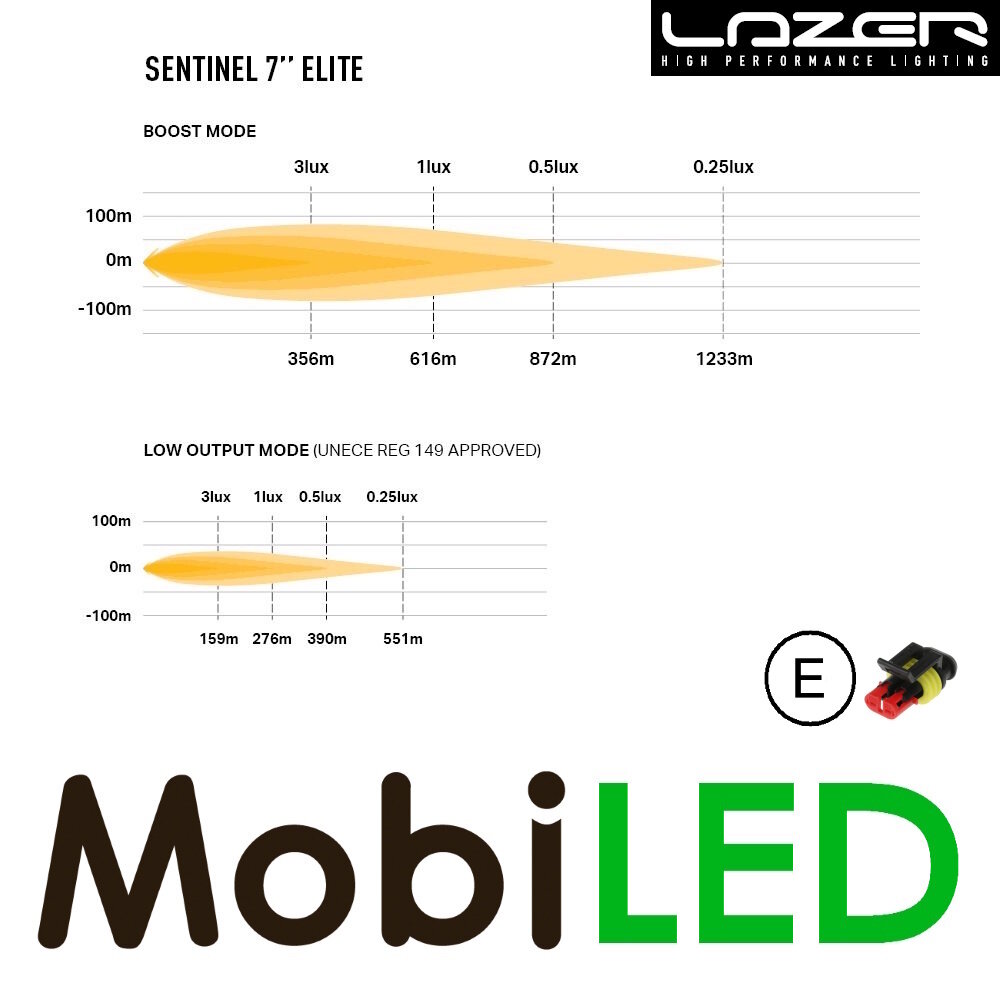

• Light range: 1 LUX @: 616 m (276 m E-certified mode), 0.25 LUX @: 1233 m (551 m E-certified mode)
• Light pattern: wide, 65 degree angle
• Light color: 5,000K
• Startup time: 5 ms
• Water resistance: IP68

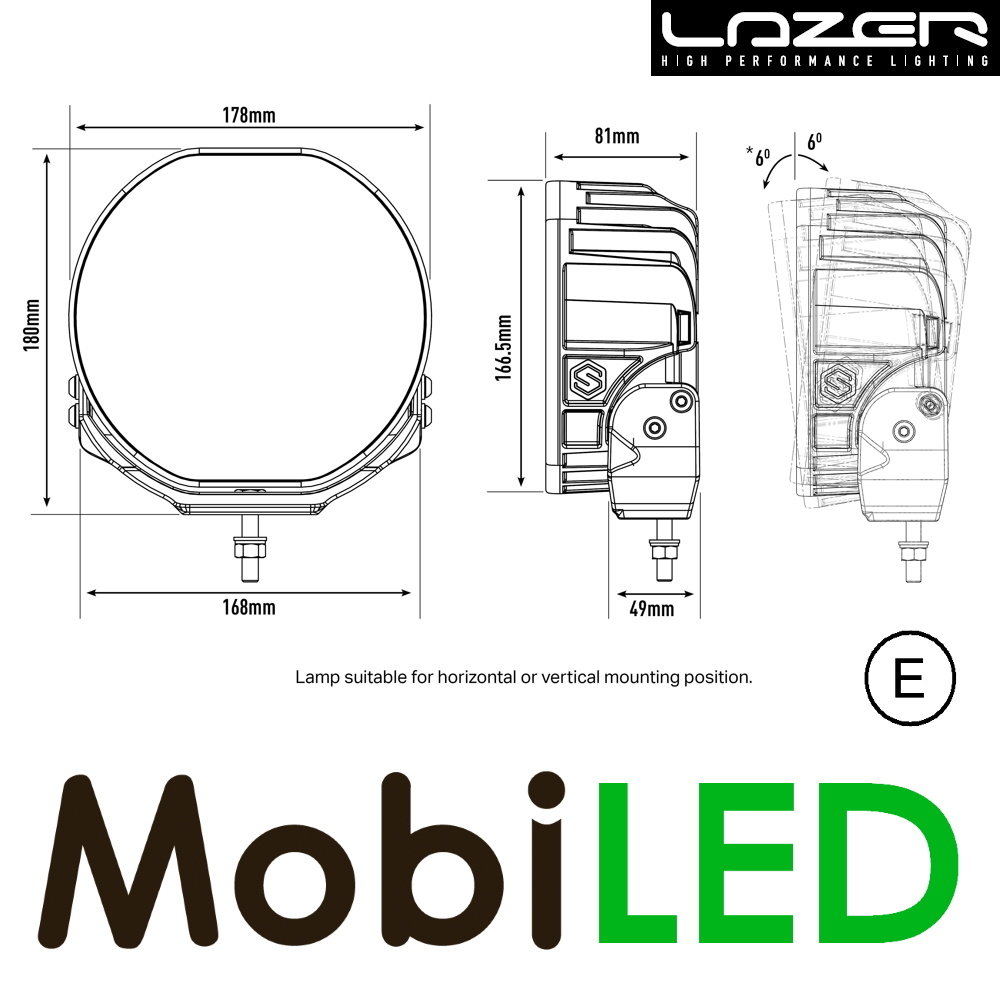

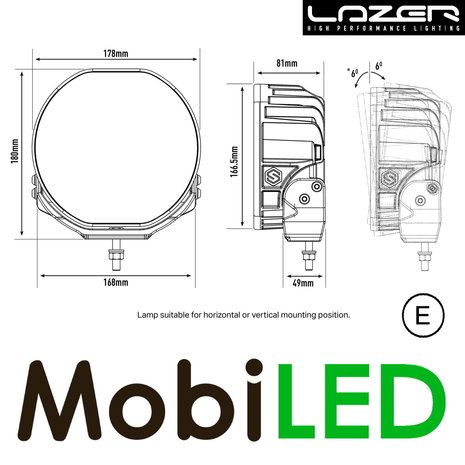

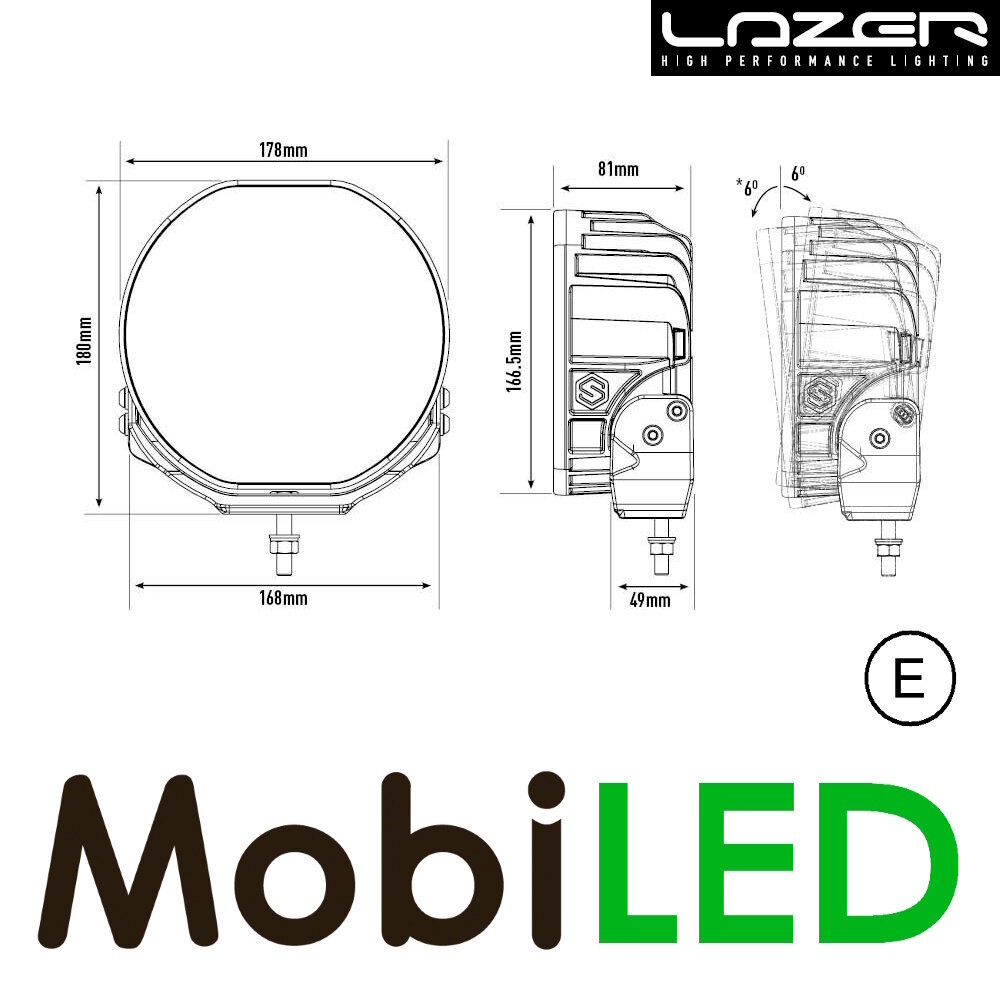

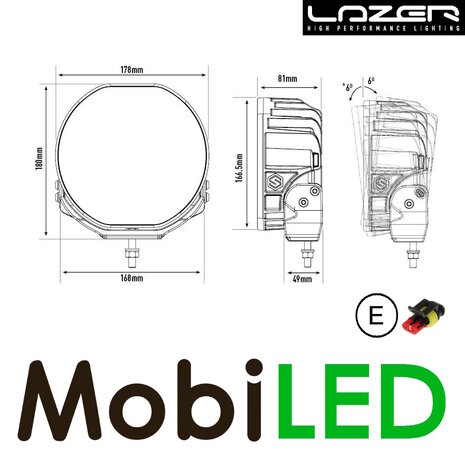

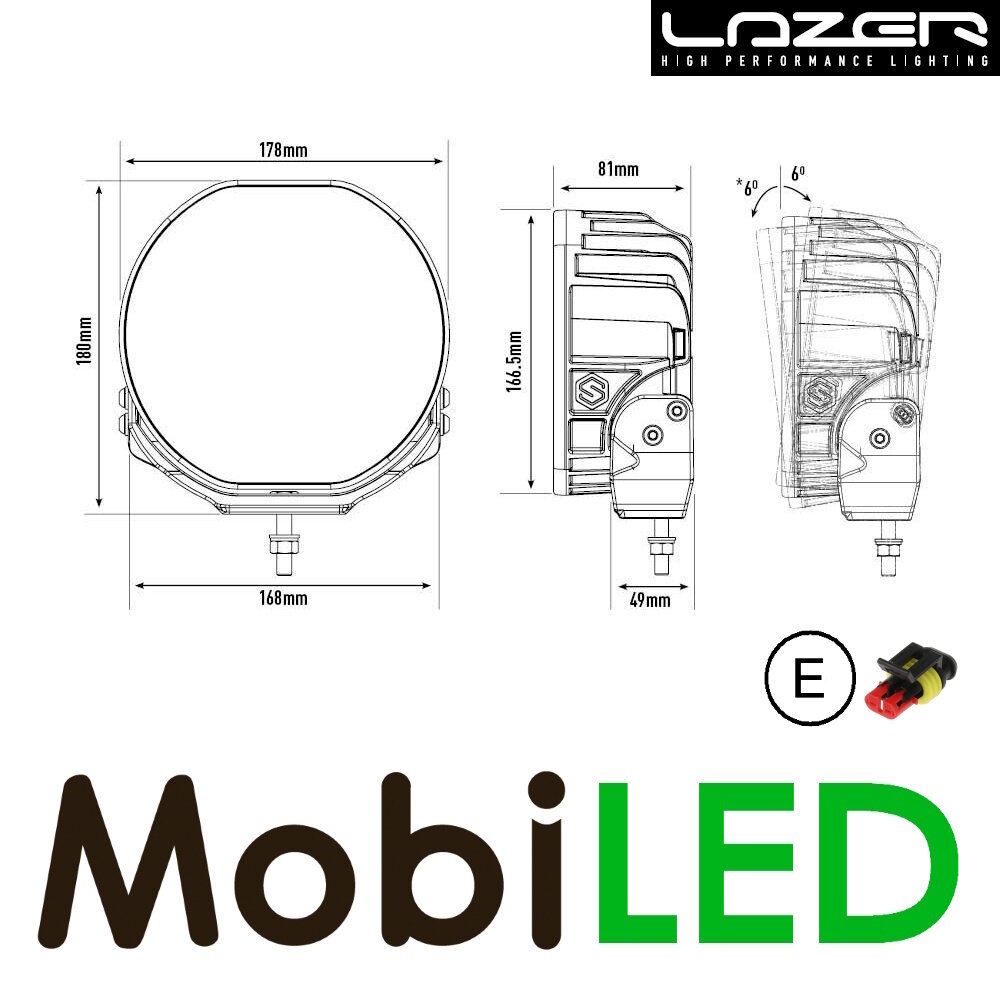

• Dimensions: 178 x 180 x 91 mm
• Housing: aluminum
• Mounting brackets: stainless steel
• Certification: R148 (E-certified mode), R149 (white position light)
• LAZER part number: 0S7-ELITE-PL-SM
