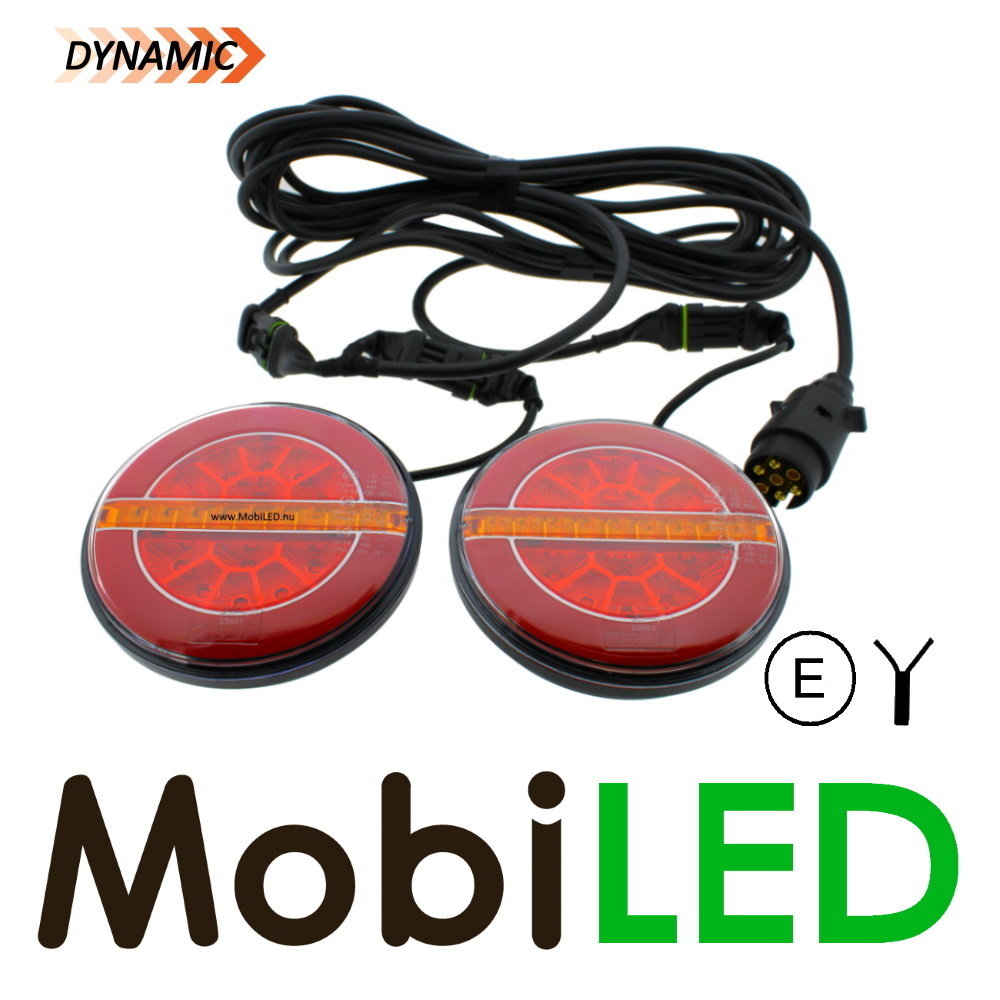

Set dynamic round rear lights "Hamburger" with wiring magnet E-mark






Very popular rear light with a modern look in a solid version. NEON look rear light and a dynamic turn signal. A beautiful lamp that gives your vehicle or trailer a nice upgrade.
Equipped with E-mark and multi-voltage, so it can be used widely.

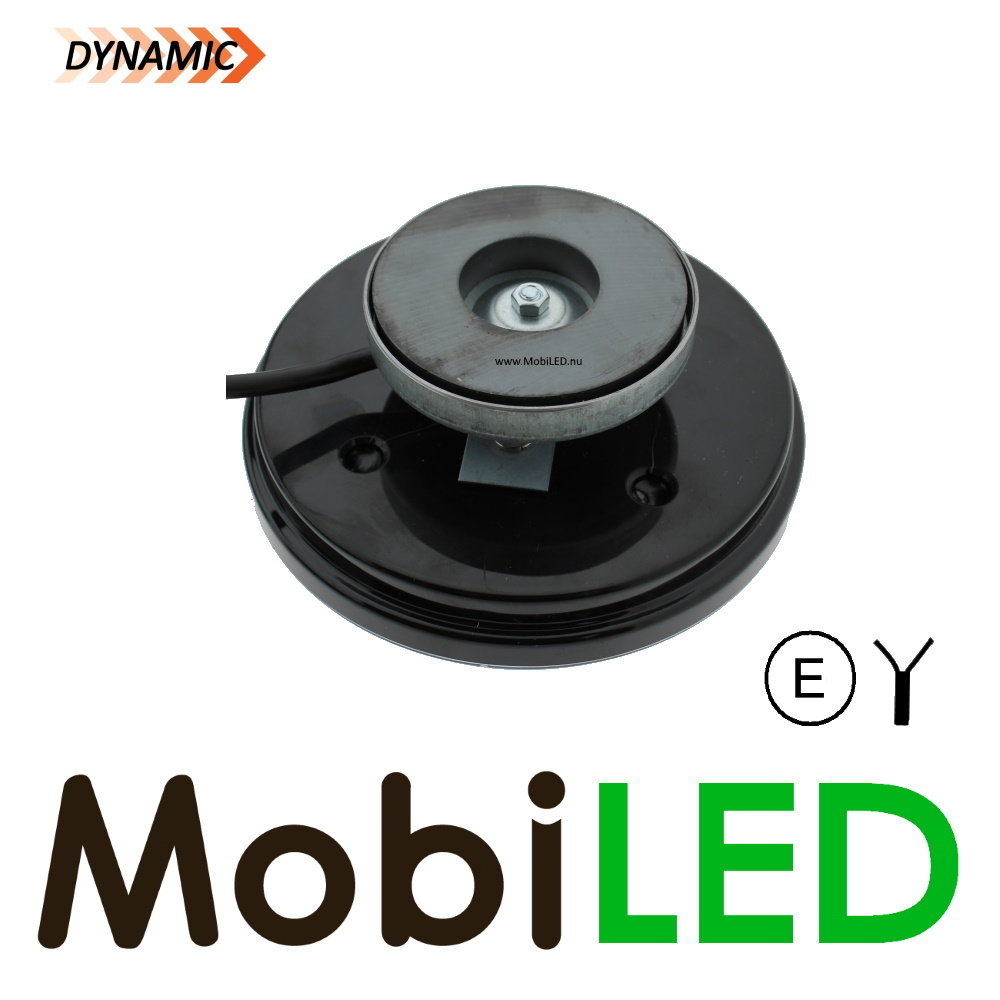

The set consists of a left and a right rear light and all wiring and plugs needed for quick installation. The cable length is 7.5 m. The lamps have a magnet for attachment.
Functions:
- Rear light
- Brake light
- Dynamic turn signal
Connection diagram:
- White: mass
- Black: rear light
- Red: brake light
- Yellow: turn signal
Warning:
No guarantee is given on adhesion of magnets. MobiLED cannot be held liable for damage caused by the use of magnets.
Product specifications
- Article number
- AL396
- Tension
- 10-30V
- Depth (cm)
- 3,5
- Diameter (cm)
- 14
- Housing colour
- Black
- Mounting type
- Magnet
- Flush-mounted / surface-mounted
- Surface-mounted
- Bolt spacing / bolt size (cm)
- 4,4
- Connection
- Cable
- Cable Length (cm)
- 750
- Number of wire cores
- 4
- Certification
- R6, R7, R10
- Shape
- Round
- Vehicle side
- Right+Left
- Tail light function
- Yes
- Brake light function
- Yes
- Dynamic indicator
- Yes
- Neon look
- Yes
- Packed per
- 1 set
- Manufacturer article number
- 2000010065851 / L1883
