Set Undercover recessed mounting Flashers white

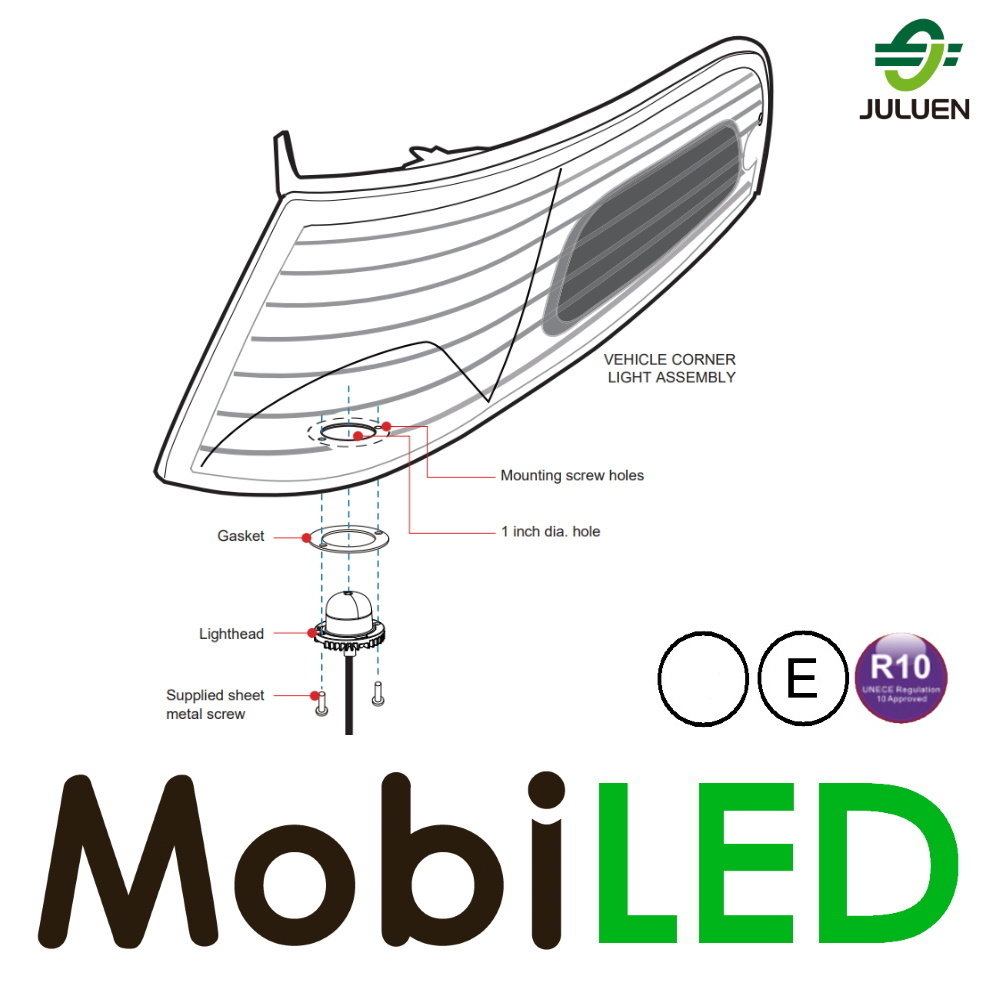

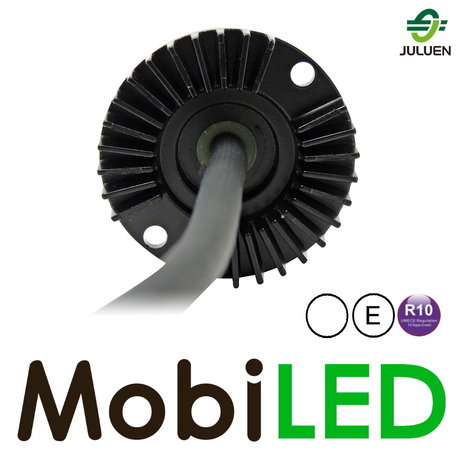

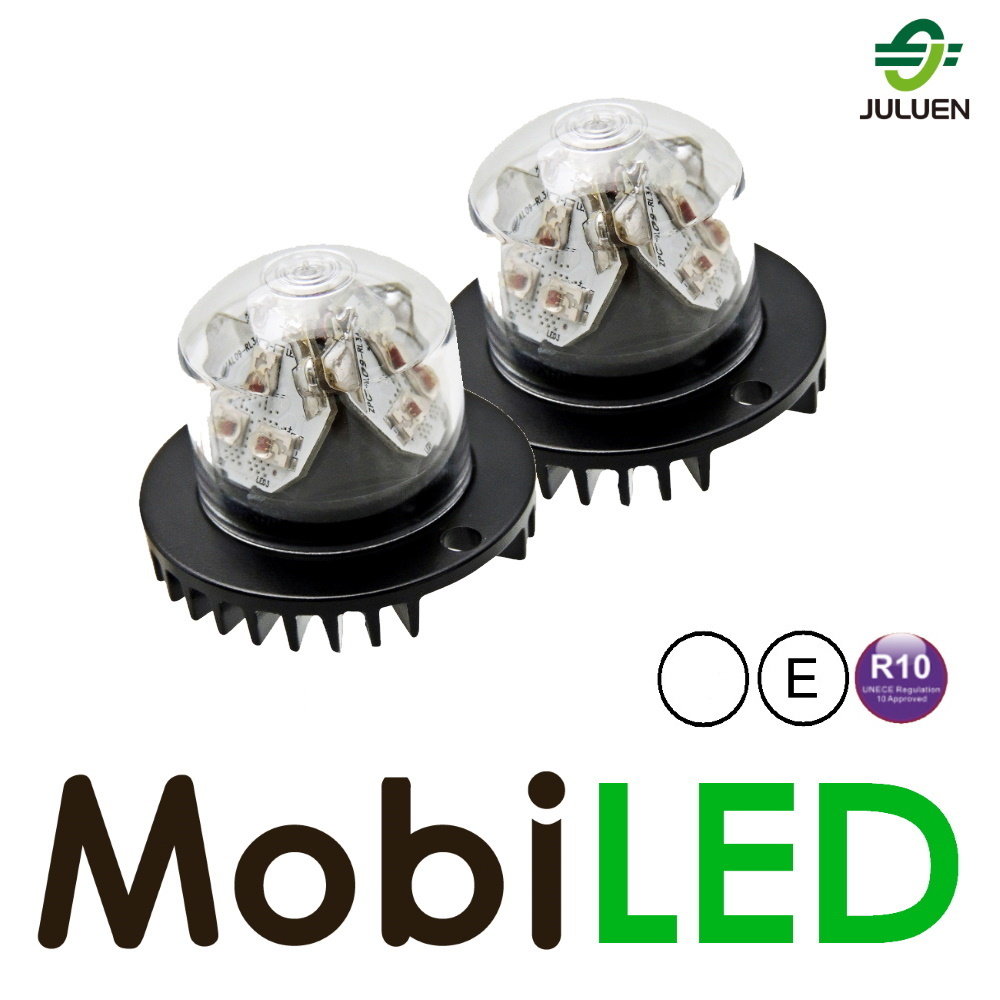

Set of two compact flashers suitable for recessed mounting. This round flasher can be discreetly mounted in the headlight housing of your vehicle.

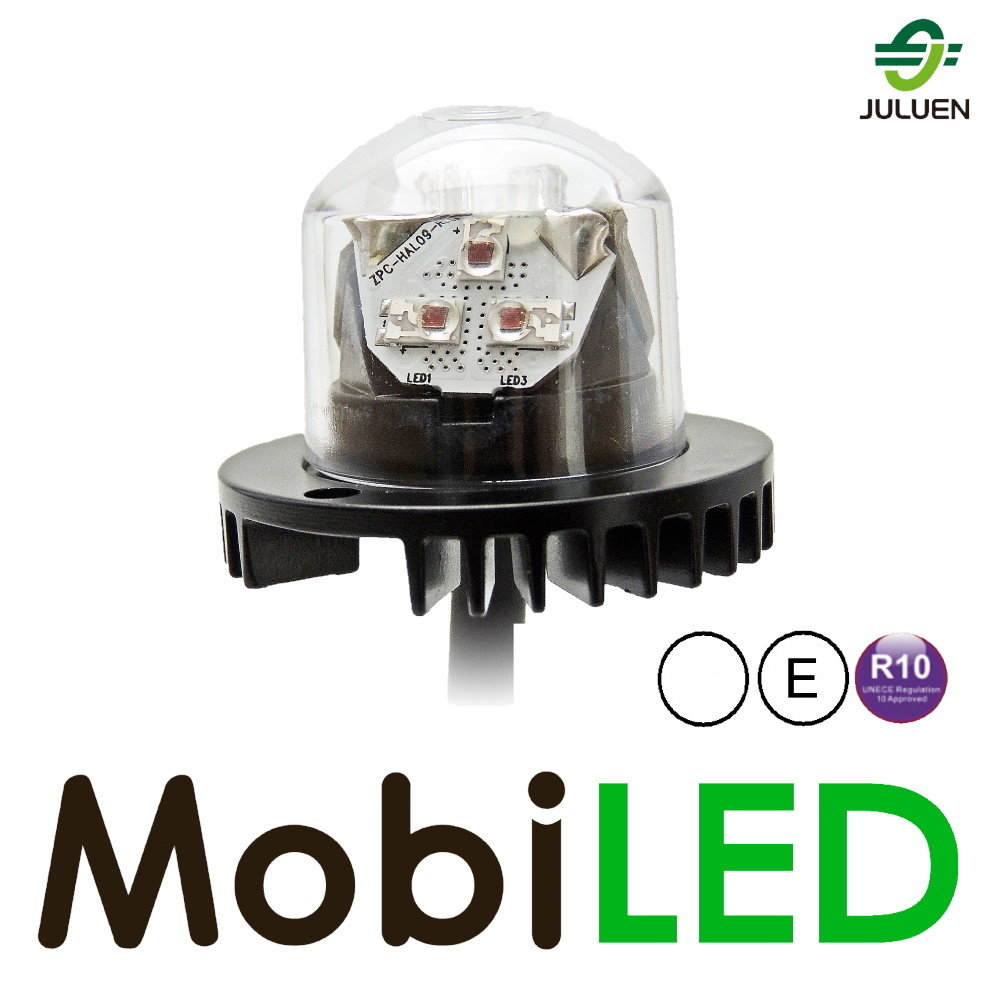

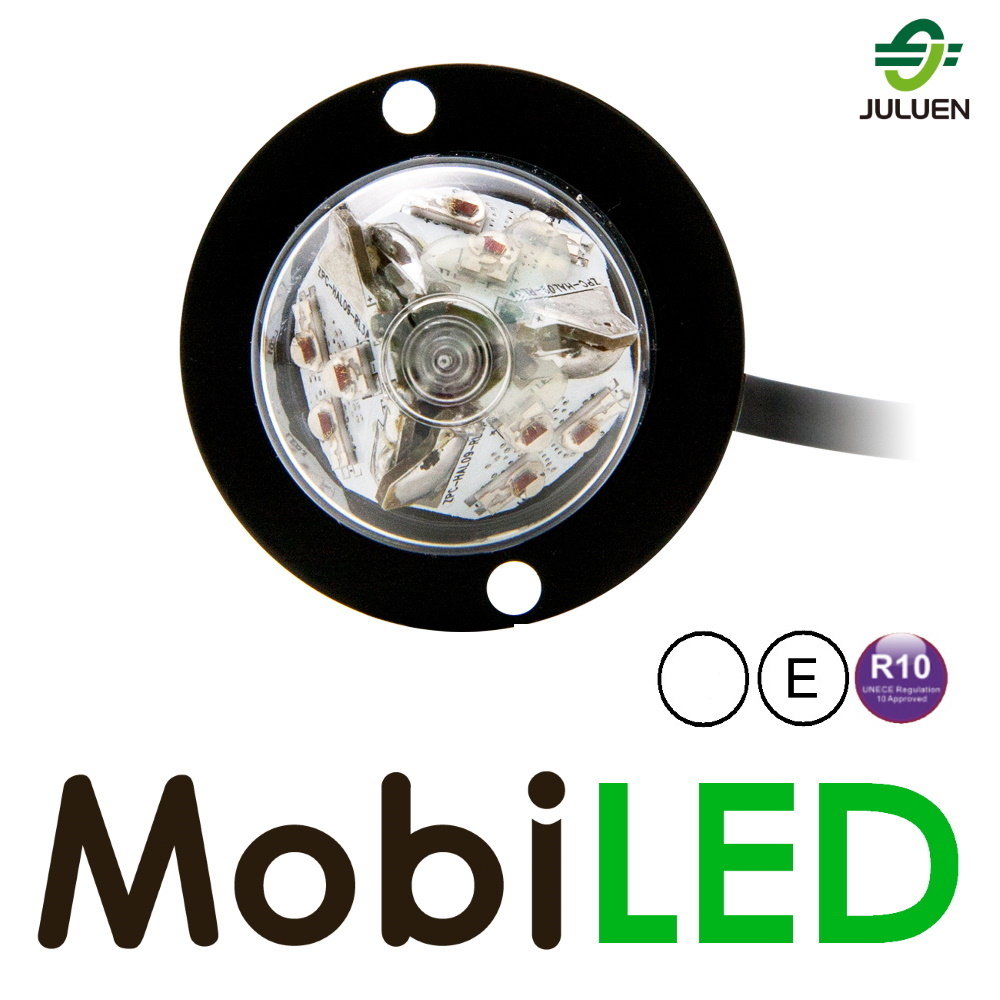

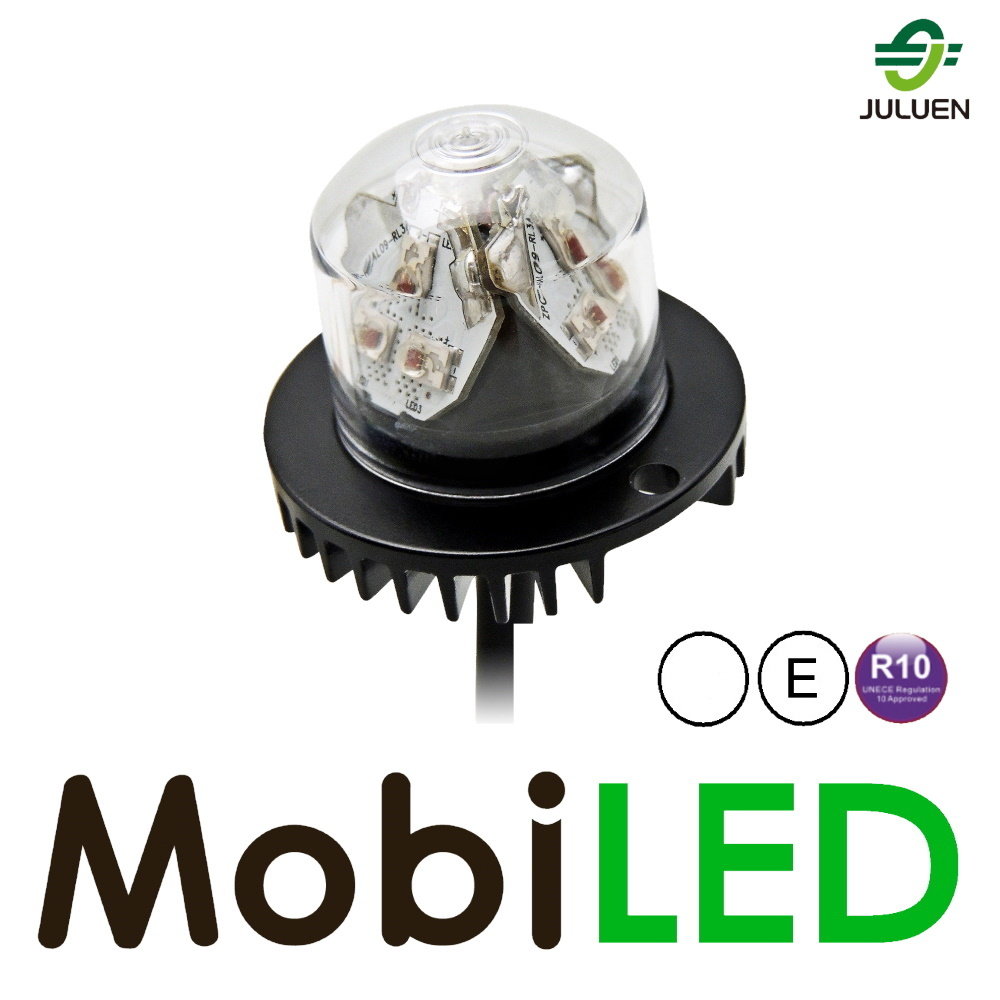

The nine LEDs per flasher provide a striking white light image in all directions. Control for both flashers is in a separate supplied unit, you can choose from 18 flash patterns. The flasher will remember the last pattern you selected.

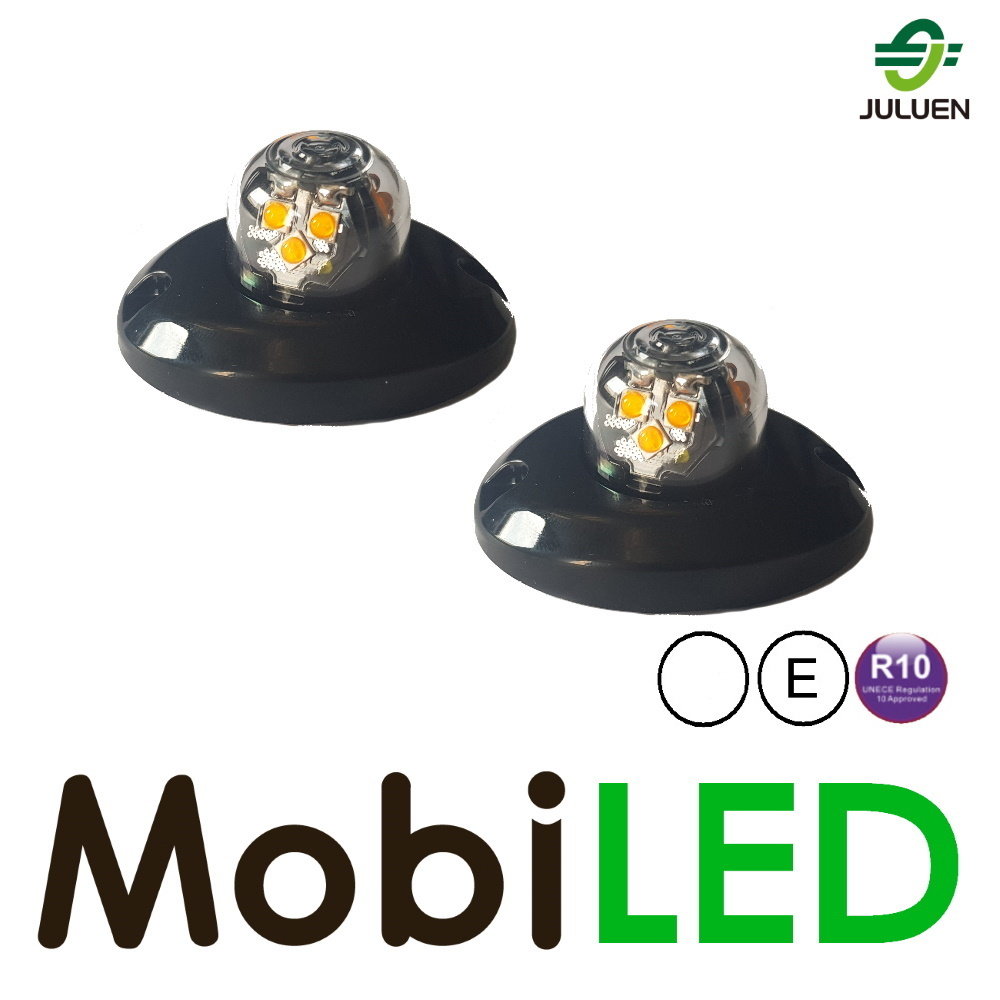

With the supplied set of mounting flanges, the flashers can also be mounted as a surface-mounting flasher. They are then visible 360 ​​° all around, like a kind of mini rotating beacon.

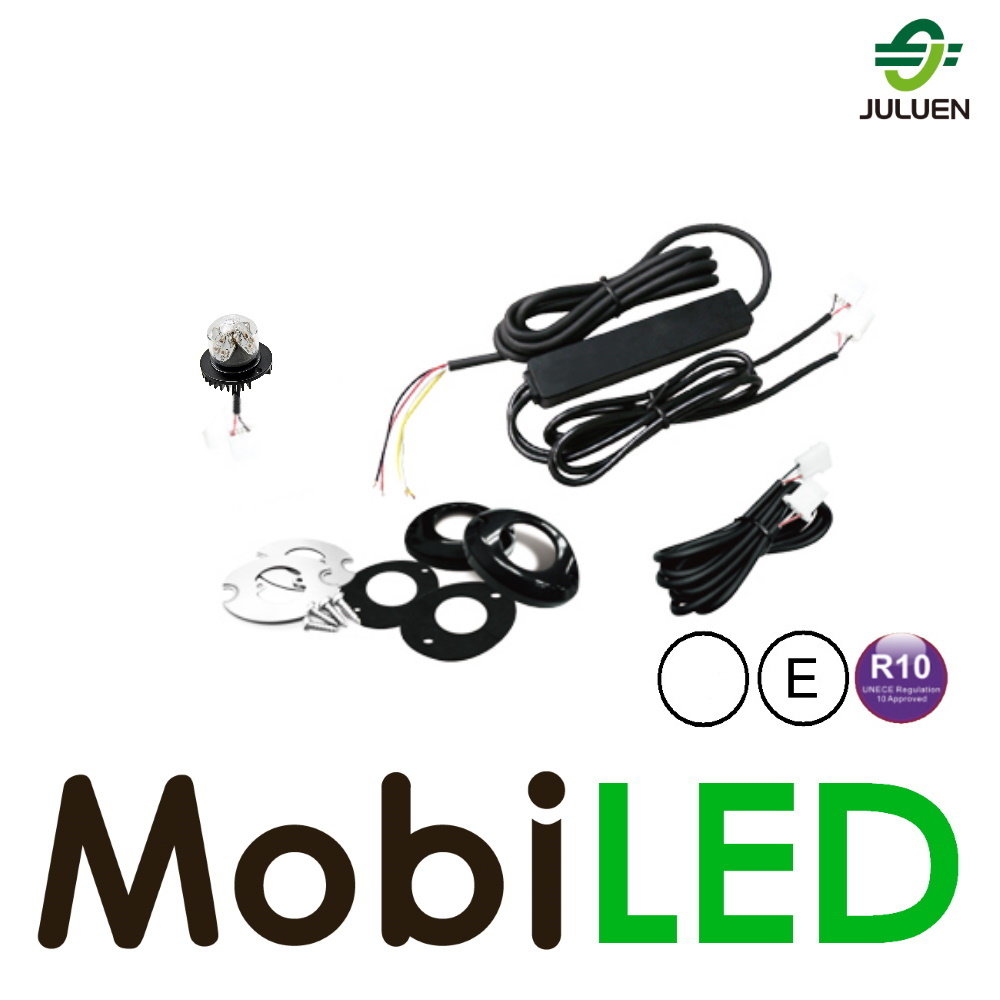

Contents:

• Necessary connection cables
• Control unit
• Fixing material
• Extra set of mounting flanges

Specifications:

• Voltage: 12-24 V
• Light color: white

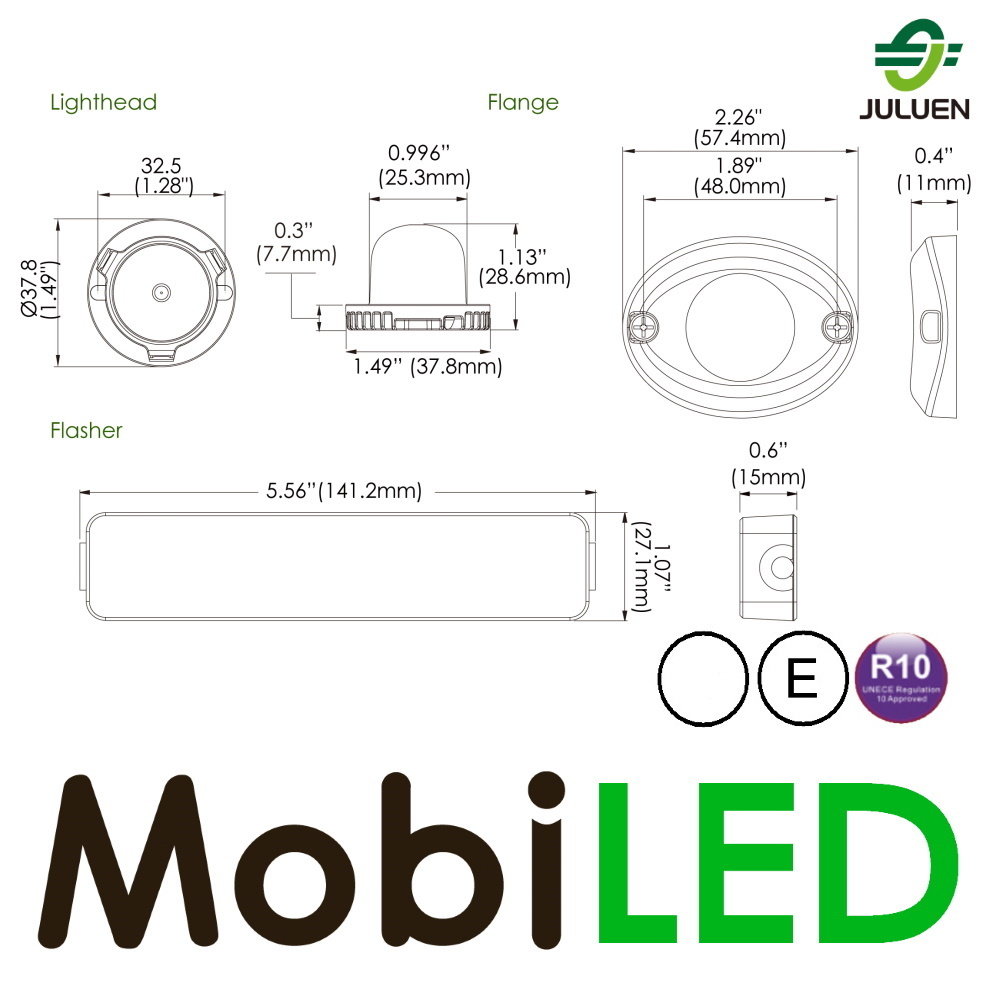

• Hole size: 25.4 mm
• Power: ~ 15 W (30 W max)
• Maximum current: 2.5 A @ 12 V / 1.25 A @ 24 V

Connection diagram:

• Red = (+) plus
• Black = (-) min / mass
• Yellow = flash pattern: briefly connect (+)plus to switch to the next flash pattern.
• Sync: jumper yellow wires together to make sets flash in sync.
• White: for synchronized sets: whether or not to connect to (+) plus for simultaneously or alternately.
