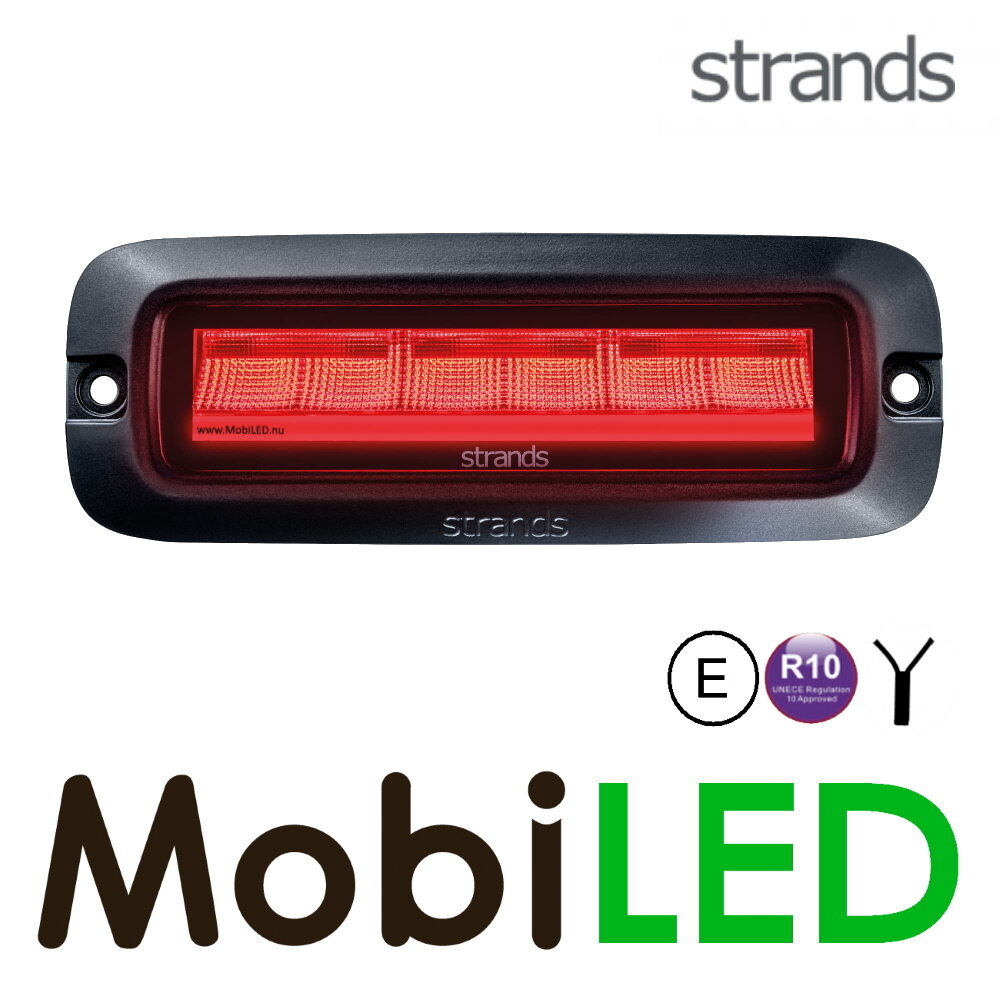

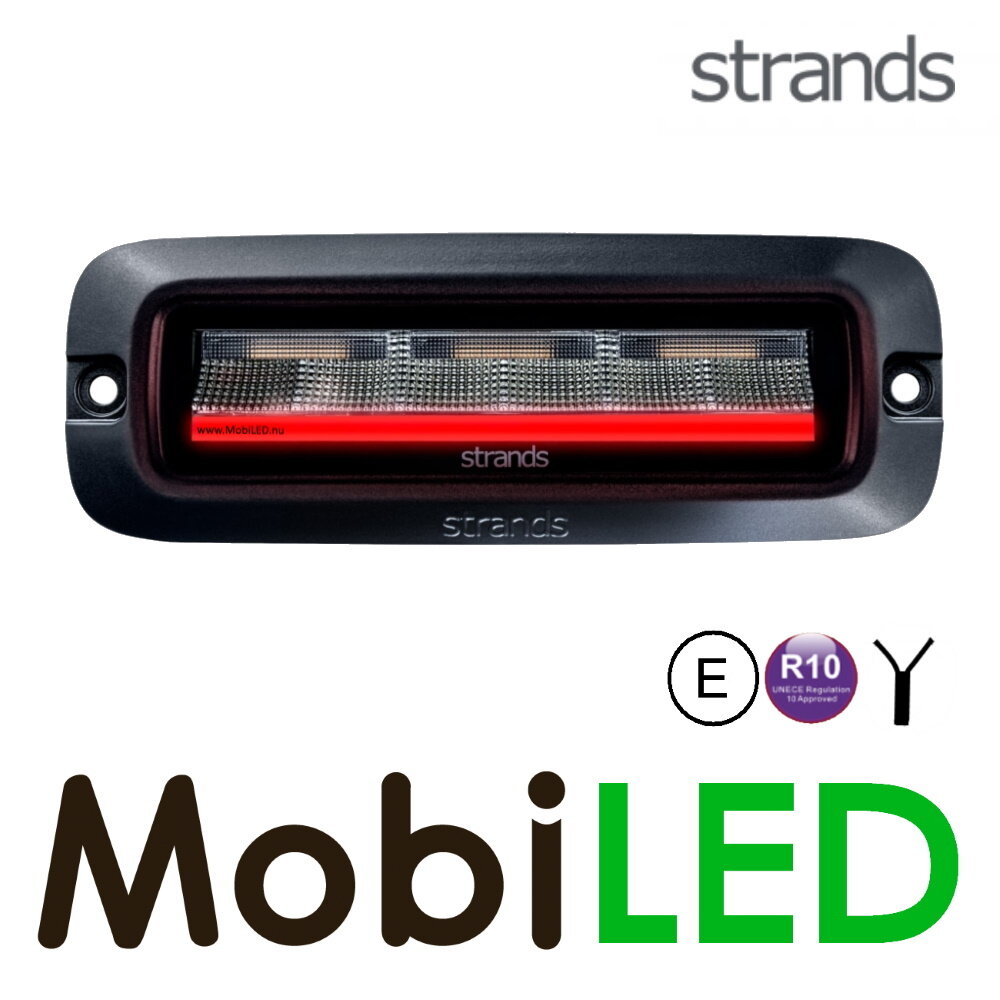

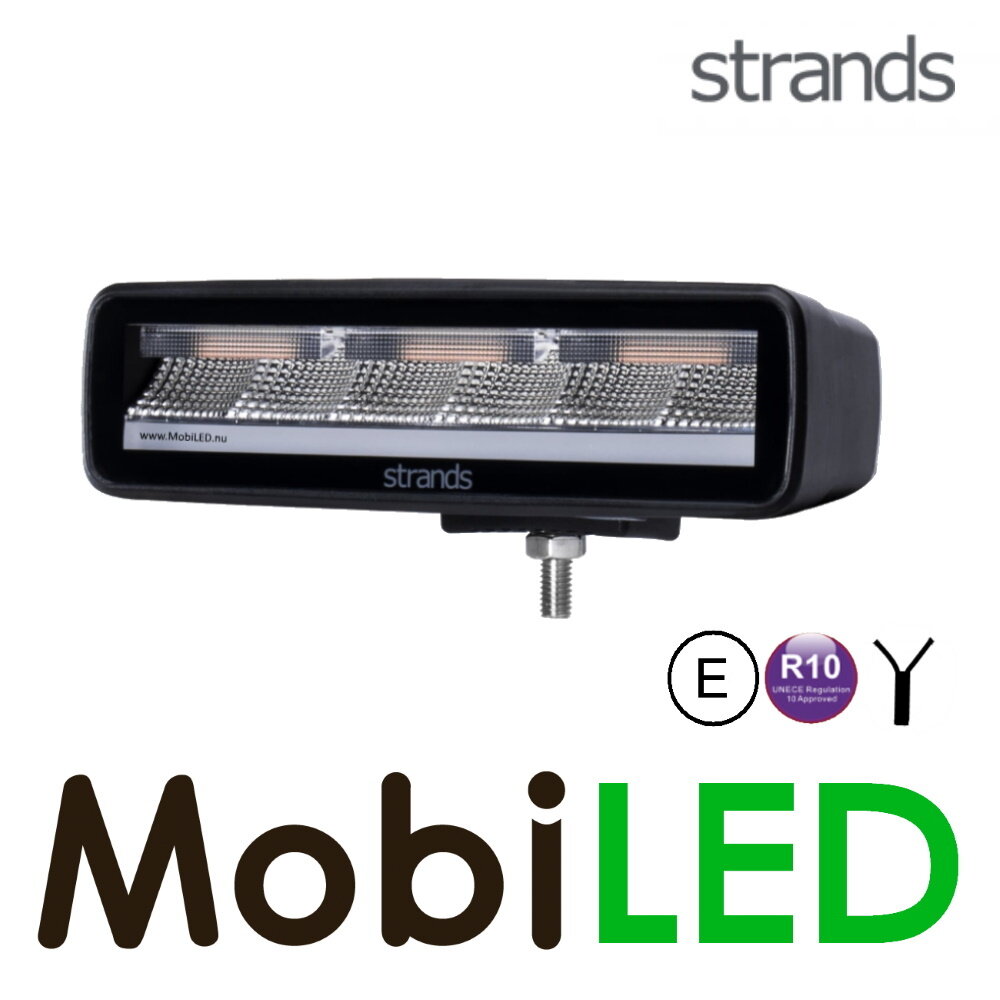

Siberia MO tail light 4 functions 10-32V

The Siberia MO is a brand new rear light in the Siberia family with 4 E-approved functions. It provides the perfect lighting solution in 1 lamp with the typical no-edge Siberia design.

The Siberia MO is available in 2 versions. This version is equipped with position light, indicator, brake light and reversing light. The other version (item no. AL590) has the same functions, but the direction indicator has been replaced by a strobe light.

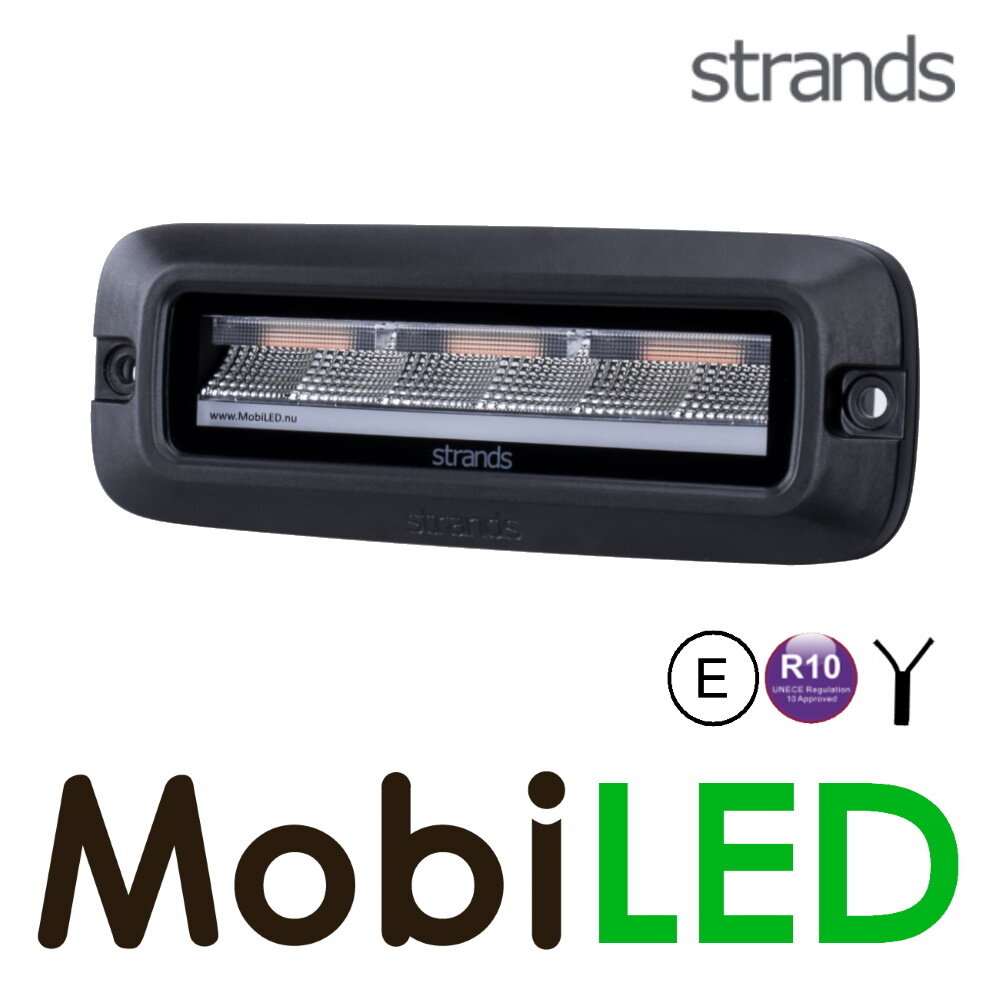

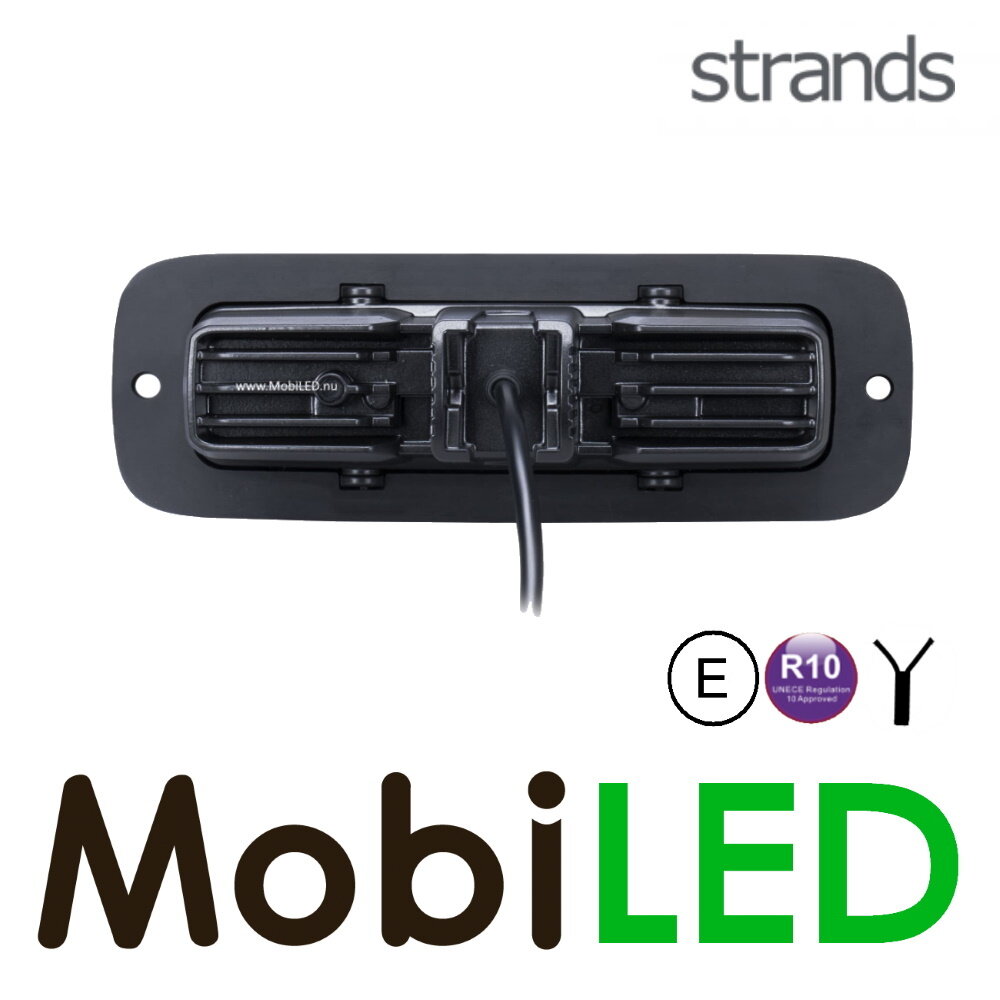

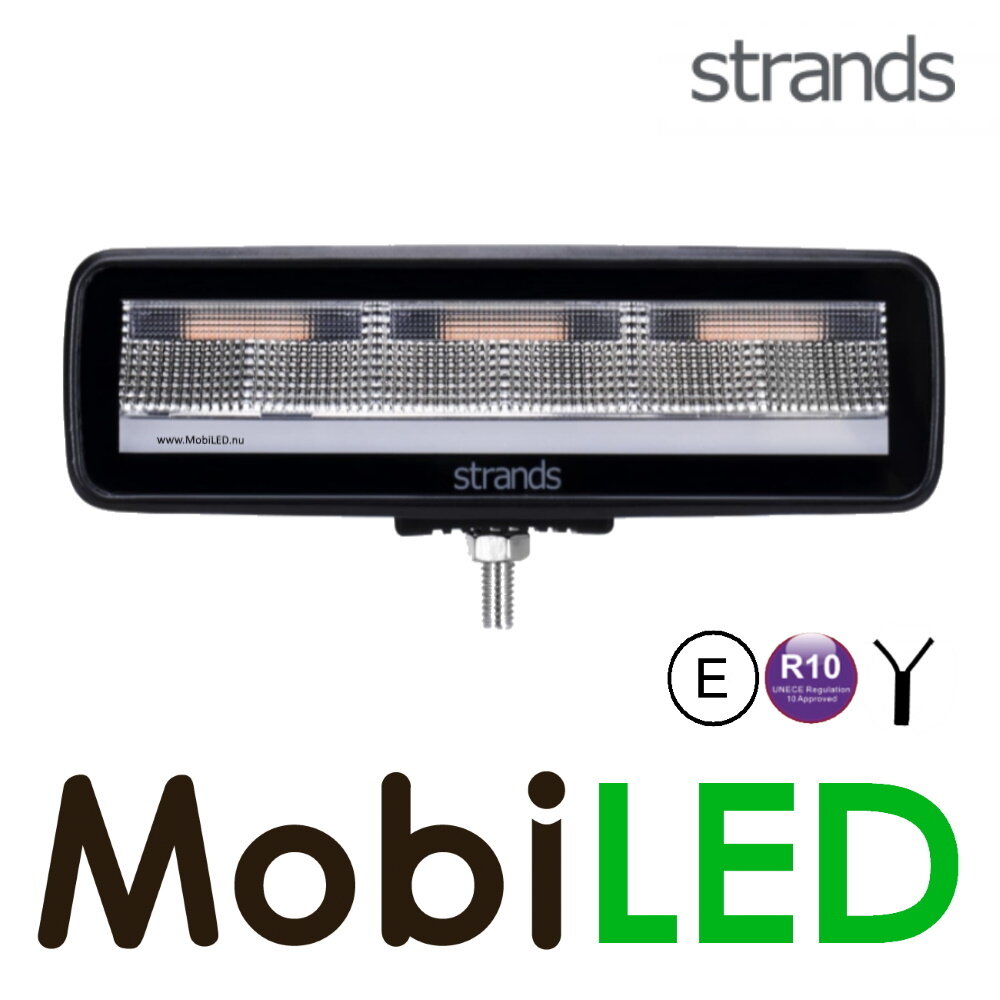

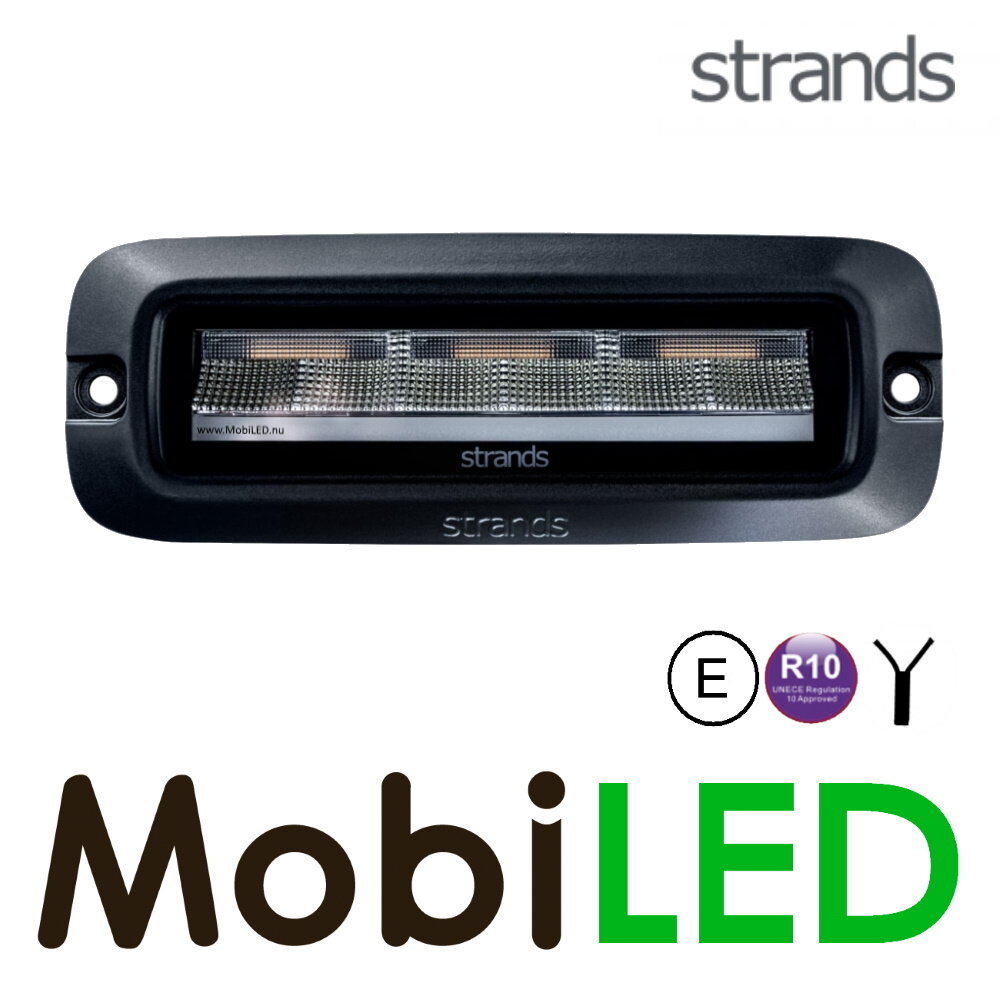

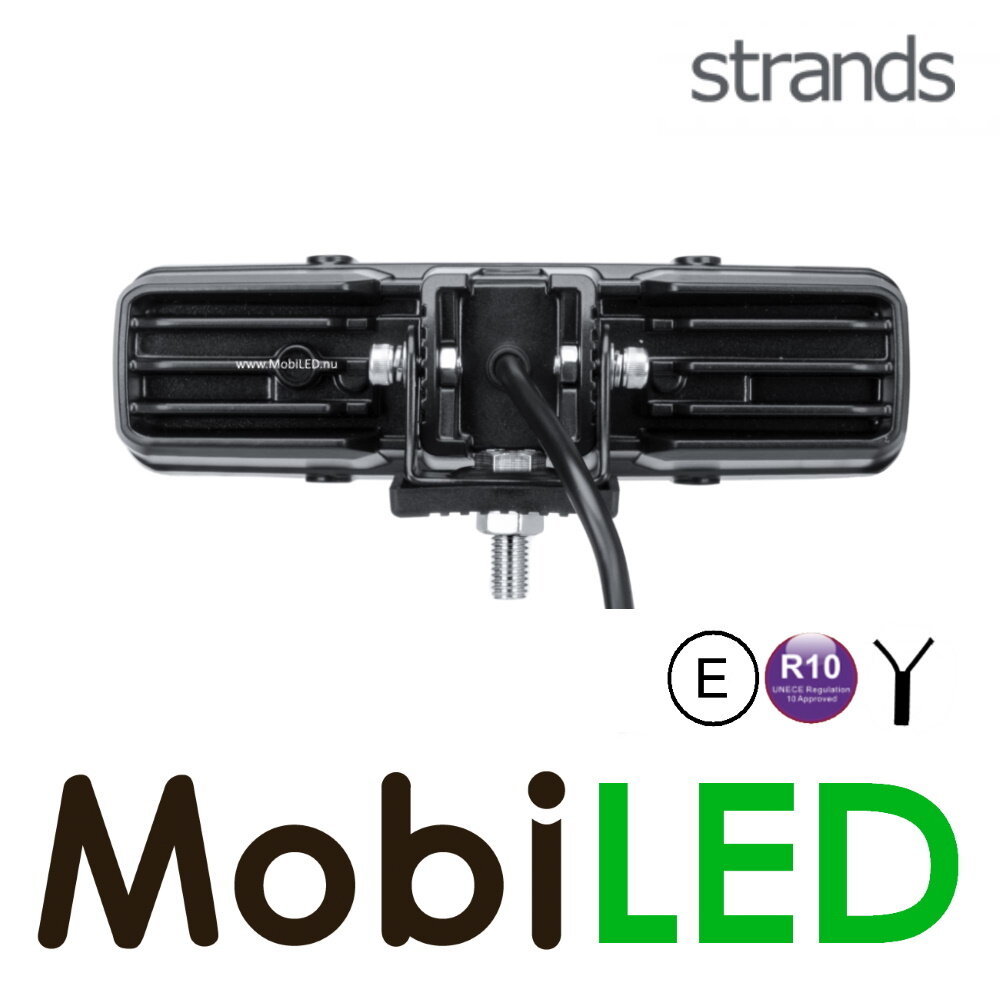

The voltage of 10-32 V DC makes this rear light perfect for mounting on all kinds of vehicles. You can choose flush mounting with an included rigid frame and rubber gasket, designed to blend seamlessly into the vehicle and provide seamless installation. Or you choose mounting with the corner bracket on the back of the lamp. The angle bracket can be adjusted 180 degrees. The lamp comes with a 2.5 meter cable for easy installation.

The housing is made of aluminum and the lens is made of unbreakable polycarbonate and is treated with UV coating for the most challenging climate. Waterproof according to IP67 and resistant to harsh environments according to IP class IP69K. All features are fully E-approved.

Features:

1. Rear light
2. Brake light
3. Turn signal
4. Reversing light

Specifications:

• Voltage: 10-32 V DC
• Lumen: 546 theoretical, 322 actual
• 1 LUX @ m: 14 m
• Water resistance: IP67/69K
• Light image: flood
• Cable length: 2.5 m
• Bracket material: stainless steel
• Housing material: aluminum
• Lens material: polycarbonate

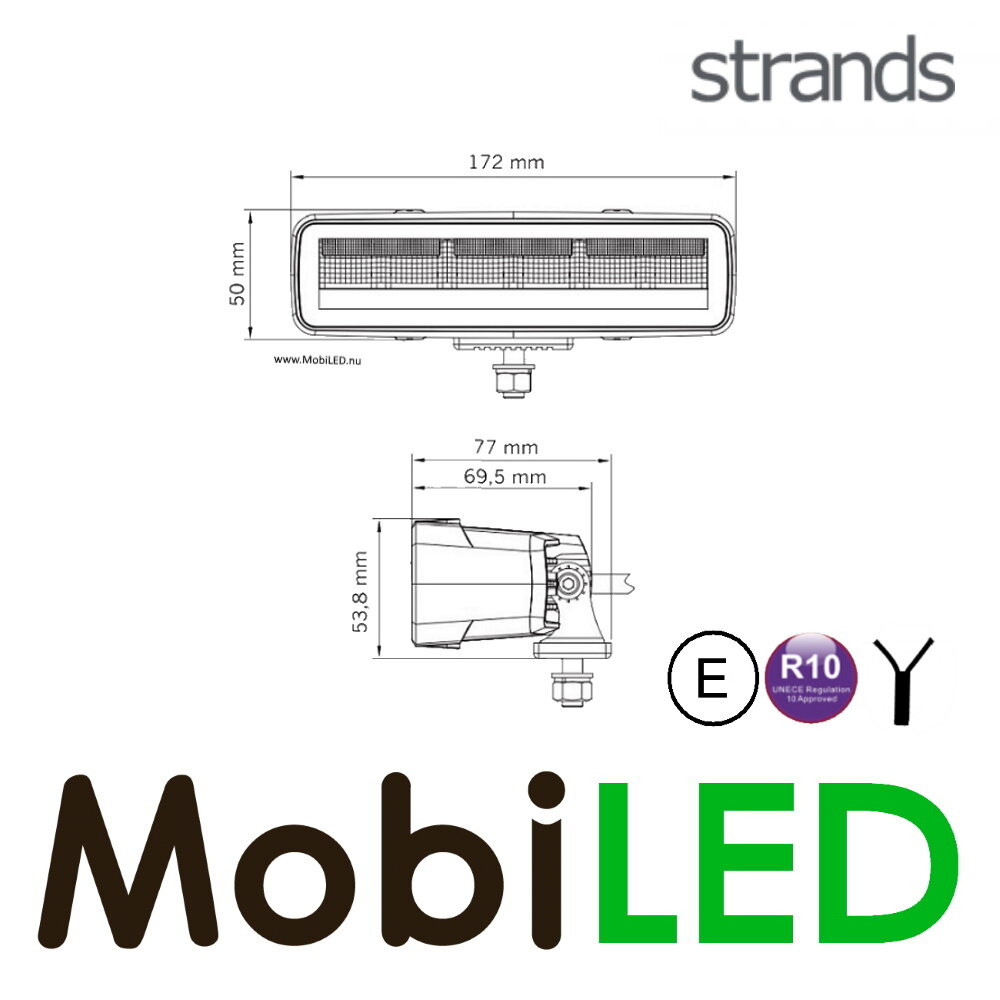

• Dimensions: 172 x 50 x 69.5 (172 x 53.8 x 77 incl. bracket) mm
• Operating temperature: -30℃ - +65℃
• E-Approval: ECE R10, R148
• Beach article number: 809224

Connection diagram:

• Black: - earth
• Green/yellow: + rear light
• Red: + brake light
• Yellow: + turn signal
• Grey: + reversing light
