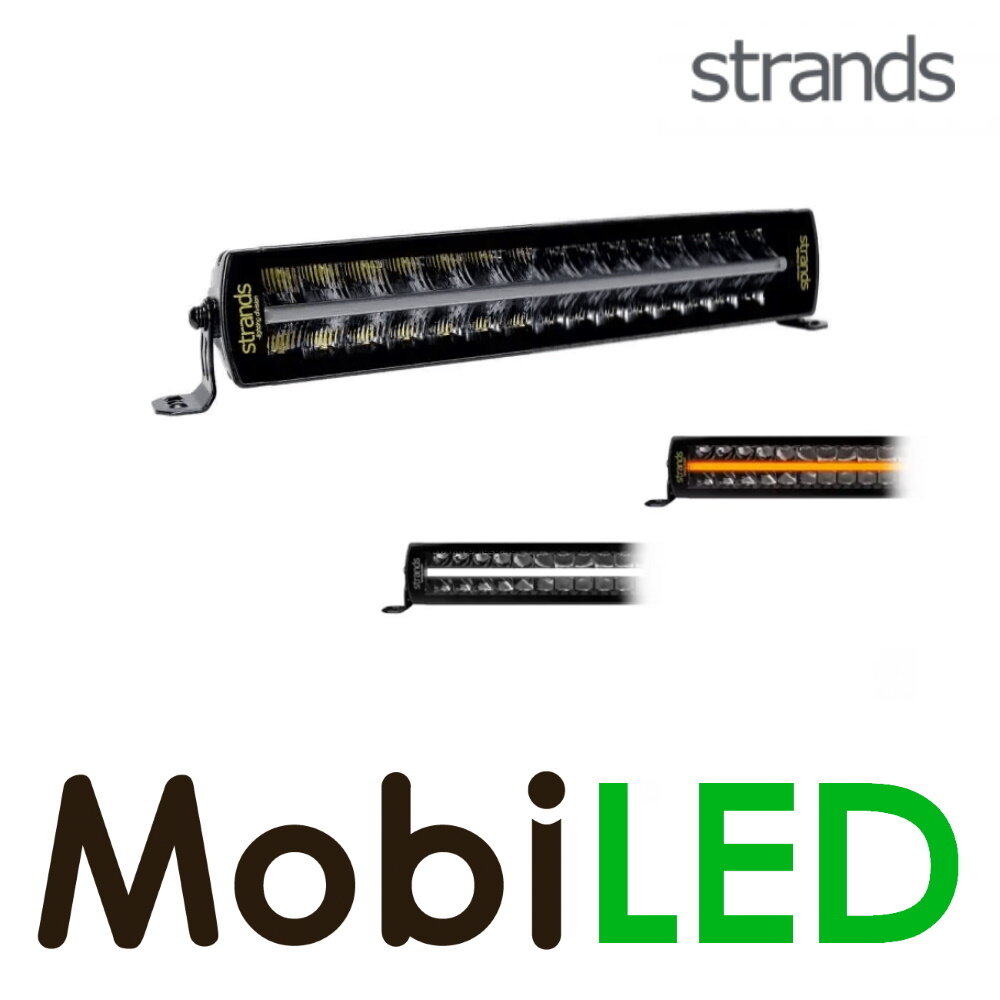

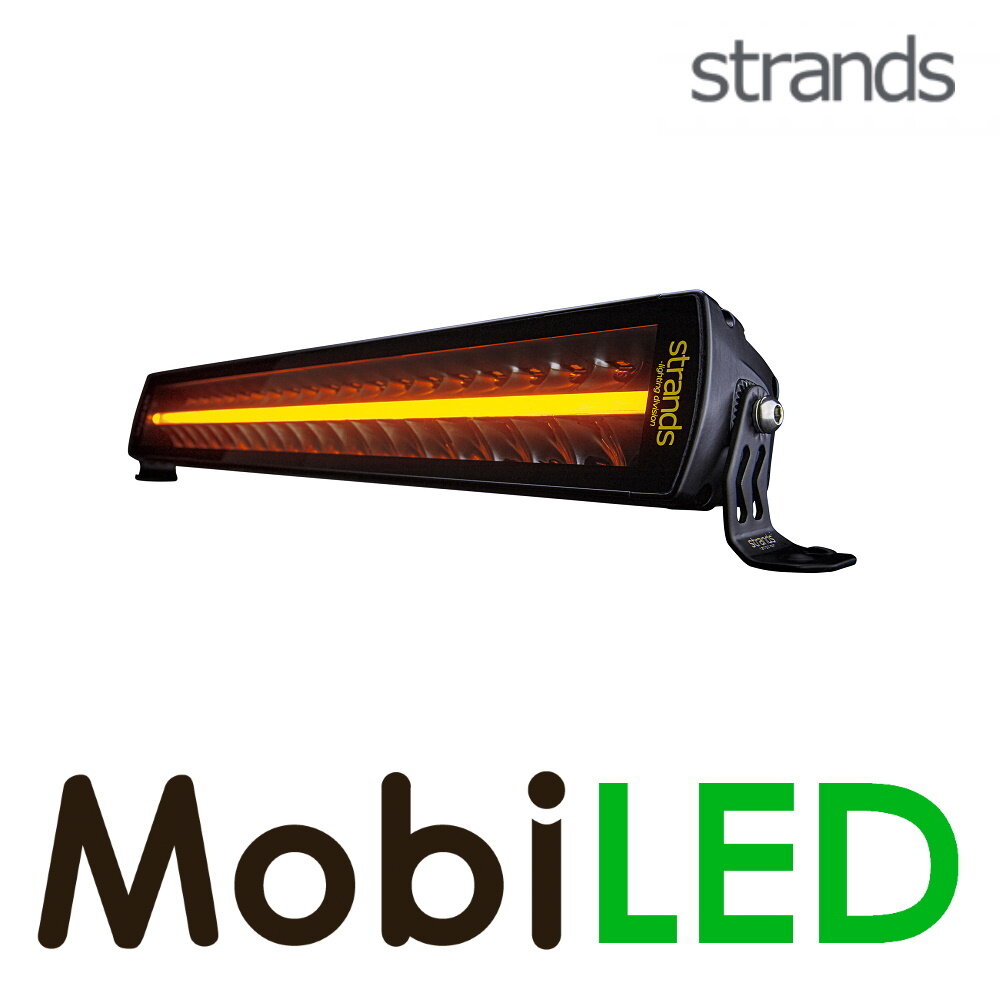

Siberia Outlaw 22 inch Double Row
The Siberia Outlaw, the latest addition to the Siberia family. Strong LED bar with a 1 lux of 1220 meters and with a size of 22", packed with technology, knowledge and development. It is equipped with extreme components to create an extreme amount of light. The light image is optimized and gives you a good width, but also an unsurpassed light length.

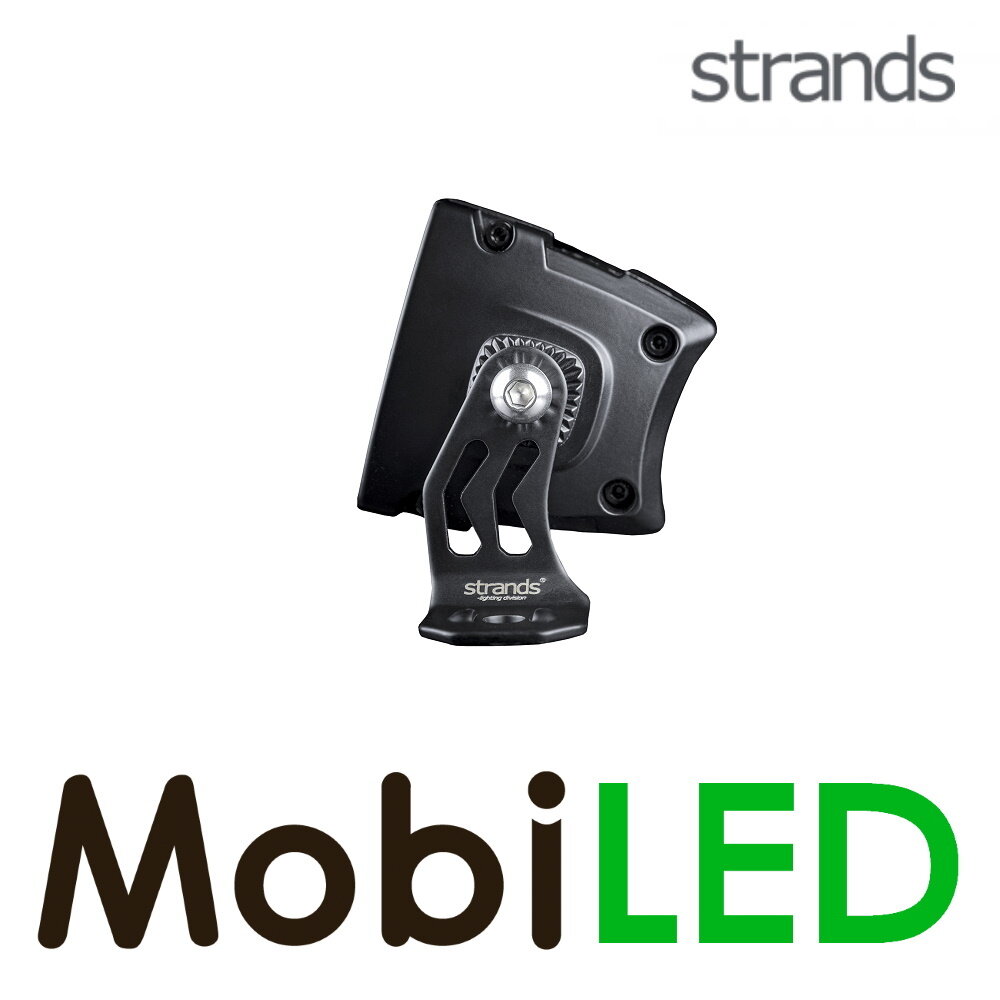

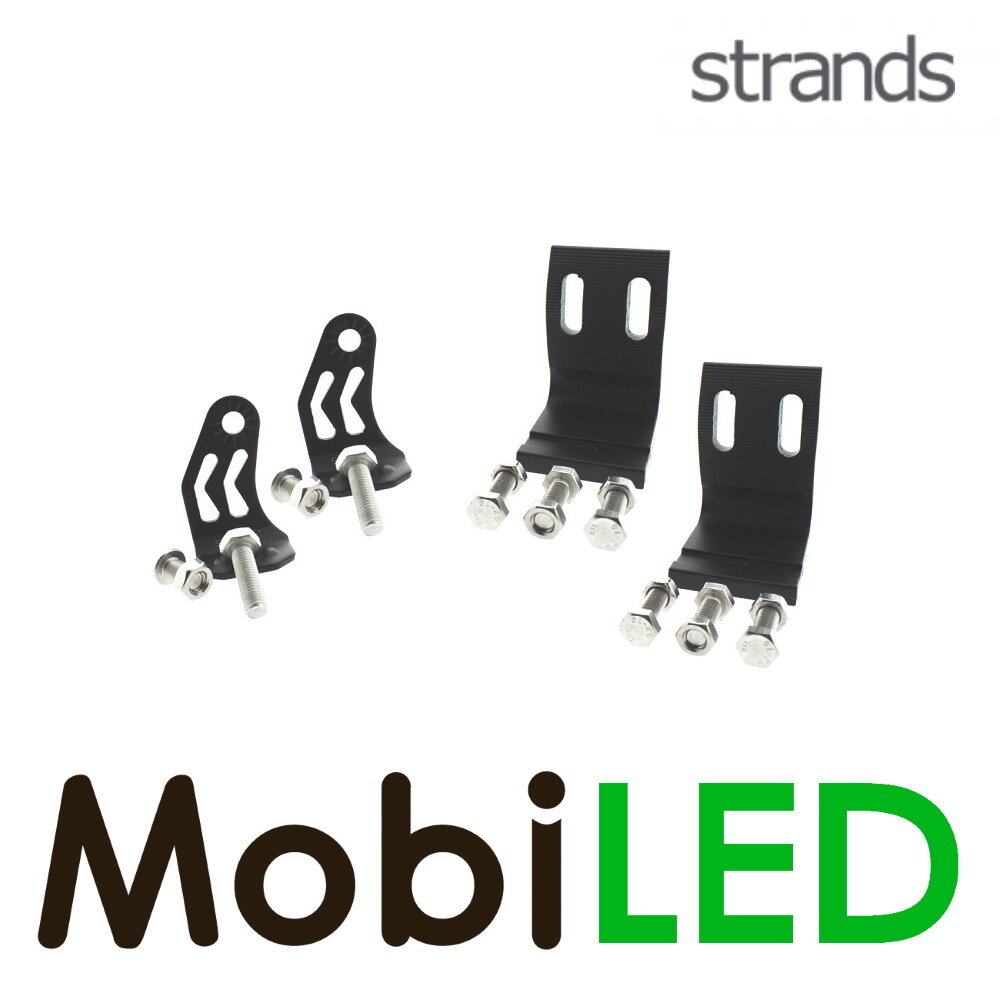

The Siberia Outlaw is a 2-row bar in the typical Siberia design with no edge lens and with a characteristic position light. The yellow Strand logo further distinguishes the LED bar from other LED bars. Mounting can be done with the supplied brackets on the side of or behind the LED bar.
Connection diagram:
- Black: - earth
- Red: + LED bar
- Yellow: + amber position light
- White: + white position light
Product specifications
- Article number
- LB361
- Length (cm)
- 56,2
- Height (cm)
- 7,6
- Height incl bracket (cm)
- 8,9
- Depth (cm)
- 7,15
- Shape
- Elongated
- Tension
- 10-30V
- Power
- 400W theoretical / 256,6W practical
- Lumens
- 29600 theoretical / 13007 practical
- Light colour
- Bright white (4500-6000K)
- Number of LEDs
- 40
- LED Type
- CREE

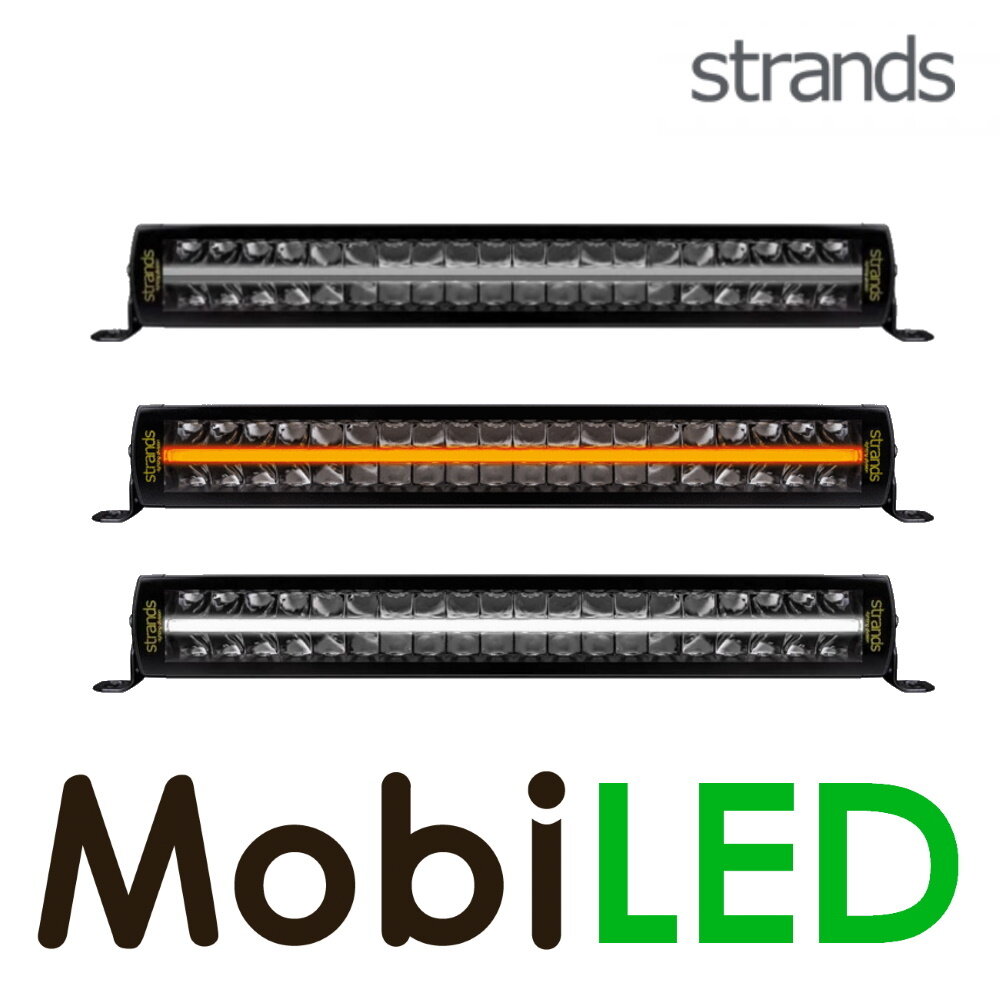

- Position light function
- Yes, white or amber
- Light image
- Spot
- Beam range
- 1 lux@1220 m
- Housing colour
- Black
- Lens colour
- Transparant
- Housing material
- Aluminum
- Lens material
- PC
- Mounting bracket material
- Stainless steel
- Mounting type
- Side- or rear mounting
- Connection
- Cable
- Cable Length (cm)
- 250
- Number of wire cores
- 4
- Operating temperature
- -30°C - +65°C
- IP rating
- IP67 & IP69K
- Certification
- ECE R10
- Packed per
- 1
- Manufacturer article number
- Strands 809167
