Siberia TL tail light 12 inches
The Strands Siberia Tail Light is another opportunity to create a unique look. In the form of a Siberia LED bar, Strands has created a completely new kind of lamp, a 12 inches rear light with 4 functions.
The 4 functions are: a 1900 lumen reversing light, a flashing light, a red position light approved as a tail light and a brake light in a deep, dark, red look that makes you stand out both day and night.

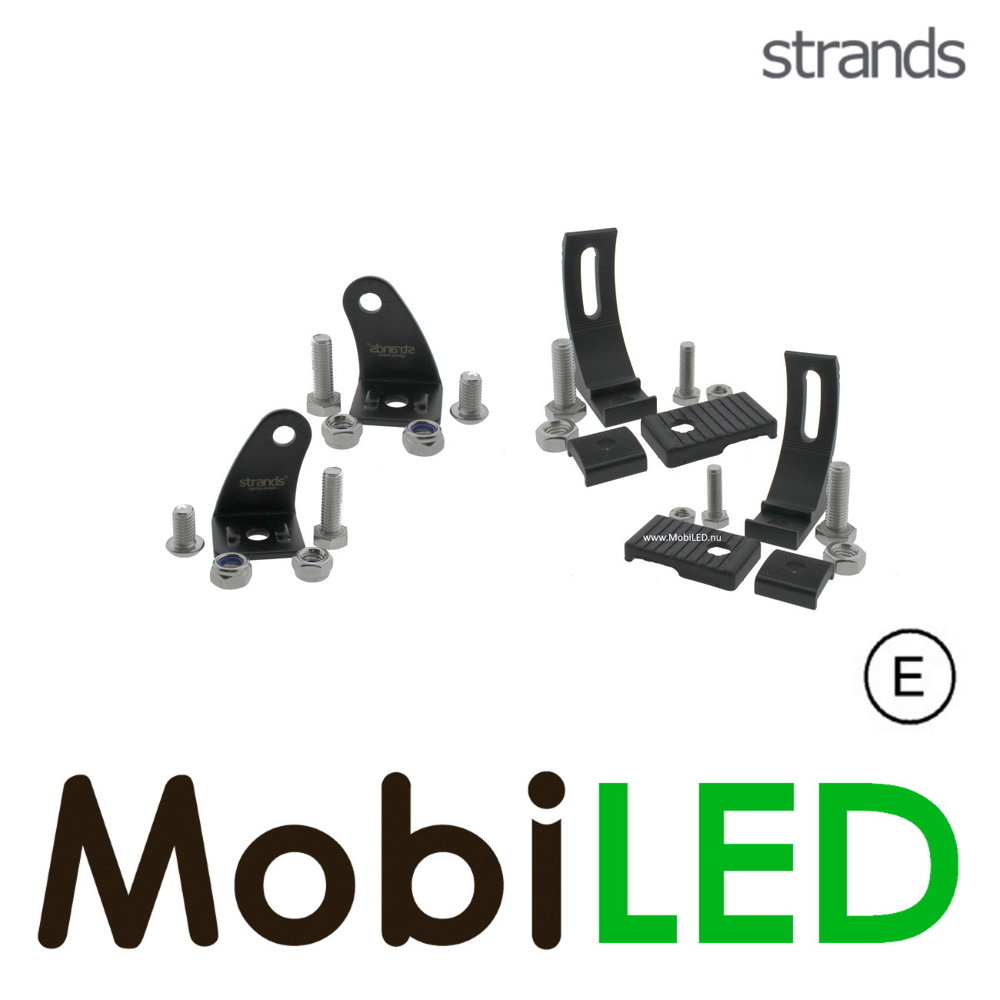

The item comes with side and bottom mounting brackets.
Features:
- Taillight
- Brake light
- Turn indicator
- Reversing light
Connection diagram:
- Black: - earth
- Green: + rear light
- Red: + brake light
- Yellow: + direction indicator
- Gray: + reversing light
Video:
Product specifications
- Article number
- LB316
- Length (cm)
- 30,06
- Height (cm)
- 4,5
- Height incl bracket (cm)
- 6,5
- Depth (cm)
- 5,55
- Shape
- Elongated
- Tension
- 10-32V
- Power
- 35W
- Lumens
- 1900 theoretival, 323 actual
- Light colour
- Red / Amber/ White
- Number of LEDs
- 75
- Position light function
- Yes red
- Light image
- Flood

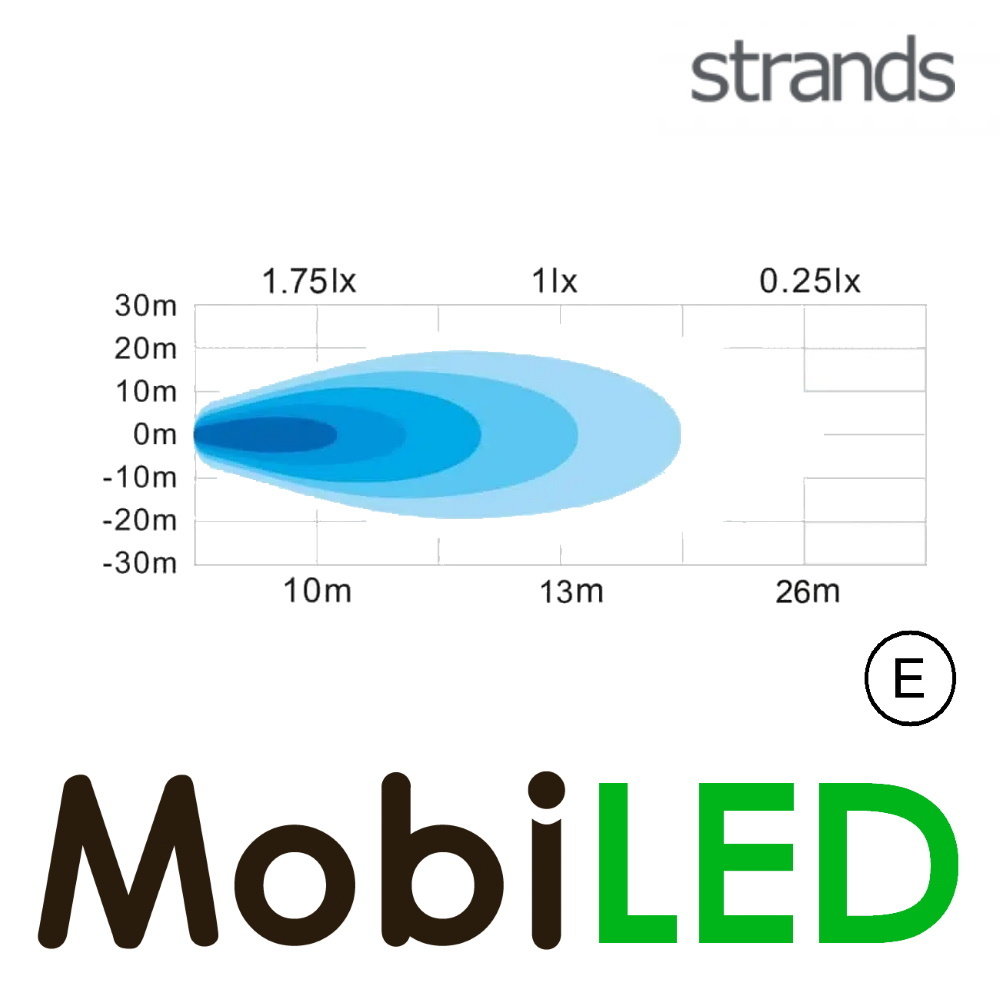

- Beam range
- 1 lux @ 13 m
- Housing colour
- Black
- Lens colour
- Transparant
- Housing material
- Aluminum
- Lens material
- PC
- Mounting bracket material
- Stainless steel
- Mounting type
- Side / bottom mounting
- Connection
- Cable
- Cable Length (cm)
- 250
- Number of wire cores
- 5
- Operating temperature
- -30°C - +65°C
- IP rating
- IP67 & IP69K
- Certification
- ECE R10, R148
- Packed per
- 1
- Manufacturer article number
- 809226
