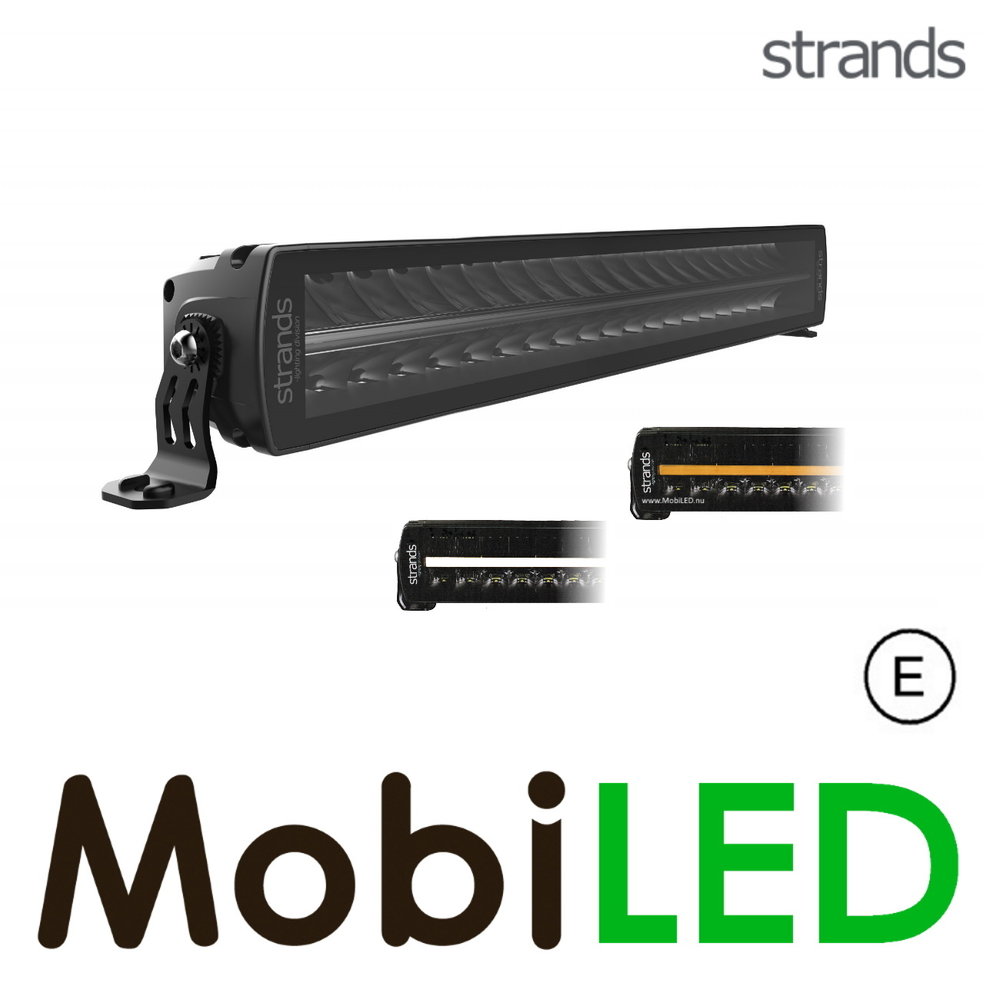

Strands Siberia DR 22 inch
The Strands Siberia Dingle Row series is made for your truck. Cutting-edge design in combination with revolutionary features. Slim, dark and sophisticated. The lens extends from edge to edge. All models are E-approved.
The series comes in five sizes, 12", 22", 32", 42" and 50". The light pattern is increasing with size.
Siberia is also available in a single-row model, also in five sizes.

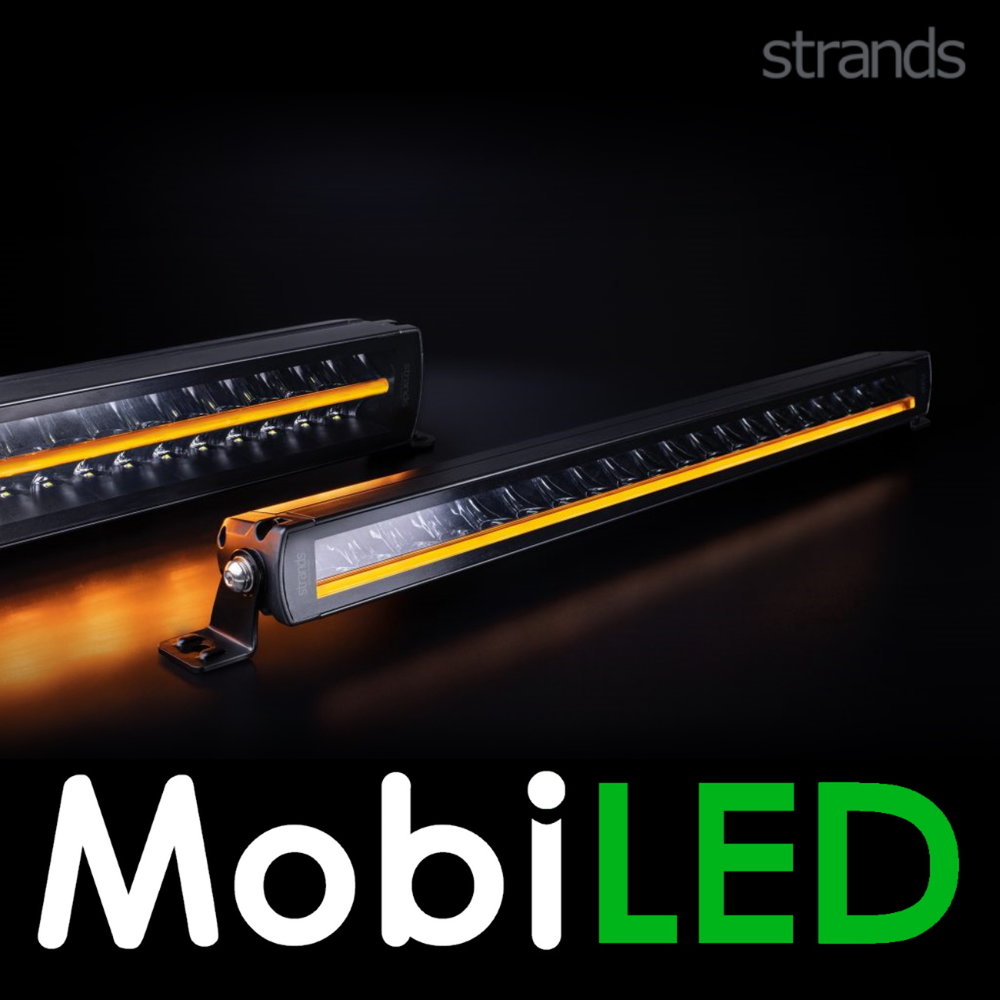

The unique dual position light lets you express your style and personality by choosing between amber and white light. This option is standard on every bar, you can also connect both to different circuits.
Siberia enhances the appearance of your vehicle and gives you efficiency at completely new levels on all roads and in all conditions. A brand new type of LED bar, created for those who are looking for the best.
The mounting brackets are included, for both side and bottom mounting.
Video:
Connection diagram:
- Black: - (earth)
- Red: + (positive)
- White: white position light
- Yellow: amber position light
Documents:
Product specifications
- Article number
- LB212
- Length (cm)
- 56,2
- Height (cm)
- 7,6
- Height incl bracket (cm)
- 8,9
- Depth (cm)
- 7,16
- Weight (gr)
- 3100
- Shape
- Elongated
- Tension
- 10-40V
- Power
- 91W
- Lumens
- 16000 theoretical 6316 practical
- Light colour
- Cool white (6000-6500K)
- Number of LEDs
- 40
- Position light function
- Yes, white or amber
- Light image
- Combo
- Housing colour
- Black
- Lens colour
- Transparant
- Housing material
- Aluminum
- Lens material
- PC
- Mounting bracket material
- Stainless steel
- Mounting type
- Side / bottom mounting
- Connection
- DT-4 connector
- Cable Length (cm)
- 50
- Operating temperature
- -30°C - +65°C
- IP rating
- IP67 & IP69K
- Certification
- ECE R112 (ref 45), ECE R10
- Packed per
- 1
- Manufacturer article number
- Strands 809181
