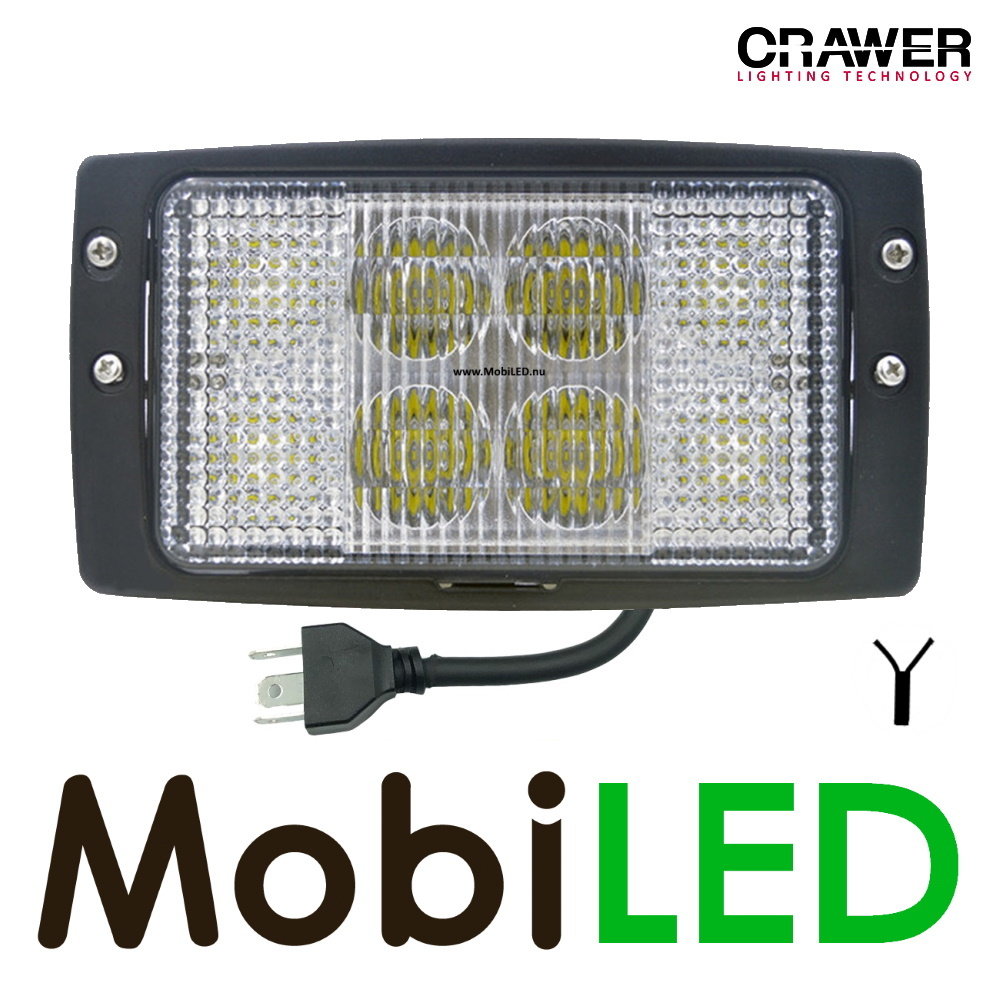

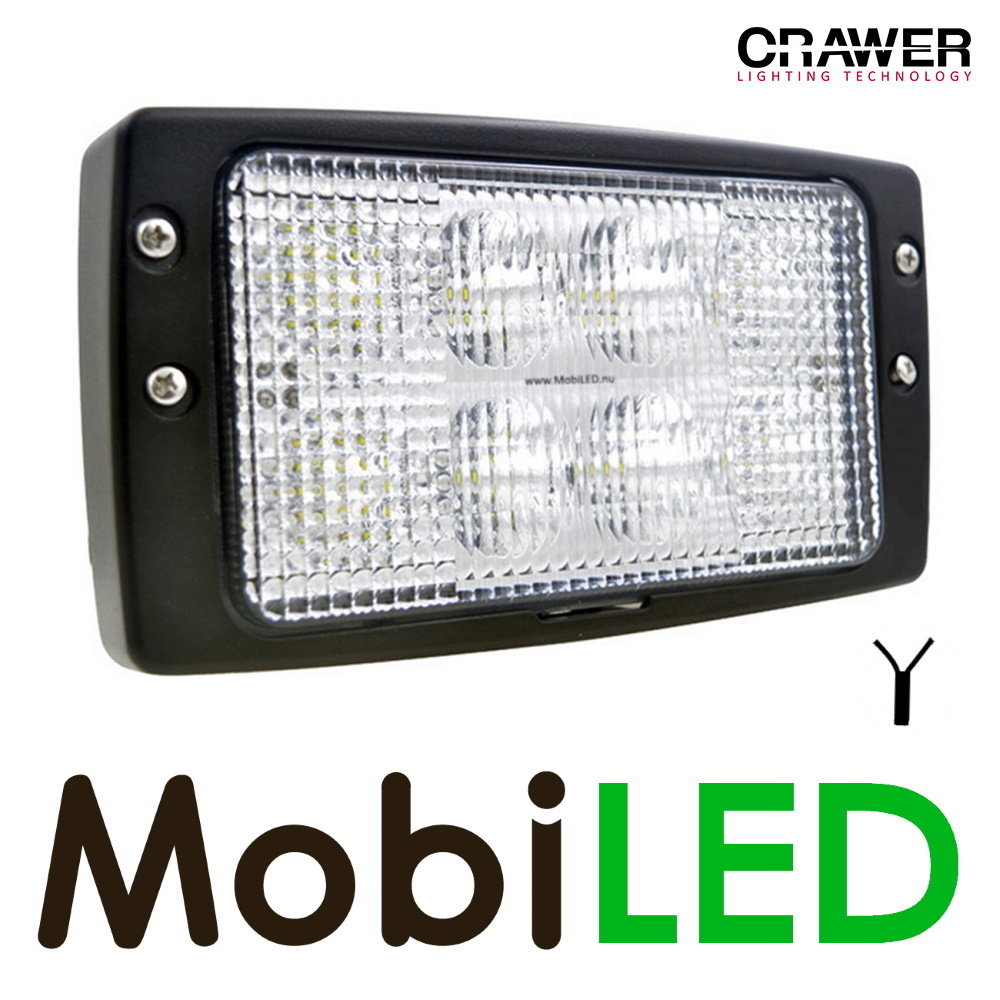

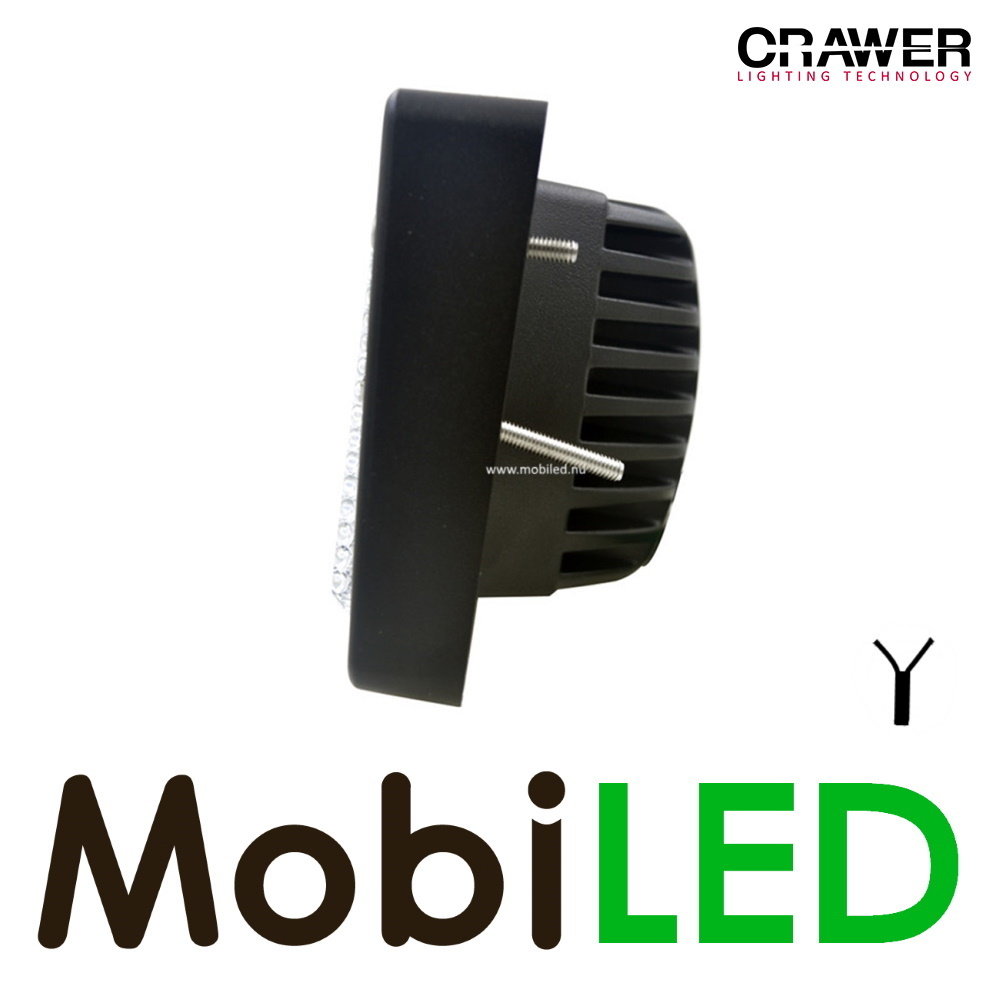

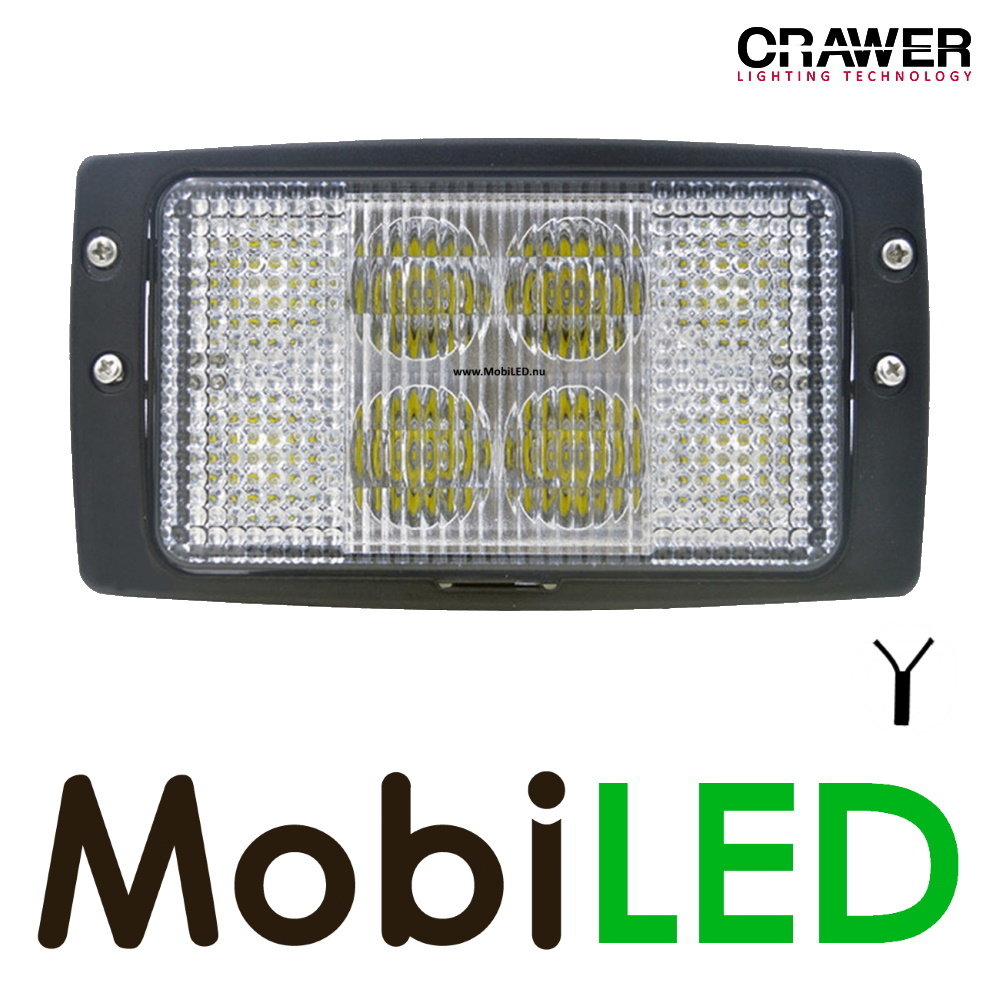

Flush mounting headlight 40W EMC (LED replacement unit Hella)
Headlights for the roof edge of your tractor, shovel or excavator. With this LED fixture you can replace the Hella units one on one. No more problems with low light, high power consumption or blown switches. Eight 5 watt CREE XT-E LEDs with a total power of 40 watts provide very good light output. This lamp provides you with 3600 lumens. Low beam and high beam in one lamp. Finally light as it was intended. Of course this lamp is 100% radio suppressed and IP68 waterproof.
This lamp is also available as a work lamp.
Replacement for Hella 1GB006213107, Hella 1GB006213117, Hella 1GB990306061, Case IH 060507067, Case IH 98046171, Case 84814940, Catapillar 1206776, Claas 06259140, Hako 90740994, John Deere AZY75365A, John Deere AZ41570, Komatsu 4240149M91, Liebherr 10007848, Liebherr 6001546, Massey20 Ferguson 11 Holland 98611390, New Holland 84814940, etc. etc.
Product specifications
- Article number
- WL090

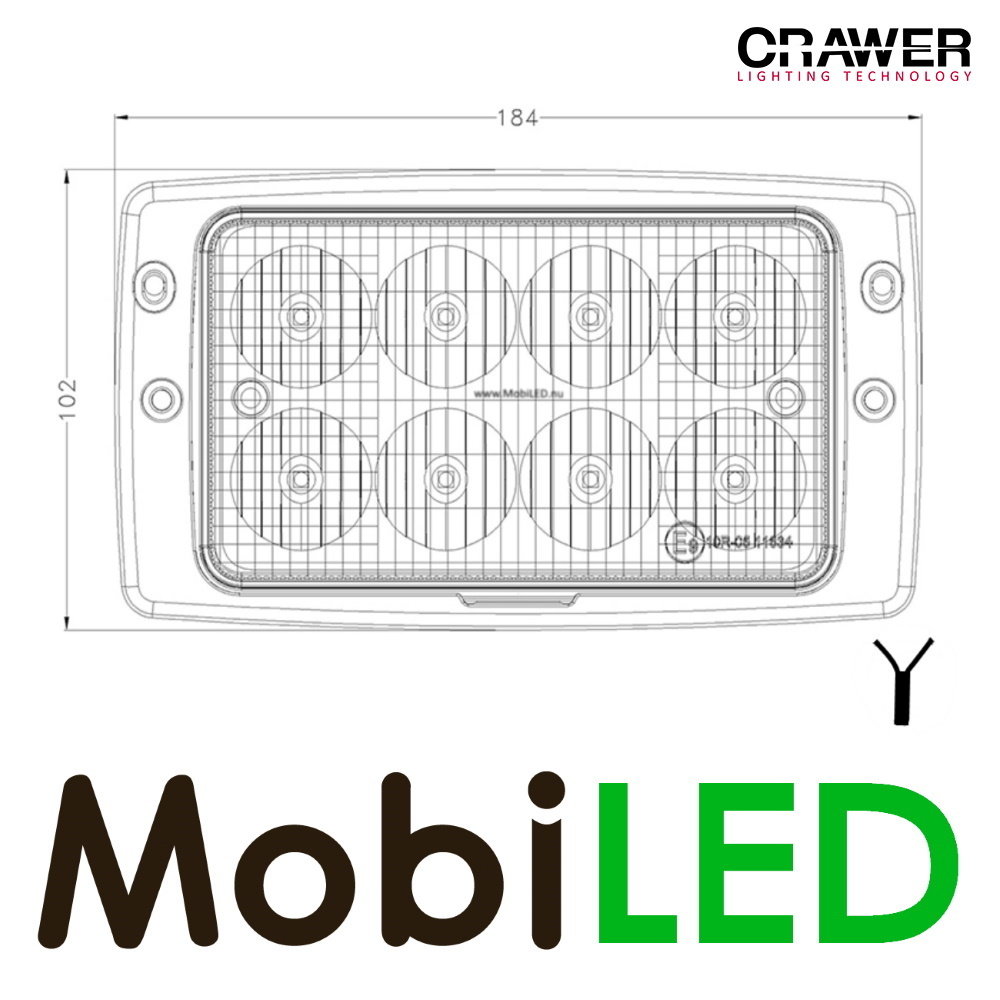

- Length (cm)
- 18,4
- Height (cm)
- 10,2

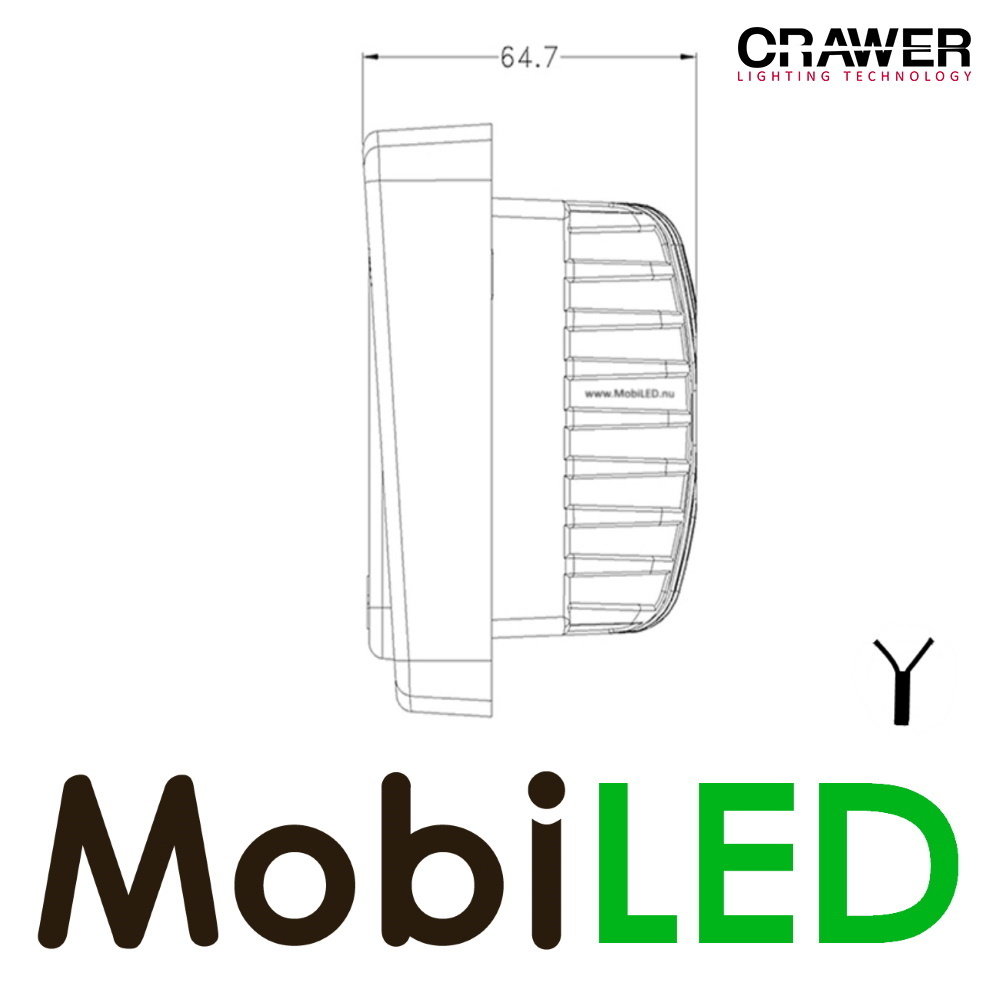

- Depth (cm)
- 6,47
- Shape
- Elongated
- Tension
- 10-30V
- Power
- 40W
- Light image
- Combo
- Lumens
- 3600
- Light colour
- Bright white (6000-6500K)
- LED Type
- CREE
- Number of LEDs
- 8
- Lens material
- PMMA
- Housing material
- Aluminum (powder coated)
- Mounting type
- Screw
- Bolt spacing / bolt size (cm)
- 16
- Connection
- Cable
- Flush-mounted / surface-mounted
- Flush-mount
- Certification
- R10, EMC (CISPR Class 4)
- IP rating
- IP68
- Packed per
- 1
- Manufacturer article number
- 7435145532513 / CRW-5402
