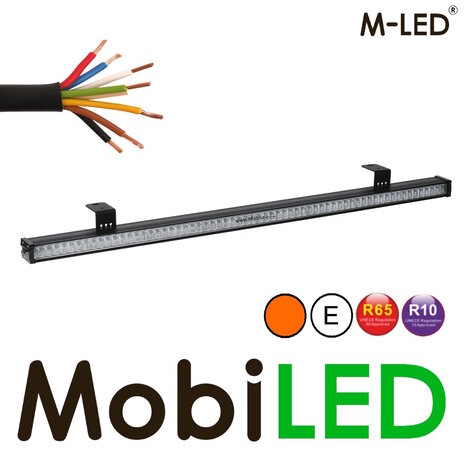

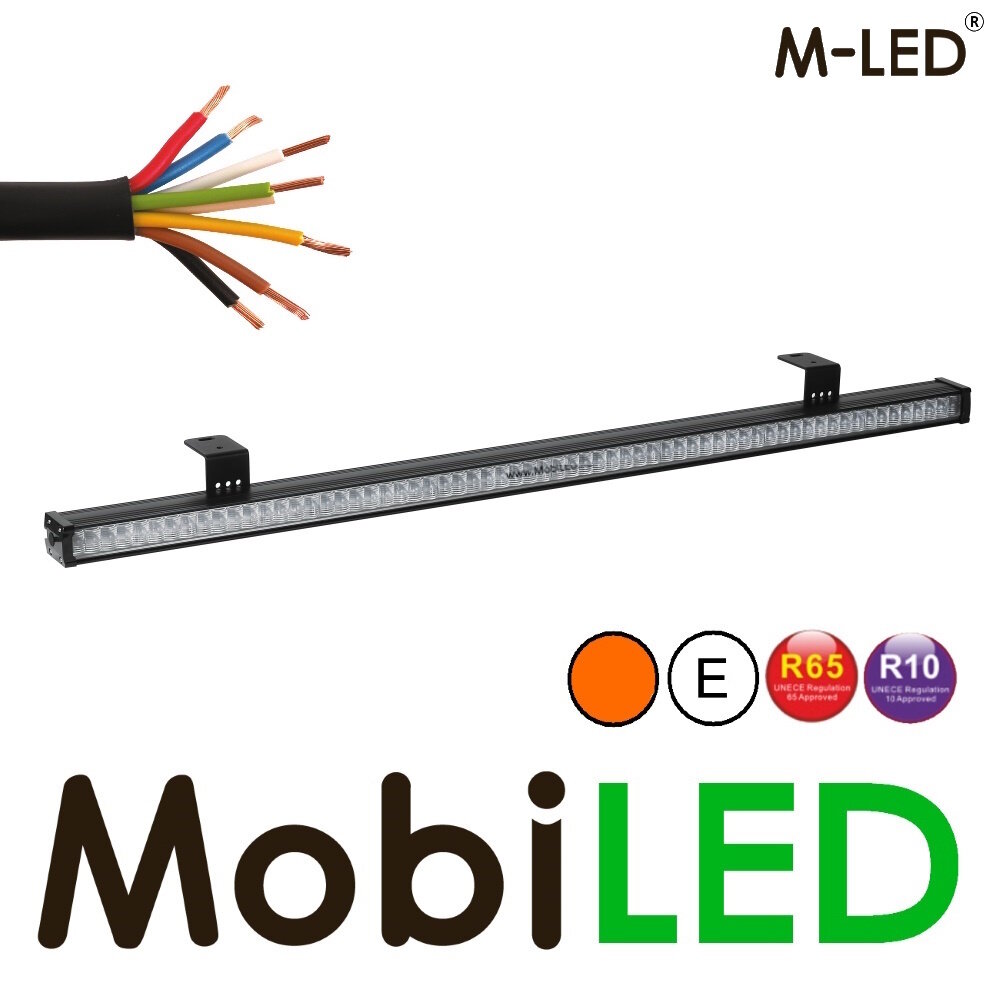

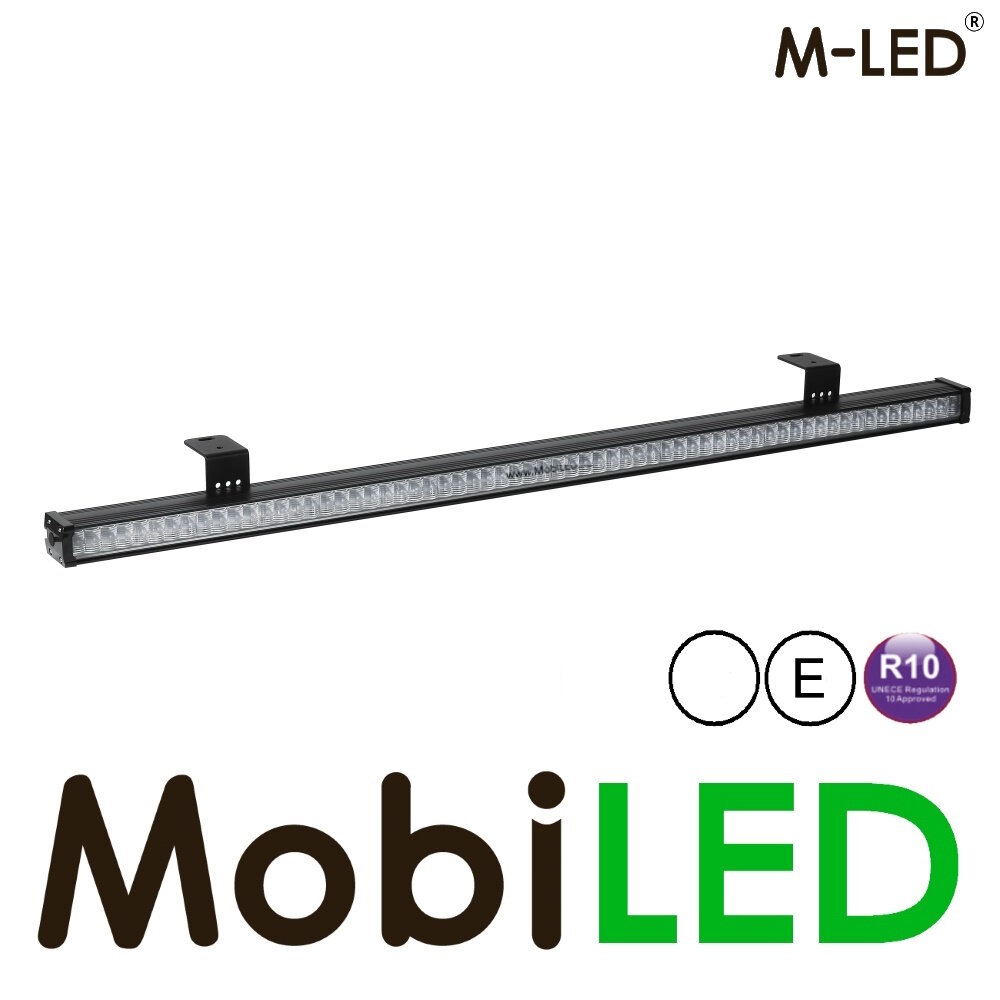

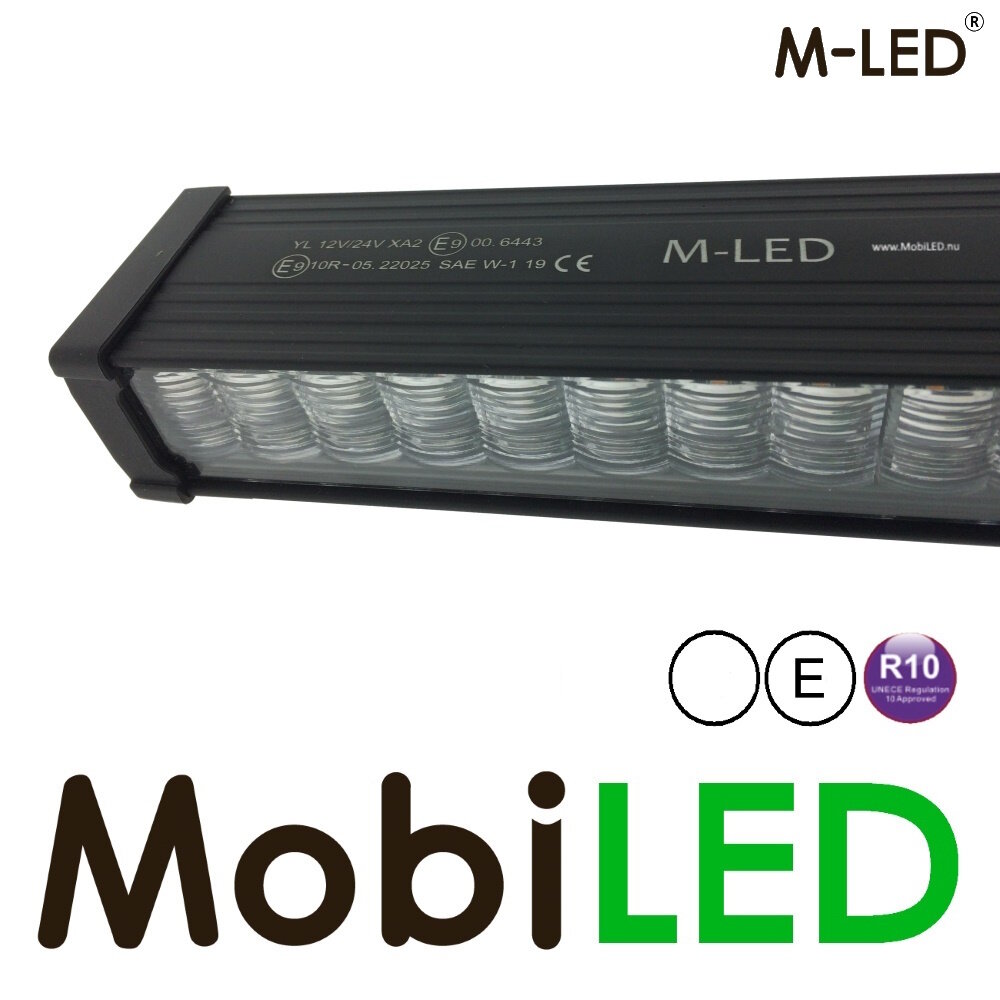

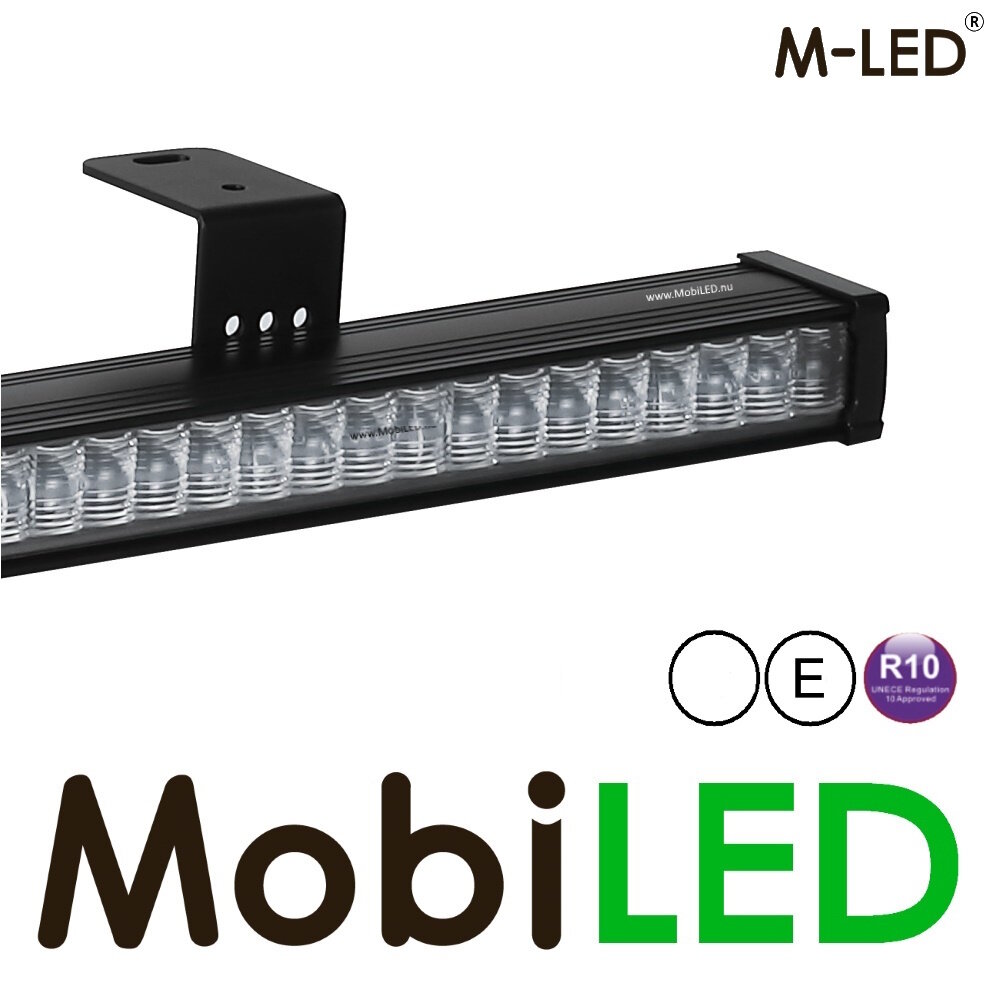

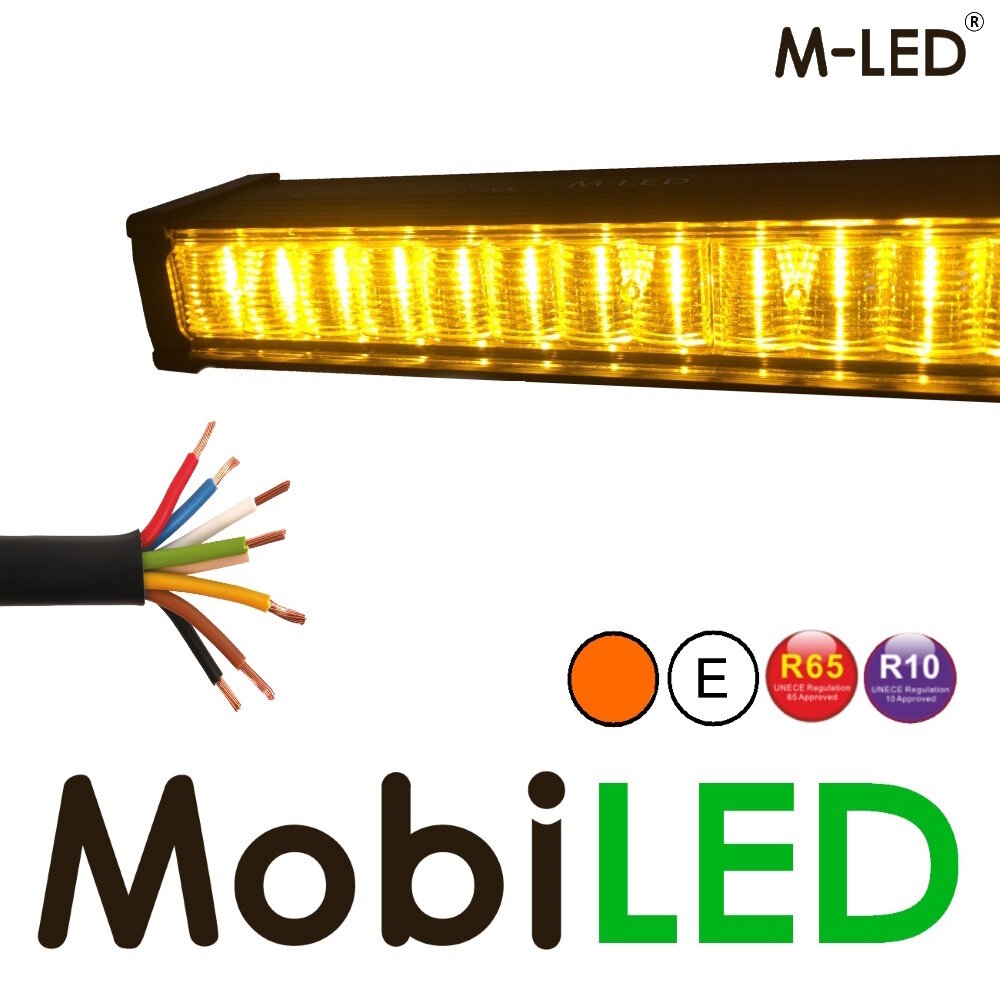

M-LED Traffic advisor amber + connection cable

With M-LED's traffic advisor you are extra visible and safe. This bar with bright flashers is clearly visible from a great distance. No less than 15 different flash patterns, including directional so that traffic can be steered to the left or right. The advisor is compact, 1176 x 59 x 46 mm and is easy to mount with the supplied brackets, see manual.
This roof set does not have a controller, but is connected to an existing panel.

Specifications:

• Voltage: 12-24 VDC
• Patterns: 15 pieces (including directional)
• Color: amber
• Number of LEDs: 64
• Size: 1176 x 59 x 46 mm
• Water resistance: IP67
• Certification: ECE R65 XA2, SAE J595 Class 1 (amber)
• Reverse Polarity Protection

Connection diagram:

• Red: VDC
• Black: mass
• Yellow: pattern selection
• White: sync
• Blue: traffic advisor center to the side (arrow)
• Brown: traffic advisor from left to right
• Green: traffic advisor from right to left
