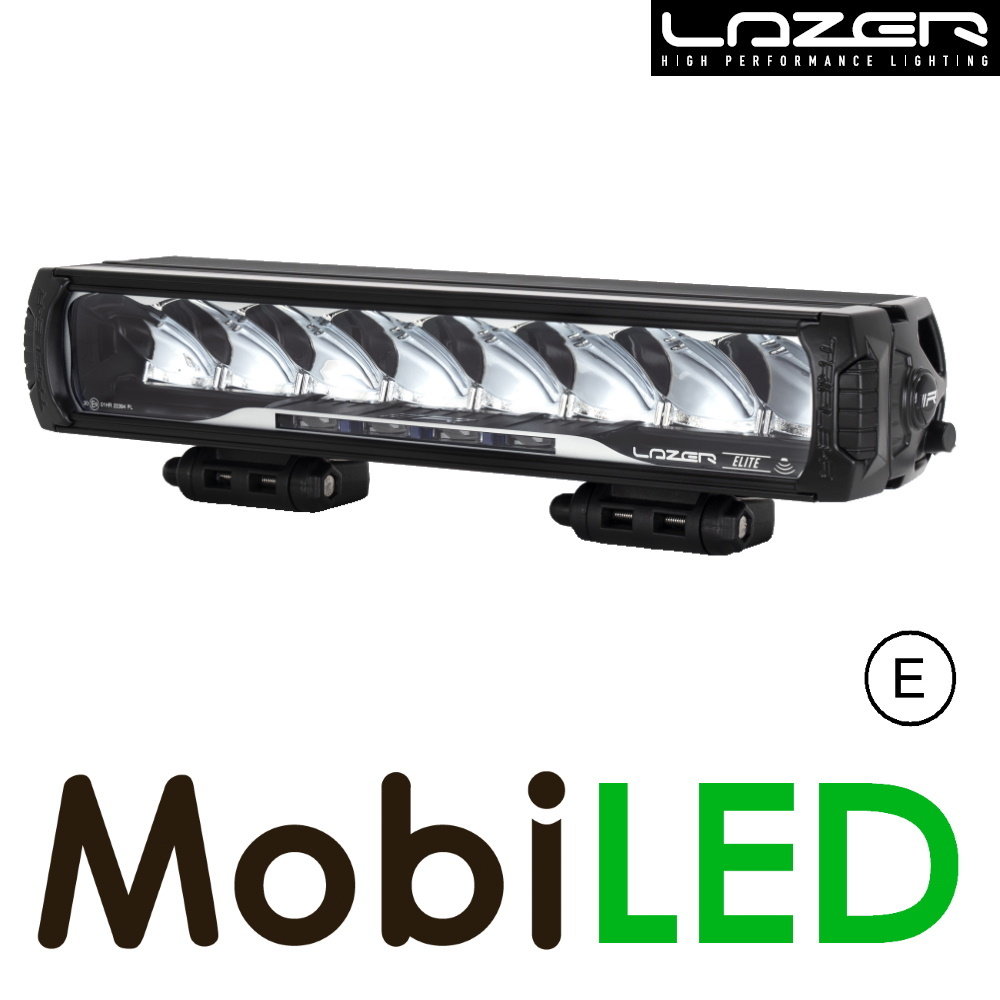

LAZER Triple-R 1000 elite with i-LBA 410 mm 111W
![LAZER LAZER Triple-R 1000 elite with i-LBA 410 mm 111W LAZER LAZER Triple-R 1000 elite with i-LBA 410 mm 111W](https://cdn.webshopapp.com/shops/73605/files/396530440/78x78x2/lazer-lazer-triple-r-1000-elite-with-i-lba-410-mm.jpg)
![LAZER LAZER Triple-R 1000 elite with i-LBA 410 mm 111W LAZER LAZER Triple-R 1000 elite with i-LBA 410 mm 111W](https://cdn.webshopapp.com/shops/73605/files/396530442/78x78x2/lazer-lazer-triple-r-1000-elite-with-i-lba-410-mm.jpg)
![LAZER LAZER Triple-R 1000 elite with i-LBA 410 mm 111W LAZER LAZER Triple-R 1000 elite with i-LBA 410 mm 111W](https://cdn.webshopapp.com/shops/73605/files/396529837/78x78x2/lazer-lazer-triple-r-1000-elite-with-i-lba-410-mm.jpg)
![LAZER LAZER Triple-R 1000 elite with i-LBA 410 mm 111W LAZER LAZER Triple-R 1000 elite with i-LBA 410 mm 111W](https://cdn.webshopapp.com/shops/73605/files/396529838/78x78x2/lazer-lazer-triple-r-1000-elite-with-i-lba-410-mm.jpg)
![LAZER LAZER Triple-R 1000 elite with i-LBA 410 mm 111W LAZER LAZER Triple-R 1000 elite with i-LBA 410 mm 111W](https://cdn.webshopapp.com/shops/73605/files/396530443/78x78x2/lazer-lazer-triple-r-1000-elite-with-i-lba-410-mm.jpg)
![LAZER LAZER Triple-R 1000 elite with i-LBA 410 mm 111W LAZER LAZER Triple-R 1000 elite with i-LBA 410 mm 111W](https://cdn.webshopapp.com/shops/73605/files/396530693/78x78x2/lazer-lazer-triple-r-1000-elite-with-i-lba-410-mm.jpg)
![LAZER LAZER Triple-R 1000 elite with i-LBA 410 mm 111W LAZER LAZER Triple-R 1000 elite with i-LBA 410 mm 111W](https://cdn.webshopapp.com/shops/73605/files/396530444/78x78x2/lazer-lazer-triple-r-1000-elite-with-i-lba-410-mm.jpg)
![LAZER LAZER Triple-R 1000 elite with i-LBA 410 mm 111W LAZER LAZER Triple-R 1000 elite with i-LBA 410 mm 111W](https://cdn.webshopapp.com/shops/73605/files/396530446/78x78x2/lazer-lazer-triple-r-1000-elite-with-i-lba-410-mm.jpg)

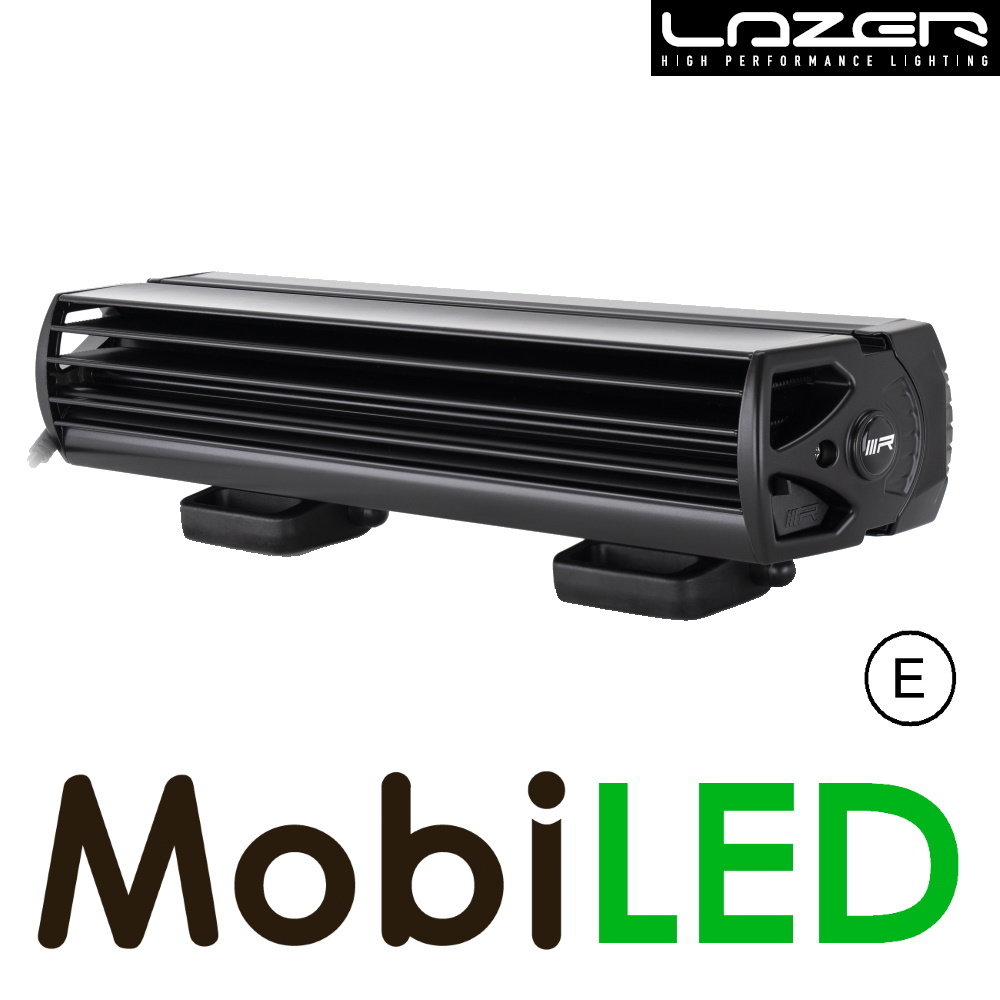

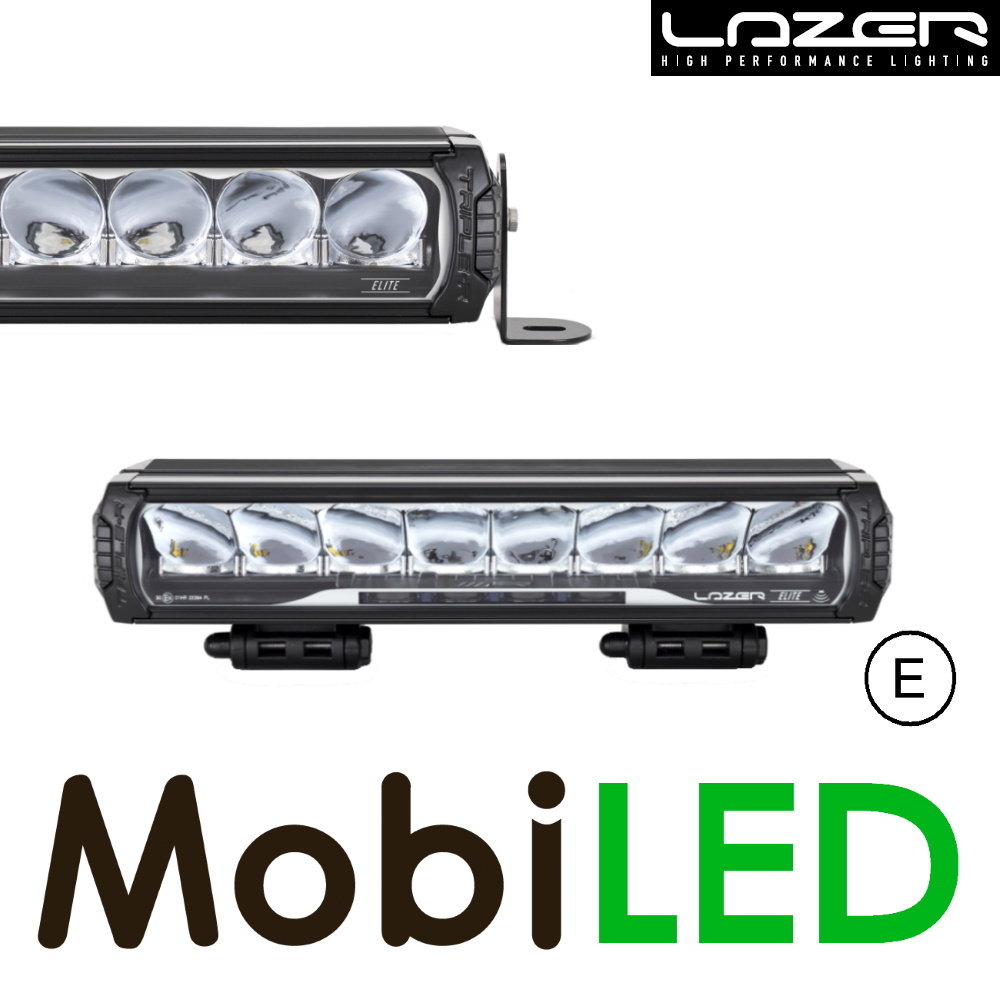

The LAZER Triple-R 1000 elite with i-LBA has an exceptional light output. The Triple-R elite lights are LAZER's most powerful driving lights. The high efficient LEDs and the ultra-reflective vacuum metallic lens deliver spot beam pattern and still providing excellent left/right spread.
A special feature of this LED bar is the intelligent Low Beam Assist (i-LBA). It monitors 30 times a second for oncoming traffic. If oncoming traffic is detected and the standard high beams are turned off (either manually or as part of any vehicle’s automatic headlights function) the high-intensity LEDs which illuminate the distance, are also immediately deactivated. Additional illumination at either side of the road is deactivated a bit later. As soon as the oncoming vehicle has past, these additional lights are automatically reactivated after a short delay. When the high beam driving lights are switched on again (either manually or automaticly) the high-intensity LEDs are also activated again.
The electronic heat management system optimises light output making the LEDs last longer. The aluminium housing is anodised and powder-coated, offering protection against corrosion and chemicals. The lens is made of virtually unbreakable polycarbonate with hardcoat lacquer.

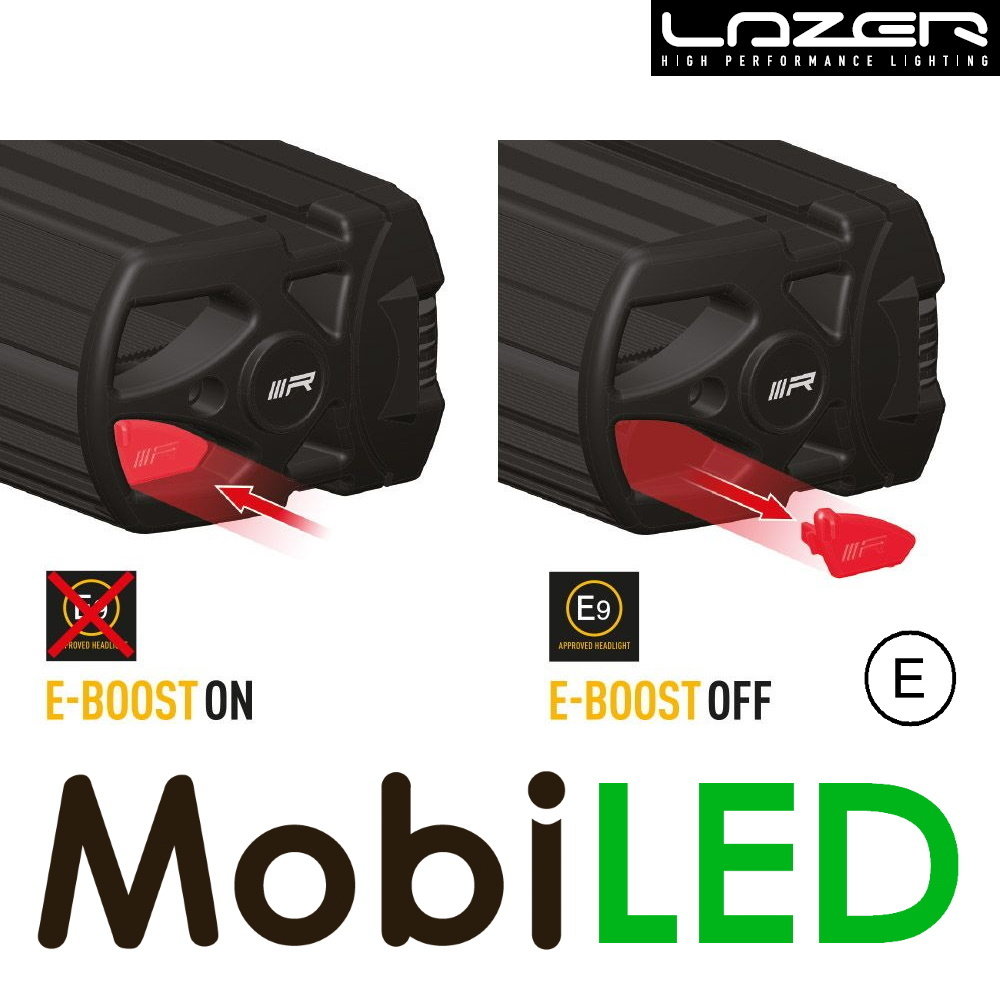

Thanks to E-Boost technology, this light bar can be operated in two modes: E-Boost and E-Certified mode. E-Boost mode gives a higher light output than the UNECE R112 allows. Therefore, the LED bar is only R112 certified in E-Certified mode.

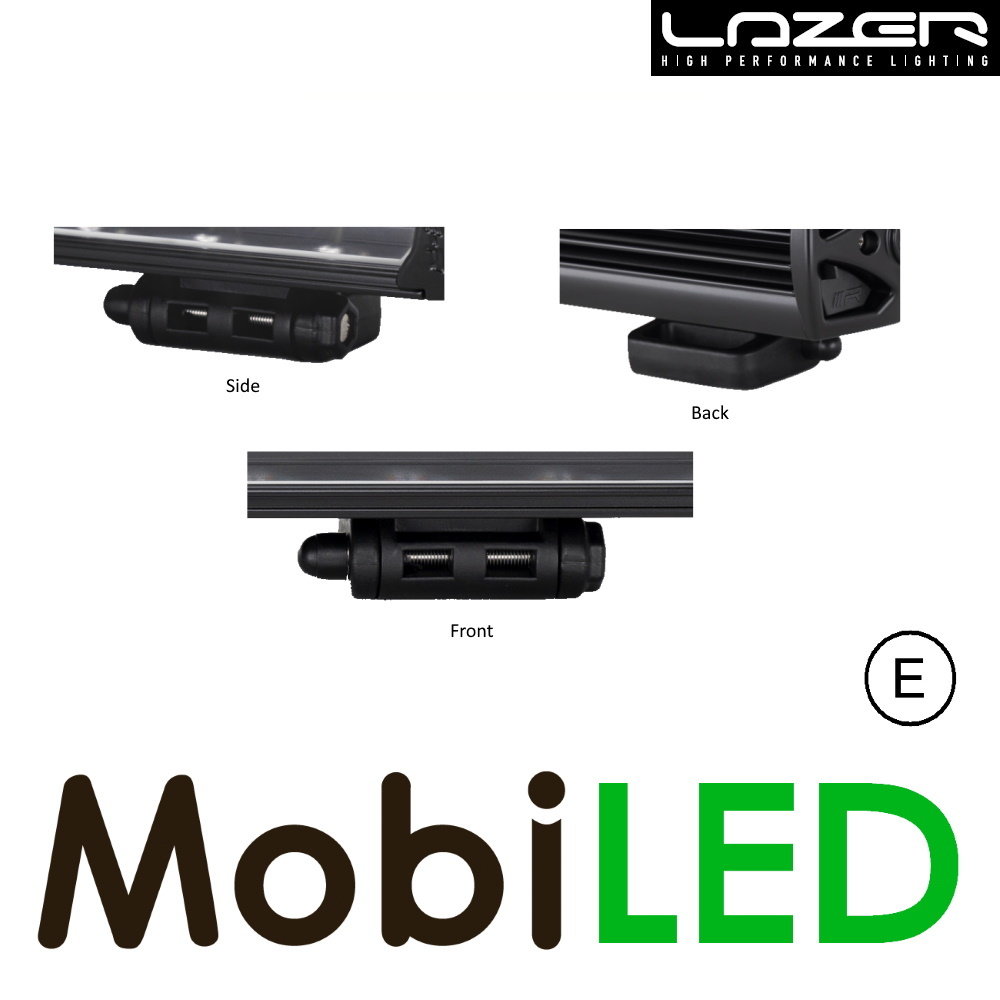

The LED bar can be mounted at the bottom with the supplied centre brackets. Side mounting is also possible, but the side brackets are not included. It is supplied with an LBA cable connection set for 1 lamp. This connection set includes a second switch with which the LBA function can be switched off and a 4-pin deutsch connector.
Triple-R LED bars impress, even before the sun goes down.
Video:
Product specifications
- Article number
- LB347

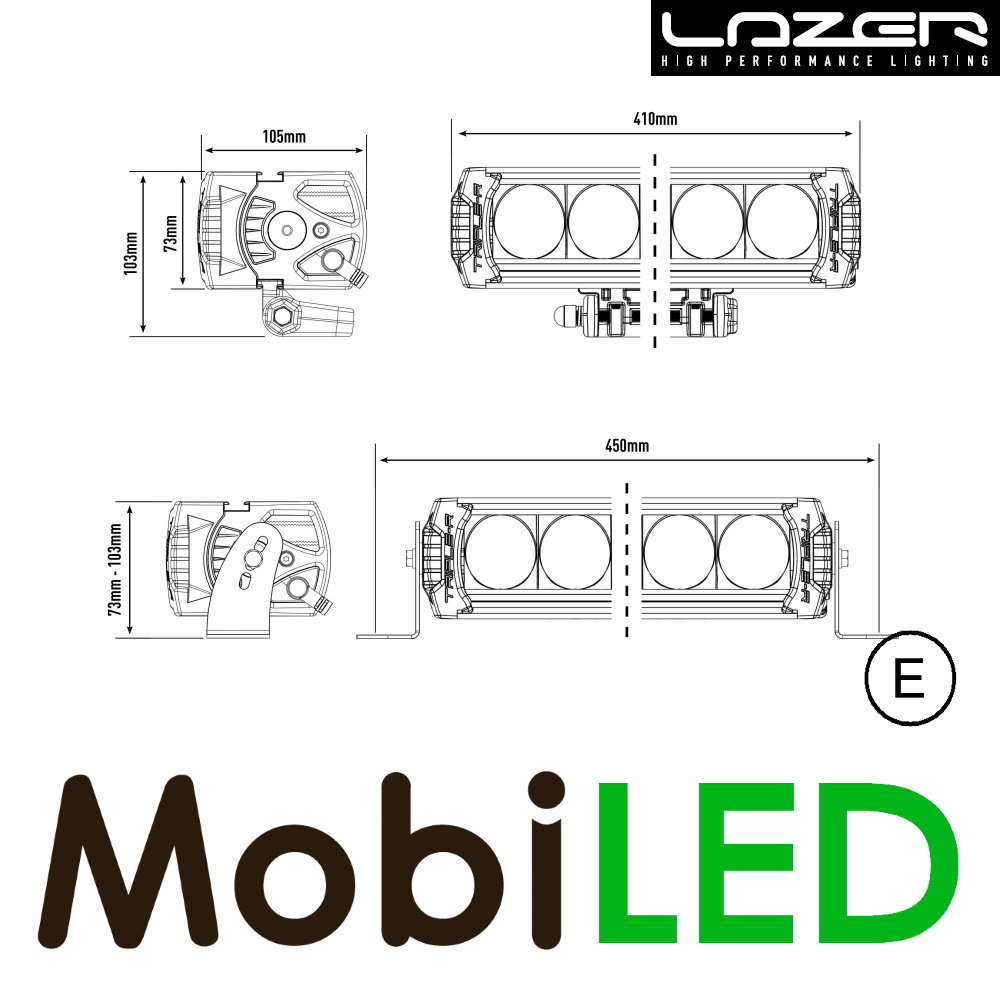

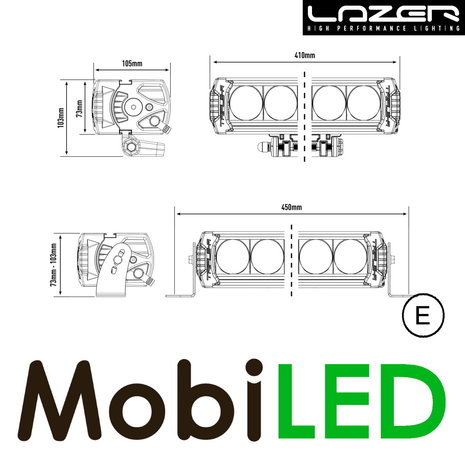

- Length (cm)
- 41 (45)
- Height (cm)
- 7,3
- Height incl bracket (cm)
- 10.3
- Depth (cm)
- 10,5
- Weight (gr)
- 1700
- Shape
- Elongated
- Tension
- 10-32V
- Power
- 111W (32W0
- Current draw
- 14,4V: 6,6A (2,3A)
- Lumens
- 11068 (2256) theoretical
- Light colour
- Bright white (4500-6000K)
- Number of LEDs
- 26
- Position light function
- No
- High beam function
- Yes
- Light image
- Flood

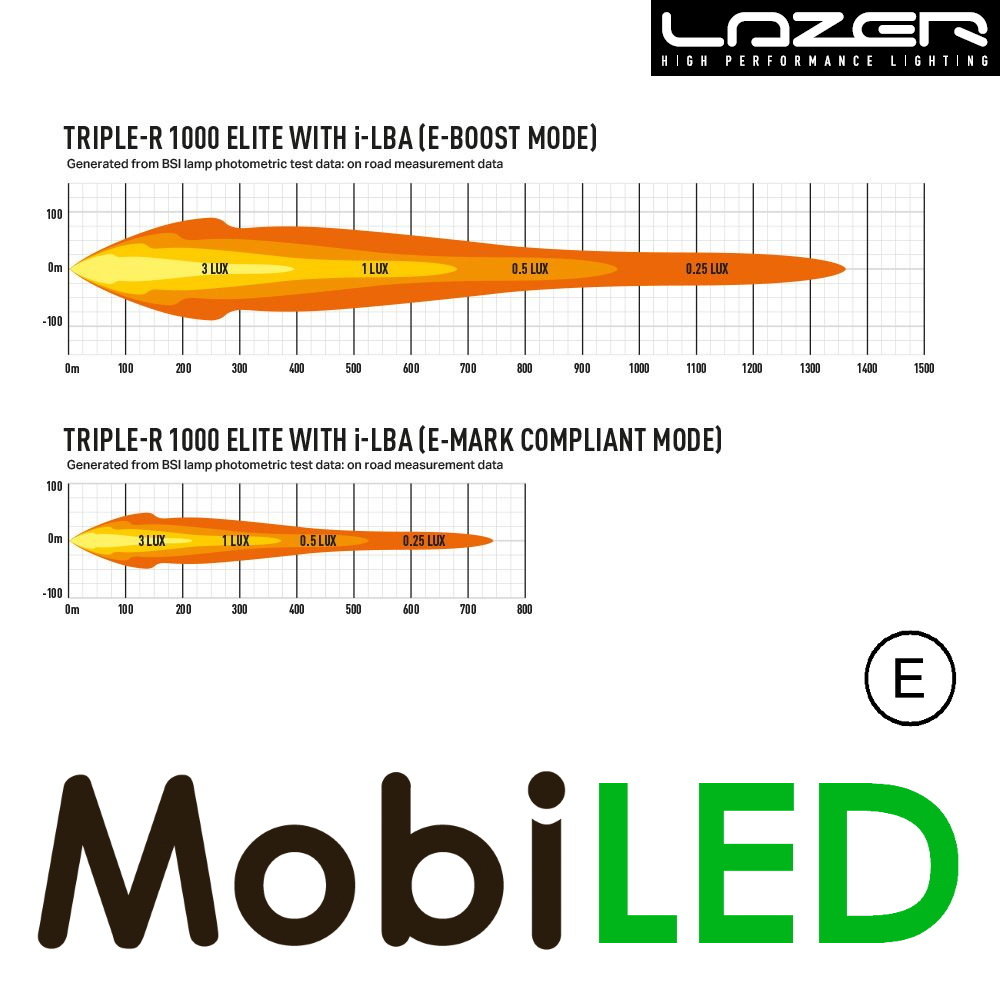

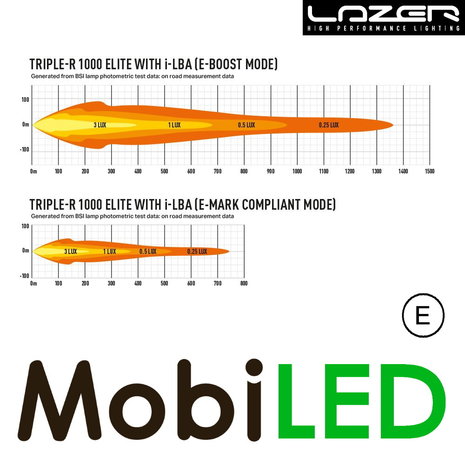

- Beam range

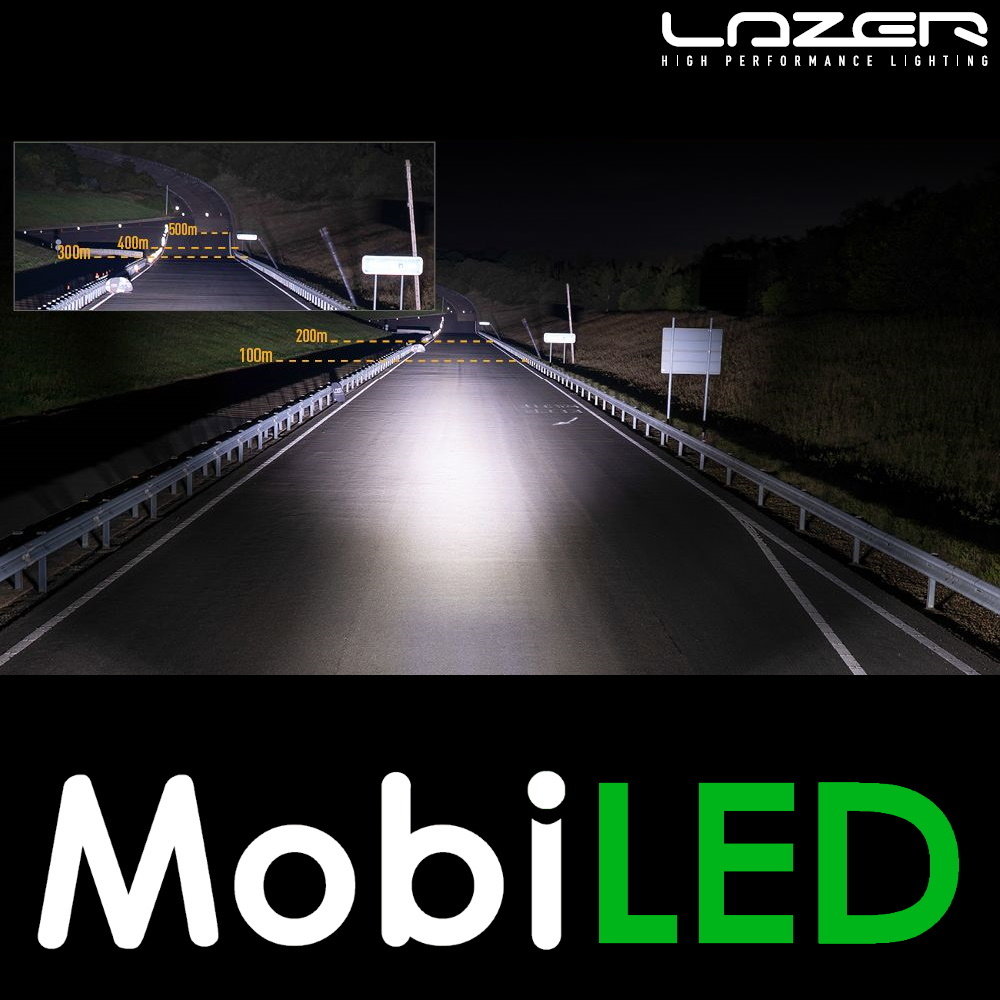

- 1 lux@681m (373m)/0,25 lux@1362m (746m)
- Housing colour
- Black
- Lens colour
- Transparant
- Housing material
- Aluminum (powder coated)
- Lens material
- PC
- Mounting bracket material
- Stainless steel
- Mounting type
- Bottom mounting
- IP rating
- IP67
- Certification
- R10, R112 (E-mark modus)
- Packed per
- 1
- Manufacturer article number
- 00R8-LBA-B
