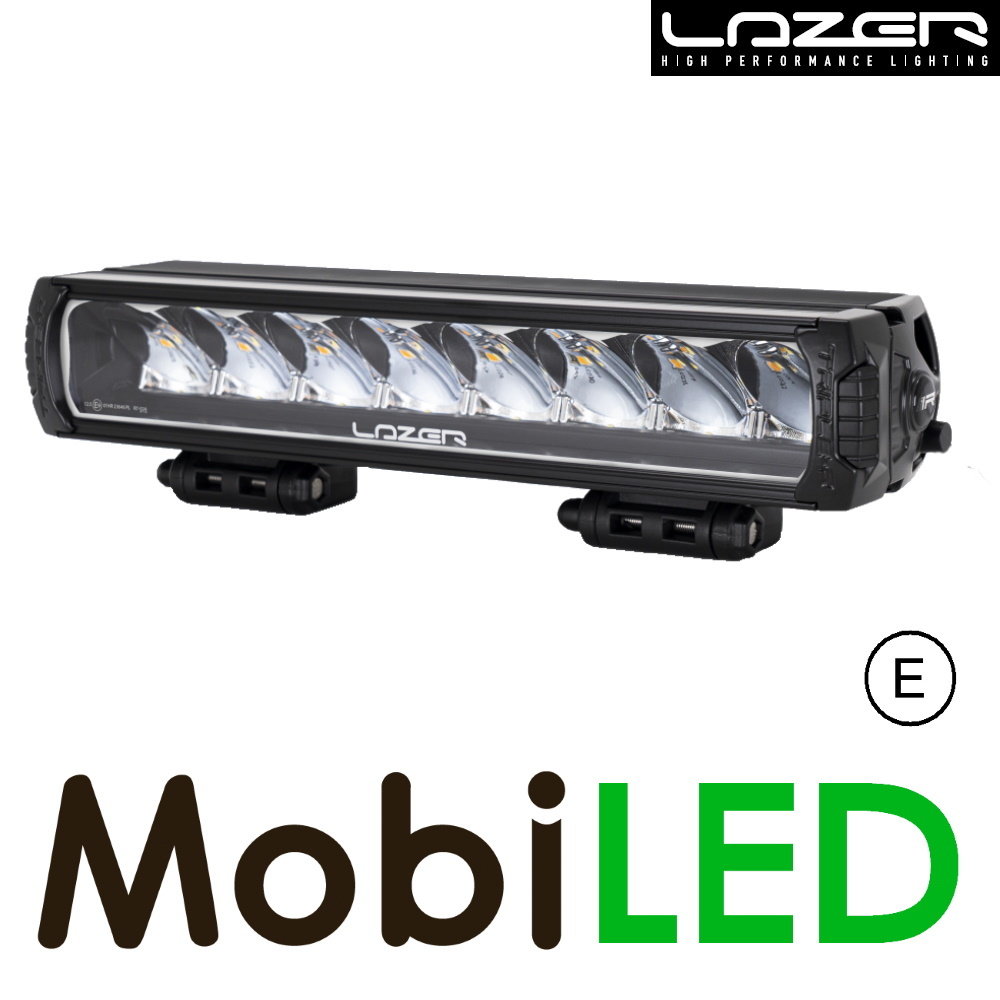

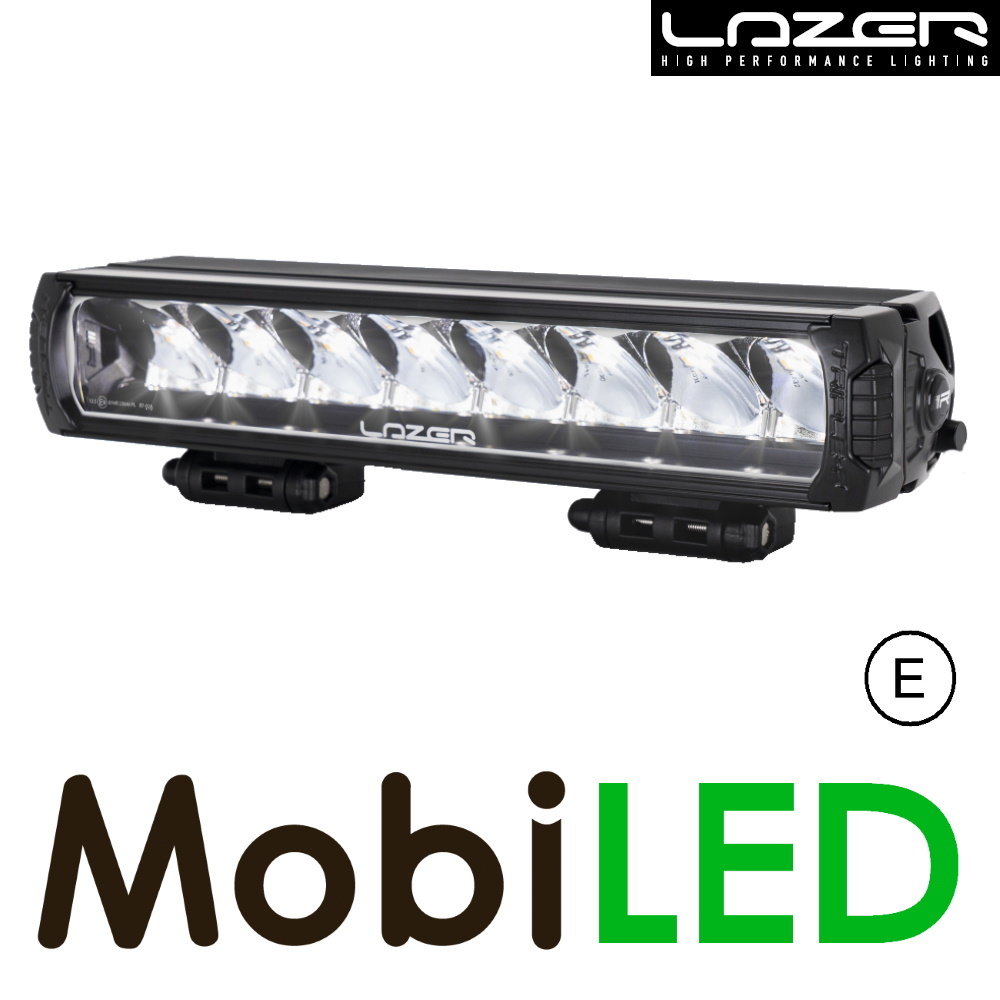

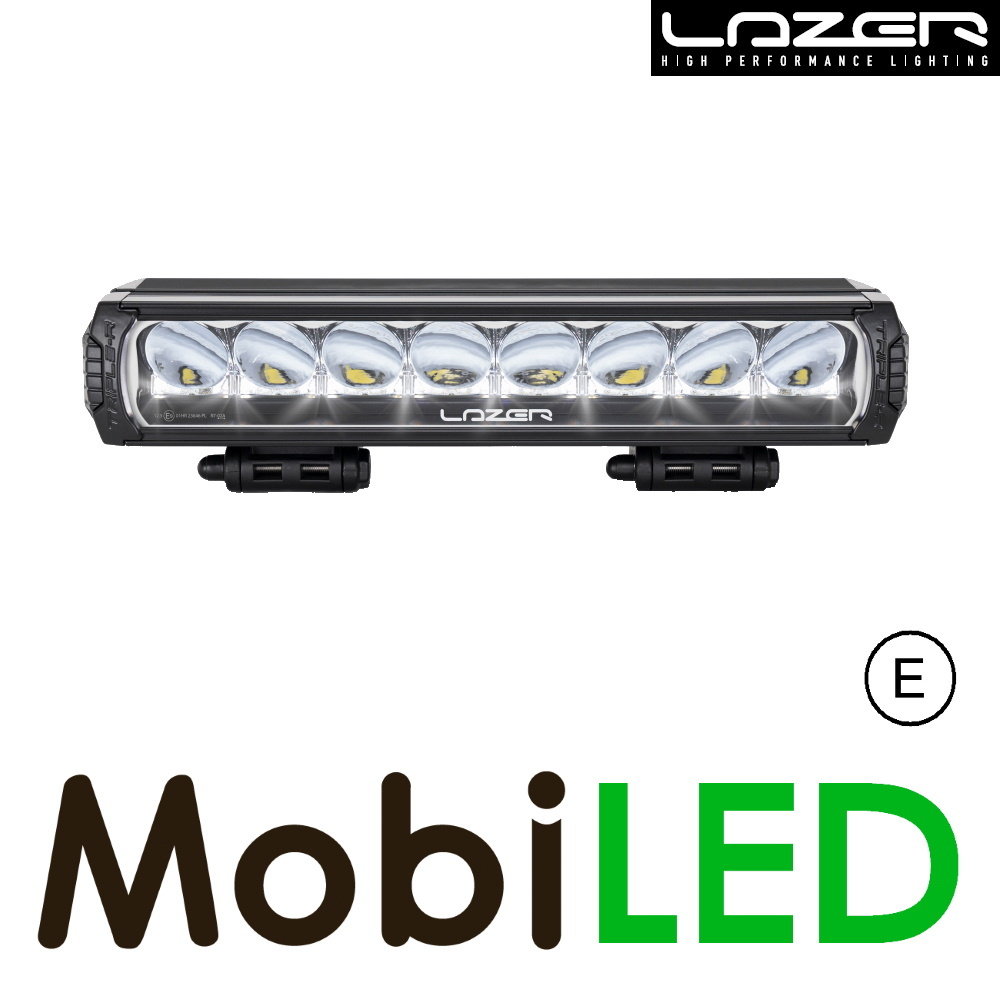

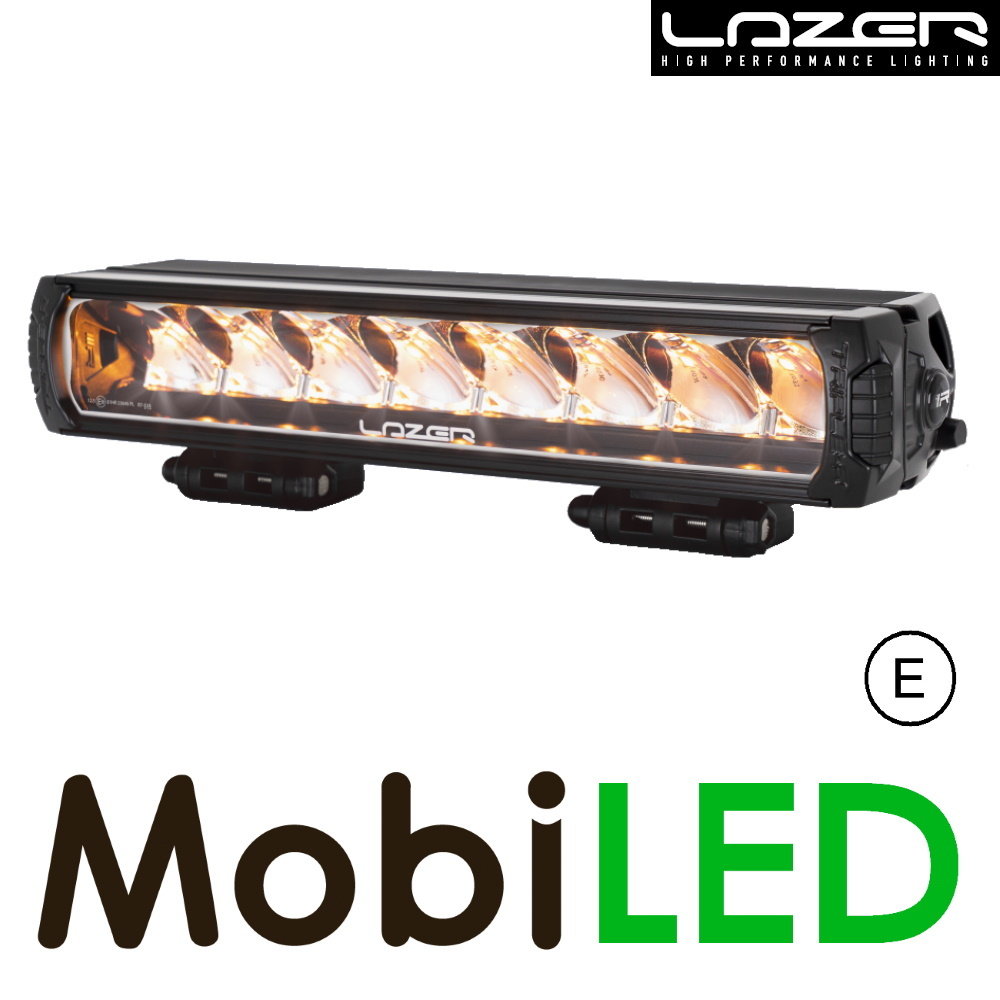

LAZER Triple-R 1000 with position light 410 mm 88W

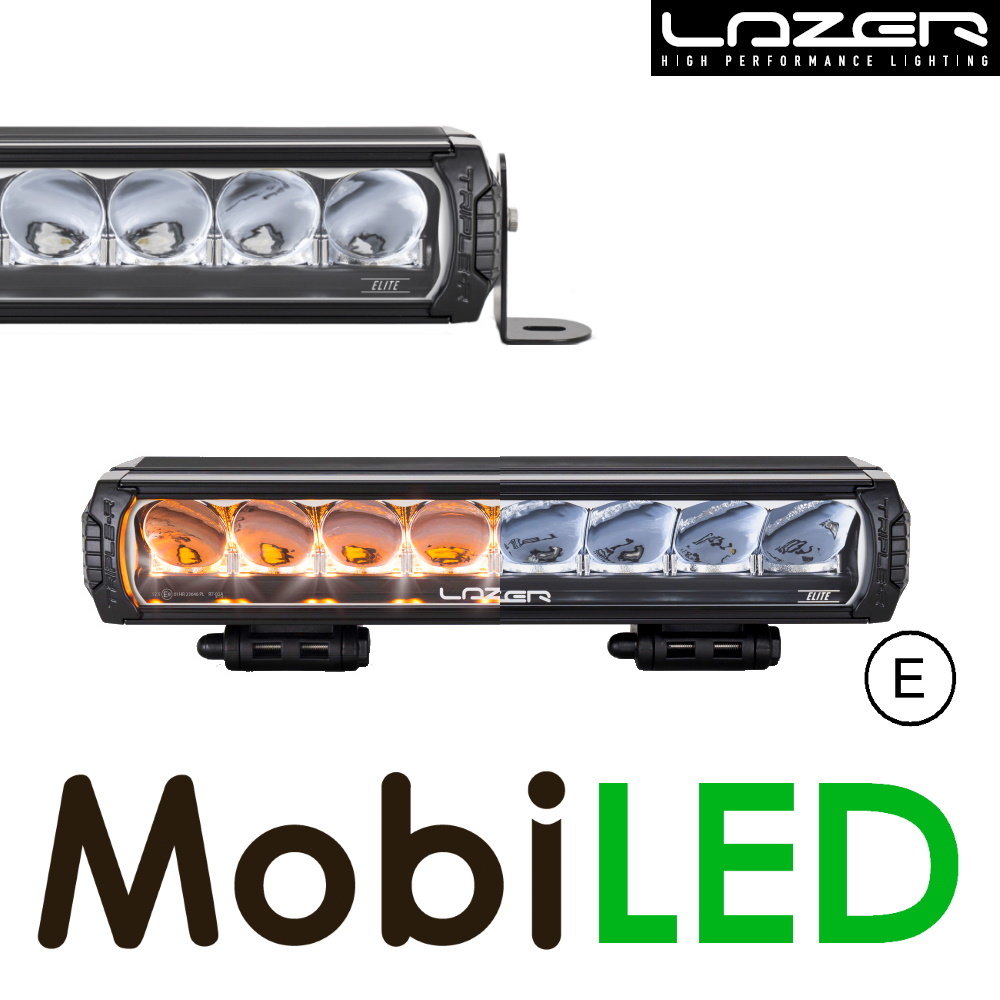

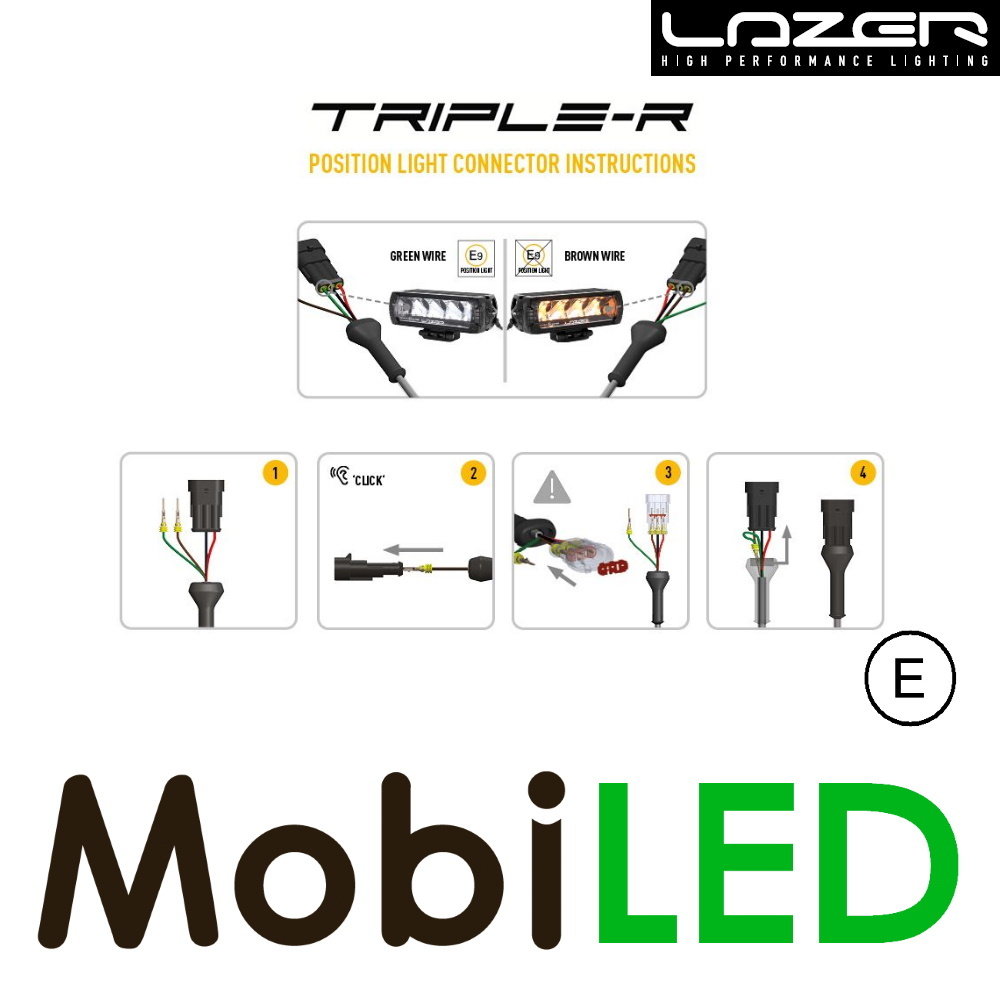

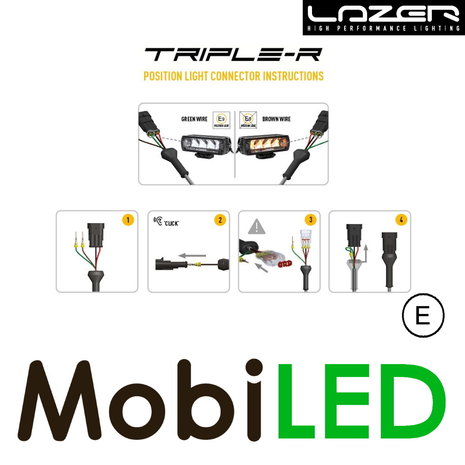

The LAZER Triple-R 1000 with position light has an exceptional light output. The 11W LEDs and the ultra-reflective vacuum metallic lens deliver spot beam pattern and still providing excellent left/right spread. On installing the lamp, either the white or the amber position light can be connected.
The electronic heat management system optimises light output making the LEDs last longer. The aluminium housing is anodised and powder-coated, offering protection against corrosion and chemicals. The lens is made of virtually unbreakable polycarbonate with hardcoat lacquer.

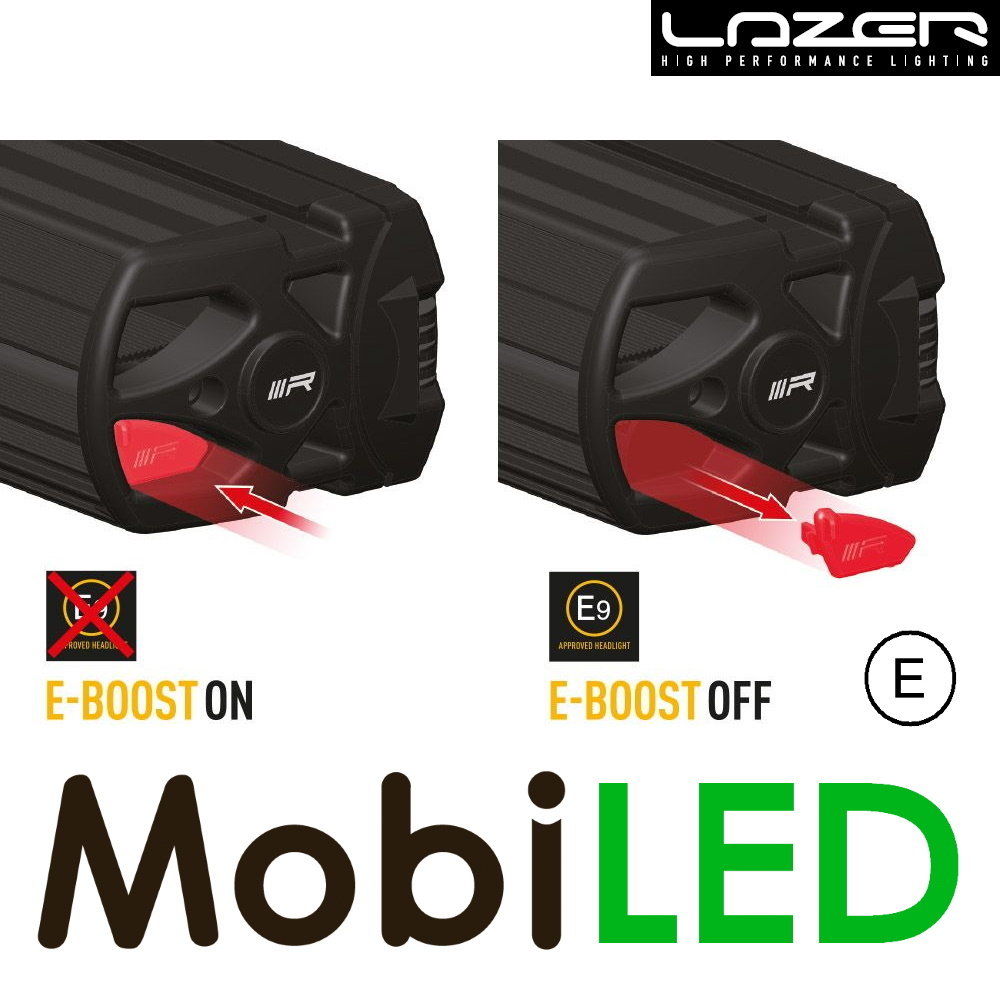

Thanks to E-Boost technology, this light bar can be operated in two modes: E-Boost and E-Certified mode. E-Boost mode gives a higher light output than the R112 allows. Therefore, the LED bar is only R112 certified in E-Certified mode. The Triple-R 1000 with position light is R7 certified for the white position light.
The LED bar can be mounted at the bottom with the supplied centre brackets. Side mounting is also possible, but the side brackets are not included. It comes with male/female 3-pin superseal connectors.
Triple-R LED bars impress, even before the sun goes down.
Video:
Product specifications
- Article number
- LB350

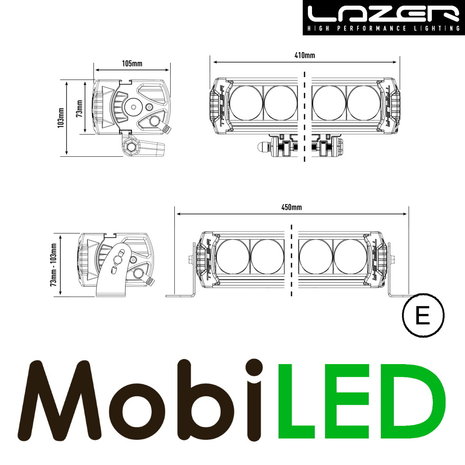

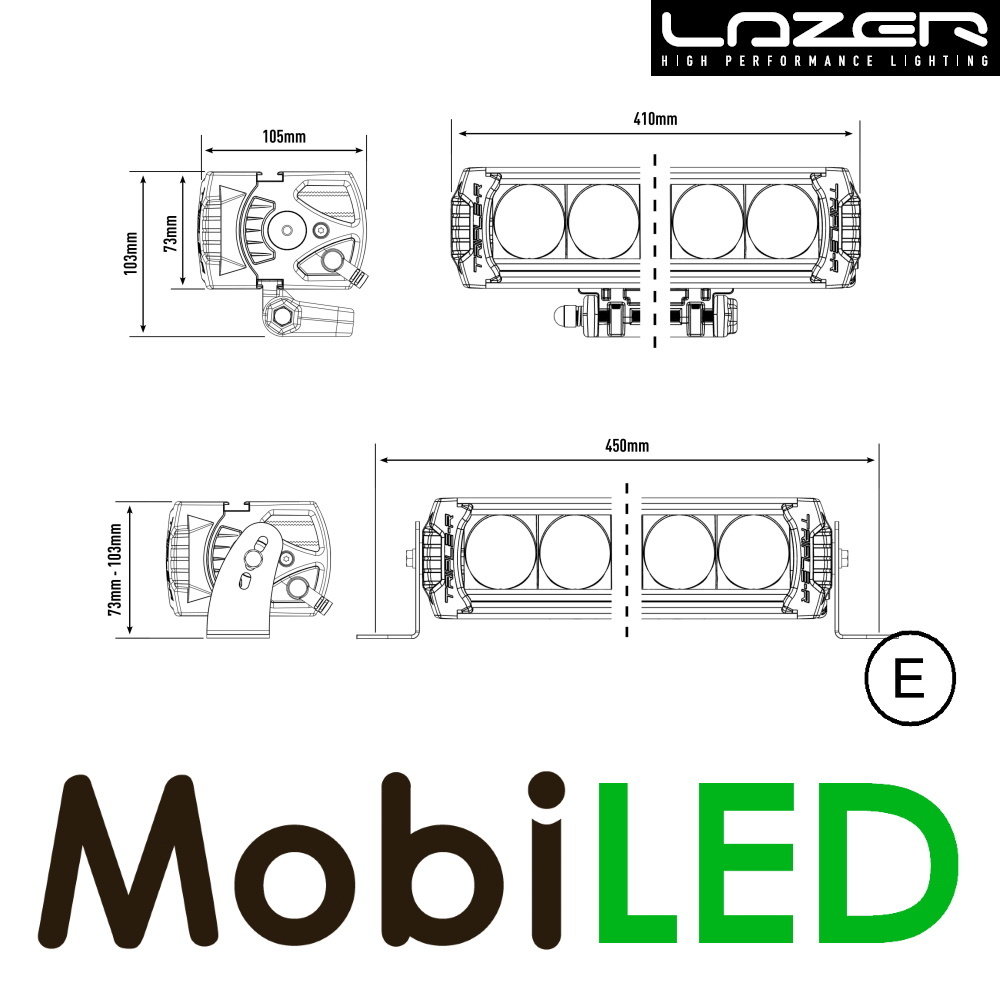

- Length (cm)
- 41 (45)
- Height (cm)
- 7,3
- Height incl bracket (cm)
- 10,3
- Depth (cm)
- 10,5
- Weight (gr)
- 1700
- Shape
- Elongated
- Tension
- 10-32V
- Power
- 88W (17,6W E-mark modus)
- Current draw
- 14,4V: 6,1A (E-mark modus 1,2A)
- Lumens
- 9240 (1848 E-mark modus) theoretical
- Light colour
- Bright white (4500-6000K)
- Number of LEDs
- 8

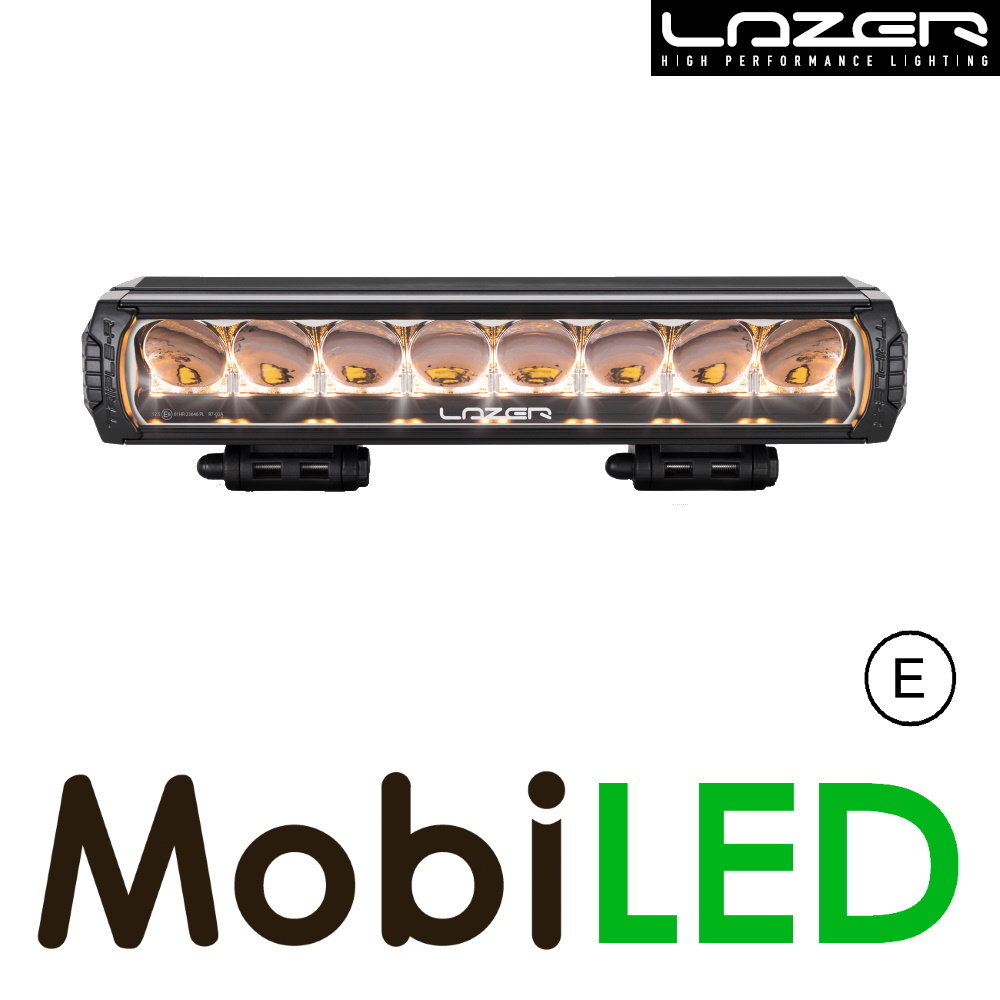

- Position light function
- Yes, white or amber
- High beam function
- Yes
- Light image
- Spot
- Beam range

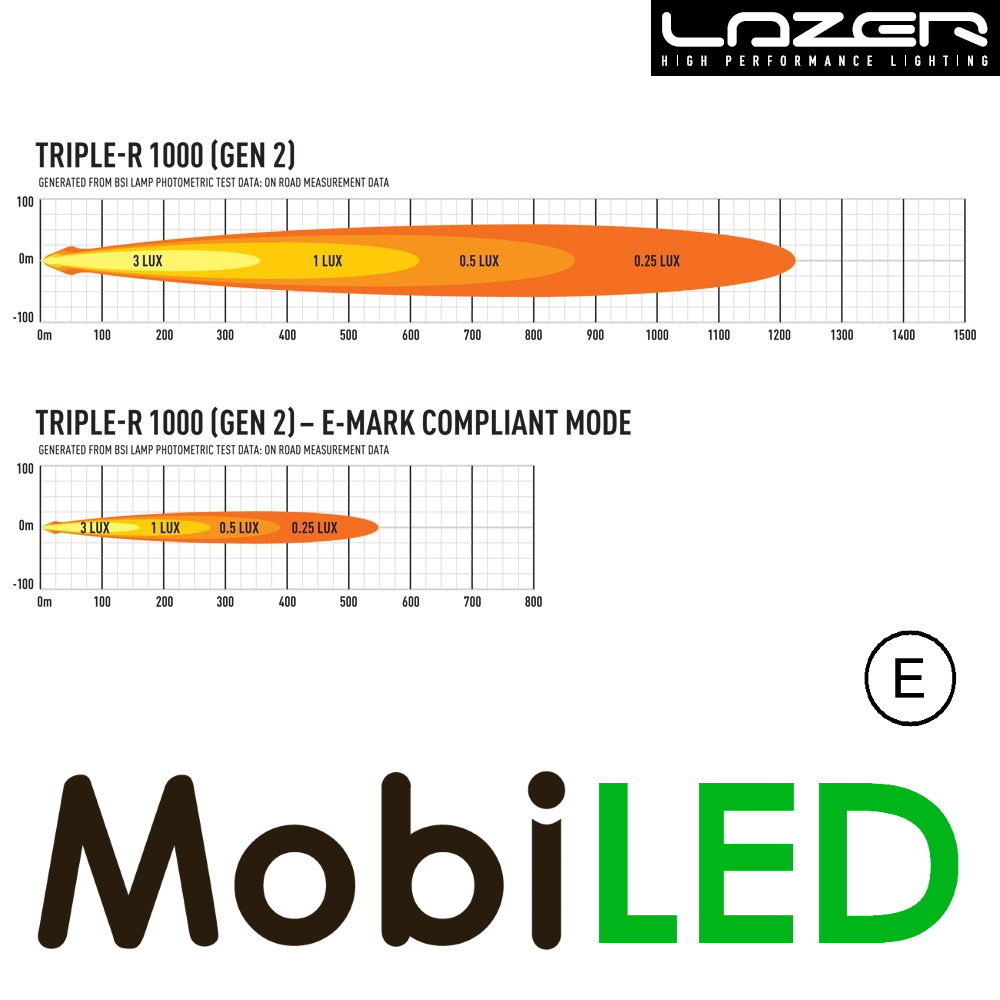

- 1 lux@612m (274m)/0.25 lux@1225m (548m)
- Housing colour
- Black
- Lens colour
- Transparant
- Housing material
- Aluminum (powder coated)
- Lens material
- PC
- Mounting bracket material
- Stainless steel
- Mounting type
- Bottom mounting
- Connection
- Superseal connector
- IP rating
- IP68
- Certification
- R10, R112 (E-mark modus), R7
- Packed per
- 1
- Manufacturer article number
- 00R8-G2-B
